Description
xProduct Parameters：
|
* Applicable Battery Recommended series cell: 18S-24S Cell voltage operating range: 2v-5v |
|
* Charge Charge Voltage: 48V-104V Charge Current: ≤10A Minimum operating voltage: 28V Abs. Max battery voltage: 120V |
|
* Discharge Continue discharge current: ≤70A Discharge voltage: 48V-104V |
|
* Over charge protection Over charge detect voltage: 2V-5V Over charge protection delay: ≥4ms Over charge release voltage: 2V-5V |
|
* Over discharge protection Over discharge detect voltage: 0-5V Over discharge release voltage: 0-5V |
|
* Over current protection Over current detect delay: ≥4ms Discharge over current protection release condition: off load |
|
* Short Circuit protection Short Circuit detect voltage: Short circuit of external load Short Circuit detect delay: 320us Short Circuit protection release: off load |
|
* Temp protect Temp protect: -20℃—+120℃ Working Temp Range: -20℃—+80℃ Storage Temp Range: -20℃—+100℃ |
Balance current: 50mA @4.2V |
|
* Self Consumption Working current: ≤40mA Sleeping current: ≤100uA |
Main Functions Description ——
Overcharge protection: Yes
Over discharge protection: Yes
Temperature protection: Yes
Thermal management: Yes
Balance function: Yes
Balance method: passive balance
Battery pack capacity detection: Yes
Battery internal resistance detection: Yes
Support battery: support almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc.
Features-

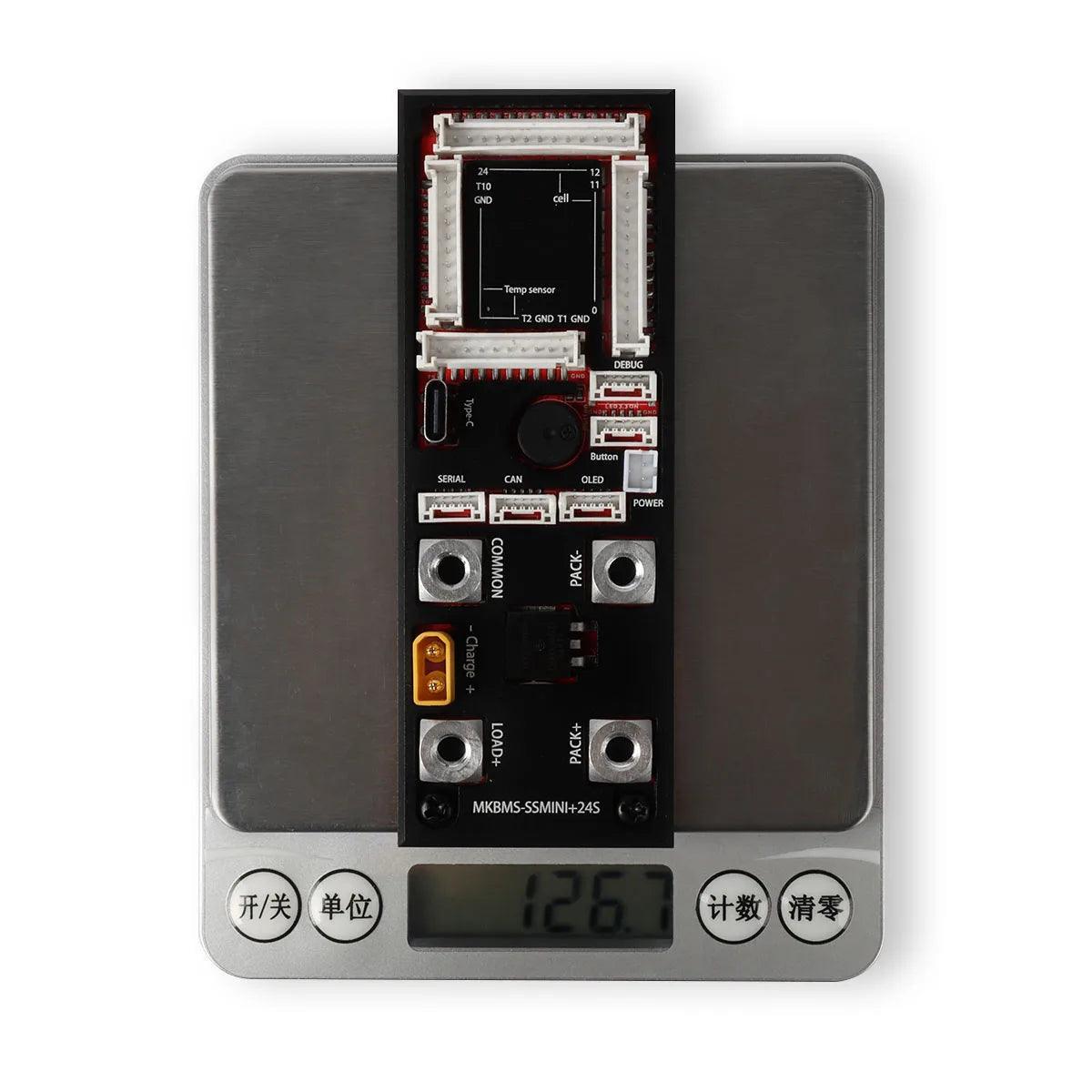

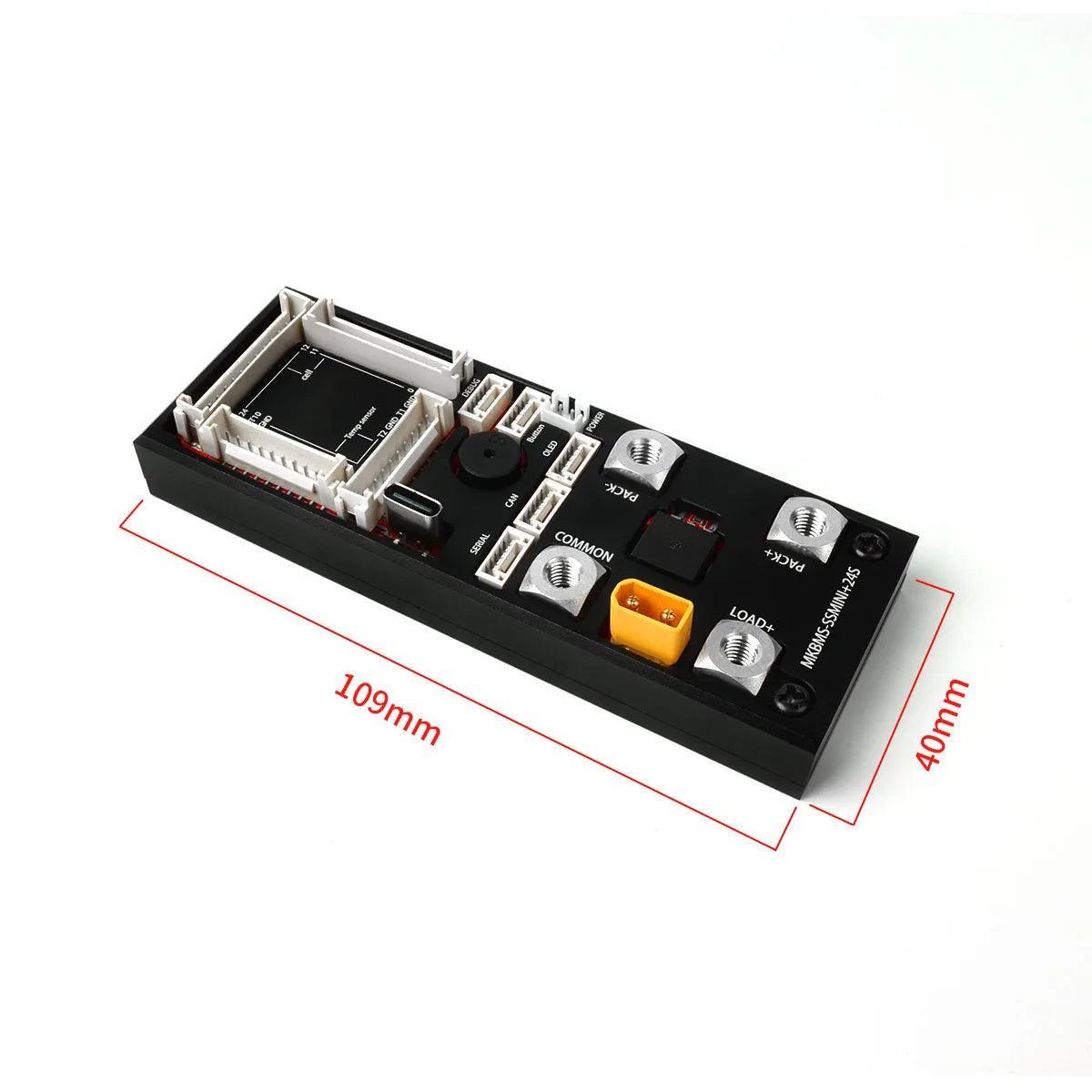

Compact layout and mini
Using aluminum alloy material shell, better heat dissipation.
Automotive grade design, automotive grade locking connector.
Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL.
Automotive grade monitoring & balancing IC with separate power supply for increased reliability
Voltages measurements for load, charger & battery pack
Bi-directional current monitoring
SOC based on coulomb counting
Humidity sensor & board temperature monitoring
Charger detection circuit

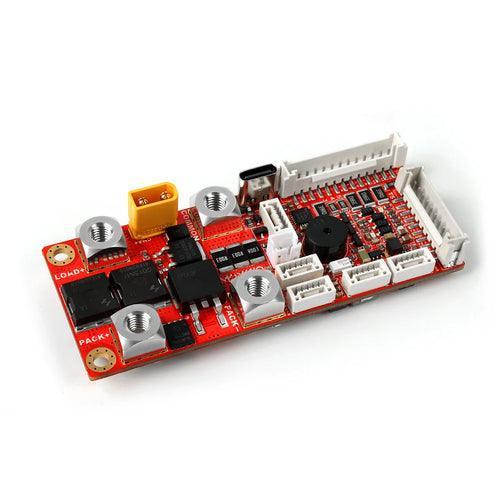

Integrated precharge circuit

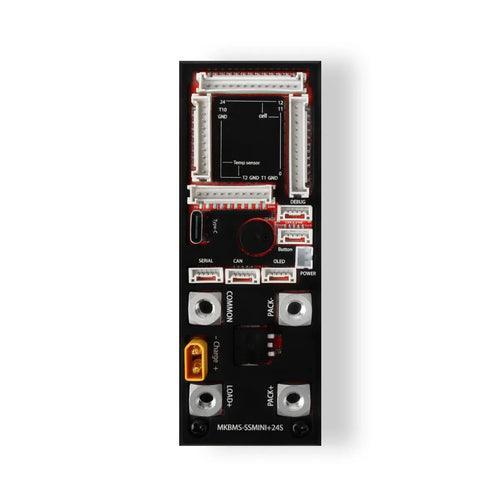

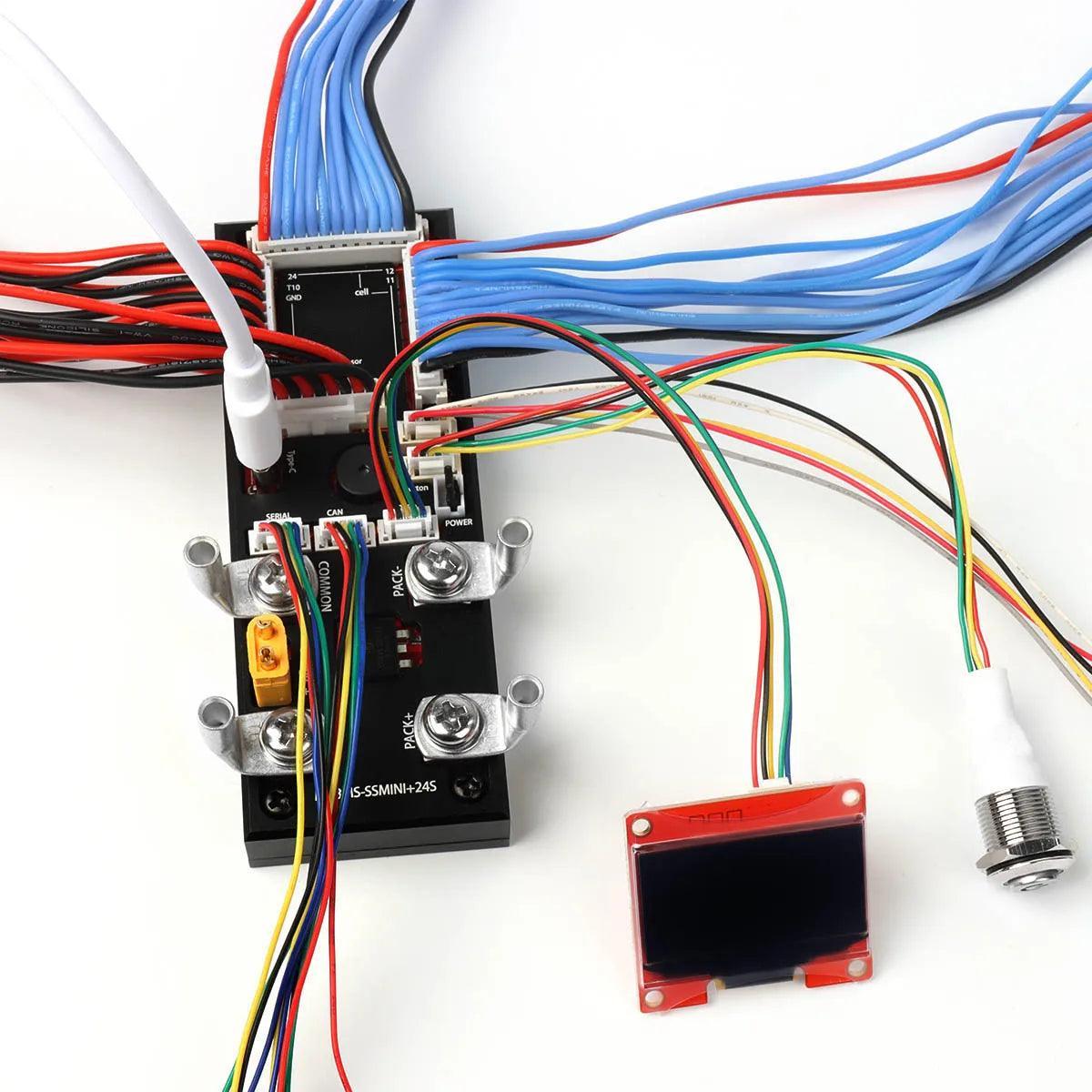

Power button, USB-C, UART, I2C & isolated CAN bus interface
On board High-Efficiency 3.3V regulator powered from the main battery pack
High current capacity automotive grade screw connectors for main power connections
Buzzer & status LED
