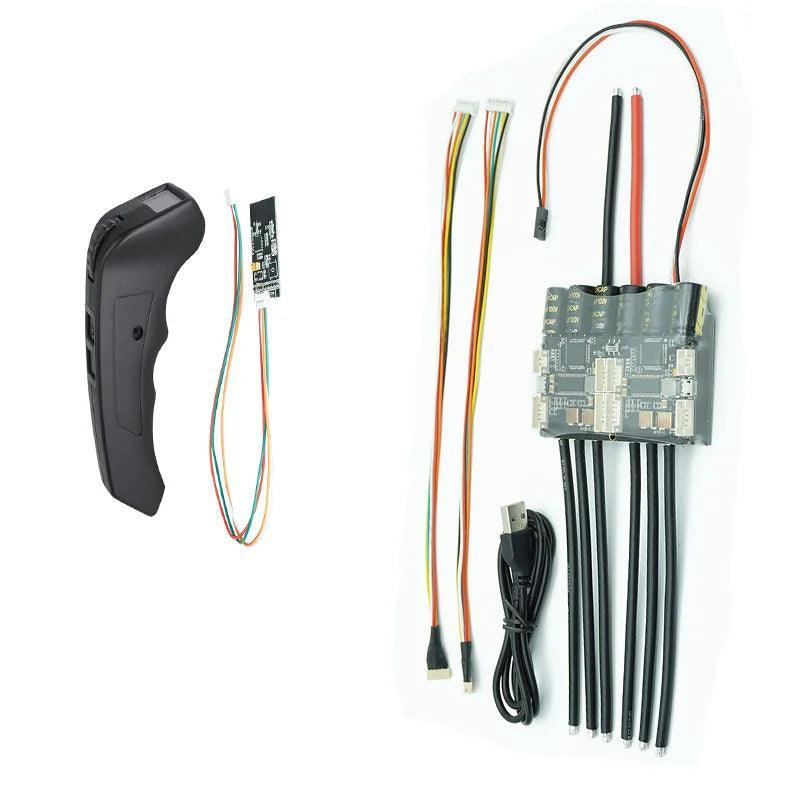

DIY ESC + Screen Remote Controller Combo FSESC 4.20 based on Benjamin

Advanced Features:

1. Dual ESC can reach 100A big current, give your board strong power

2. One PCBA board integrate two FSESC4.20 ’s function by internal CAN BUS circuit connection.

3. The mater and slave board connection can be switched On/Off

4. Delicate design in details for high quality assurance: add Anti-vibration silicon pad for screw heatsink and  heat-transfer pad

5. Preserve Bluetooth module and RF module connections for both master and slave board

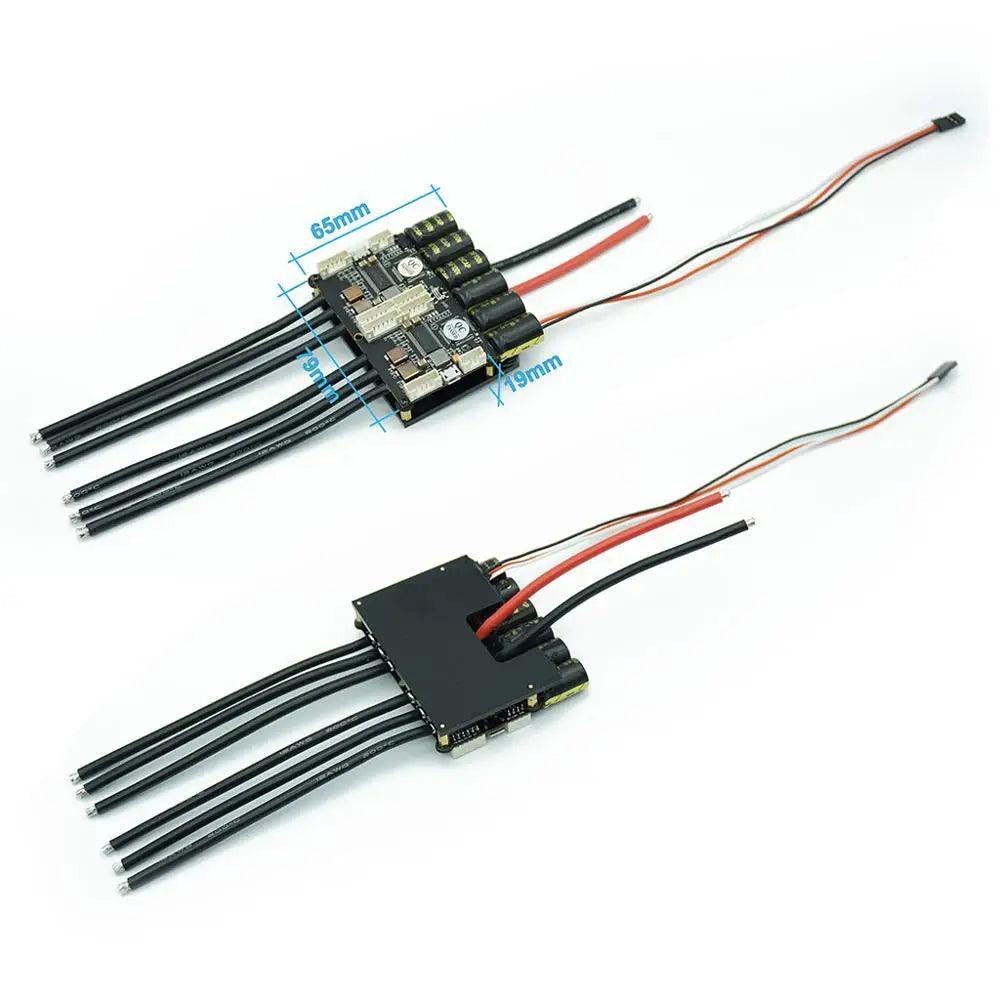

6. Super small size and light weight with heatsink: 79mm*65mm*19mm(L*W*H), wight: 150g

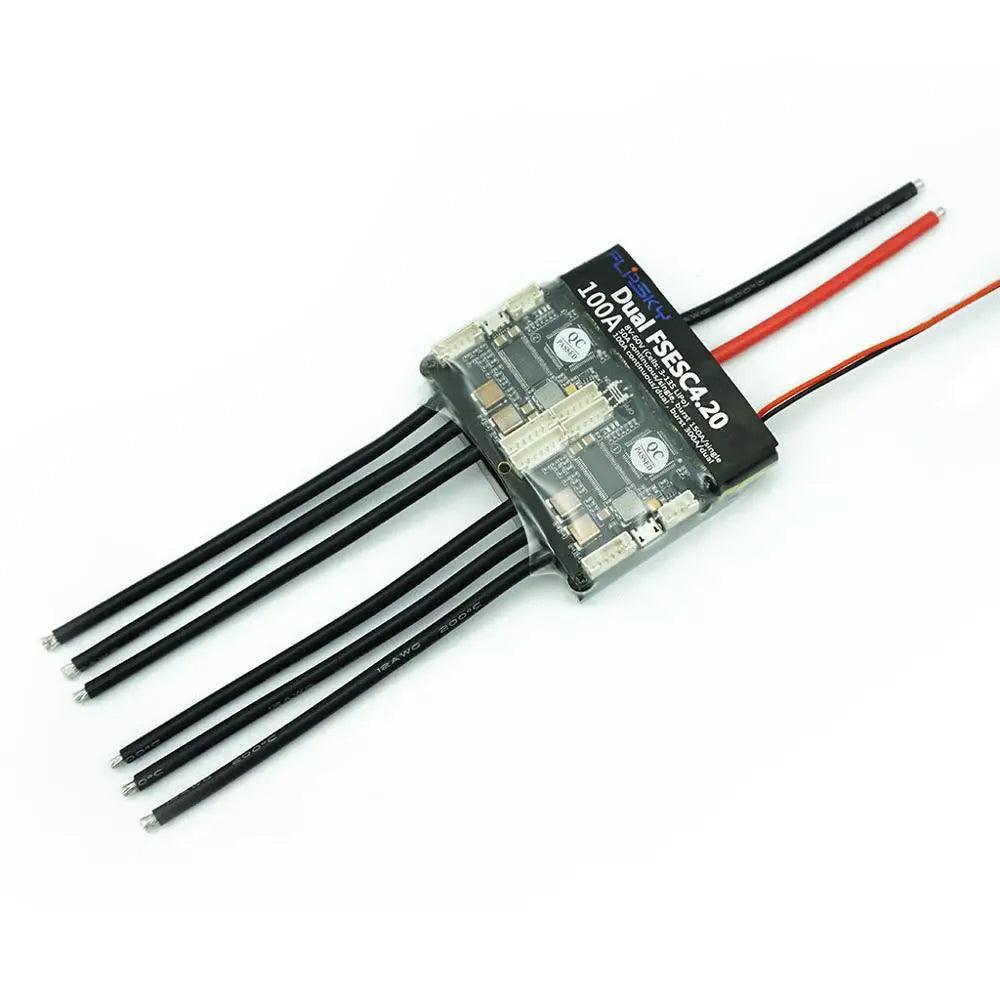

Specs of Dual FSESC 4.20

• Hardware:V4.20

• Firmware:Latest Version

• Current:50A continuous/single, 100A continuous/dual , Instantaneous current 150A per single, total 300A for system instantaneous current.

• Voltage: 8V-60V (Cells: 3-13S LiPo)

• BEC: 5V@1.5A

• BEC type: Internal driver support

• Modes: DC, BLDC, FOC (sinusoidal)

• Timing: Software calibration

• Cutoff Voltage: Programmable

• Frequency: PWM input

• Governor: No

• Programming card: No

• Reverse: Yes

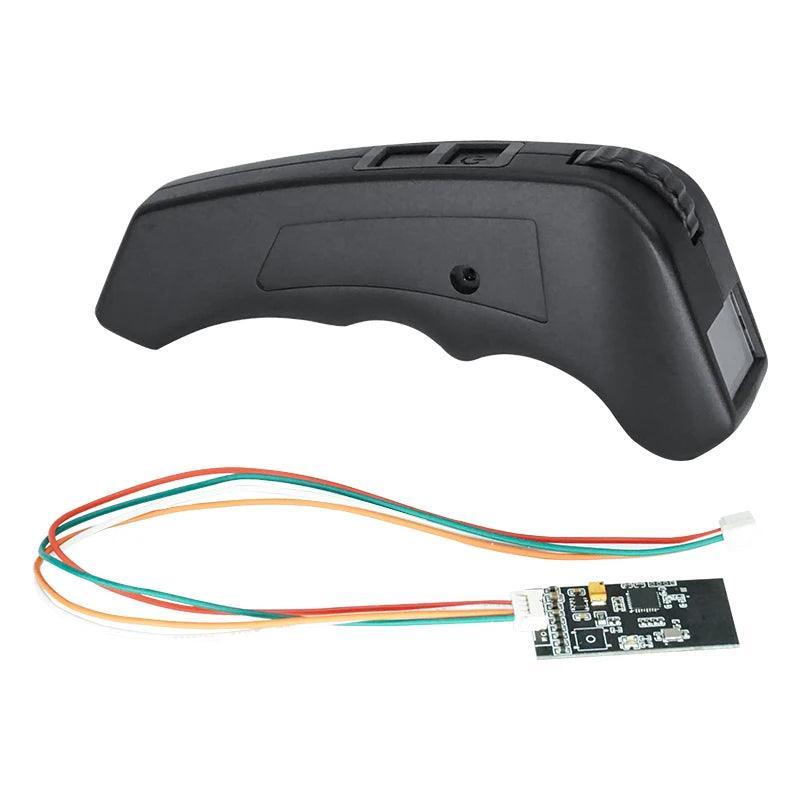

Features of VX2 Remote Controller

• 2.4Ghz band width

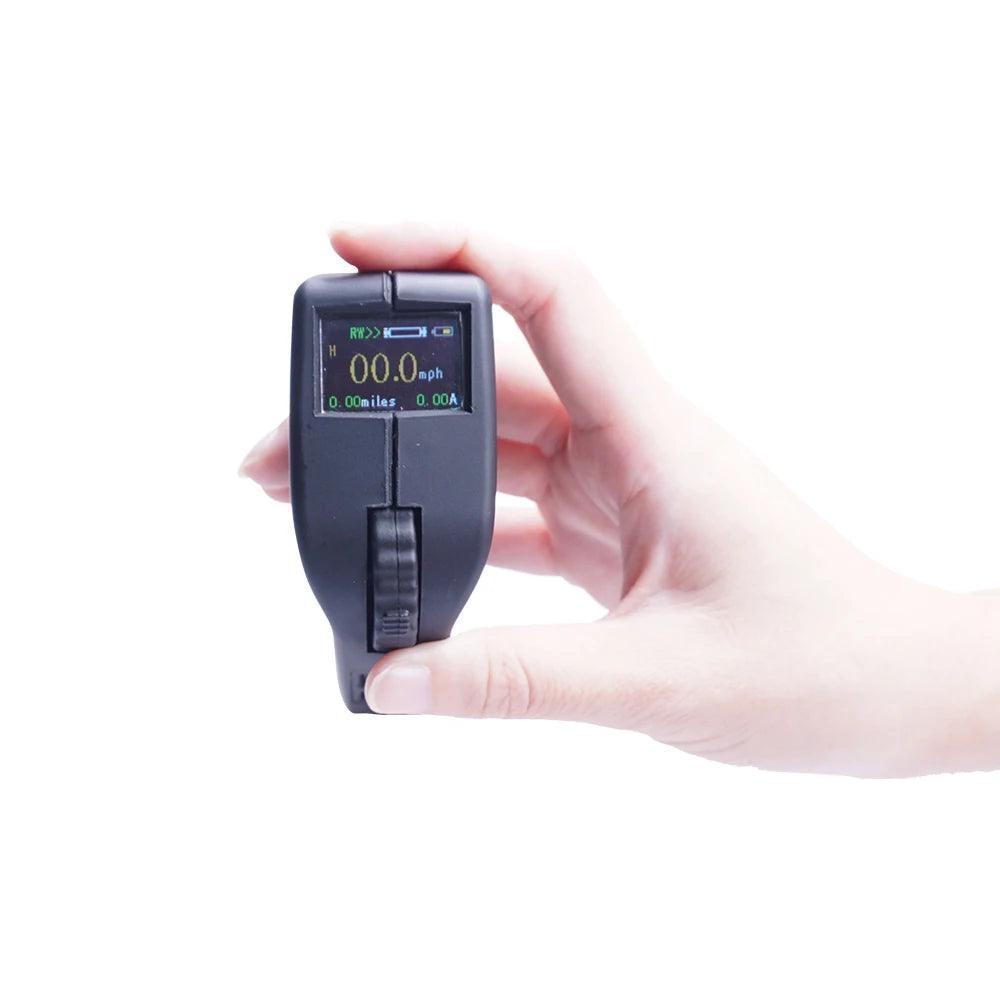

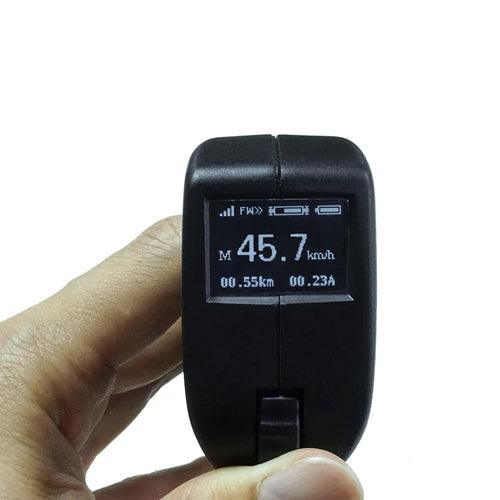

• Real time data reading and 0.95OLED display

• Support 3 speed modes

• Support cruise control mode

• Remote and E-skateboard power indication lights

• Rechargeable Li-ion Battery

• Wrist strap

• Battery last for 12 working hours
