Dual FSESC6.7 PRO Plus + Colorful Screen Remote VX2 PRO Combo for

Dual FSESC 6.6 PlusUpgraded features:

• •


• Pro switch version:

  • Power on/off by pressing the button

• Added Can bus connector, be more convenient for 4WD set up

• Changed the USB port soldering process to SMT soldering instead of manual soldering

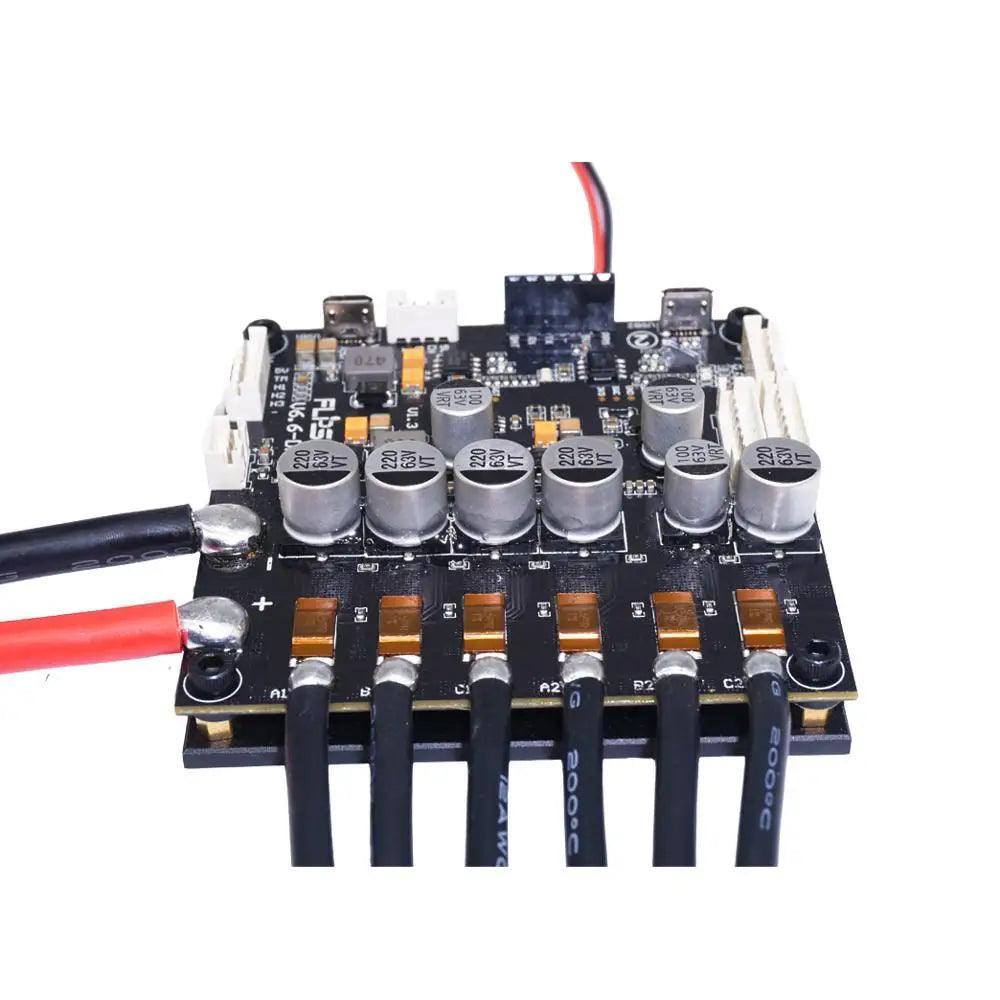

• Changed the big capacitors to SMT mounting capacitors ,and add more mosfets in the bottom side.

•


Spec:

- Hardware: V 6.6

- Firmware: Latest firmware version

- Voltage: 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC

- Voltage spikes may not exceed 60V

- Current: Continuous 100A single, total 200A ,  Instantaneous current 400A per single, total 800A for system instantaneous current.

- 5V 1.5A output for external electronics for single

- 3.3V 1A output for external electronics for single

- Modes: DC, BLDC, FOC (sinusoidal)

- Supported sensors: ABI, HALL, AS5047

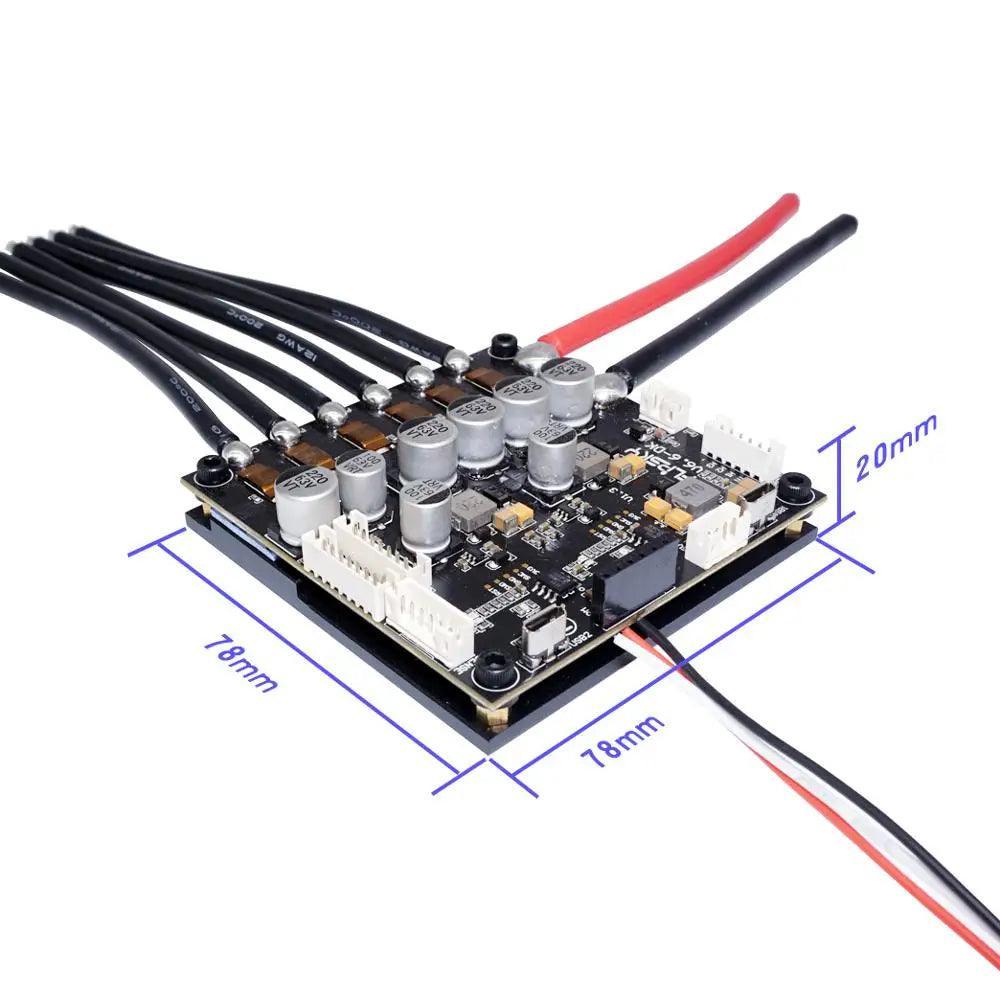

-Size: 78x78x20mm including heatsink

Reminder: Detected battery voltagetolerance:+/-0.6V

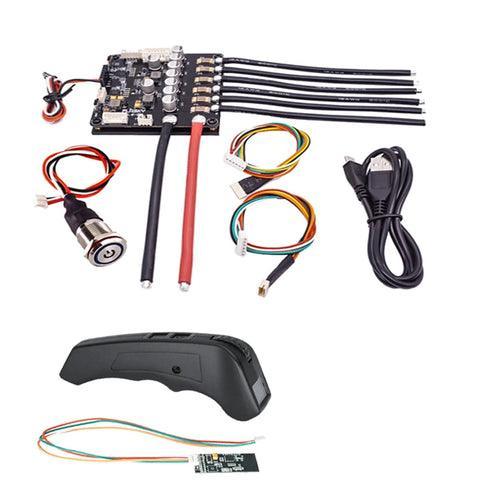

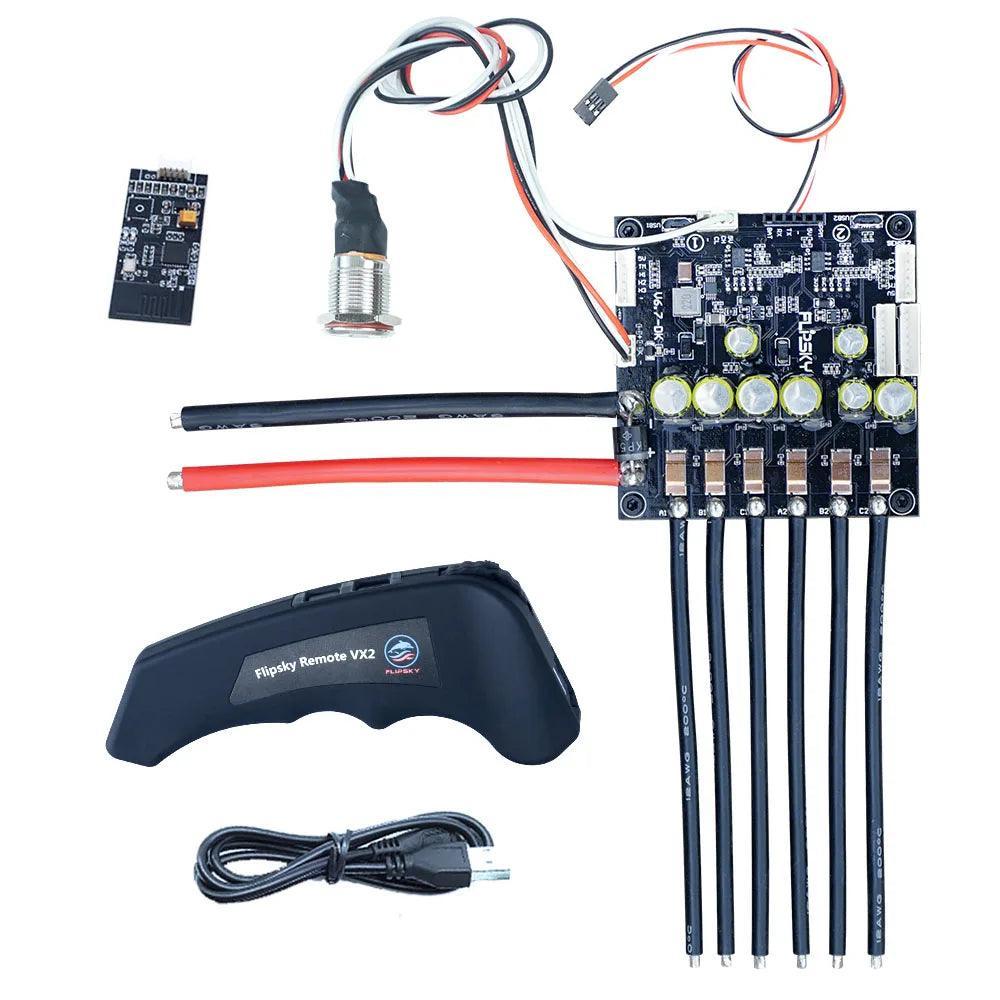

The shipping package contains:

• 1*Dual FSESC6.6 PLUS

• 2*FSESC Sensor Wires

• 1*LED button

• 1*Micro USB

• 1*Manual

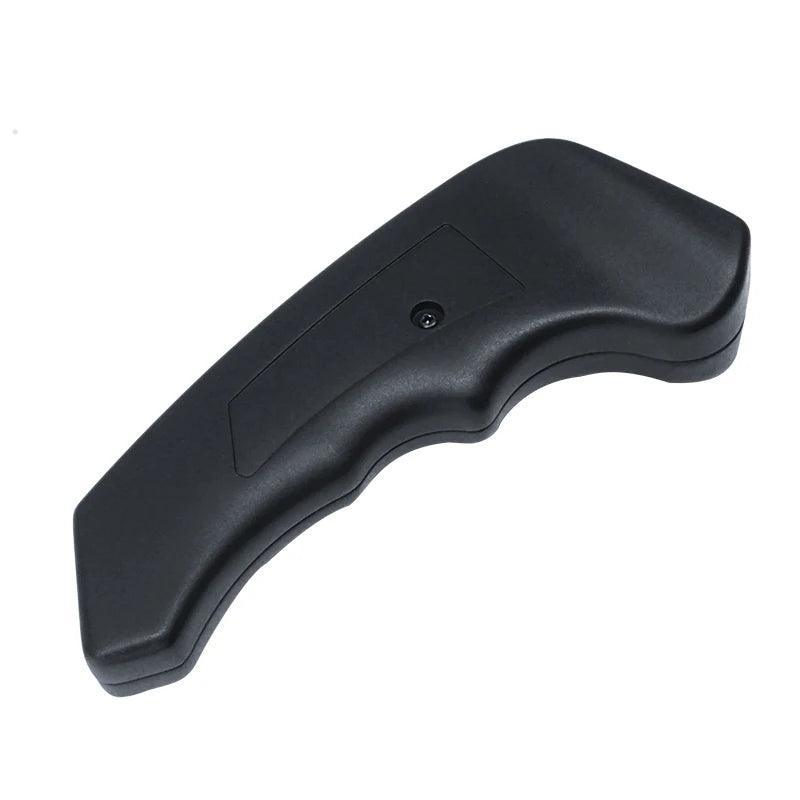

Remote VX2 pro Features:

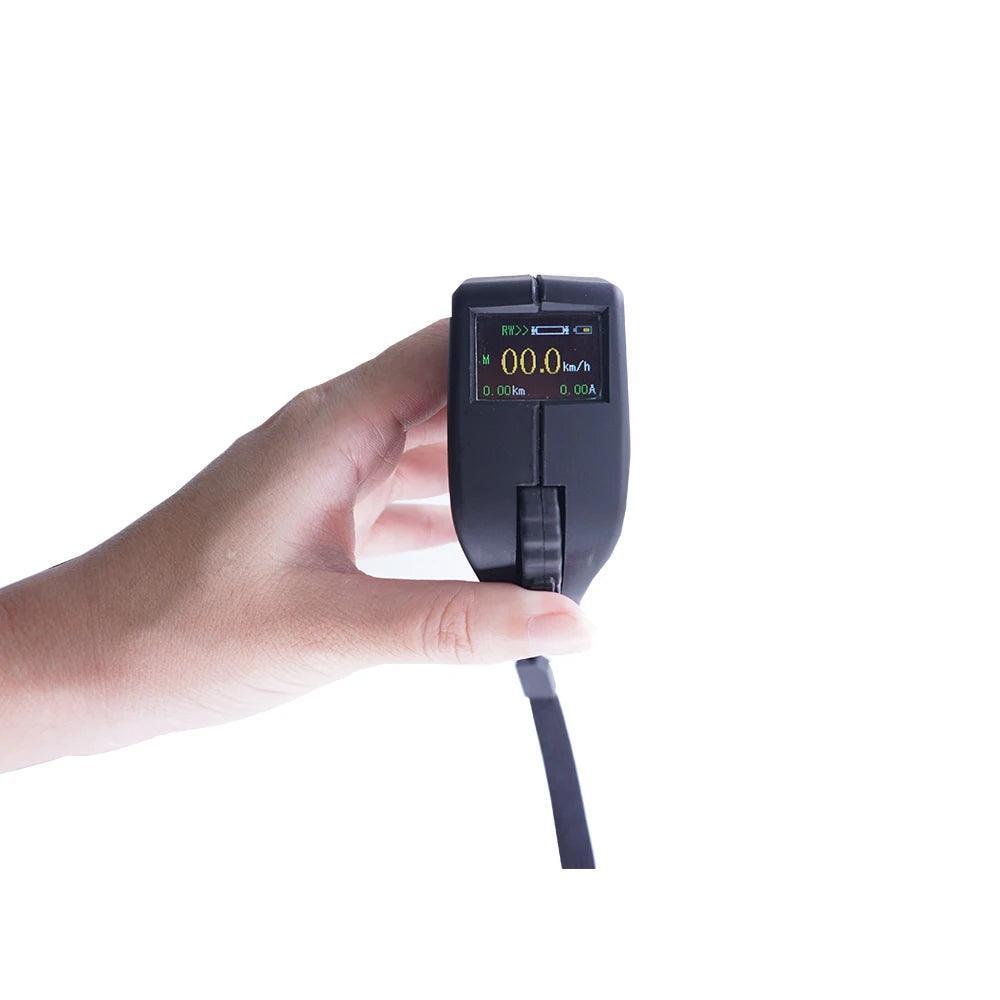

• Color screen

• Option choice for km/h and miles/h

• Option choice for FSESC and other VESC( FOCBOX)

• 2.4Ghz band width

• Real time data reading and 0.95OLED display

• Support 3 speed modes

• Support cruise control mode

• Remote and E-skateboard power indication lights

• Rechargeable Li-ion Battery

• Wrist strap

• Battery last for 12 working hours
