Description
xImportant Notice:
It won't work with Bafang middle motor or TSDZ (such as BBSHD BBS02 BBS03), because the middle motor only provides 6V 3W output to the lamp.
If your ebike is Bafang middle motor, you can connect our light to battery directly, it will provide 36V or 48V, then our light can work.
Warning
1: This turn signal light set will not work in a Bafang or TSDZ mid motor.
2: It needs to be in a 36V or 48V battery to work properly.
3: This light set needs to be connected to the same battery as the controller, otherwise the brake function cannot be activated.
4: Connecting the brake requires the controller to be a low brake.

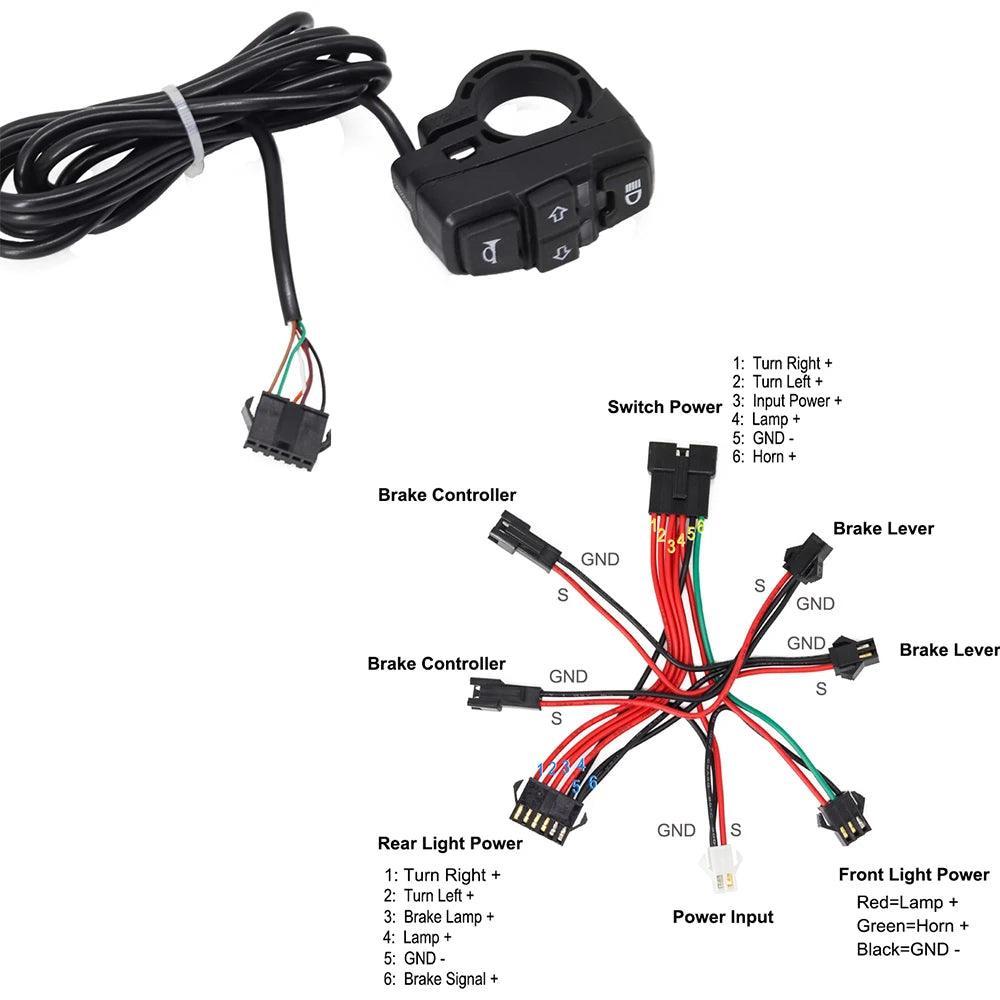

Ebike Switch:
1.For handlebar size: 22.0mm
2.Product size: L54*W27*H54MM
3.Waterproof: IP65
4.Cable length: 1.5 M
5.Applicable voltage range: 36V-48V
6.Maximum working current: 1A
7.Shell material: plastic

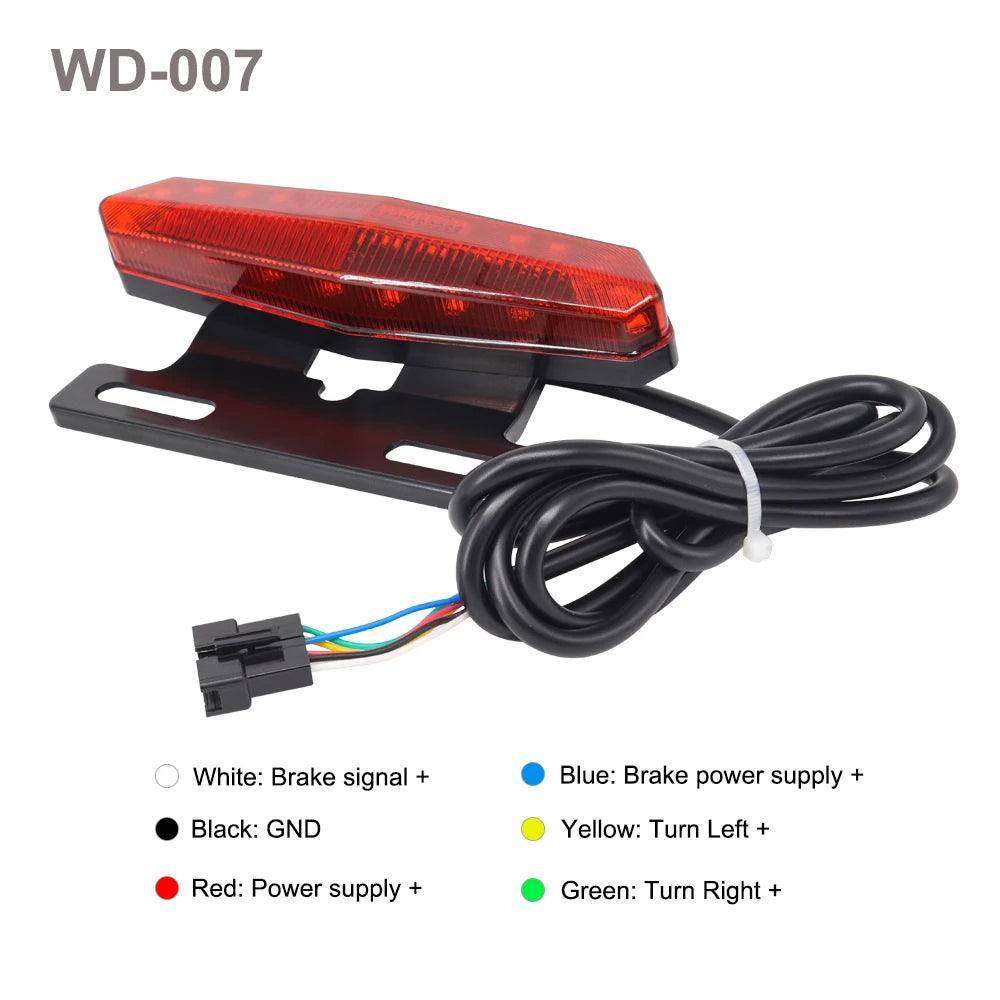

Ebike Turn Signal Rear Light
1. Net weight of ebike brake taillight: 120g
2. Shell material: plastic
3. Applicable voltage range: 36-48V
4. Power: 1.5W
5. Number of light sources: 14
6. Luminous flux: 15LM

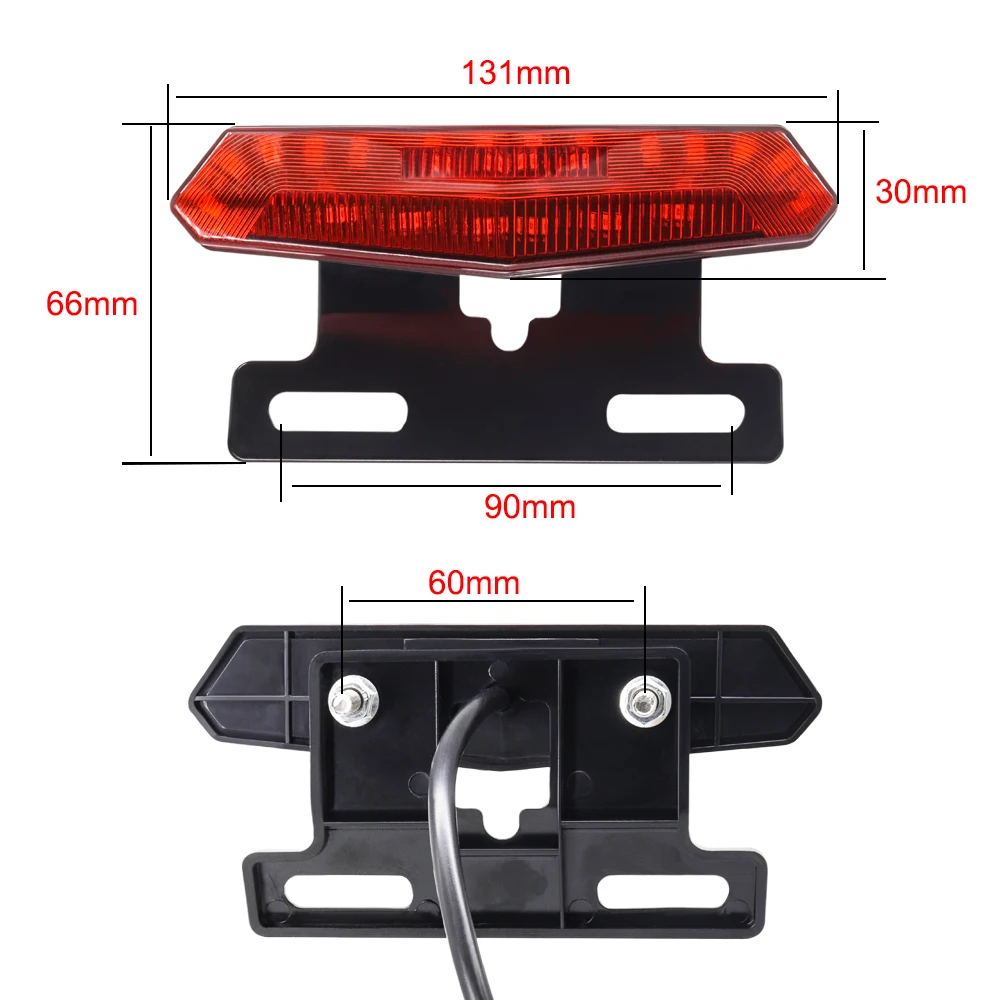

7. Product size: 132*65*40mm
8. Cable length: about 1.2M

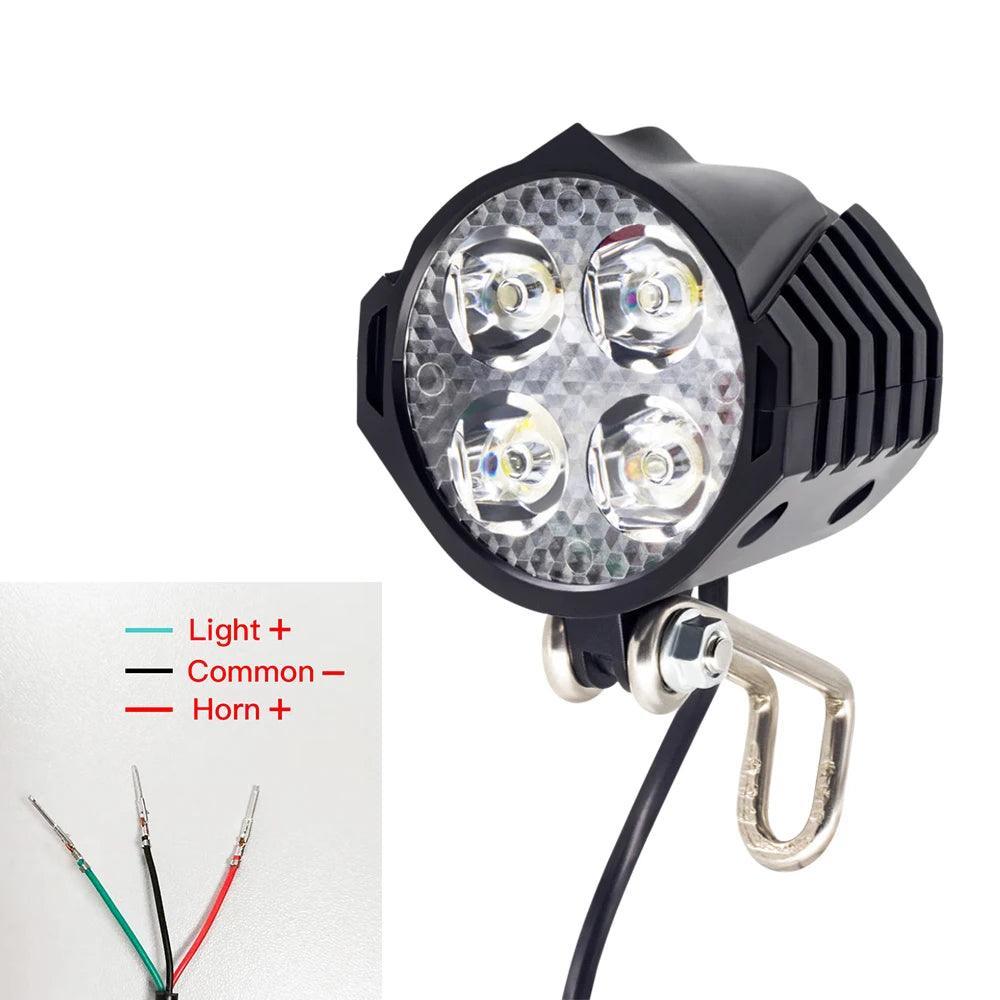

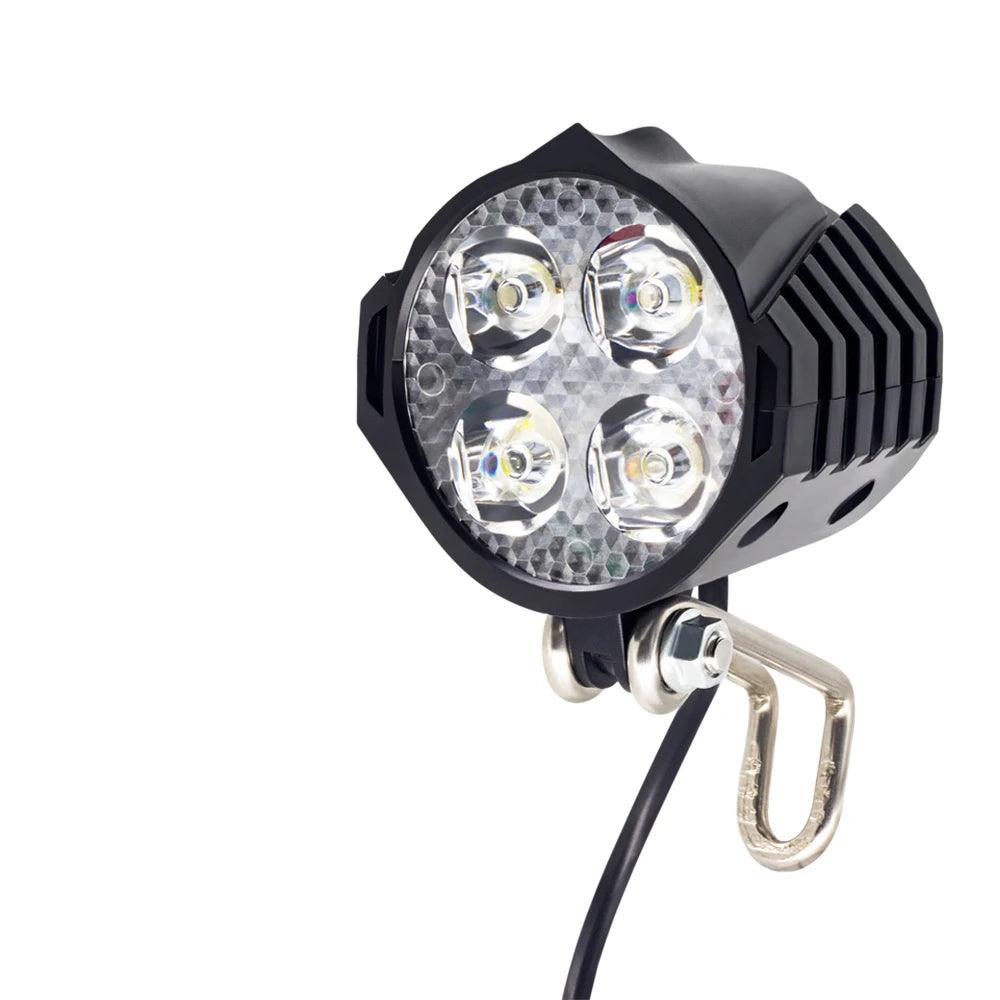

Electric Bike Headlight
1. Net weight of headlight: 100g
2. Shell material: plastic
3. Applicable voltage range: 36V-48V
4. Power: 59mA/2.8W
5. Luminous flux: 180-220LM

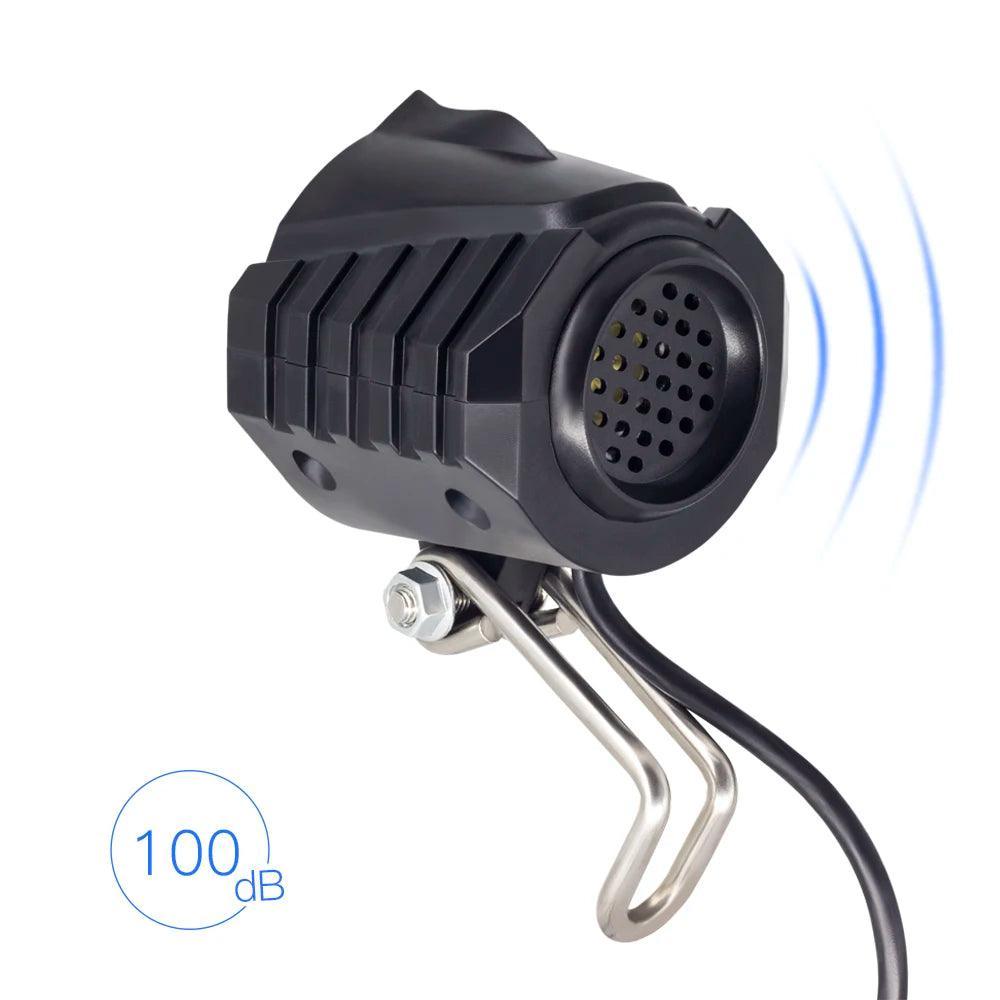

6. Horn Power: 44mA/2.1W
7. Horn Volume: 80-100dB
8. Product size: 62*50*70mm
9. Cable length: about 1.5M
10. Light Power: 3W

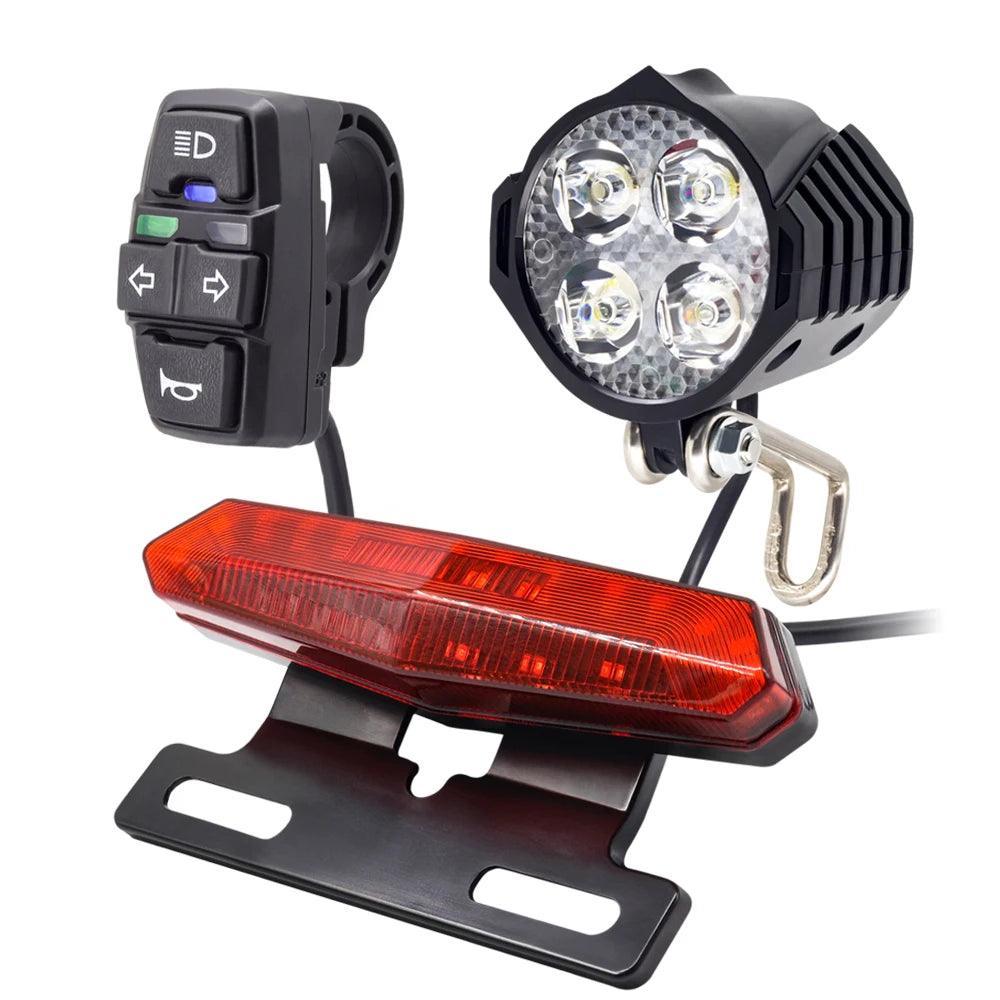

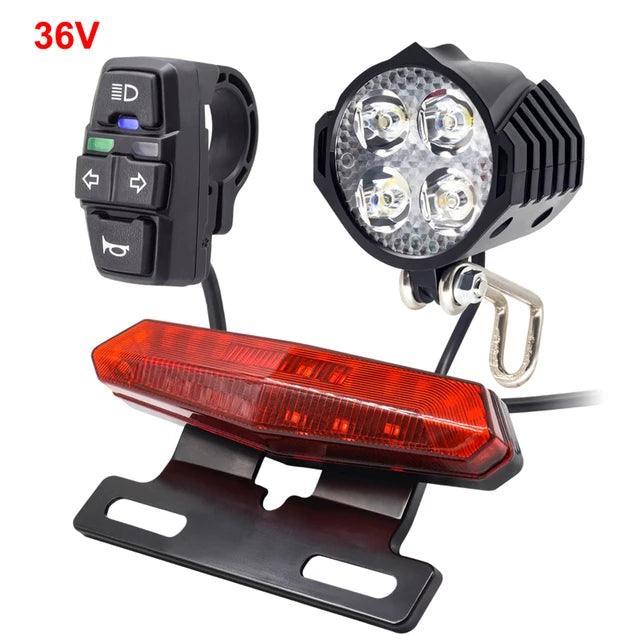

Electric Bike Turn Signal Rear Light Set
1. Net weight of the whole set is 400g
2. Package weight: about 0.65KG (small carton)
3. Work status description:
Headlight: When the switch of headlight is turned on, the headlights and tail lights are on
Horn: When the horn button is pressed, the horn starts to work, release it to cancel
Brake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light will light up while braking, and the brake light will go out when the brake is cancelled
Turn signal: When the turn switch of the designated direction is toggled, the turn signal of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each time
