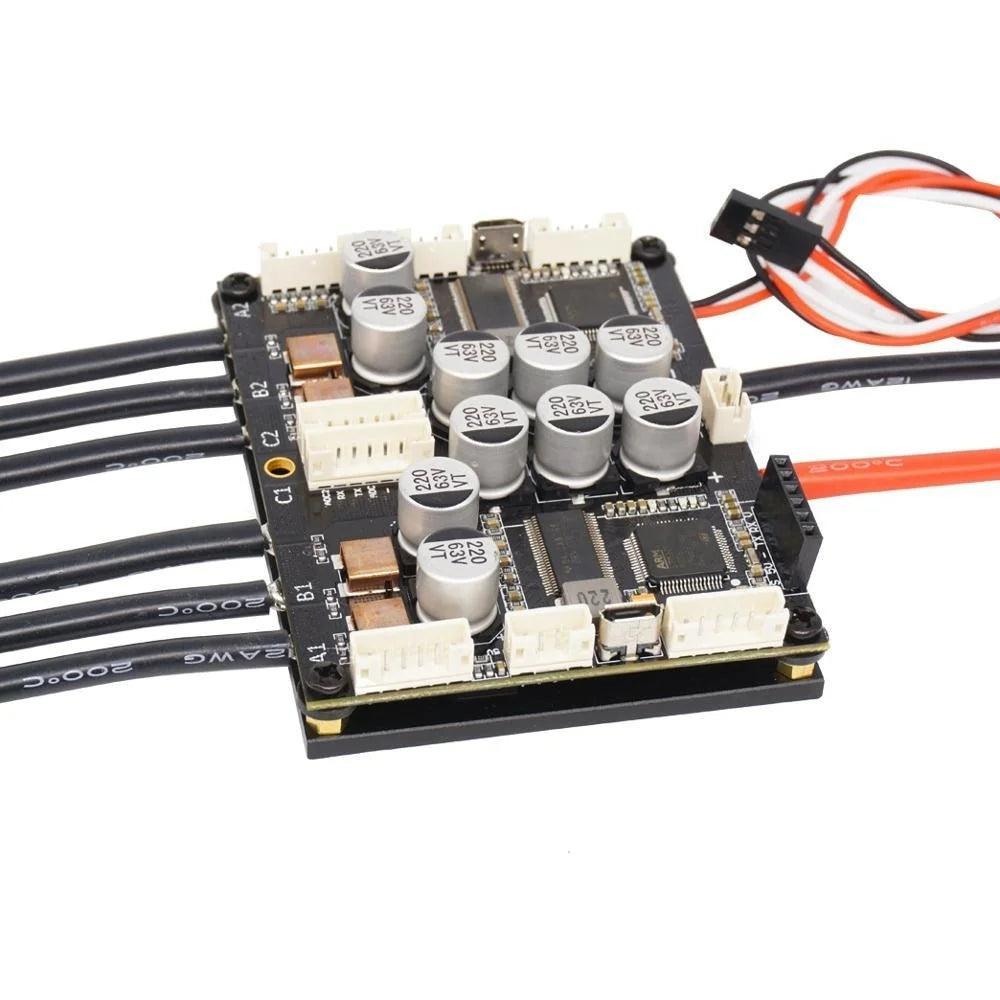

Electric Speed Controller for scooter/mountain Bike Dual FSESC4.20

Dual FSESC4.20 Plus(Pro Switch) base on VESC, it’s upgraded on

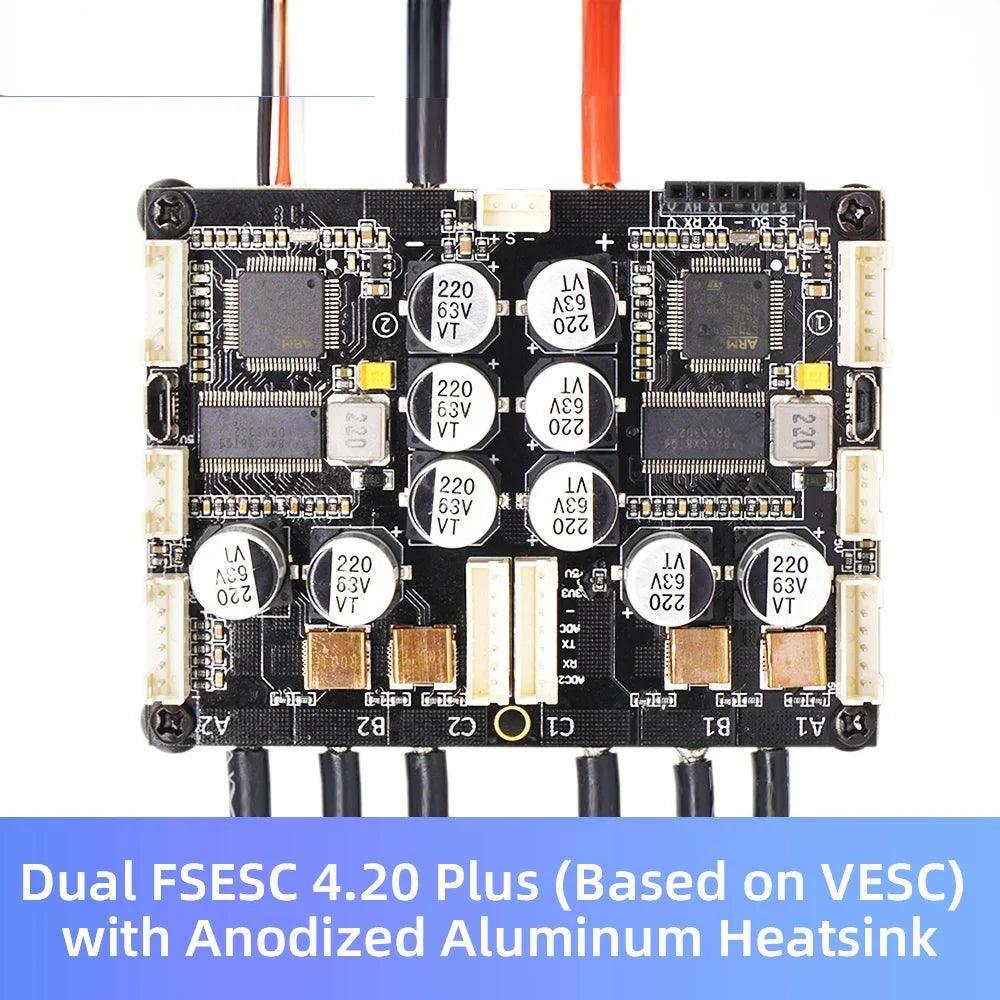

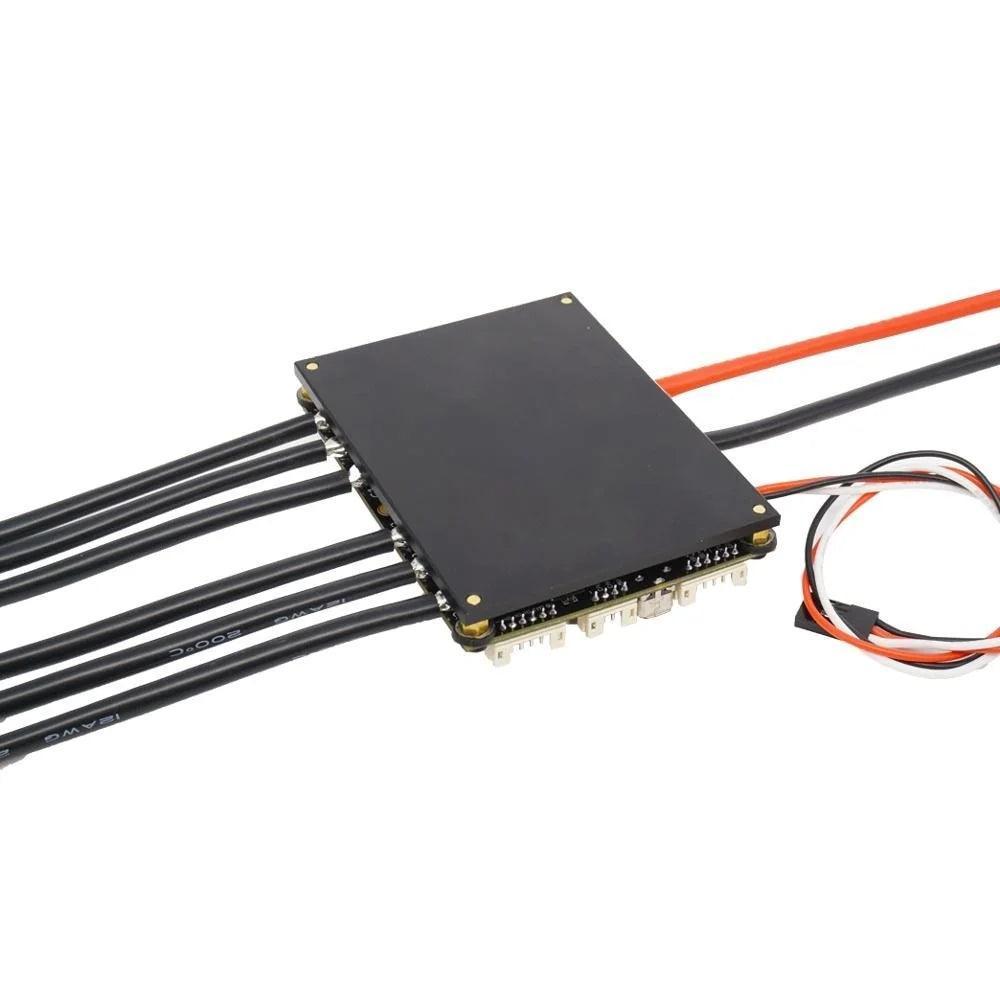

Dual FSESC4.20 100A (Based on VESC ) with Anodized Aluminum Heatsink

Upgraded Features:

1.Integrated anti-spark switch function in the PCBA

2. More thinner for compact in case

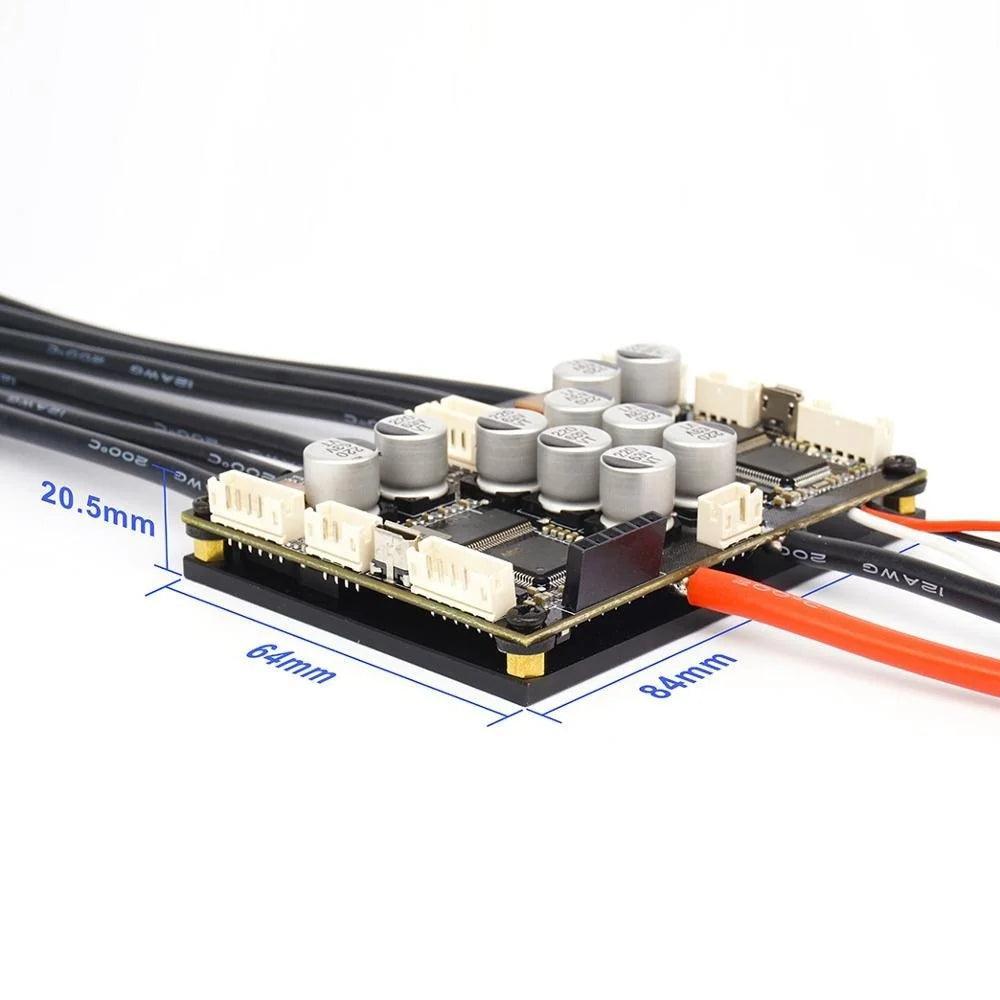

3.With heatsink: 64 x84x20.5mm(Include Heatsink)

Specs:

Hardware:V4.20

Firmware:3.40 (Keep upgrading if FW is updated)

Current:50A continuous/single, 100A continuous/dual ,burst 150A/single, burst 300A/dual

Voltage: 8V-60V (Cells: 3-13S LiPo)

BEC: 5V@1.5A

BEC type: Internal driver support

Modes: DC, BLDC, FOC (sinusoidal)

Timing: Software calibration

Cutoff Voltage: Programmable

Frequency: PWM input

Programming card: No

Reverse: Yes

Regenerative braking power: Yes

Motor wire:12AWG

Power cable:12AWG

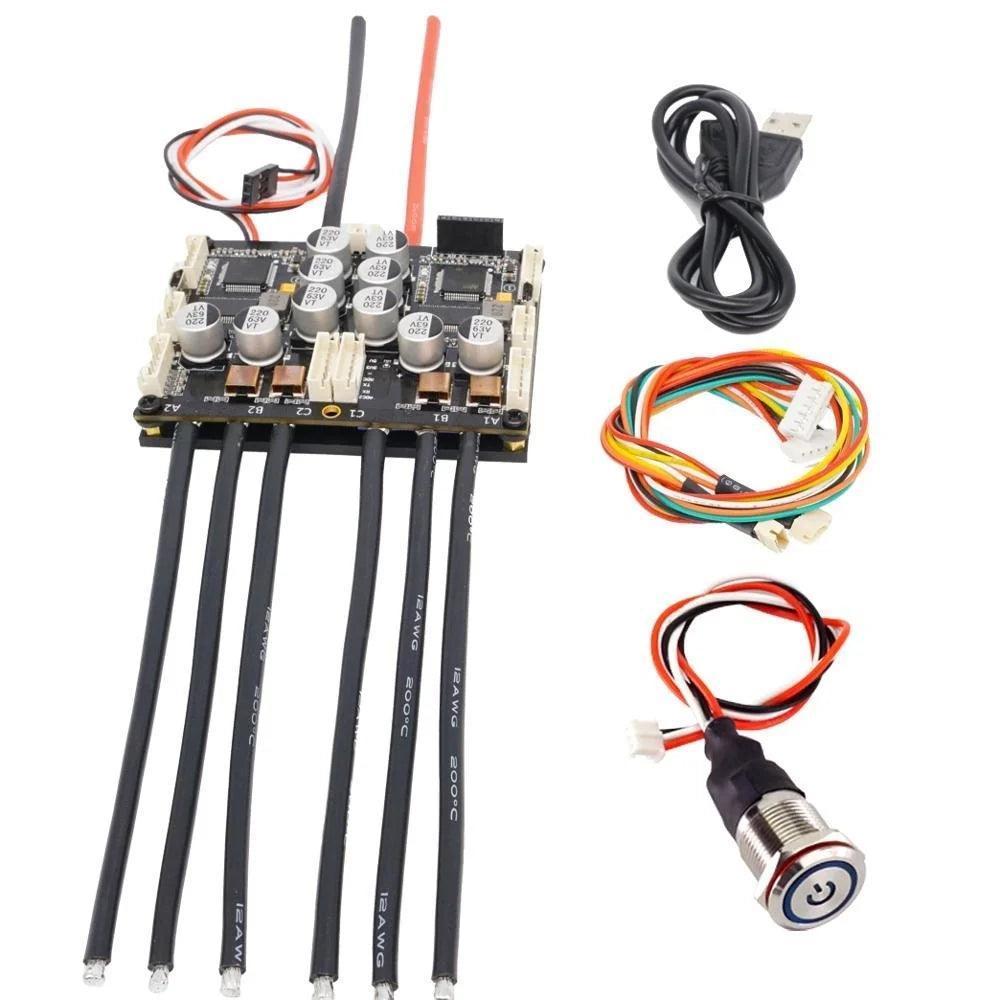

The shipping package contains:

1*Dual FSESC4.20 Plus + Heatsink

2*FSESC Sensor Wires

1*Micro USB

1*Manual

1*16mm LED button
