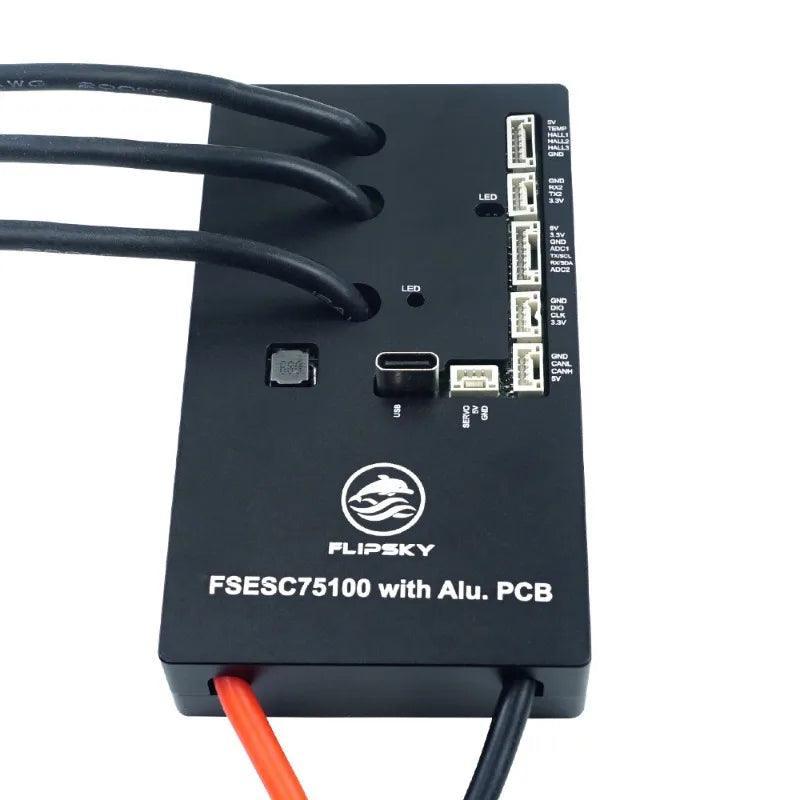

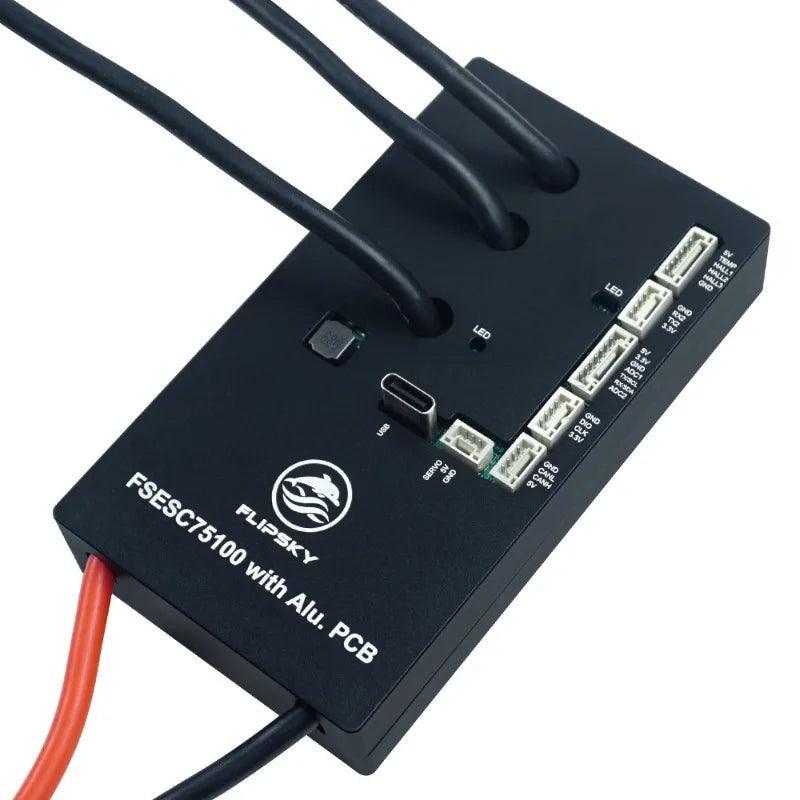

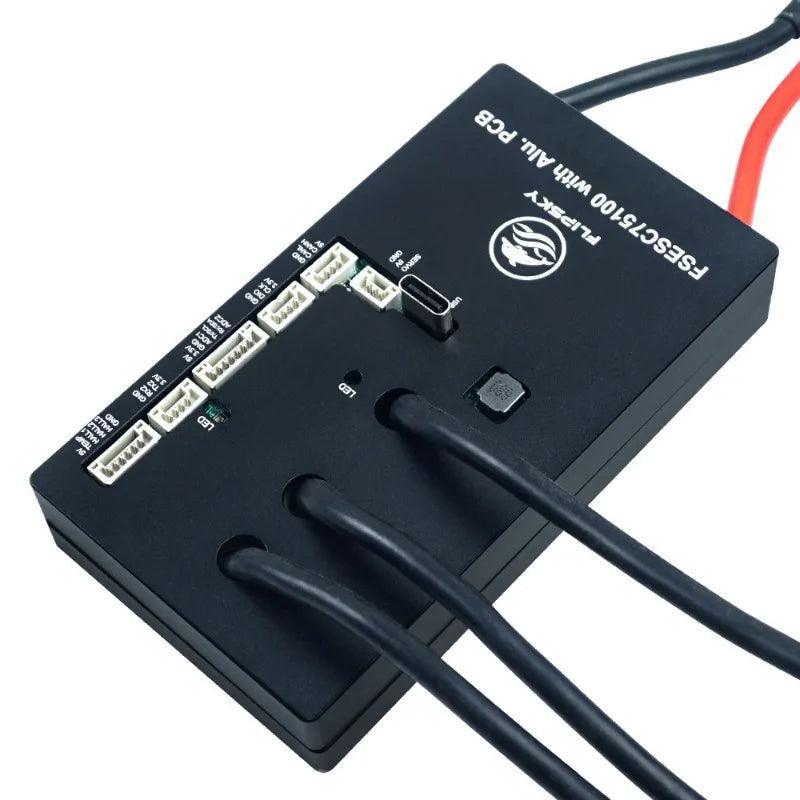

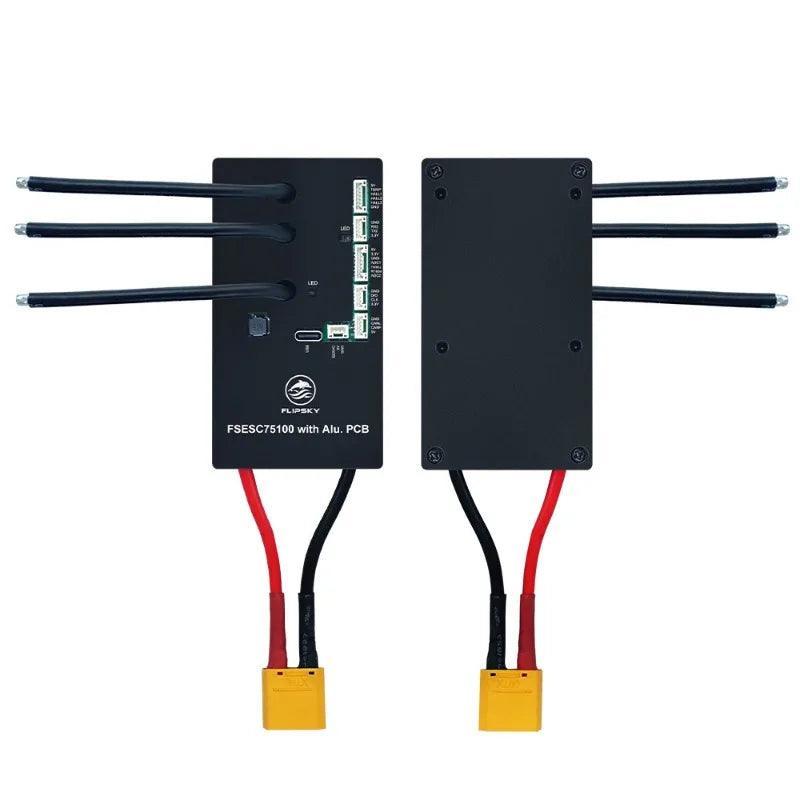

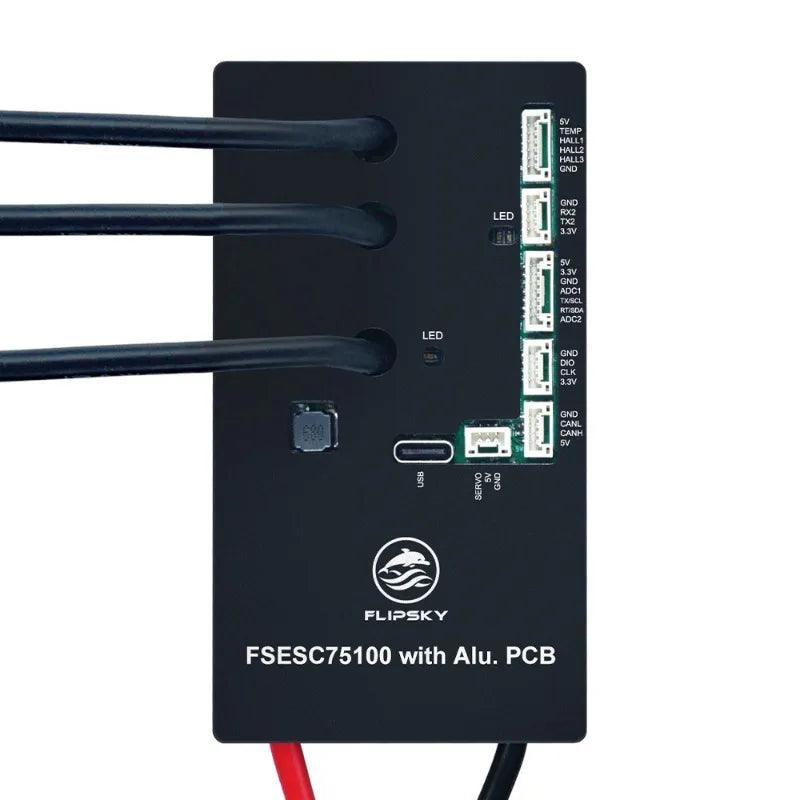

Flipsky 100A 75V FSESC 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
Product Advantages
| Voltage | 14-84V (safe for 4-20S) | Modes | DC, BLDC, FOC (sinusoidal) |
| Continuous Current | 100A | Supported sensors: | ABI, HALL, AS5047,AS5048A |
| Max Current | 120A | EPRM | 150000 |
Product Advatages
- Voltage:14-84V (4-20S)
- Continuous Current:100A
- Max Current:120A
- Firmware: VESC_TOOL3.0(firmware5.2), firmware upload not available
- ERPM:150000
- Control Interface Ports:USB,CAN,UART
- BEC:5V 1.5A
- Modes:FOC (sinusoidal)
- Supported Sensors:ABI,HALL,AS5047,AS5048A
- Input Set Support:PPM,ADC,NRF,UART
- Wire Size: 12AWG
- Size:103*58*24.5mm
- Programmable: Yes
- Regenerative Capacity: Yes
Warm Tips:
It's recommended to use the old firmware version 5.02/5.2(3.00 VESC TOOL), which is more stable and no need to turn off the phase filter.
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube:
Blog:
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube:
Blog:
Please be careful to limit the Absolute Maximum Current below 250A.
