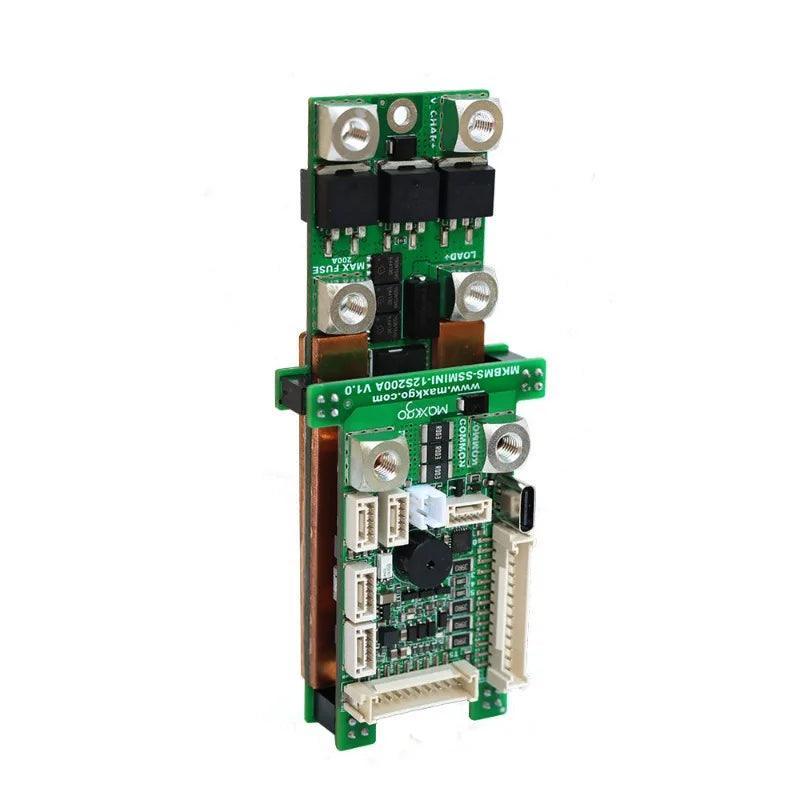

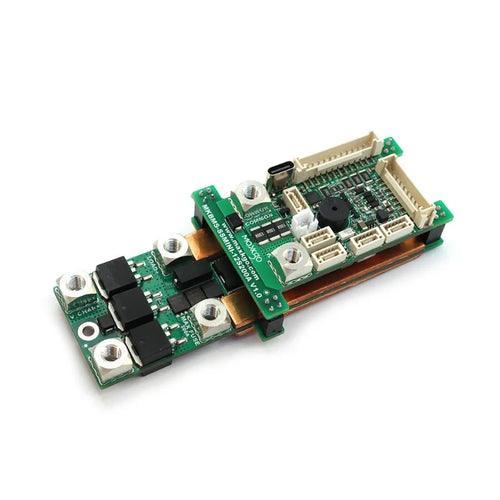

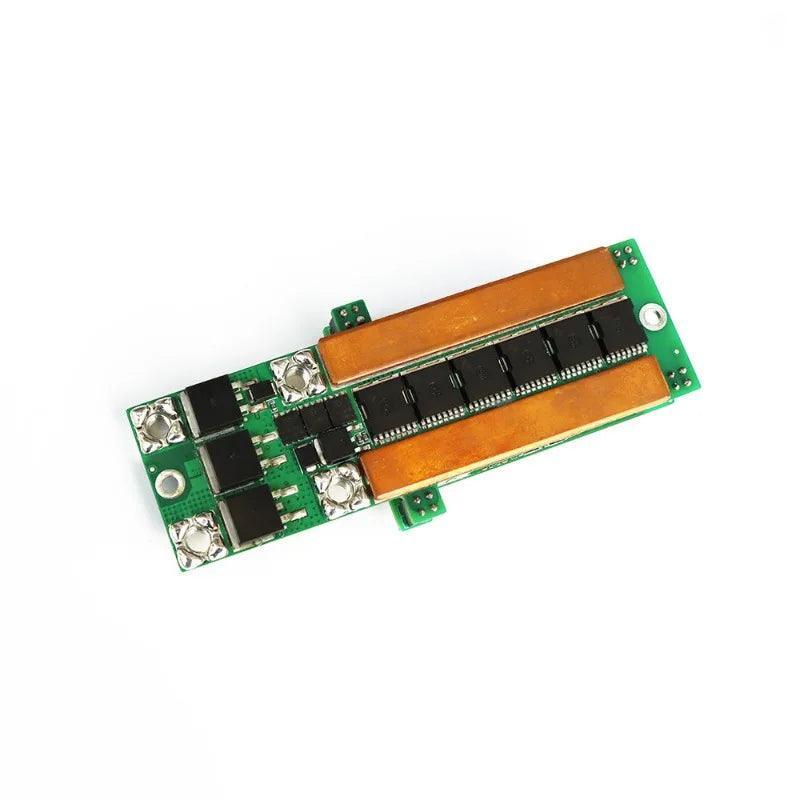

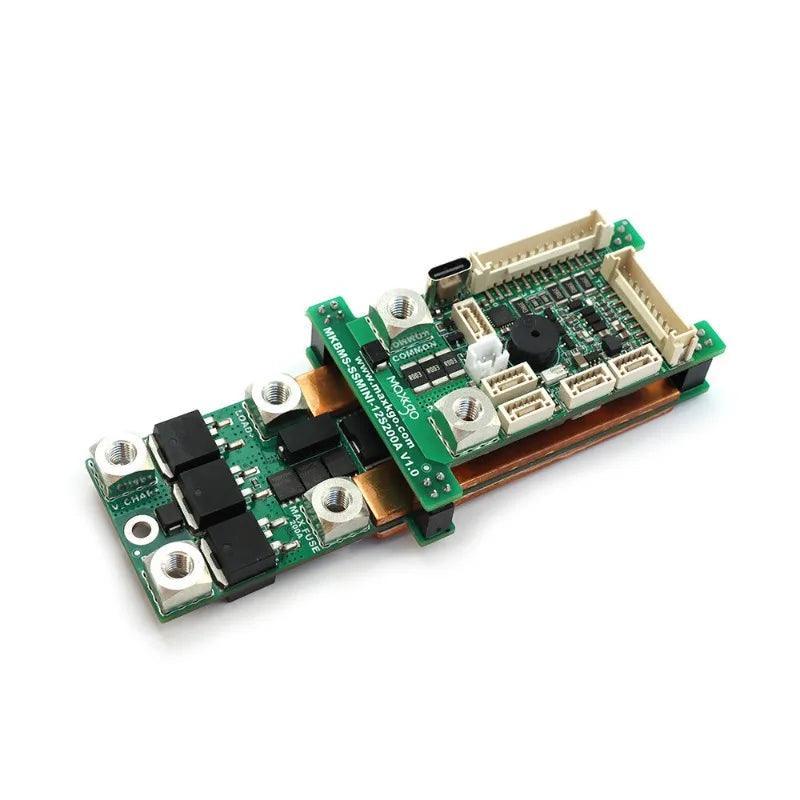

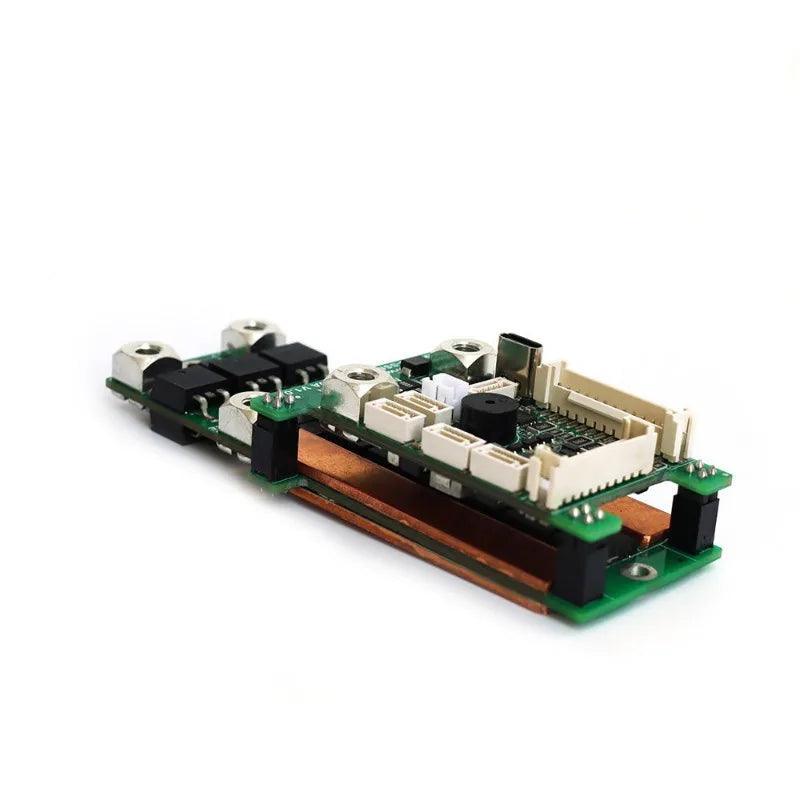

Flipsky 12S 200A Smart BMS For ESK8 / Consumer Robot / E-car/ E-board

Spec:

• Support max charging voltage60V,minimum charging 14V.
• Over charge detect and release voltage: 2V-5V
• Over charge protection delay: ≥4ms
• Discharge current and overcurrent protection value:≤200A
• Over discharge detect / release voltage: 0-5V
• Over current detect delay:≥4ms
• Short Circuit detect delay: 320us
• Short circuit protection release condition: disconnect the load
• Balance current:86mA/4.2V
• temp protection: -20℃-+120℃
• Temp Range:-20℃-+80℃
• Temp Range:-20℃-+100℃
• Working current:≤40mA
• Sleep current:≤100uA

Features:

1. Compact layout and mini
2. Automotive grade monitoring & balancing IC with separate power supply for increased reliability
3. voltages measurements for load, charger & battery pack
4. Bi-directional current monitoring
5. SOC based on coulomb counting
6. With humidity sensor and circuit board temperature monitoring.
7. Charger detection circuit
8. Integrated precharge circuit
9. Power button, USB-C, UART, I2C & isolated CAN bus interface
10. On board High-Efficiency 3.3V regulator powered from the main battery pack
11. High current capacity automotive grade screw connectors for main power connections
12. Buzzer & status LED
13. Aluminum alloy shell for better heat dissipation
14. Automotive grade design, automotive grade locking connector.
15. Compatible with MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL.

Wiring diagram:
