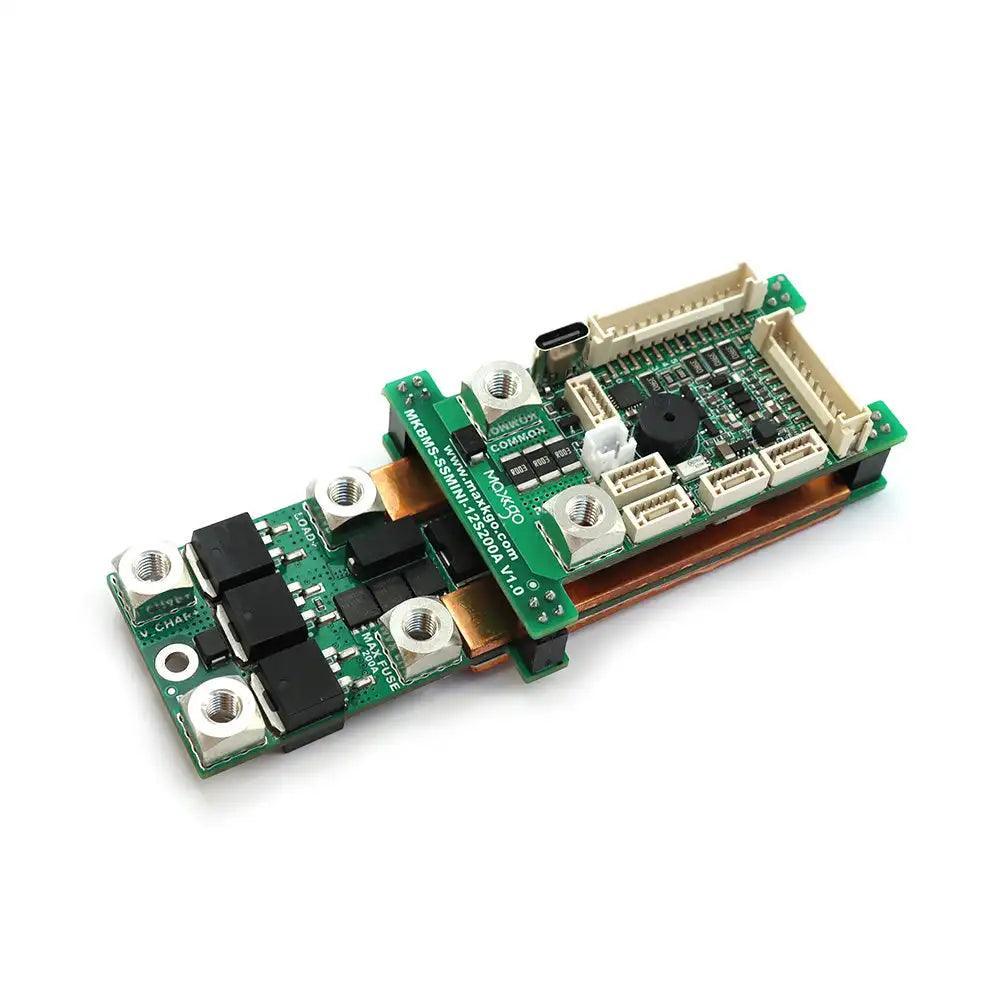

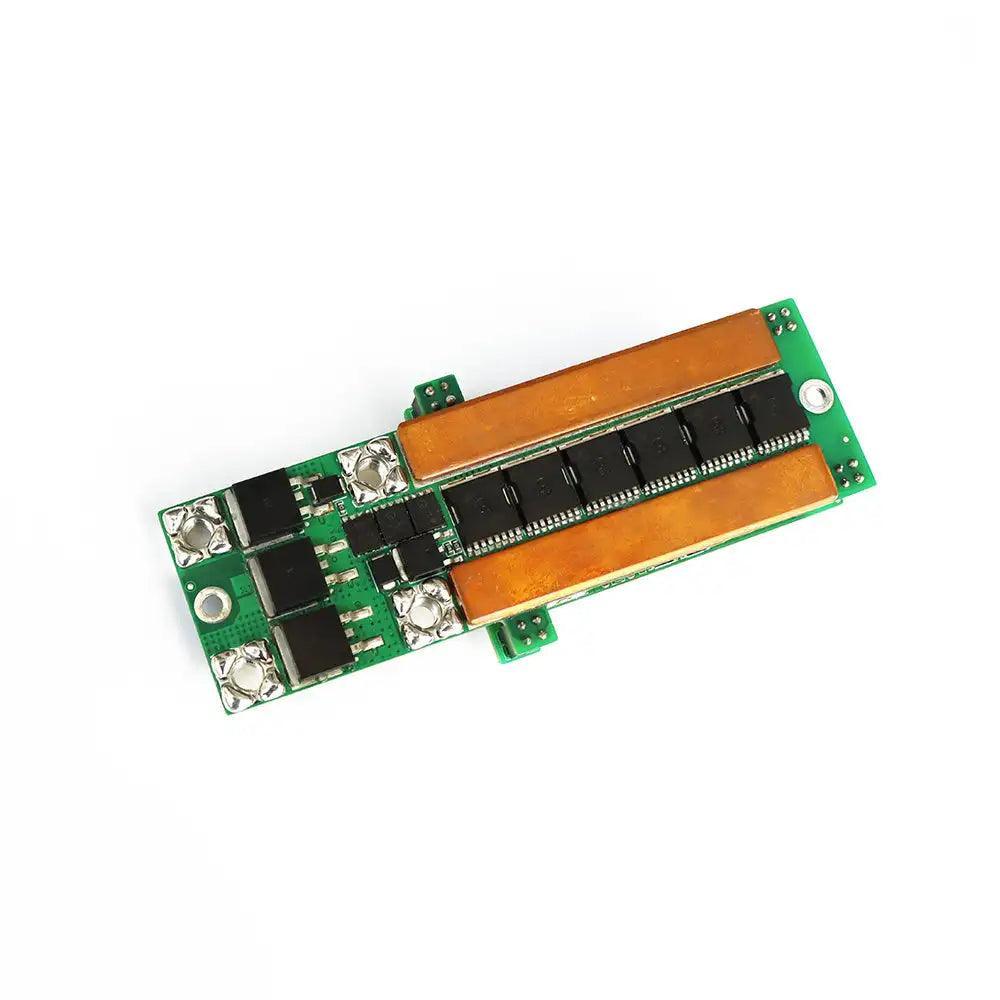

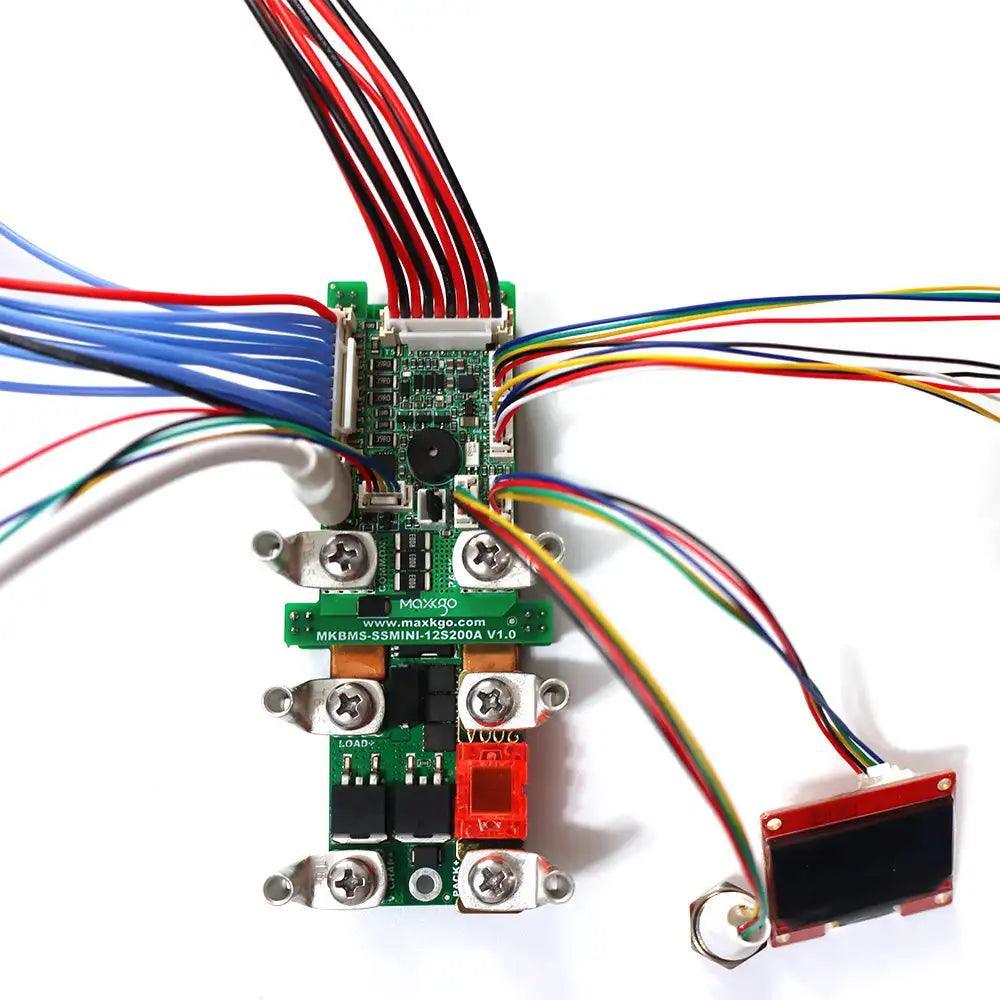

Flipsky 12S 200A Smart BMS For ESK8 / Consumer Robot / E-car/ E-board

Spec:

• Support max charging voltage60V,minimum charging 14V.

• Over charge detect and release voltage: 2V-5V

• Over charge protection delay: ≥4ms

• Discharge current and overcurrent protection value:≤200A

• Over discharge detect / release voltage: 0-5V

• Over current detect delay:≥4ms

• Short Circuit detect delay: 320us

• Short circuit protection release condition: disconnect the load

• Balance current：86mA @4.2V

• temp protection： -20℃—+120℃

• Temp Range：-20℃—+80℃

• Temp Range：-20℃—+100℃

• Working current：≤40mA

• Sleep current：≤100uA

Features：

1. Compact layout and mini

2. Automotive grade monitoring & balancing IC with separate power supply for increased reliability

3. voltages measurements for load, charger & battery pack

4. Bi-directional current monitoring

5. SOC based on coulomb counting

6. With humidity sensor and circuit board temperature monitoring.

7. Charger detection circuit

8. Integrated precharge circuit

9. Power button, USB-C, UART, I2C & isolated CAN bus interface

10. On board High-Efficiency 3.3V regulator powered from the main battery pack

11. High current capacity automotive grade screw connectors for main power connections

12. Buzzer & status LED

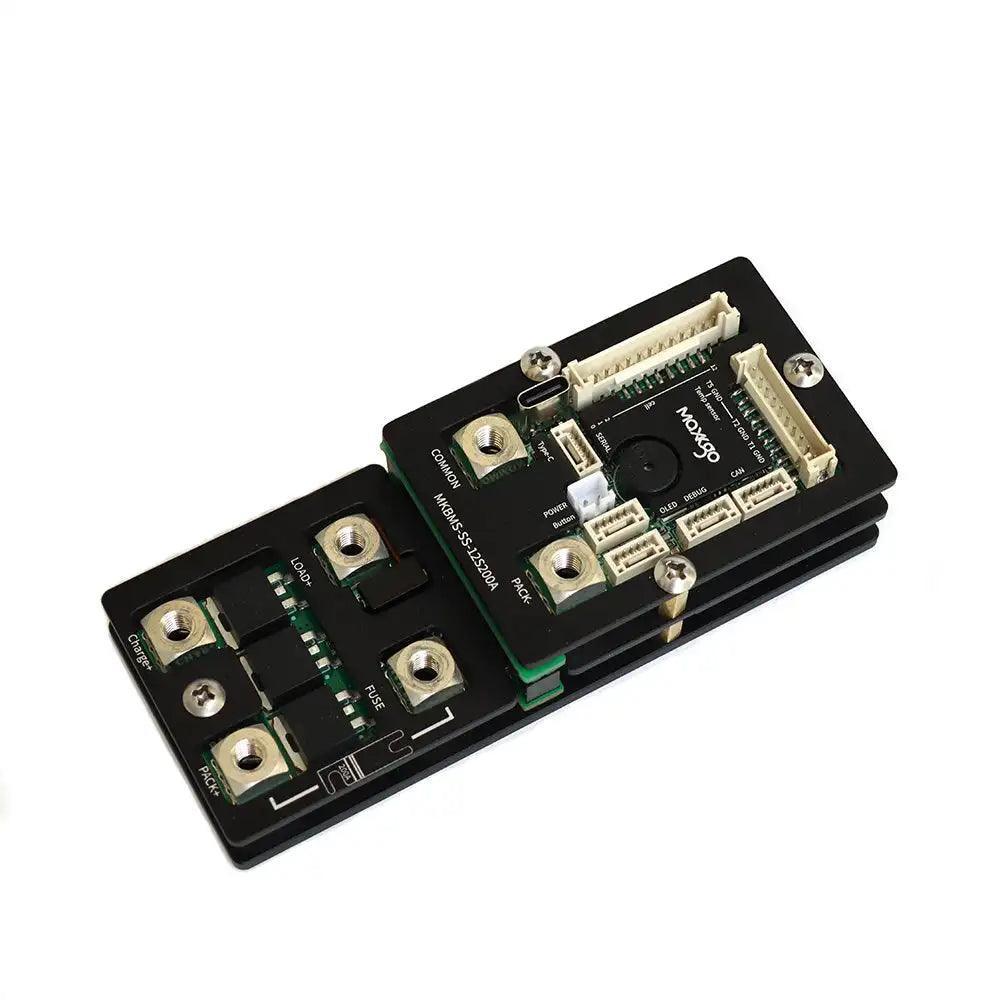

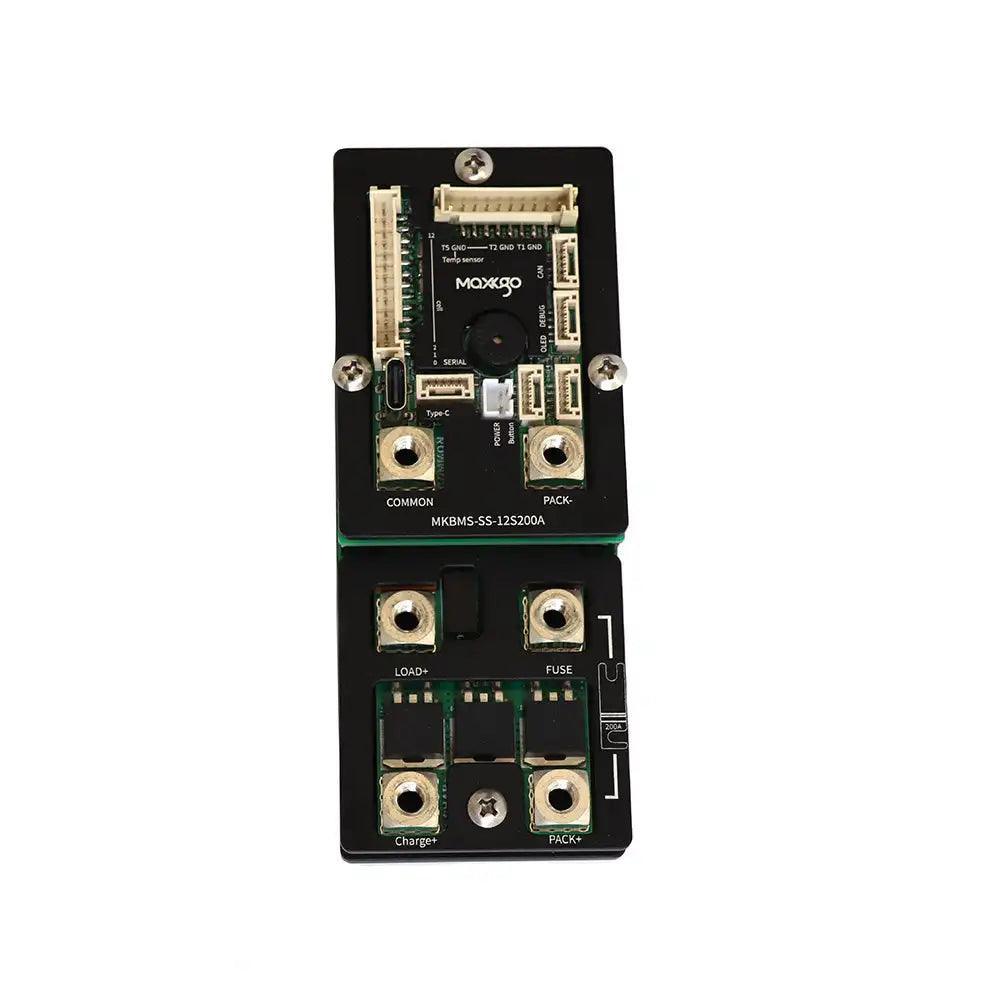

13. Aluminum alloy shell for better heat dissipation

14. Automotive grade design, automotive grade locking connector.

15. Compatible with MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL.

Wiring diagram：
