Flipsky 200A Dual VESC Based FSESC 6.6 Mini Size Based upon VESC 6.6 for DIY E-board
Specification
| Hardware | V 6.6 |
| Firmware | Latest firmware version |
| Current | Continuous 100A single, total 200A |
| Instantaneous current | Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current |
| Voltage | not exceed 60V; 3-12S (12.6-50.4V) programmable |
| Modes | DC, BLDC, FOC (sinusoidal) |
| Supported sensors | ABI, HALL, AS5047 |
Product Advantages
1.Dual ESC can reach continuous 200A big current, give your board strong power

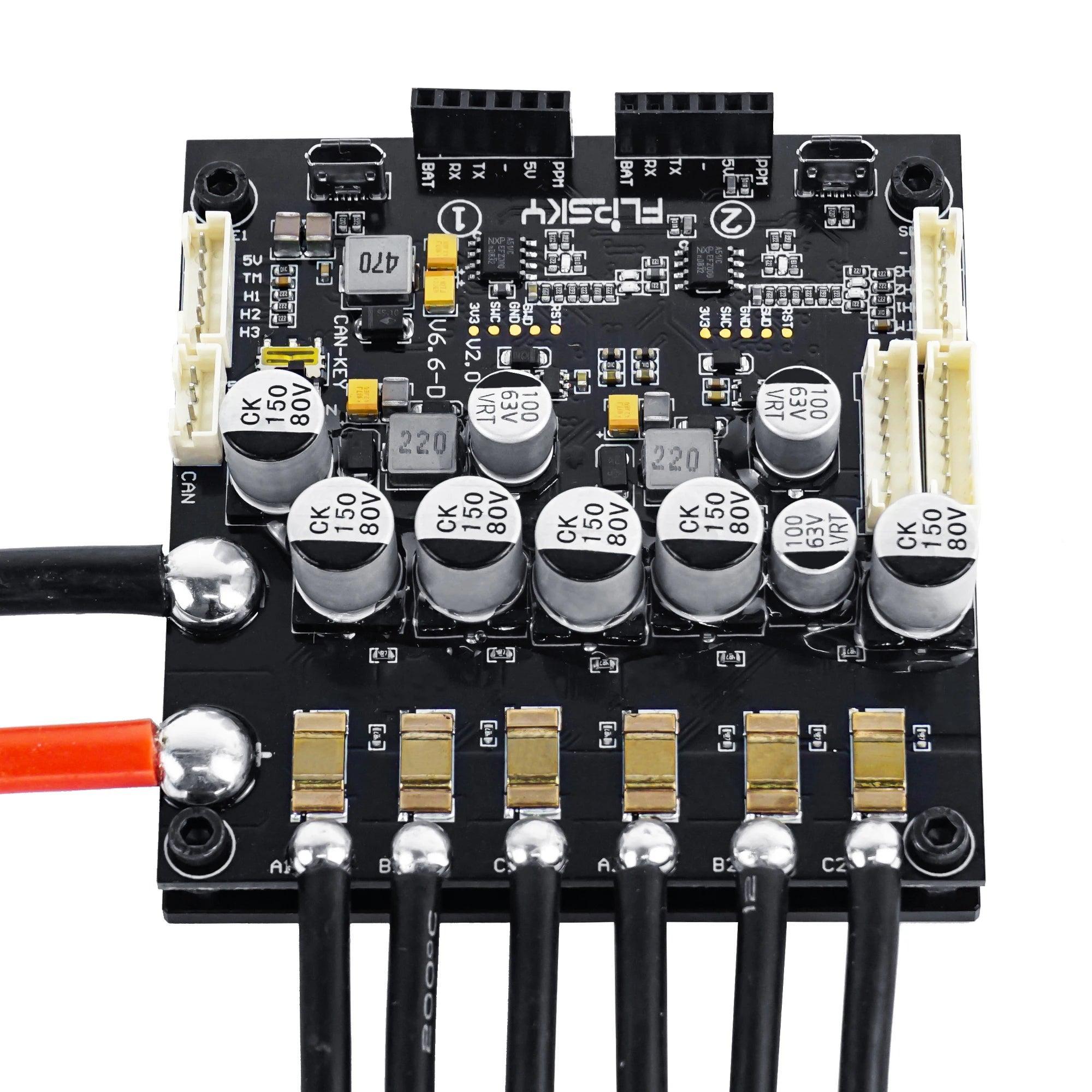

2.One PCBA board integrate two FSESC6 's function by internal CAN BUS circuit connection
3.The mater and slave board connection can be switched On/Off
4.Preserve Bluetooth module and RF module connections for both master and slave board

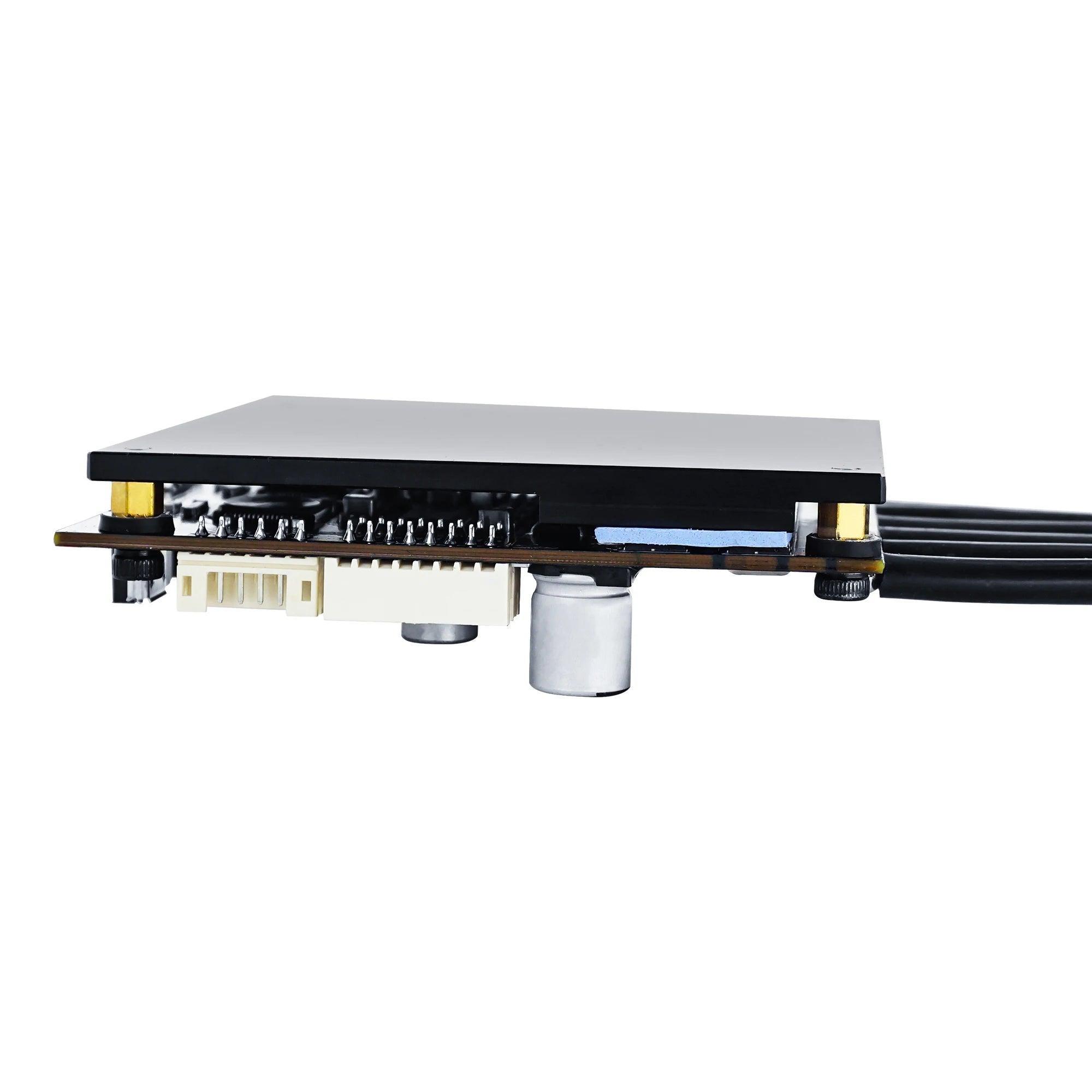

5.Aluminum anodized Heat sink with fins design for better heat dissipation

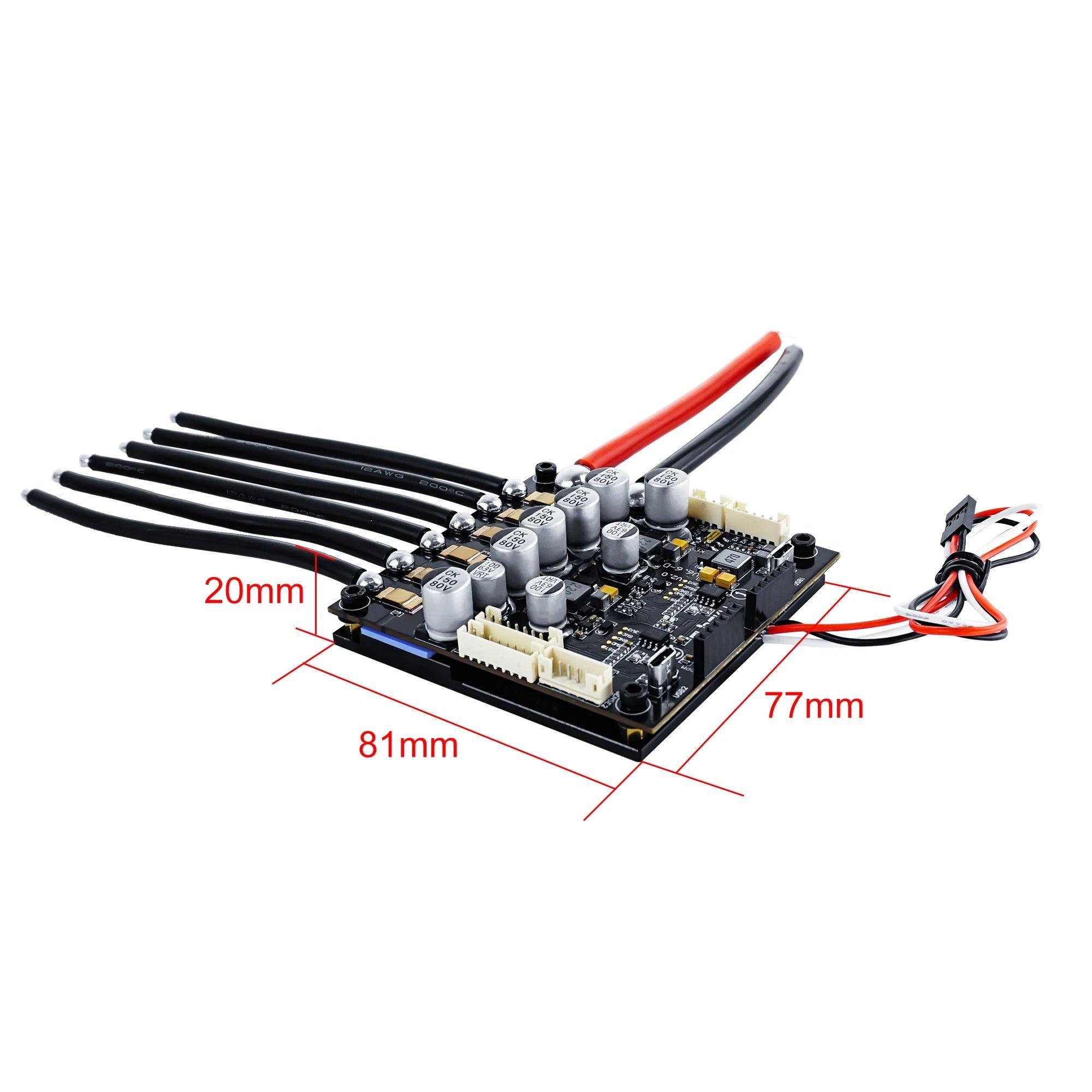

6.Size with heatsink: 81x77x20mm
7.PCB layers: 8layers, thickness: 3oz/layer, total 24 oz thickness
Wiring Diagram
