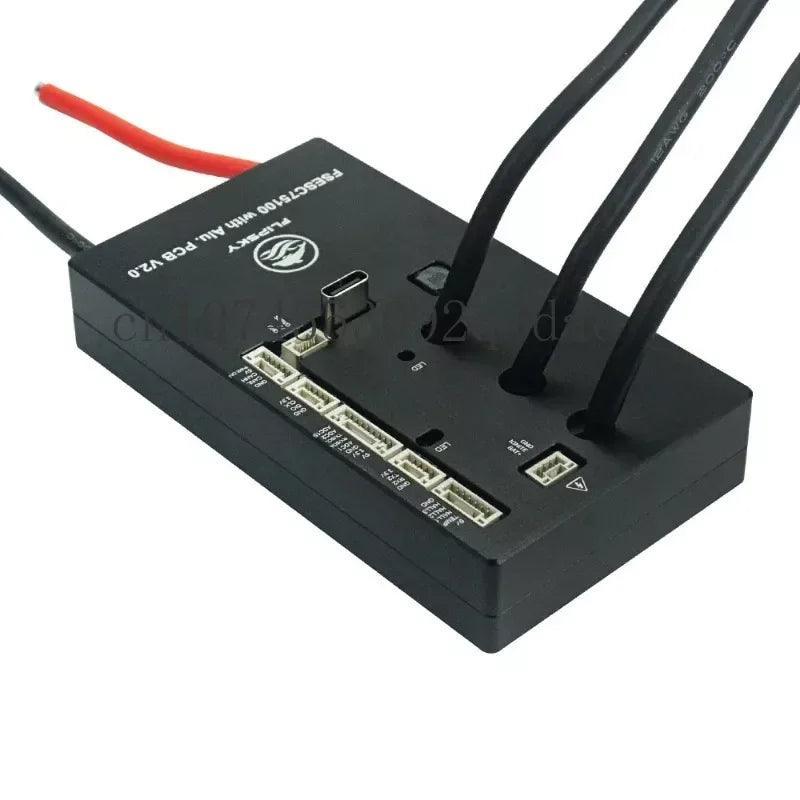

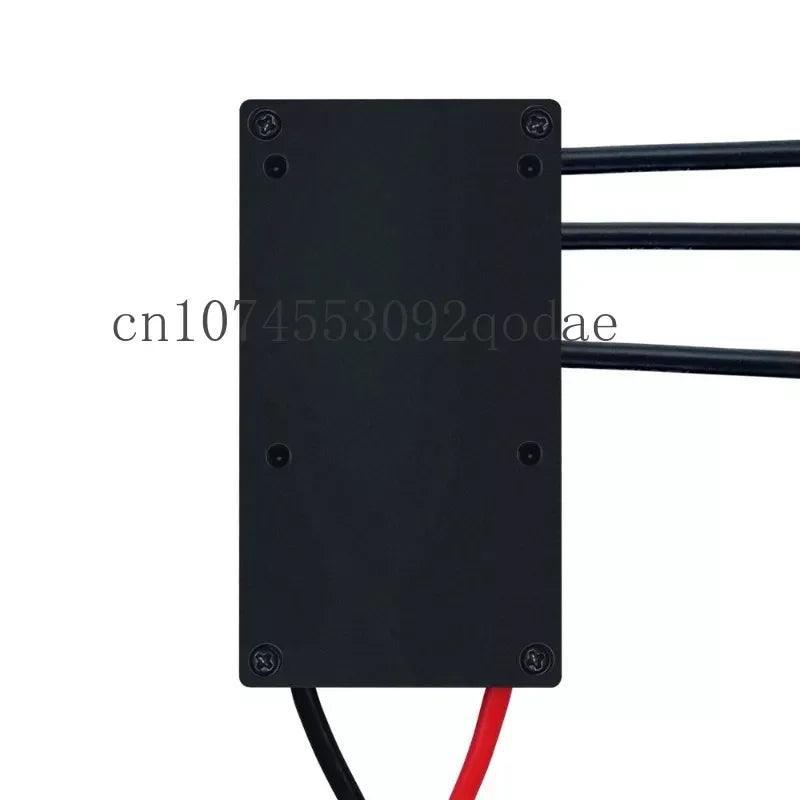

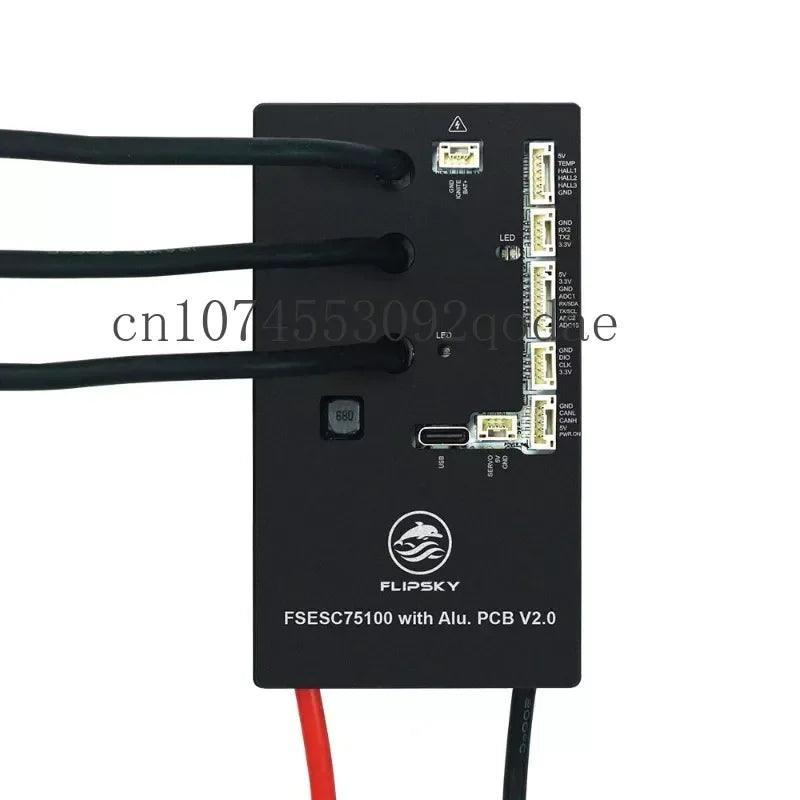

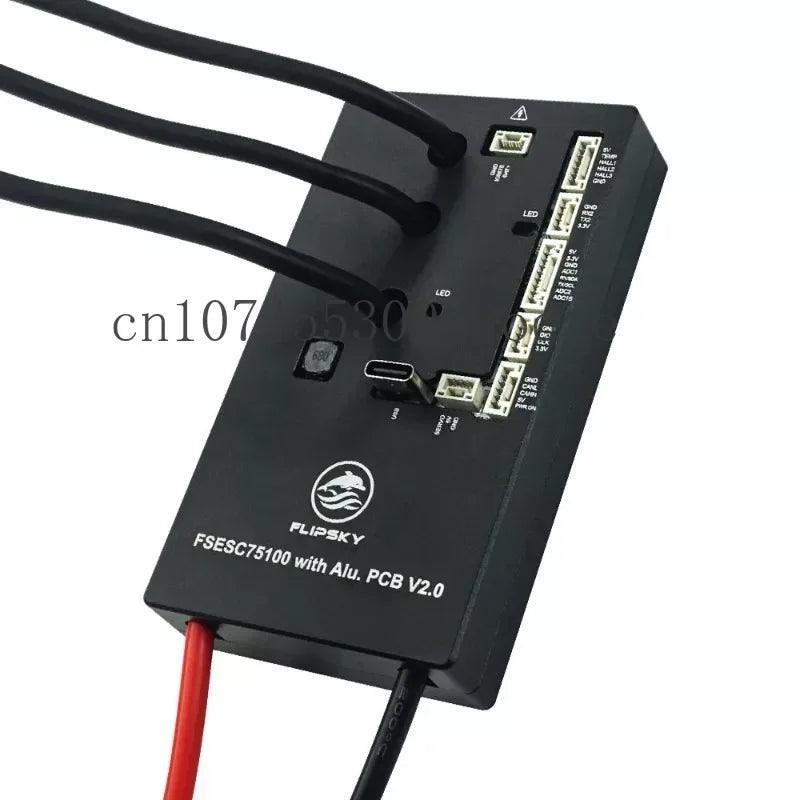

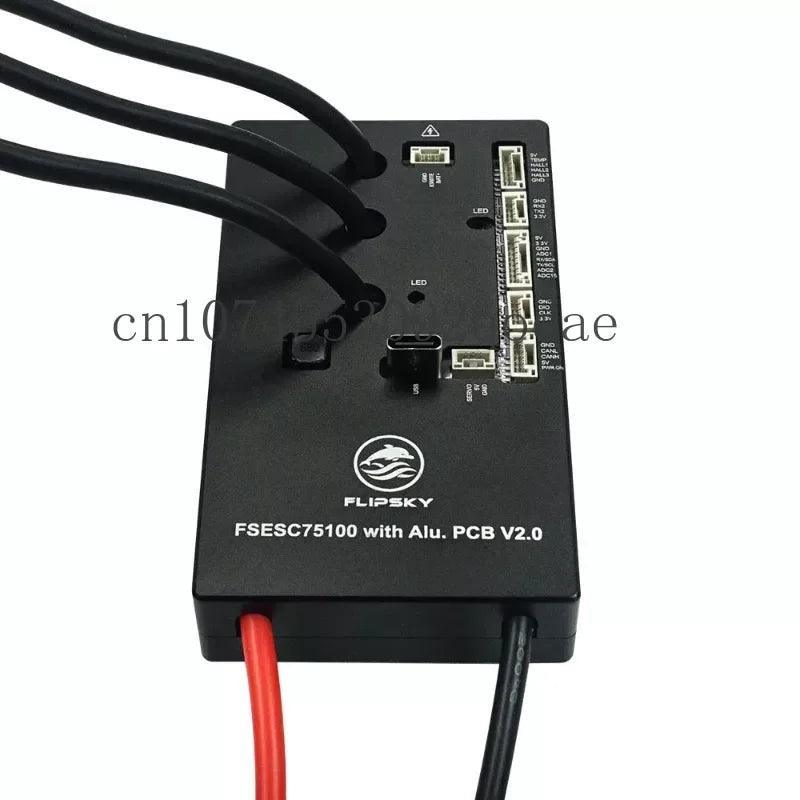

Flipsky 48V 60V 72V 75V 84V 100A FSESC 75100 V2.0 with Power Switch

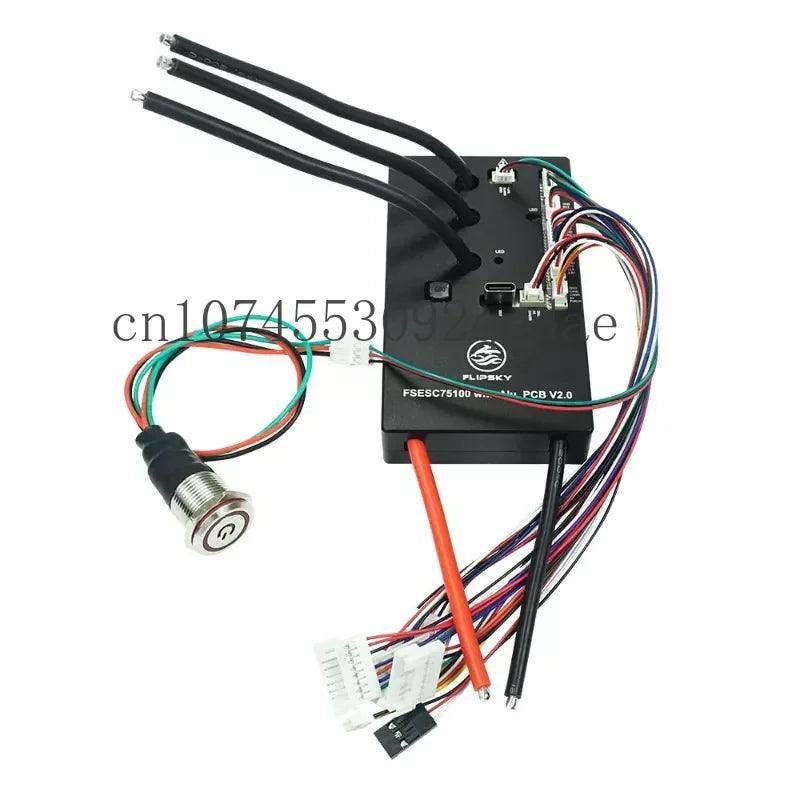

75100 With Alu. PCB V2.0 is based on VESC 75 series, programmable via vesc_tool3.0 (firmware5.2) with overheat and over current protection, regenerative braking capacity. It's designed with aluminum case, with good heat dissipation and max working voltage can be 20S, 84V. Also, 75100 With Alu. PCB V2.0: supports single serial port function, and integrates power on / off switch and key switch for Ebike / Escooter etc.

Product Advatages

• Voltage:14-84V (4-20S)
• Continuous Current:100A
• Peak Current:250A
• Firmware: VESC_TOOL3.0(firmware5.02)
• Control Interface Ports:USB,CAN,UART
• BEC:5V/1A
• Modes:FOC (sinusoidal)
• Supported Sensors:ABI,HALL,AS5047,AS5048A
• Input Set Support:PPM,ADC,NRF,UART
• Wire Size: 12AWG
• Size:L103mm*W58mm*H18.5mm
• Programmable: Yes
• Regenerative Capacity: Yes

Feature:

1. Two COMM ports, UART bluetooth module, screen display or remote controller supportable.
2. Based on VESC, programmable via vesc_tool with overheat and overcurrent protection.
