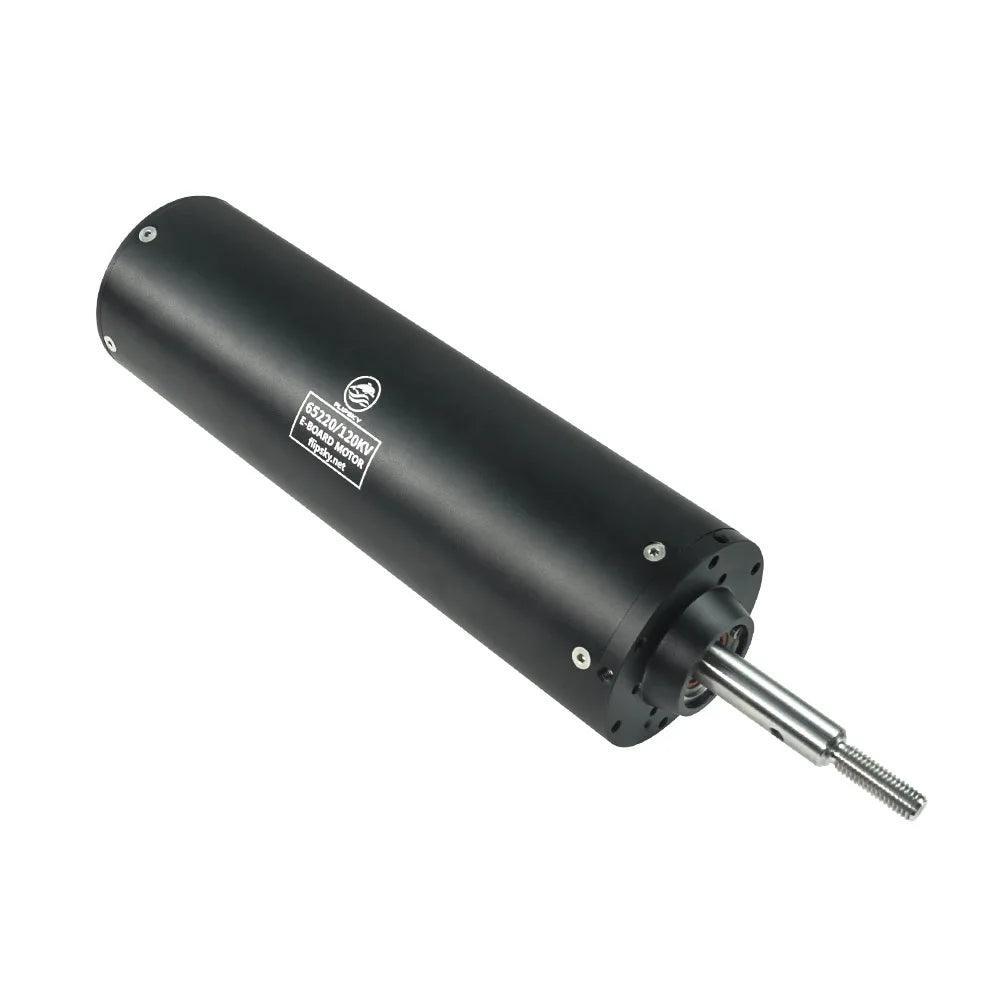

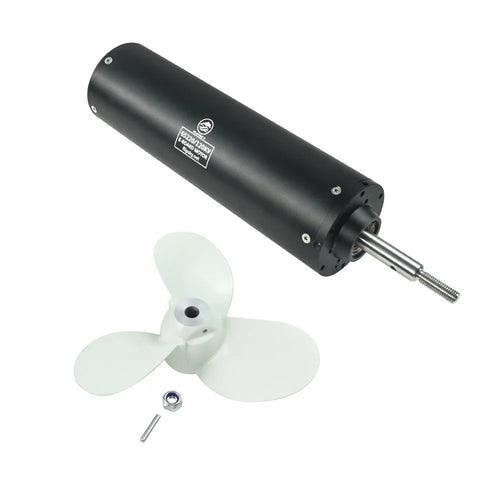

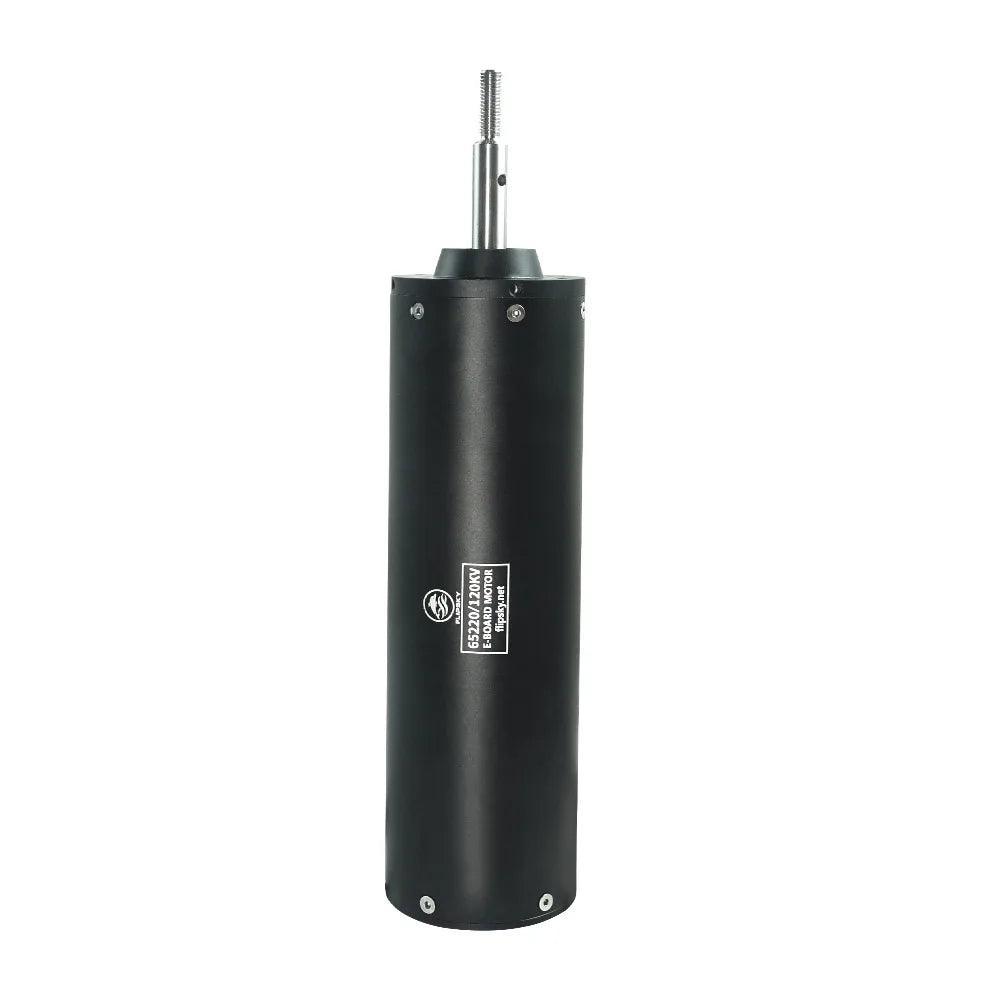

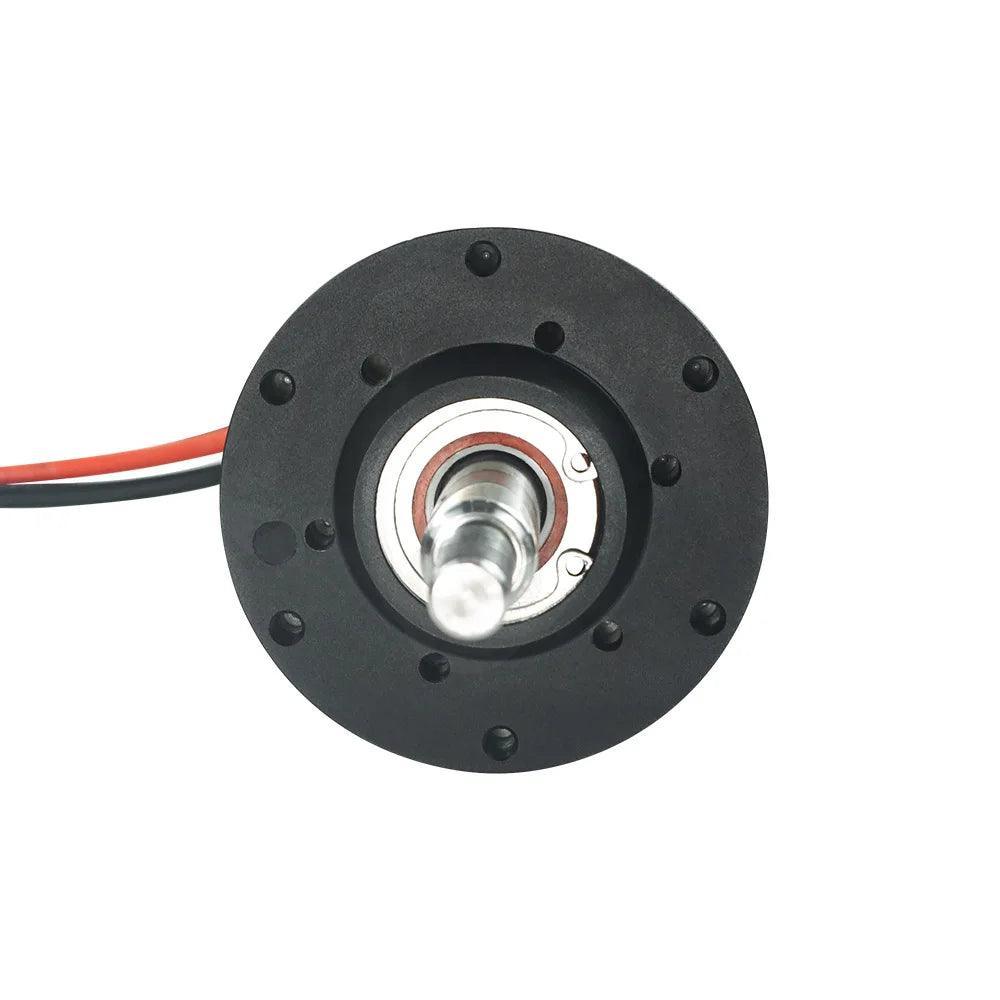

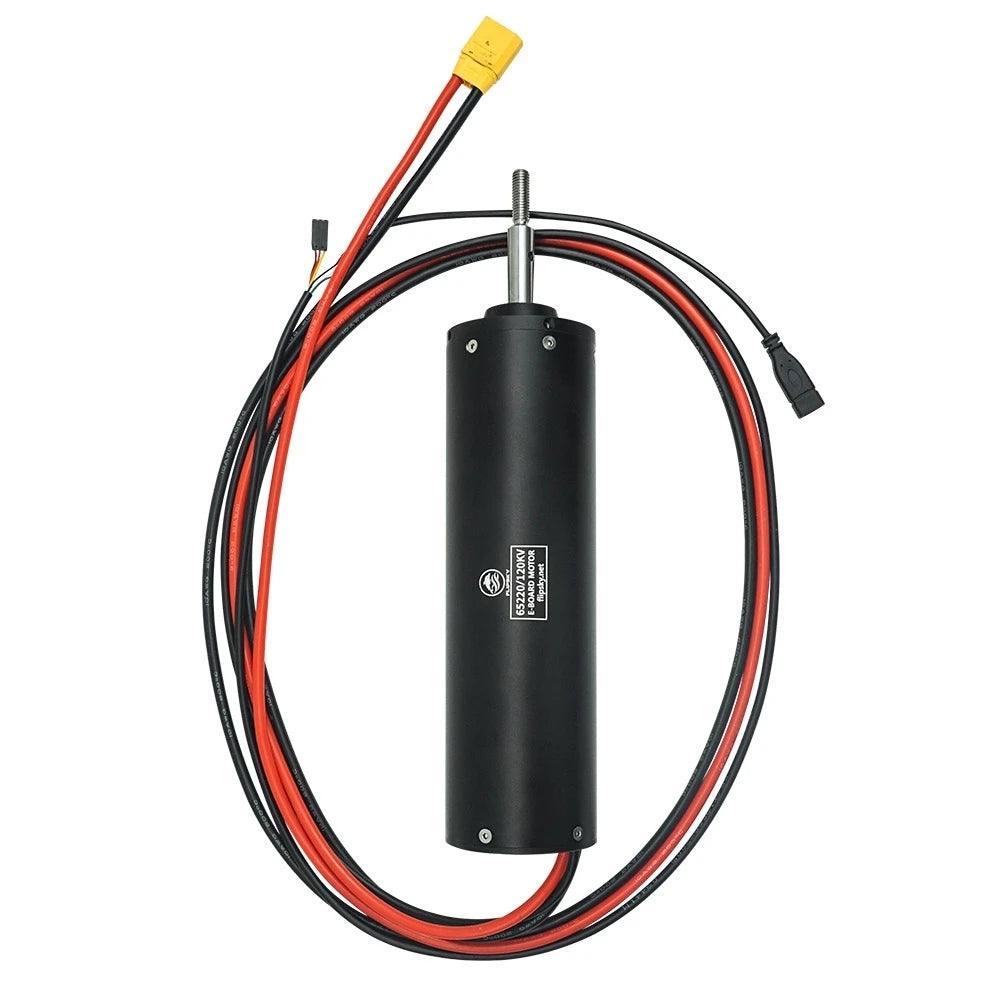

Flipsky 65220 Motor 120KV 6000W Integrated ESC IP68 BLDC Motor ESC

Spec

• Model: Φ65 x 220 mm

• Voltage Range: 6-20S

• Maximum Power: 6000 W

• Rated Power: 3000 W

• Rated Current: 60 A @50V

• Maximum Current: 100A @30V

• Insulation Current: AC 500V / 1mA / 3s

• Resistance: 58 mΩ

• Inductance: 170 μH

• Three-phase Wire: 3 x 10 AWG (5.5 mm)

• Power Connector: XT90

• Shaft : Φ12 -0.005 / -0.01

• Rated Torque: 6.3 N·m

• Number of slots & poles : 18 N / 6p

• Maximum Torque: 9 N·m

• Waterproof Level: IP68

• Weight: 3.23 kg

ESC integrated Spec

• Firmware: 5.2 VESC TOOL3.0

• ESC Drive Mode: Default PPM (customizable to ADC, UART)

• Communication Port: Default USB (customizable to CAN)
