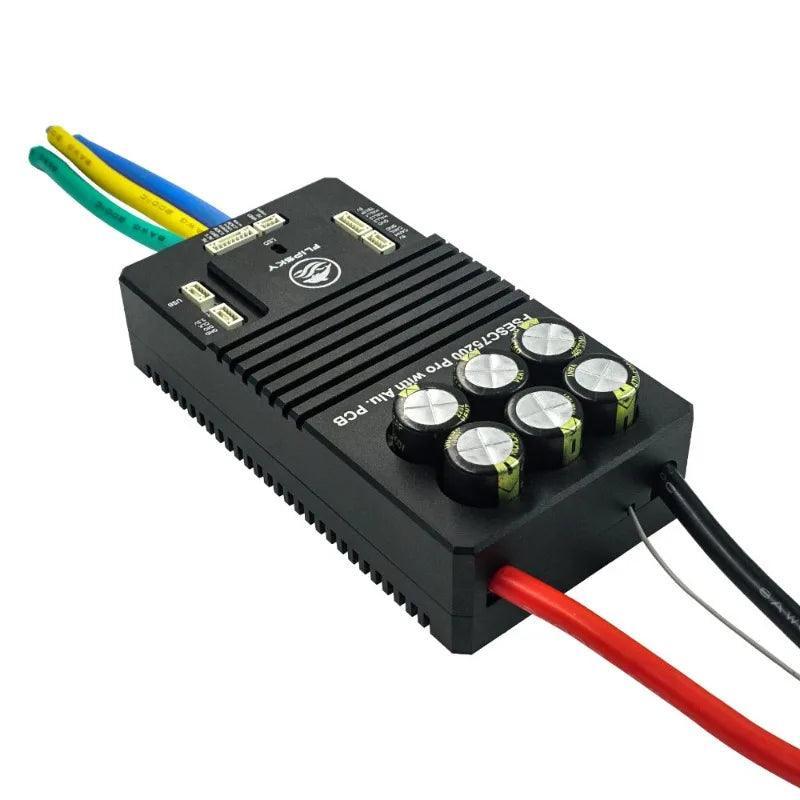

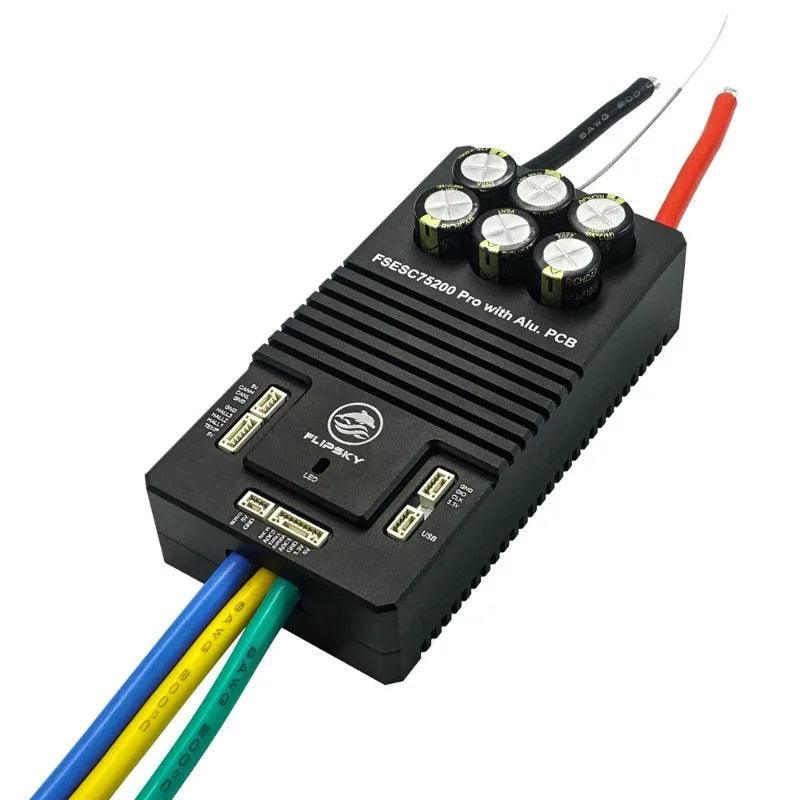

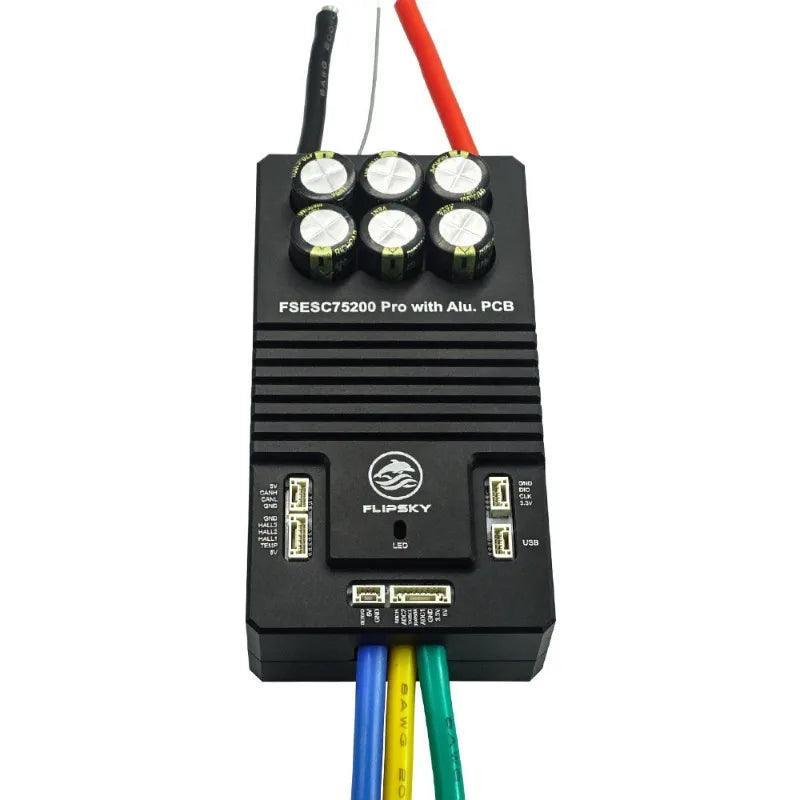

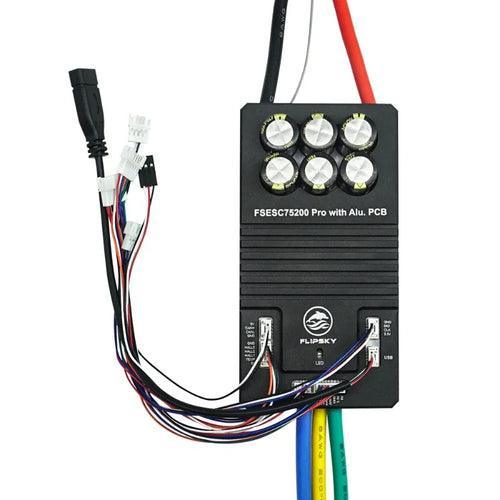

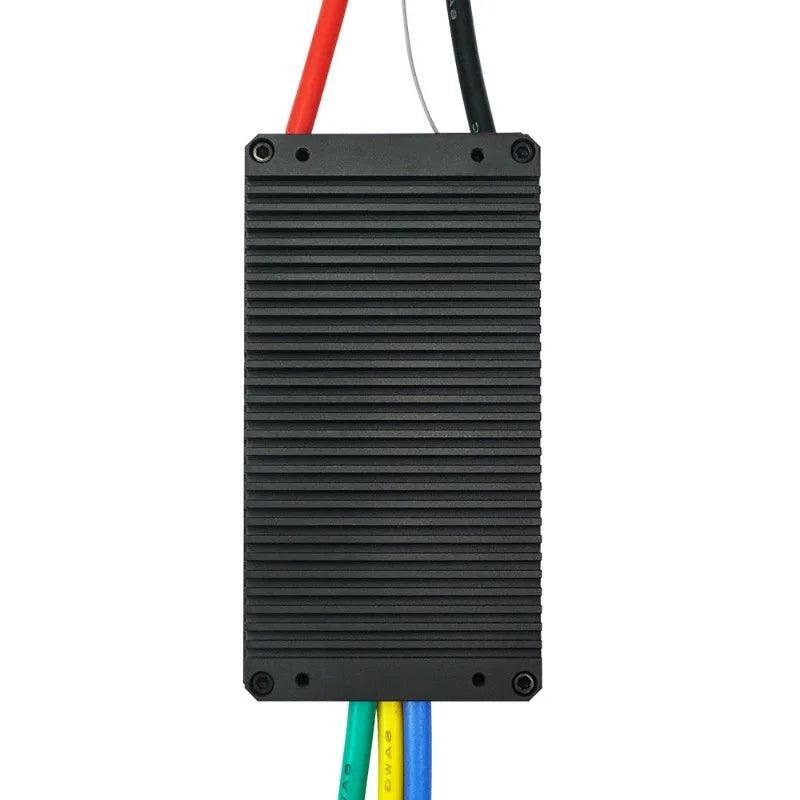

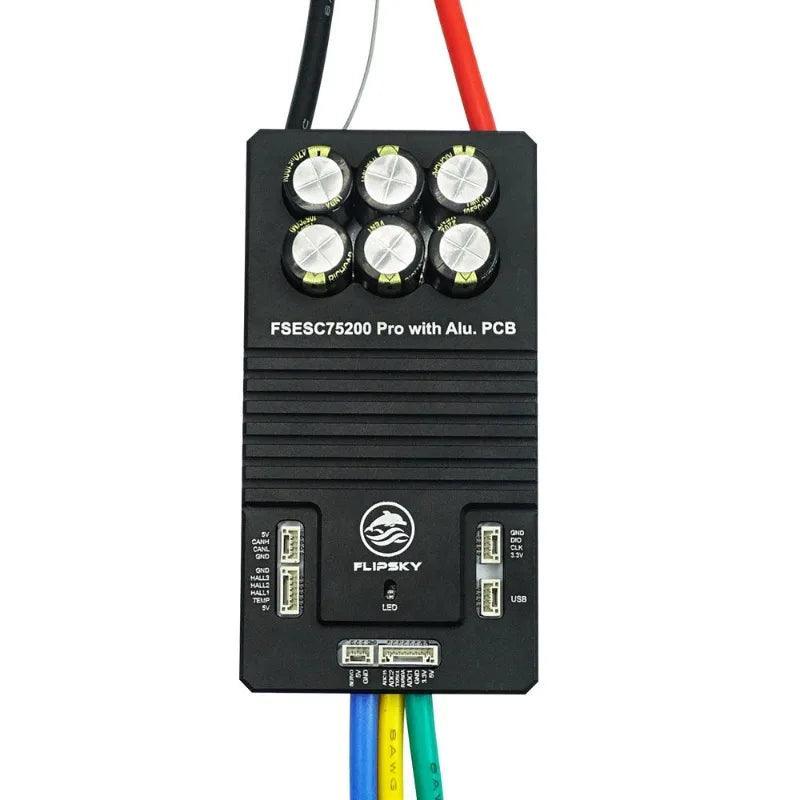

Flipsky 75200 Pro electronic speed controller 84V High Current with Aluminum PCB for Fighting Robot Surfboard Robot
Product Advantages
| Voltage | 14-84V (safe for 4-20S) | Modes | DC, BLDC, FOC (sinusoidal) |
| Continuous Current | 50V/200A; 75V/150A | Supported sensors: | Yes |
| Max Current | 300A | EPRM | 150000 |
Features:
1. 75200 aluminum substrate single drive: MOS tube temperature detection is abnormal (minimum display temperature at low temperature is about 30°C)
2. 75200Pro aluminum substrate single drive: MOS tube temperature detection is normal (hardware has been optimized for the problem that the minimum display temperature is about 30°C at low temperature)
3. 75200 aluminum substrate single drive: support dual serial port function
4. 75200Pro aluminum substrate single drive: supports single serial port function, and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time)
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
