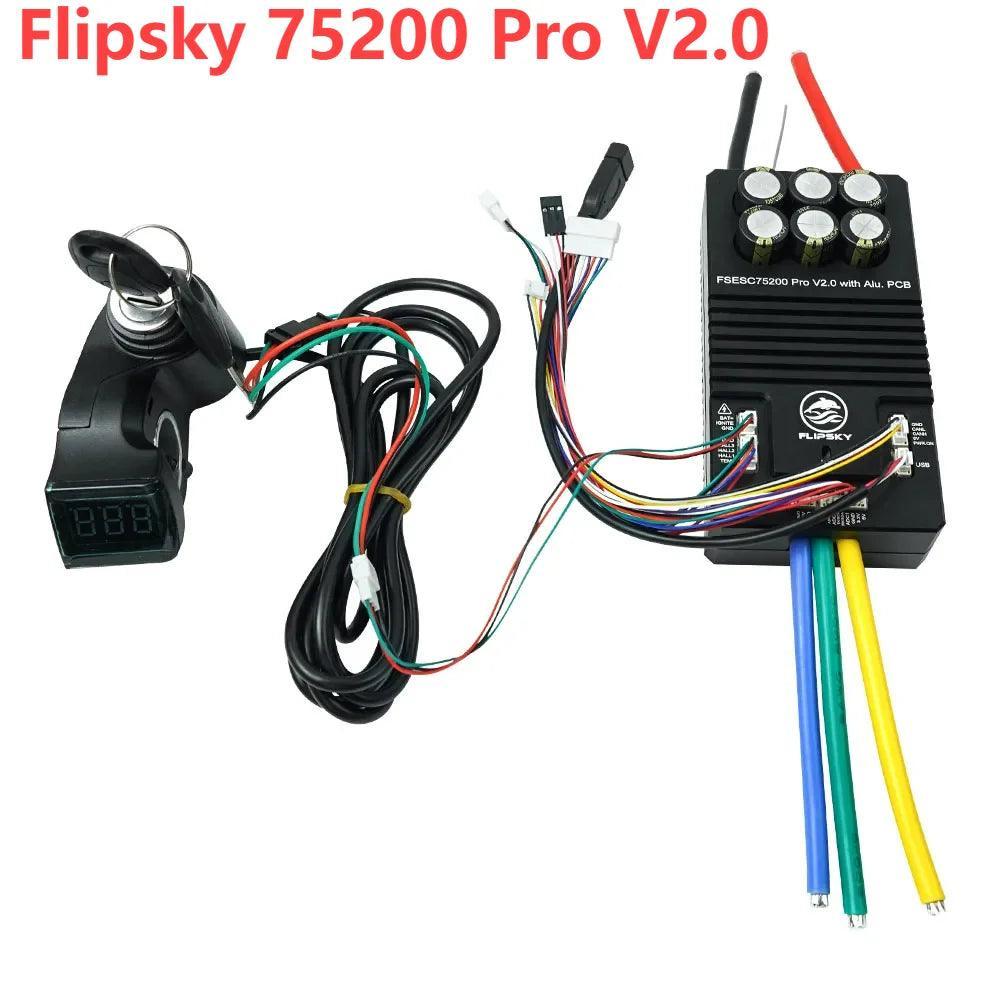

Flipsky 75200 Pro V2.0 With Aluminum PCB Based on VESC For Electric

Spec:

• ambient temperature and air/water circulation around the device!); Burst: 300A

• Communication Ports: USB, CAN, UART, SPI, IIC

• Regenerative capacity: Yes

• Phase Filter: Yes

• Support various control modes: Current / Duty cycle / Speed / PID control modes.

• CPU:32F405 with frequency 168MHz

• 75200 Pro V2.0 aluminum substrate single drive: supports single serial port function,and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time),and built with power on/off switch.

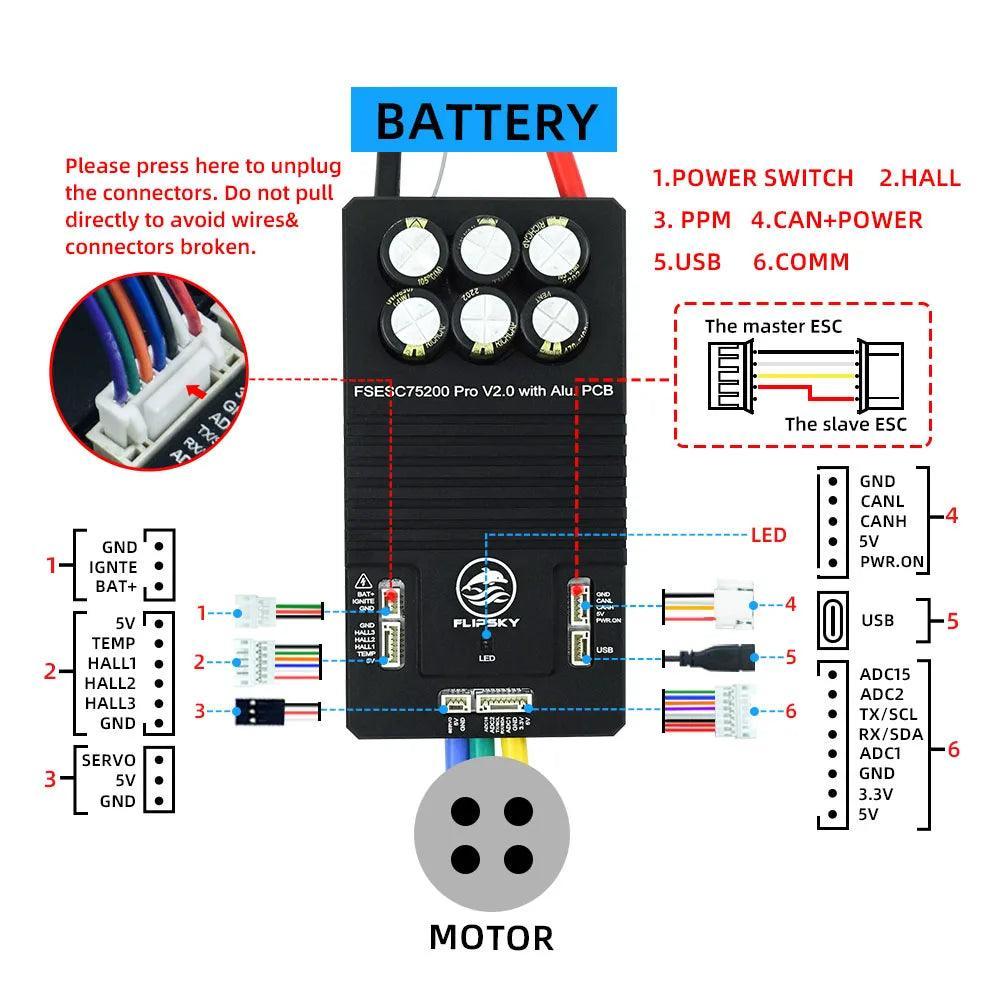

Wiring diagram:
