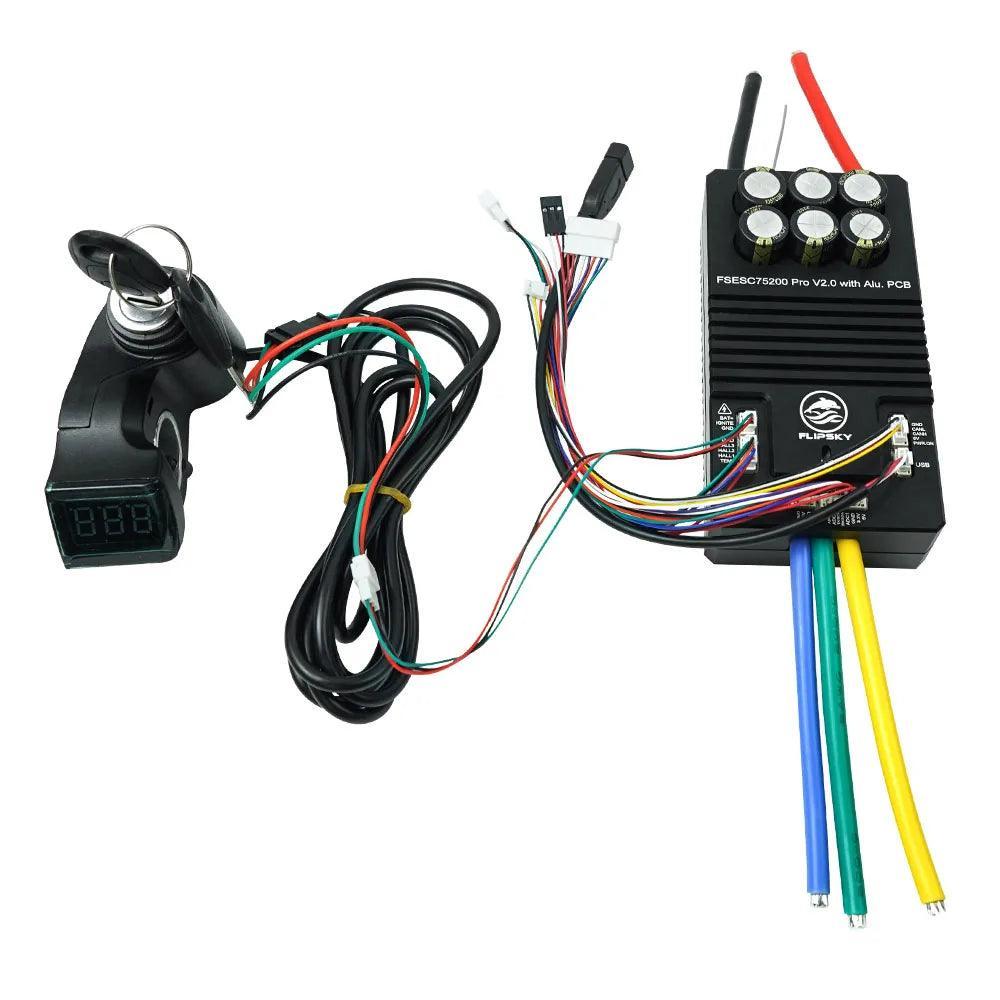

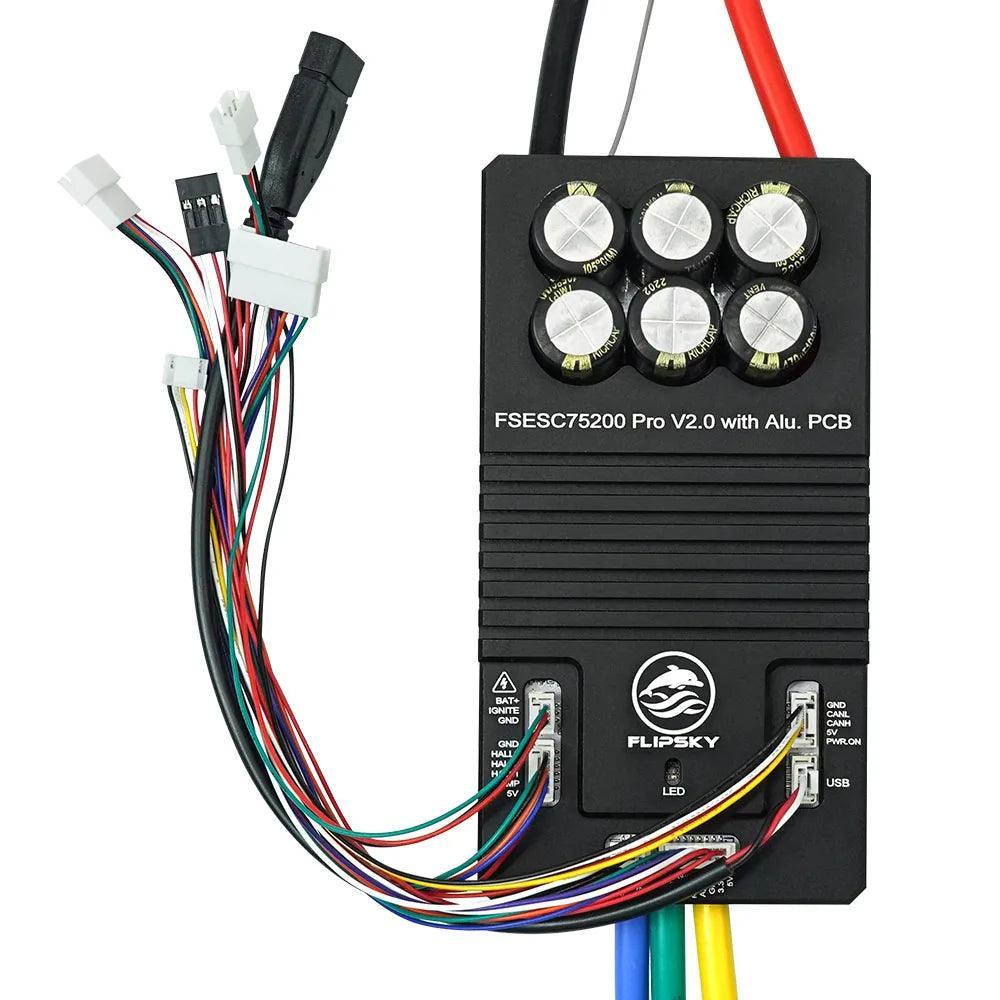

Flipsky 75200 Pro V2.0 With Aluminum Pcb Based On Vesc For Electric

Spec:

• Firmware: 6.02, supports firmware upgrade

• Voltage: 14-84V (safe for 4-20S)

• Continuous current: 50V/200A; 75V/150A (Values depend on the mounting,

• ambient temperature and air/water circulation around the device!); Burst: 300A

• BEC: 5V@1A

• Support Modes: DC, BLDC, FOC (sinusoidal)

• ERPM: 150000

• Communication Ports: USB, CAN, UART, SPI, IIC

• Supported Sensors: ABI, HALL, AS5047, AS5048A

• Input Source Support: PPM, ADC, NRF, UART

• Supported Sensorless: Yes

• Regenerative capacity: Yes

• Programmable via VESC_TOOL: Yes

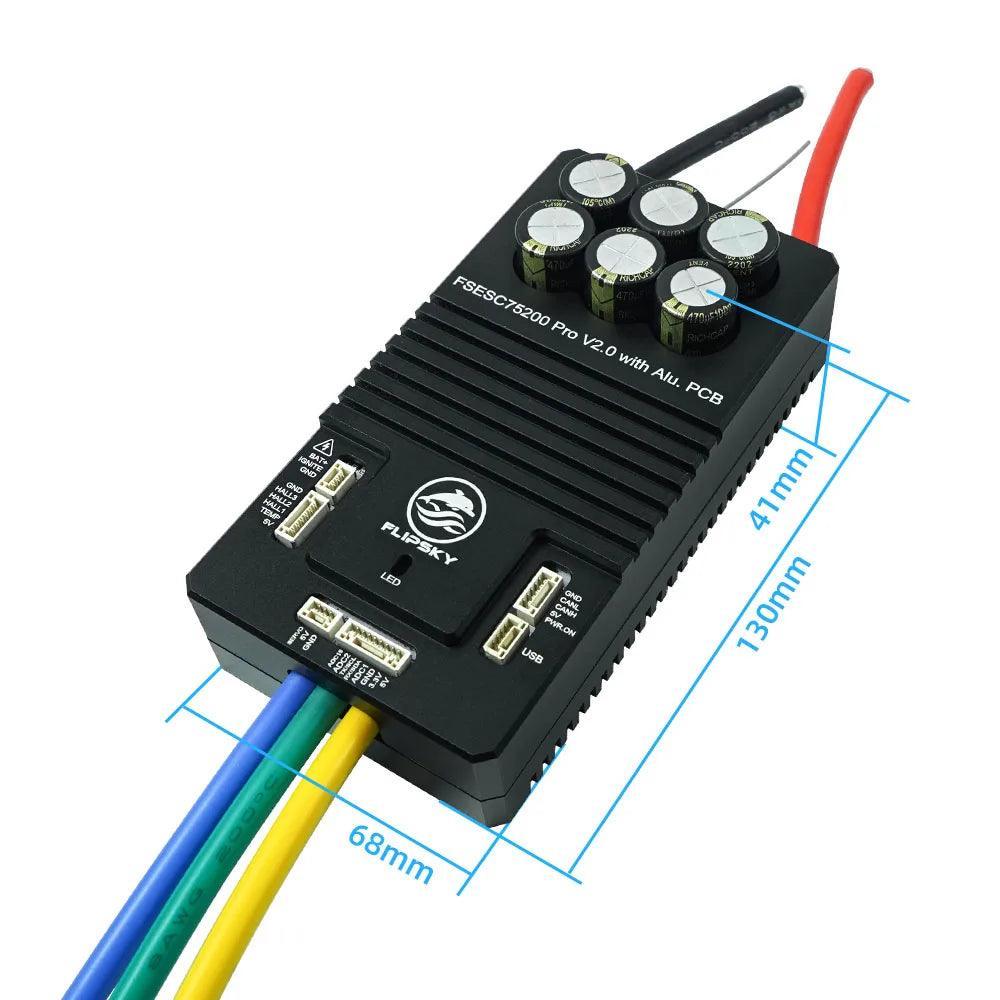

• Size:130x68x41mm

• Motor/power wire size: 8 AWG

• Phase Filter: Yes

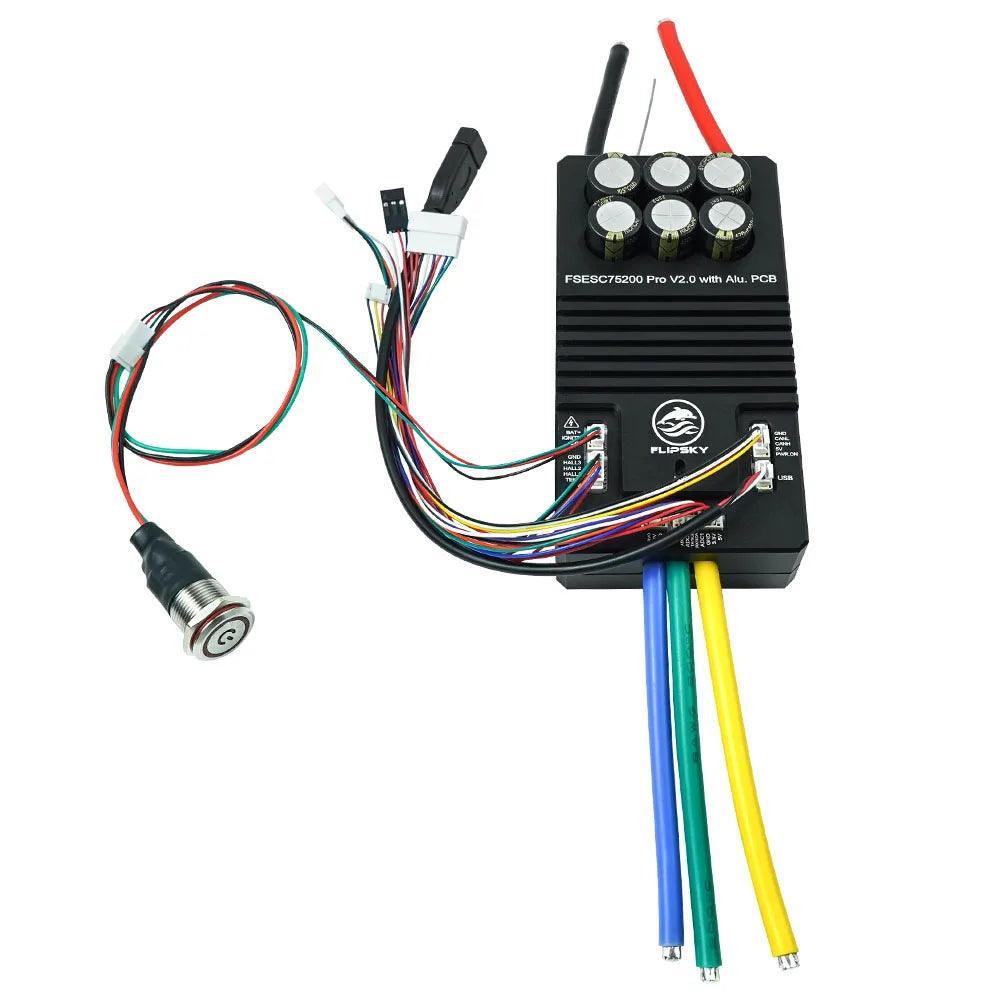

• Power Switch Button: Red

Feature:

• Adjustable protection against: low voltage protection, high voltage protection,over current protection, temperature abnormal protection, mosfets / motor over temperature protection.

• Support various control modes: Current / Duty cycle / Speed / PID control modes.

• Support the function of balancing car by connecting the IMU module through the

• IIC interface; support inertial measurement unit modules such as MPU9250,

• MPU9150, MPU6050, LSM6DS3, BMI160.

• CPU:32F405 with frequency 168MHz

• Aluminum PCB with good heat dissipation to expand life span.

• 75200 Pro V2.0 aluminum substrate single drive: supports single serial port function,and integrates Bluetooth module function (convenient to connect Bluetooth parameters and read data in real time),and built with power on/off switch.

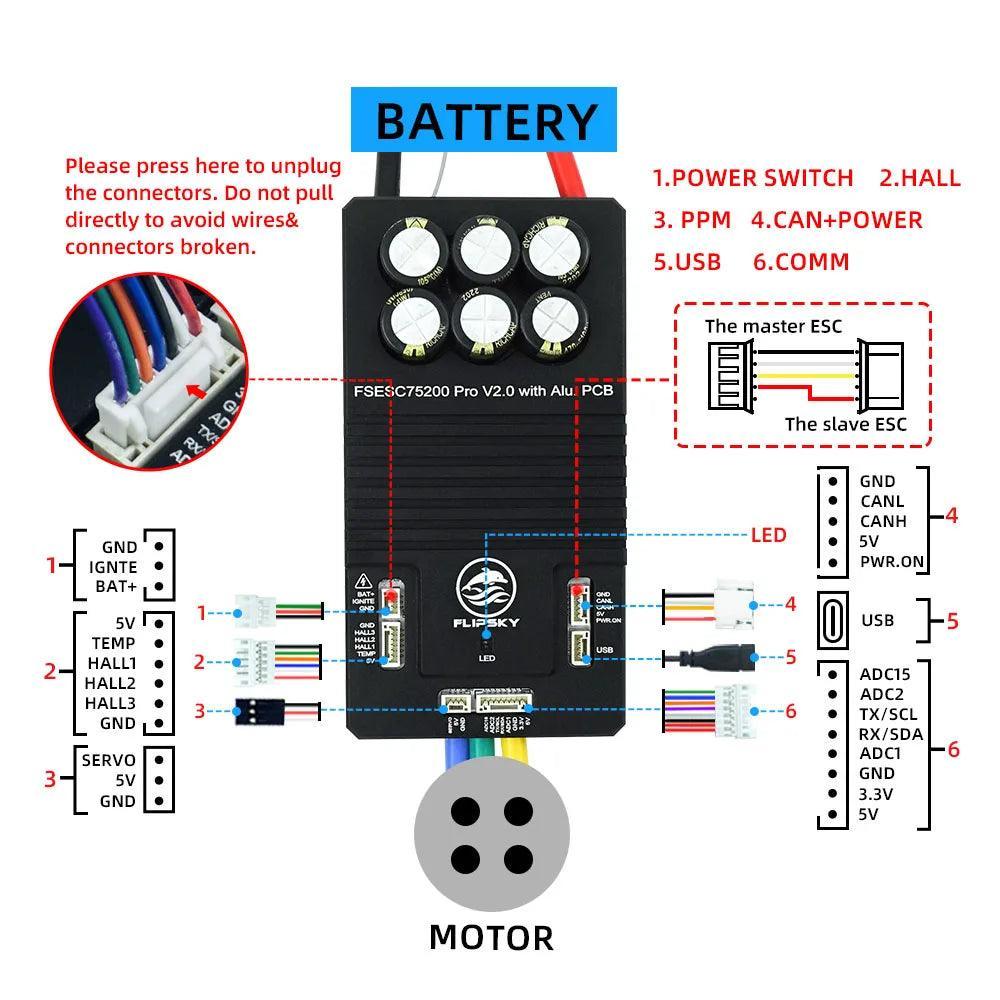

Wiring diagram:
