Specs:

• Firmware: 5.2, supports firmware upgrade

• Voltage: 14-84V (safe for 4-20S)

• Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A

• BEC: 5V@1A

• Support Modes: DC, BLDC, FOC (sinusoidal)

• ERPM: 150000

• Communication Ports: USB, CAN, UART, SPI, IIC

• Supported Sensors: ABI, HALL, AS5047, AS5048A

• Input Source Support: PPM, ADC, NRF, UART

• Supported Sensorless: Yes

• Regenerative capacity: Yes

• Programmable via VESC_TOOL: Yes

• Size:130x67.7x40.1mm(Including alu. case)

• Motor/power wire size: 8 AWG

Features:

1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
2.Support various control modes: Current / Duty cycle / Speed / PID control modes.
3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
4.CPU:STM32F405 with frequency 168MHz
5.Aluminum PCB with good heat dissipation to expand life span.
6.Two COMM ports: UART bluetooth module, screen display or remote controller supportable.

Warm tips:

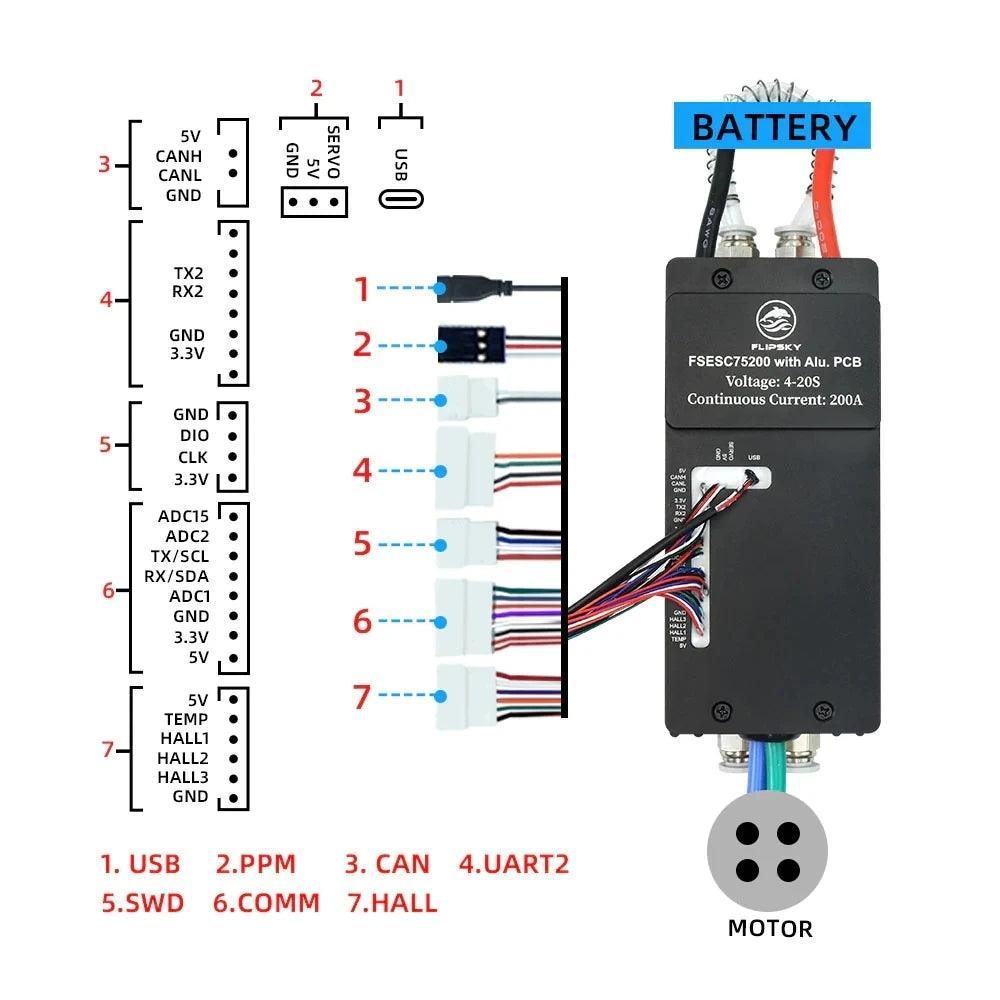

Wiring:
