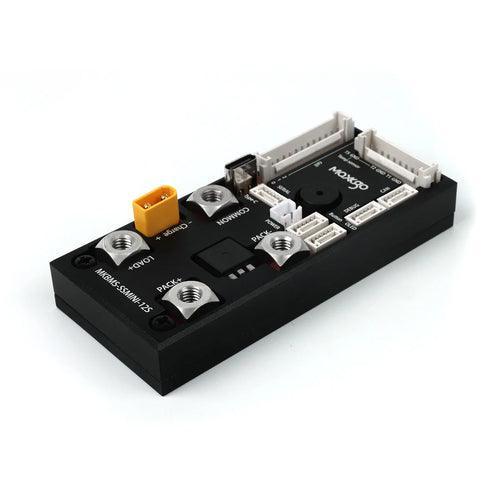

Flipsky Battery Protection Circuit Board 12S BMS Lithium ion For E-scooter E-car E-bike E-skateboard
FSBMS 12S is a full-featured battery protection board for electrical motorbike,light electric vehicles and electric skateboards. It is a smart mini BMS that integrates charging protection, discharge protection, over current protection, temperature protection, active balance and passive balance.
Product Advantages
| Cell voltage operating range | 2V-5V | Recommended series cell | 6S-12S |
| Charge Voltage | 24V-52V | Charge Current | ≤10A |
| Abs. Max battery voltage | 60V | Minimum operating voltage | 14V |
| Continuous charging current | 20A | Over charge detect and release voltage | 2V-5V |
| Over charge protection delay | ≥4ms | Discharge current | ≤70A |
| Discharge voltage | 24V-52V | Max. Continuous discharge / regen current | 70A |
| Over current detect delay | ≥4ms | Over discharge detect and release voltage | 0-5V |
| Short Circuit detect voltage | short circuit of external load | Discharge over current protection release condition | off load |
| Short Circuit detect delay | 320us | Battery pack capacity and internal resistance detection | Yes |
| Balance current | 86mA @4.2V | Temp Protect | -20℃—+120℃X |
| Working Temp Range | -20℃—+80℃ | Storage Temp Range | -20℃—+100℃ |
| Working current | ≤40mA | Sleeping current | ≤100uA |
Packing Details:
- Size: 89 x 40 x 20.8mm
- Net weight: 106.5g
- Packing size: 140 x110 x 50 mm
- Package weight: 303.5g
- Including outer carton size: 170*120*100mm
- Weight with outer carton: 380g
Product Advatages
- Compact layout and mini
- Using aluminum alloy material shell, better heat dissipation.
- Automotive grade design, automotive grade locking connector.
- Configuring and firmware upgrades over USB through the MAXKGO-BMS-TOOL and ENNOID-BMS-TOOL.
- Automotive grade monitoring & balancing IC with separate power supply for increased reliability
- Voltages measurements for load, charger & battery pack
- Bi-directional current monitoring
- SOC based on coulomb counting
- Humidity sensor & board temperature monitoring
- Charger detection circuit
- Integrated precharge circuit

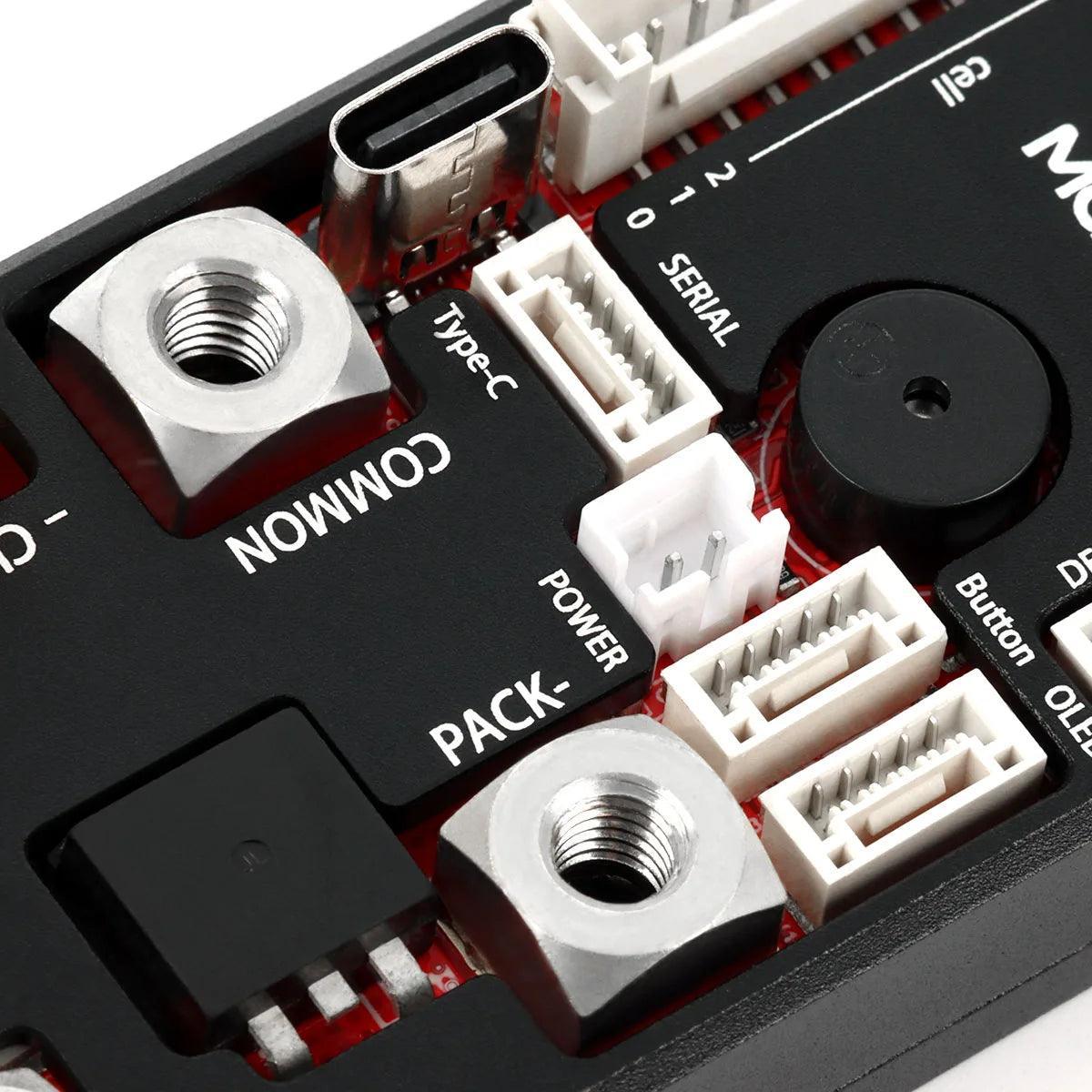

- Power button, USB-C, UART, I2C & isolated CAN bus interface
- On board High-Efficiency 3.3V regulator powered from the main battery pack

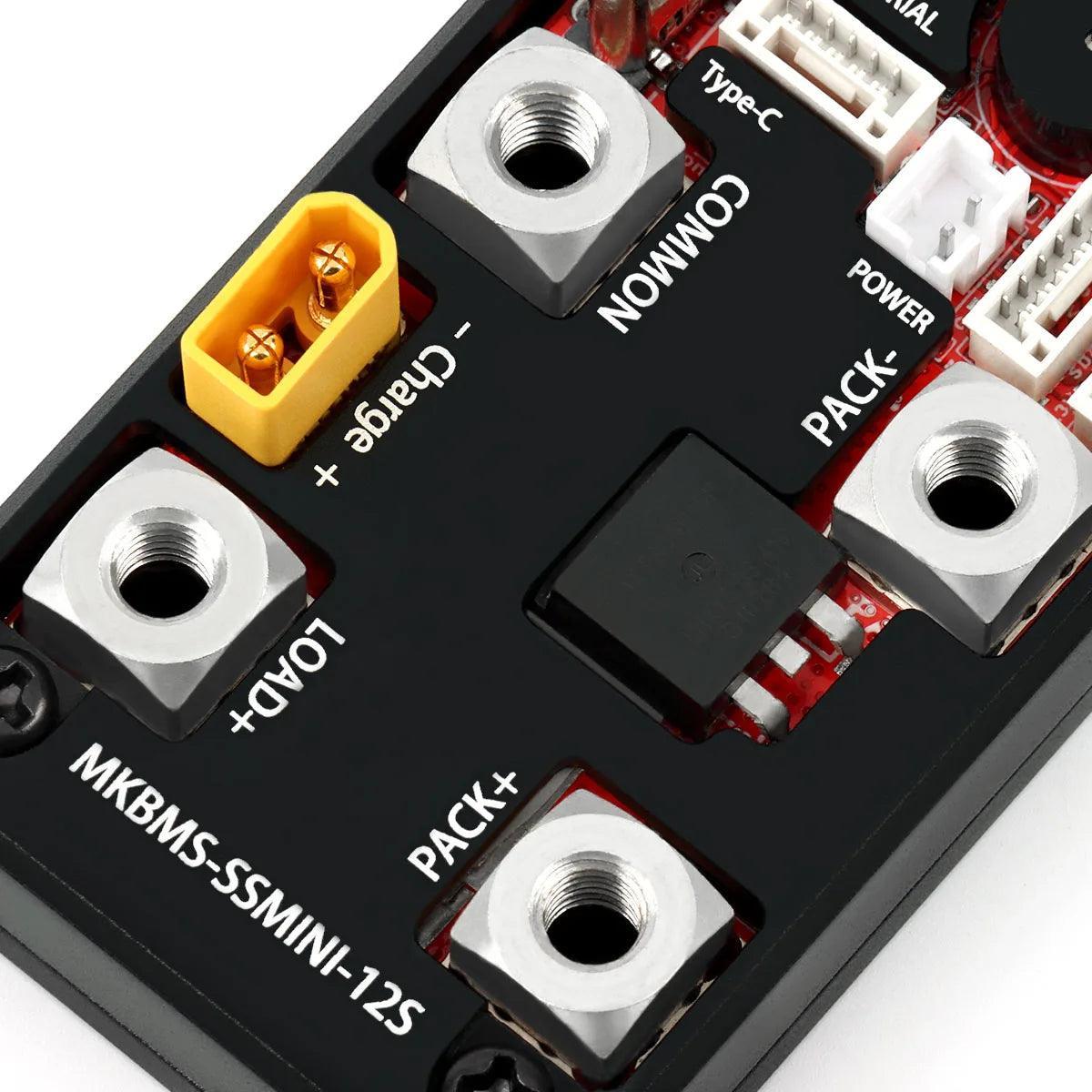

- High current capacity automotive grade screw connectors for main power connections
- Buzzer & status LED
- Support overcharge/discharge/over current /temperature protection,and have thermal management/balance function(active balance and passive balance).
- Support almost all lithium batteries such as lithium ion battery, lithium polymer battery, lithium phosphate battery, etc.
