Firmware: Latest Version
Continuous current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current. values depend on the mounting and ambient temperature around the device!
Voltage: 14V-60V(safe for 4S to 12S, voltage spikes may not exceed 60V! )
BEC: 5V@1A,5V/1A output for external electronics
ERPM: 150000

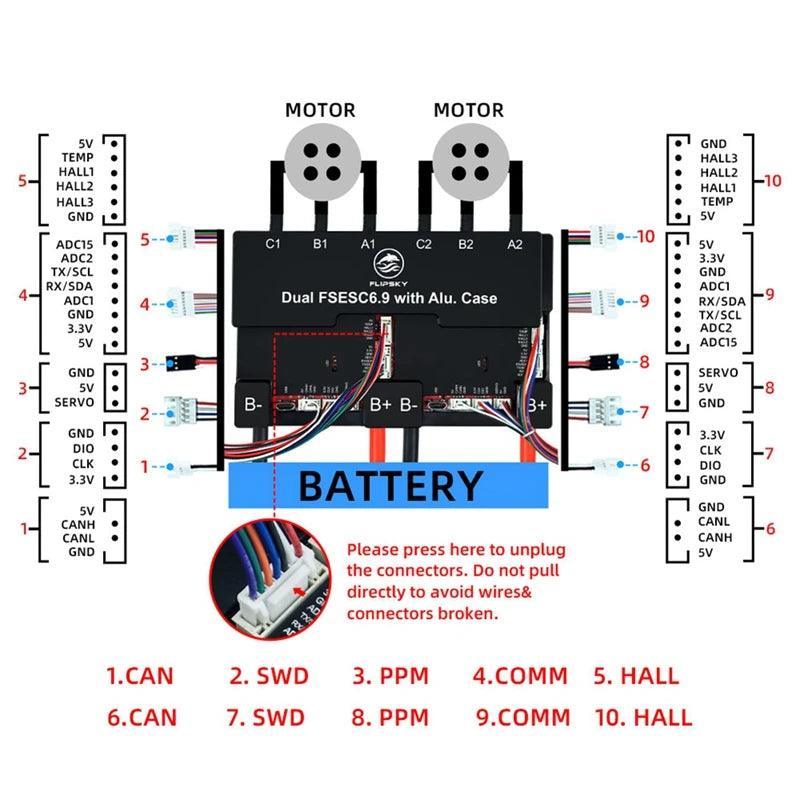

Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM, ADC, NRF, UART, SPI, IIC
Modes:DC, BLDC, FOC (sinusoidal)
Regenerative capacity: Yes
Programmable: Yes
Motor wire: 10AWG
Power cable:8AWG

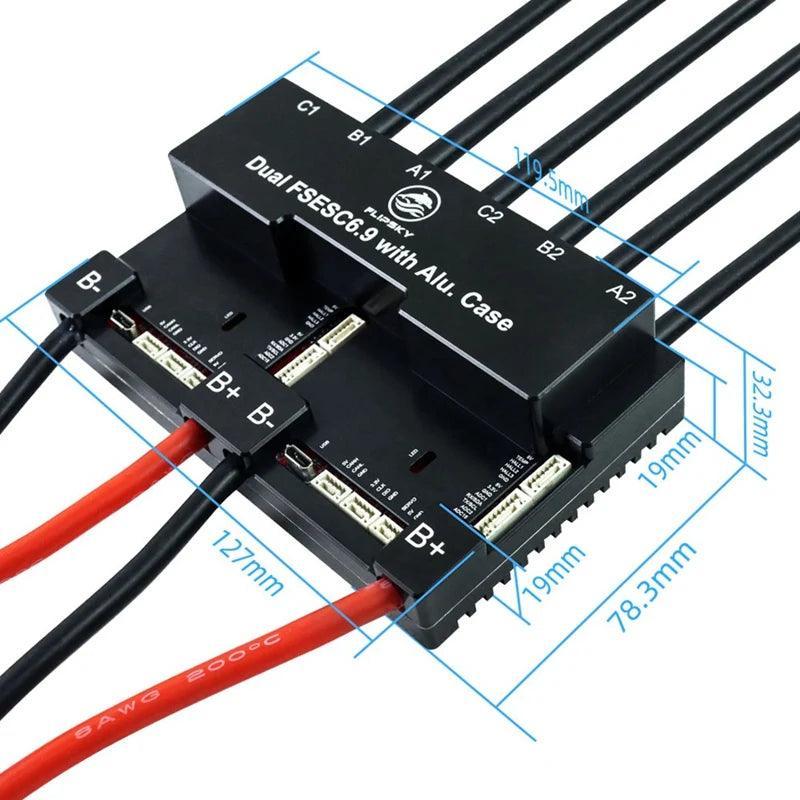

Size:127.6x78.4x32.5mm(Including Alu case)
Colour:black
Material:ABS+PCB
Package Contents:
1 x Brushless DC Motor Speed Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Continuous current: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current. values depend on the mounting and ambient temperature around the device!
Voltage: 14V-60V(safe for 4S to 12S, voltage spikes may not exceed 60V! )
BEC: 5V@1A,5V/1A output for external electronics
ERPM: 150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM, ADC, NRF, UART, SPI, IIC
Modes:DC, BLDC, FOC (sinusoidal)
Regenerative capacity: Yes
Programmable: Yes
Motor wire: 10AWG
Power cable:8AWG
Size:127.6x78.4x32.5mm(Including Alu case)
Colour:black
Material:ABS+PCB
Package Contents:
1 x Brushless DC Motor Speed Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
