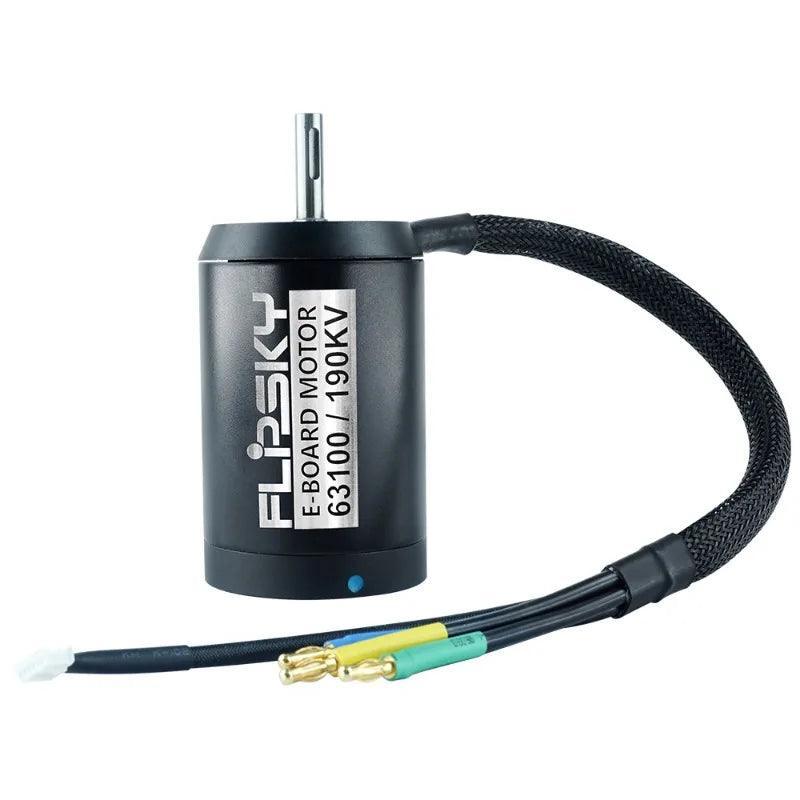

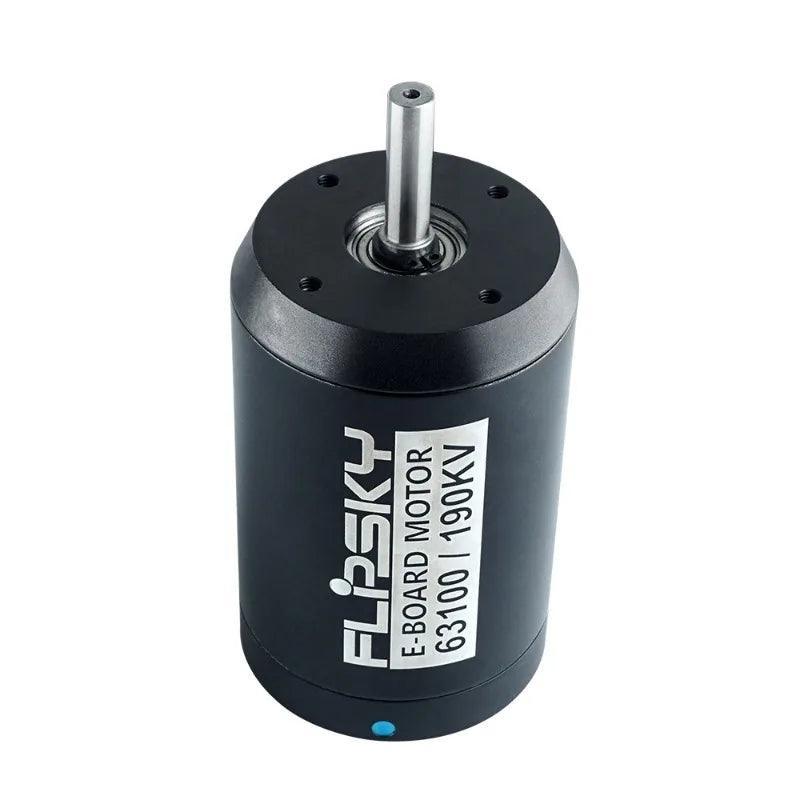

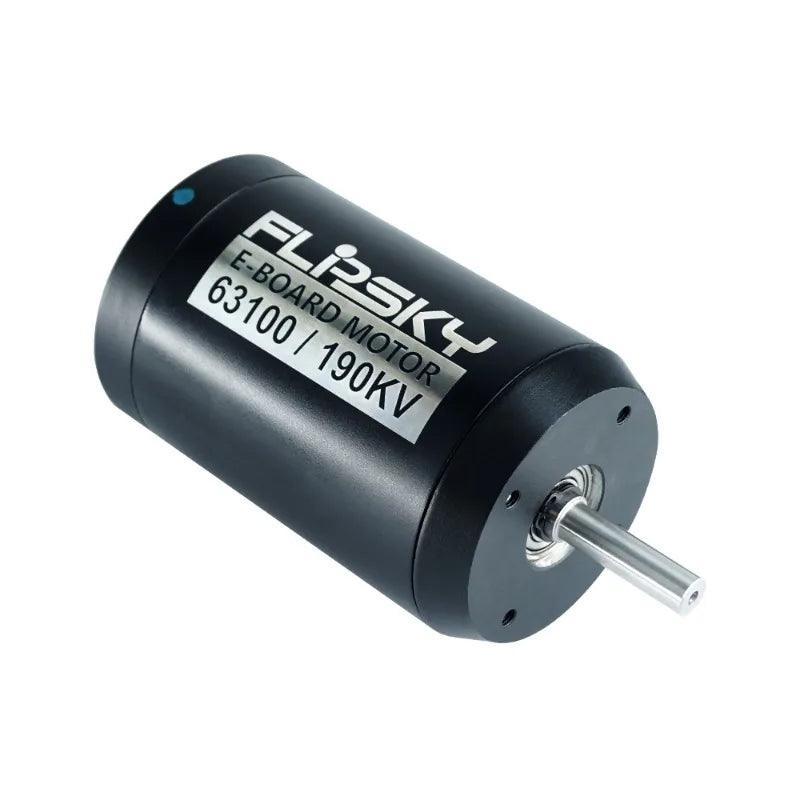

Flipsky DIY Skateboard Efoil Scooter 63100 5500W 140KV 170KV 190KV 8mm 10mm Round Shaft DC Motor Brushless BLDC Belt Motor
| Motor Size | OD 63*L100mm | KV Value | 190KV/Customized | Motor Resistance | 0.031Ohm |
| Max Power | 5500W | Max Voltage | 12S | Shaft | 8/10mm |
| Max Current | 100Amps | Max Torque | 10N.m | Number of Pole | 14 |
Details
Drawing
Application
Reference Information:
- The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.
- Screws to mount the motor are not included with the motor.
- If you choose round shaft motor, shipping includes the key for the keyway
- If you choose the shipping comes with pulley, the pulley material is STEEL.
