Flipsky Dual 75100 with Aluminum PCB Based on VESC for Electric

Flipsky Dual 75100 with Aluminum PCB Based on VESC for Electric Skateboard / Scooter / Longboard Speed Controller DIY Parts

Please be careful to limit the Absolute Maximum Current below 250A,setting page
Specs:

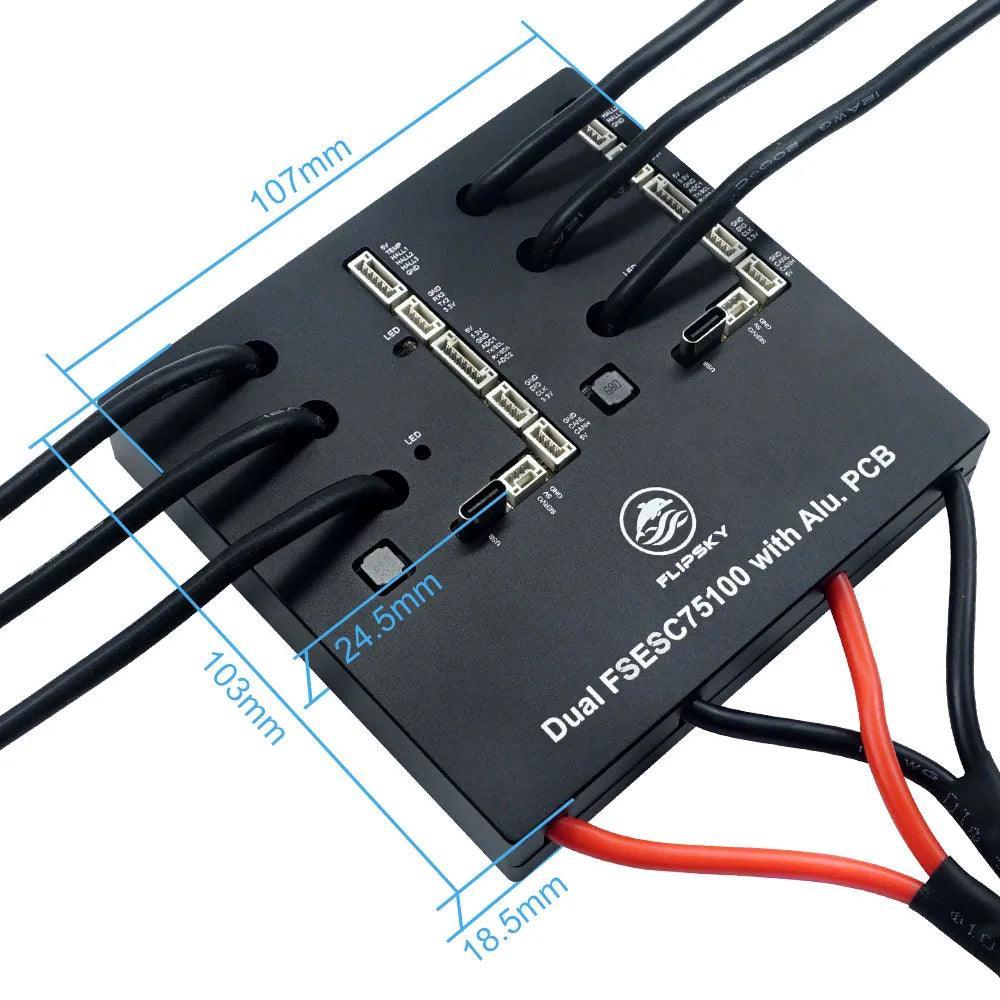

Size:L107mm*W103mm*H18.5mm
Voltage:14-84V (4-20S safe)
Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting and ambient temperature around the device!
BEC:5V@1A
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART
Wire Size: 12AWG
Programmable: Yes
Regenerative Capacity: Yes
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
