Flipsky Dual 75100 with Aluminum PCB Based on VESC for Electric

Specs:

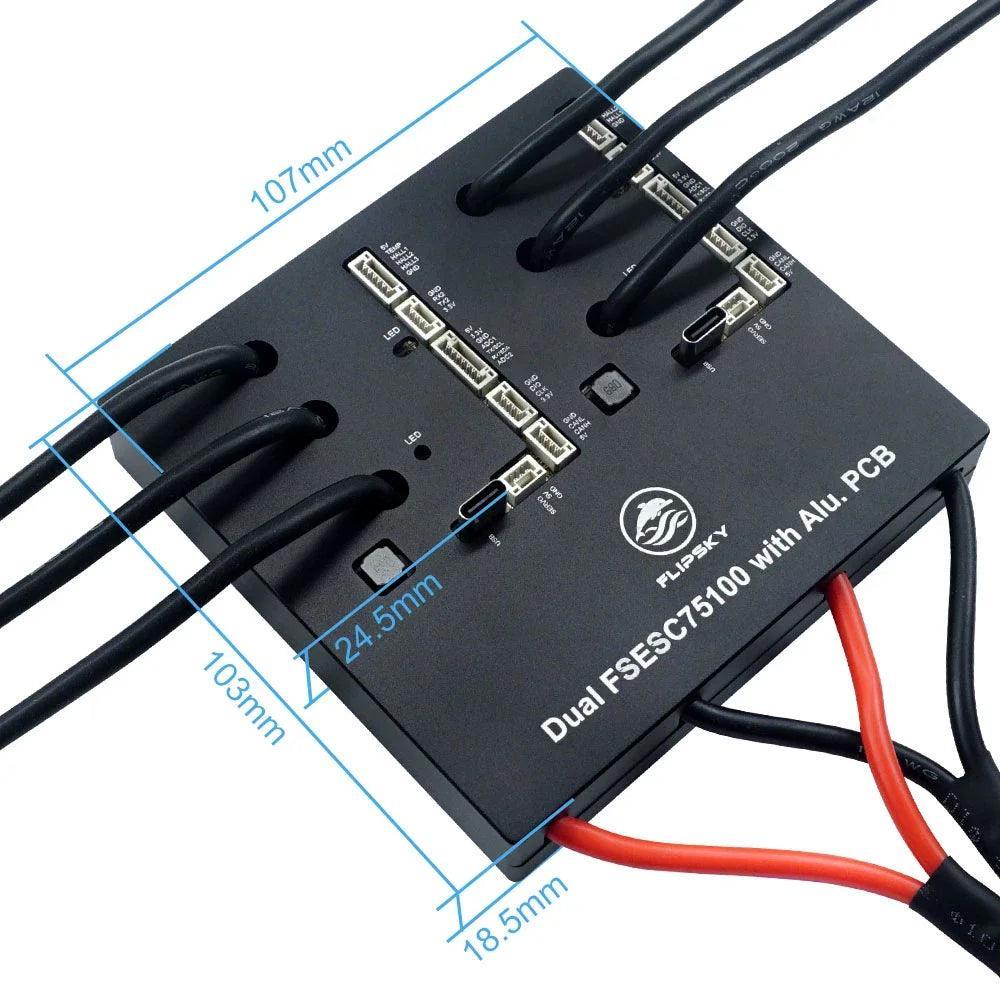

• Size:L107mm*W103mm*H18.5mm
• Voltage:14-84V (4-20S safe)
• Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!
• BEC:5V@1A
• Support BLDC square wave mode control and FOC sine wave mode
• Firmware: latest (firmware update supported)
• ERPM:150000
• Control Interface Ports:USB,CAN,UART
• Supported Sensors:ABI,HALL,AS5047,AS5048A
• Input Set Support:PPM,ADC,NRF,UART
• Wire Size: 12AWG
• Programmable: Yes
• Regenerative Capacity: Yes

Detail:
