Flipsky Dual 75100 With Aluminum PCB Based on VESC For Electric

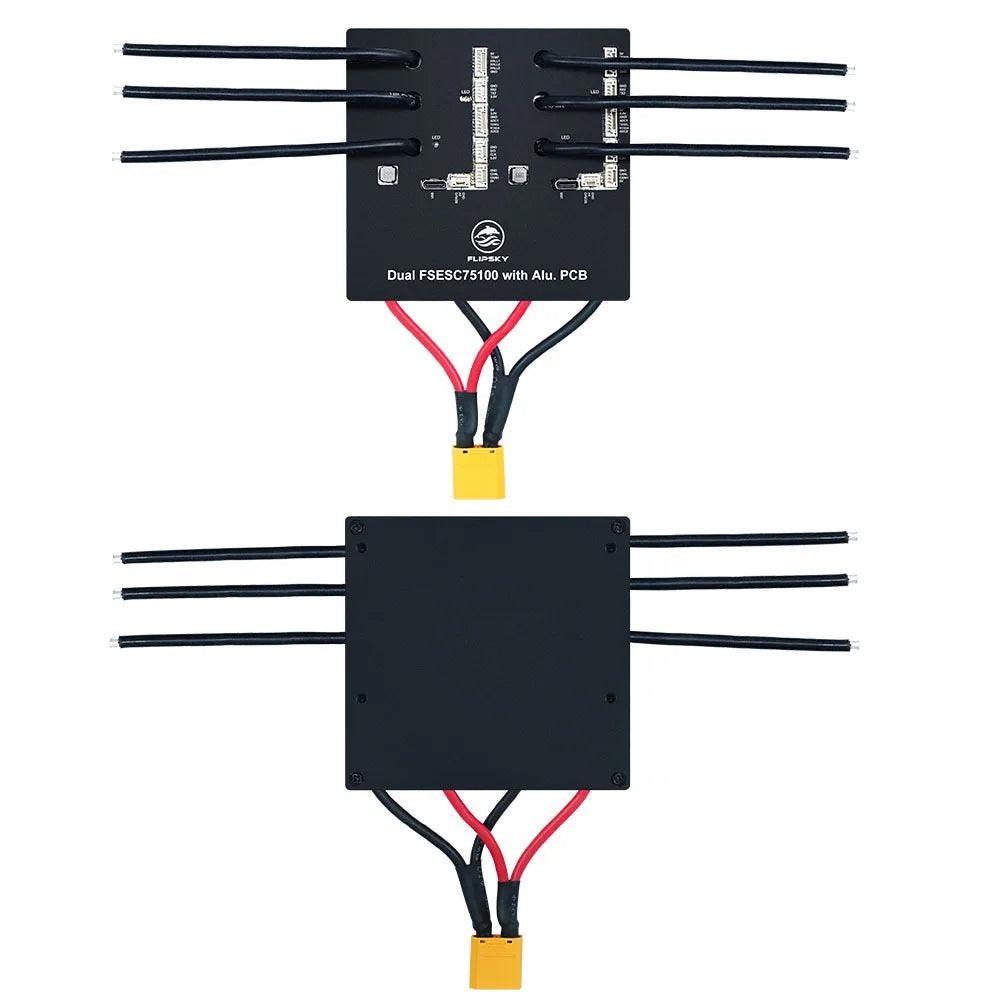

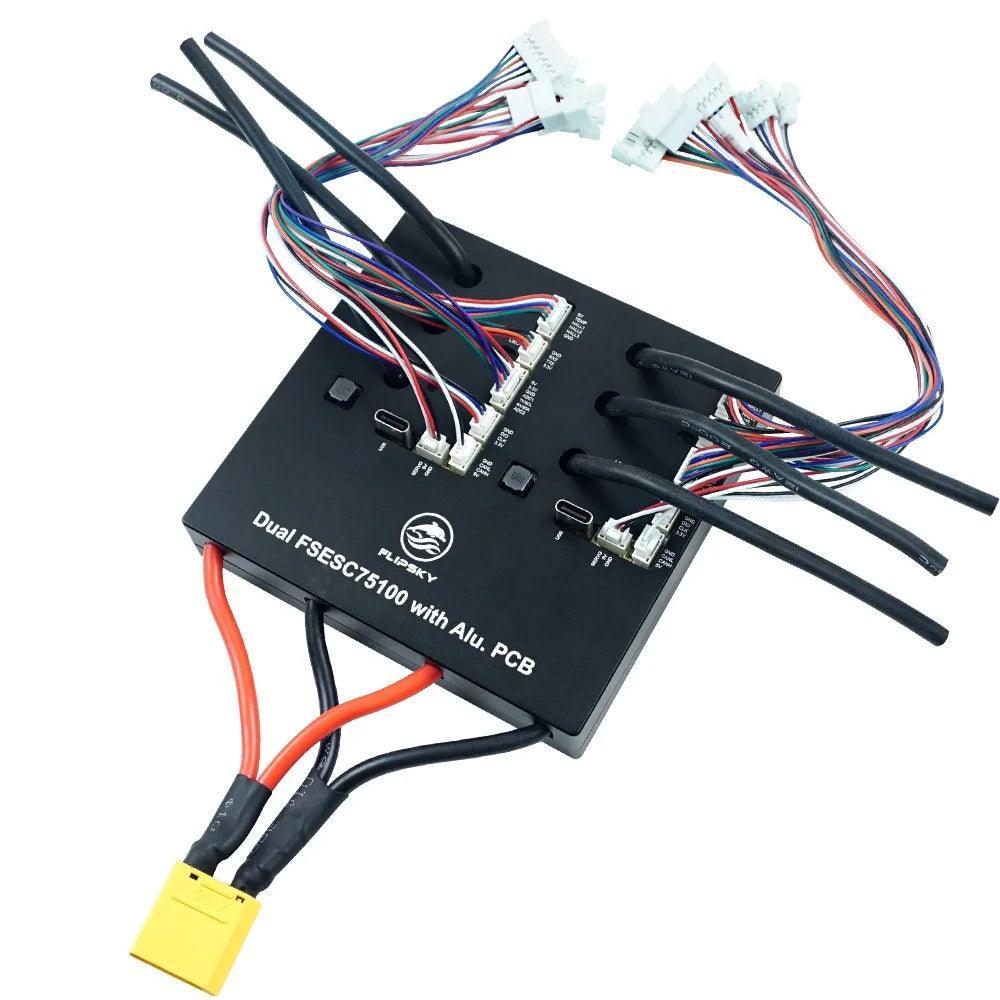

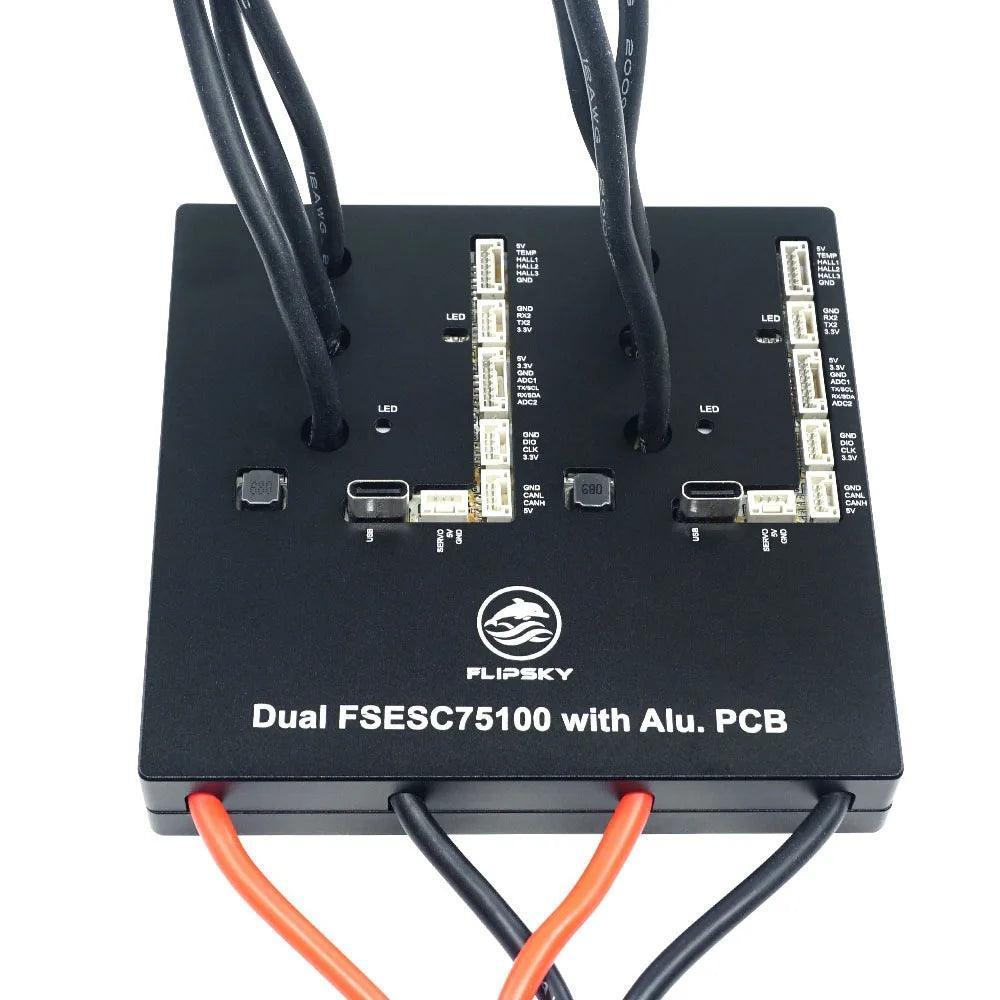

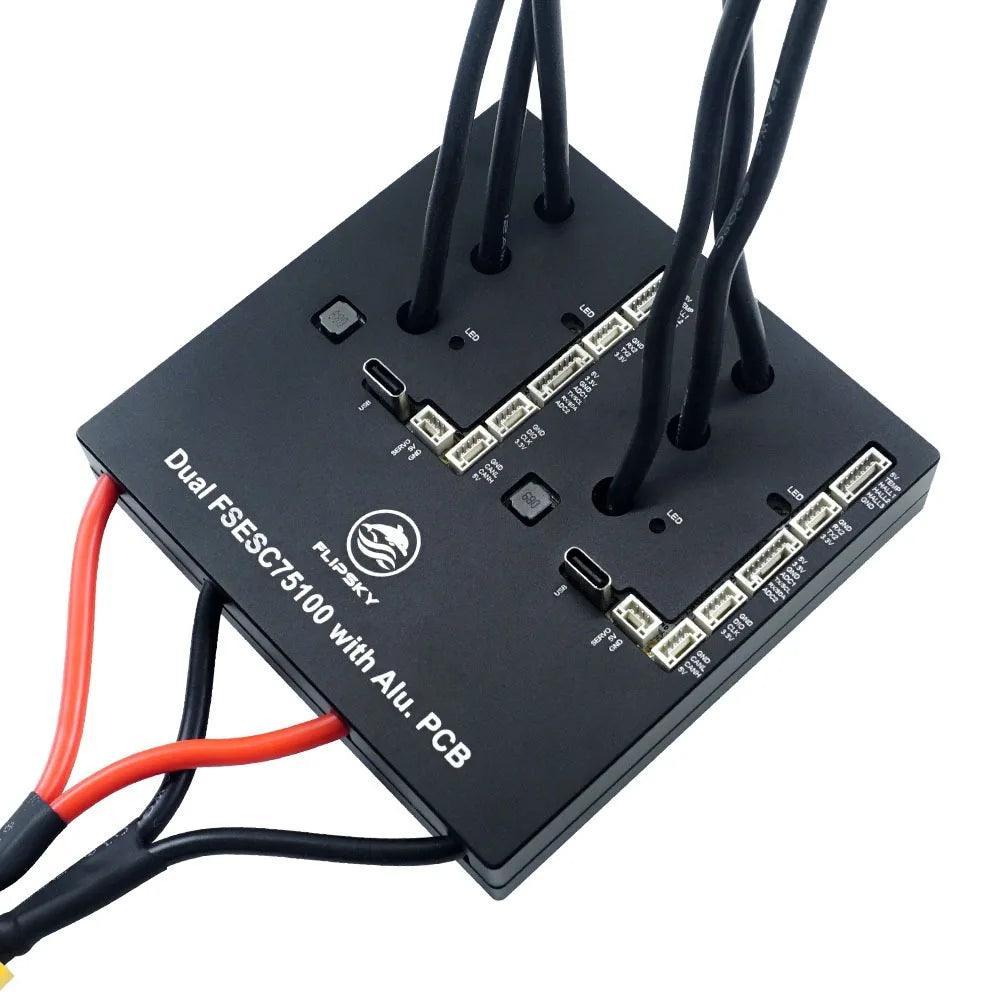

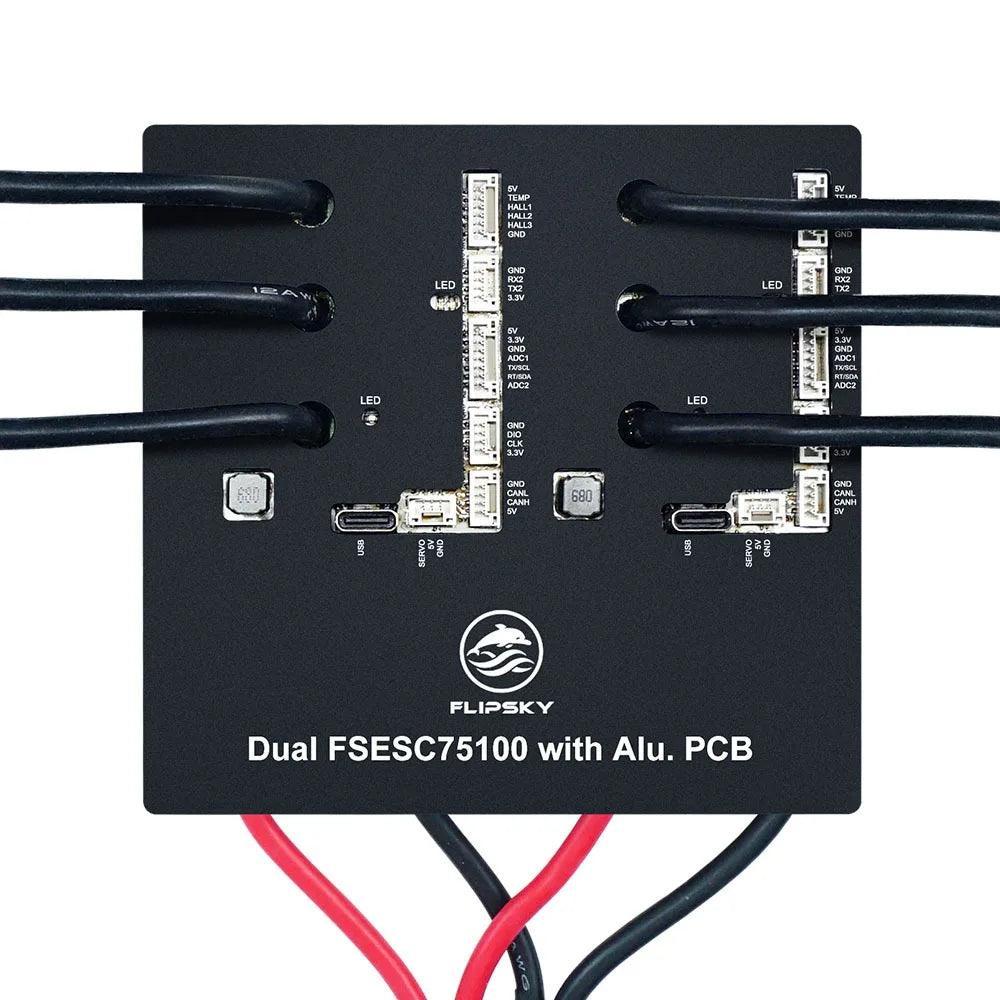

Flipsky Dual 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Long Board Speed Controller

Specs:

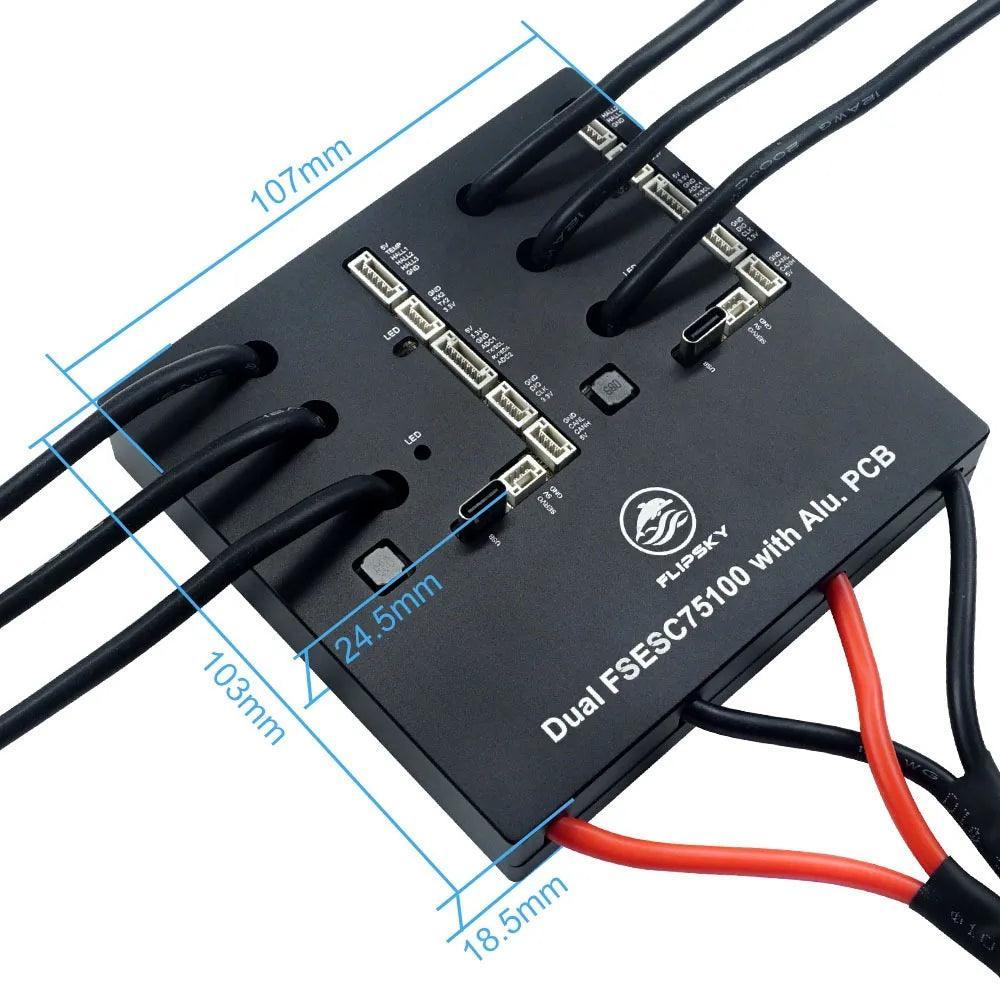

Size:L107mm*W103mm*H18.5mm
Voltage:14-84V (4-20S safe)
Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting and ambient temperature around the device!
BEC:5V@1A
Support BLDC square wave mode control and FOC sine wave mode
Firmware: latest (firmware update supported)
ERPM:150000
Control Interface Ports:USB,CAN,UART
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART
Wire Size: 12AWG
Programmable: Yes
Regenerative Capacity: Yes

Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube：
Blog：
