Flipsky Group D10 Electric Skateboard Kit Includes Dual FSESC 6.7 MINI and BLDC 6374 Motors

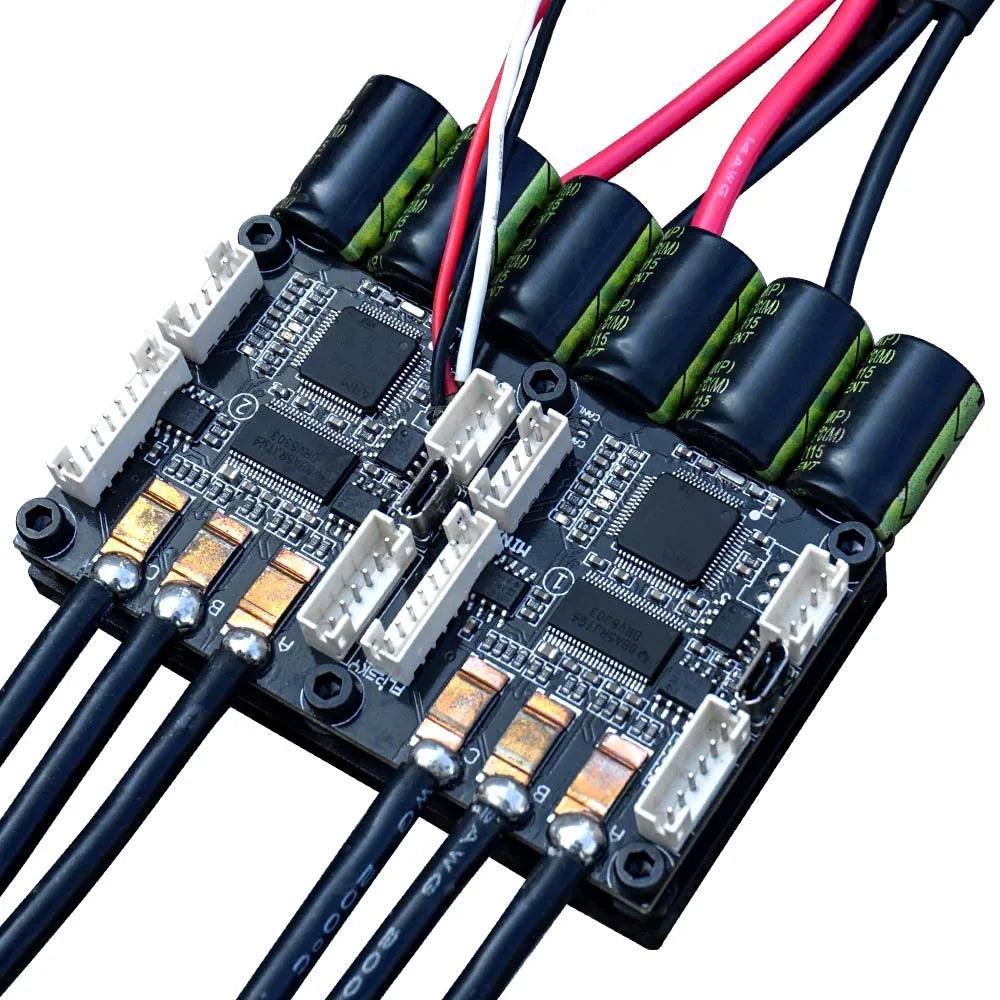

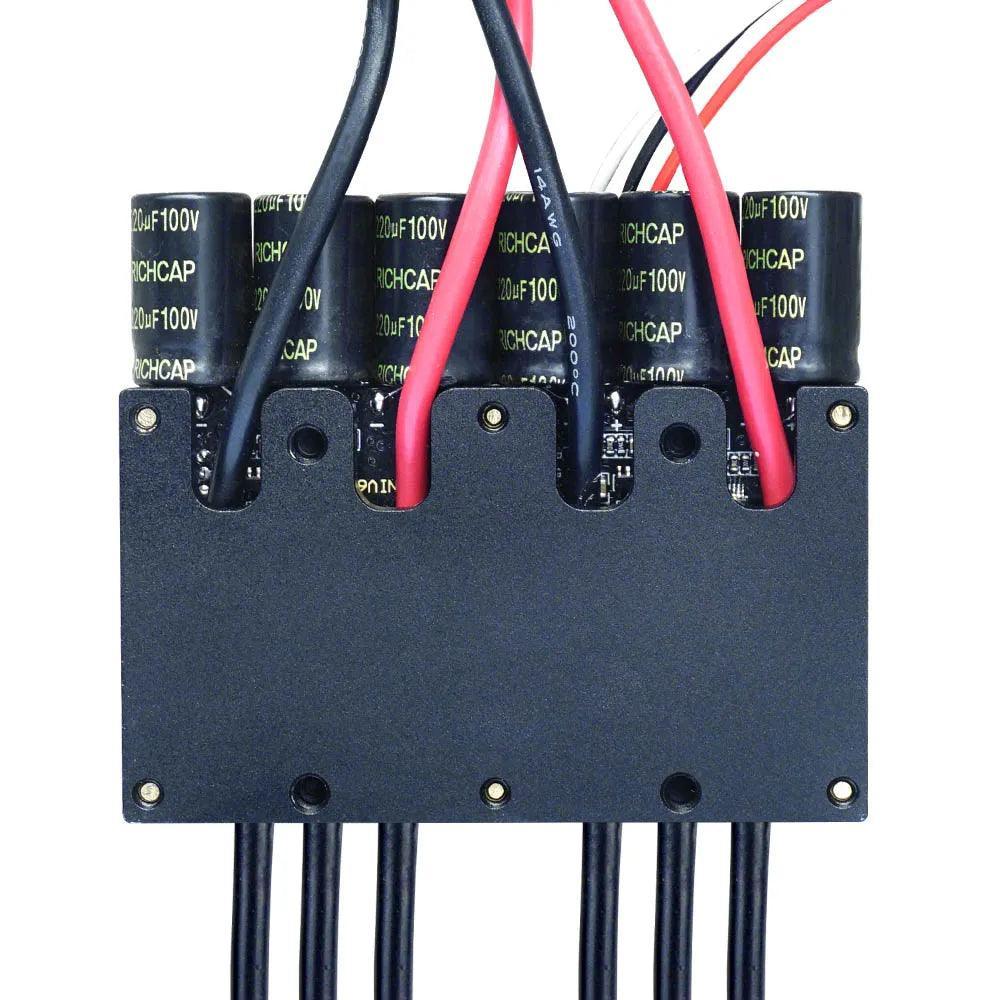

FSESC Dual ESC 6.7 Mini

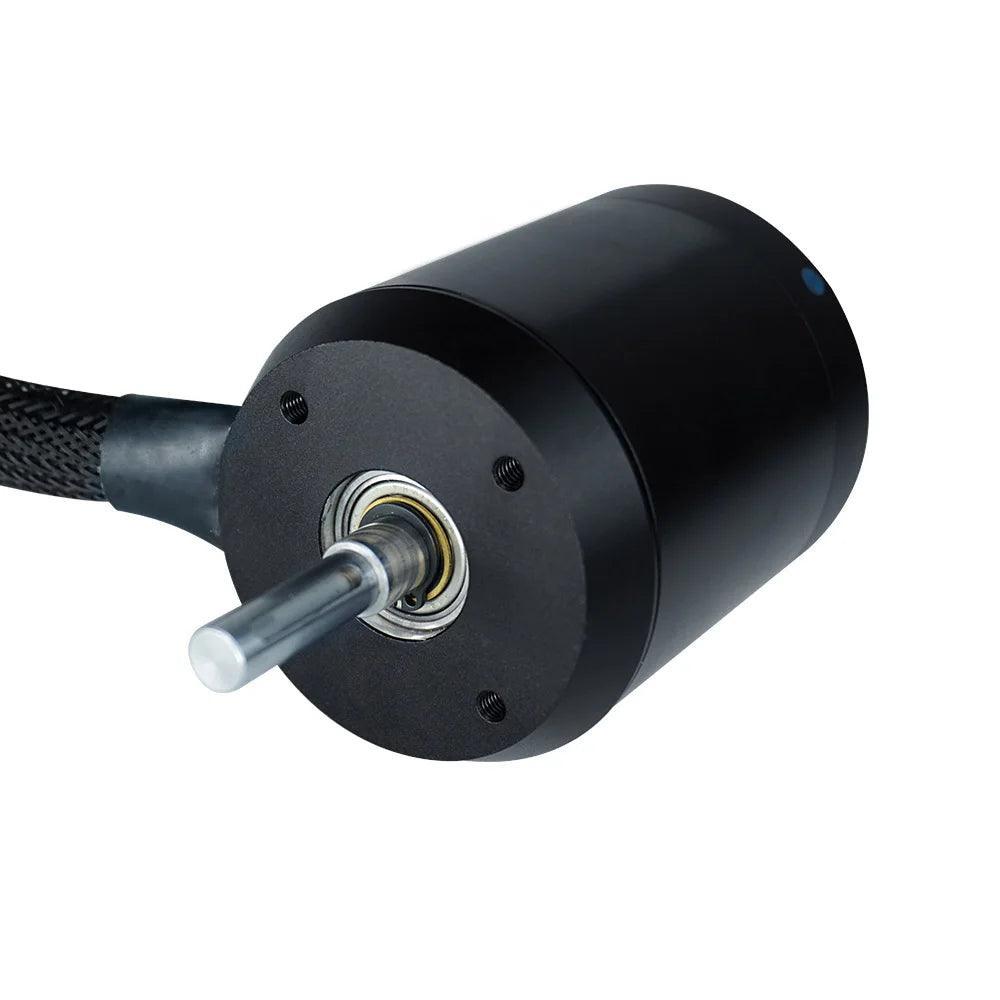

Motor 6374
Max Power | 3250 Watts |
Max Current | 85 Amps |
Max Volts | 12S |
Max Torque | 8Nm |
Motor Resistance | 0.05Ohm |
Recommend ESC | VESC4&VESC6(3-12S ) |
Weight | 1060g |
The motor length | 74mm |
Shaft | Diameter 8mm/10mm, 30mm length, 3x3x20mm keyway slot |
Motor Wire | 12AWG wire with 4.0mm Gold Bullet Connector |
Wire configuration | Blue = A Black = B Yellow = C |
Stator | 0.2mm thickness lamination japan steel |
Magnet | N42SH high temp curve magnet |
The number of pole | 14 |

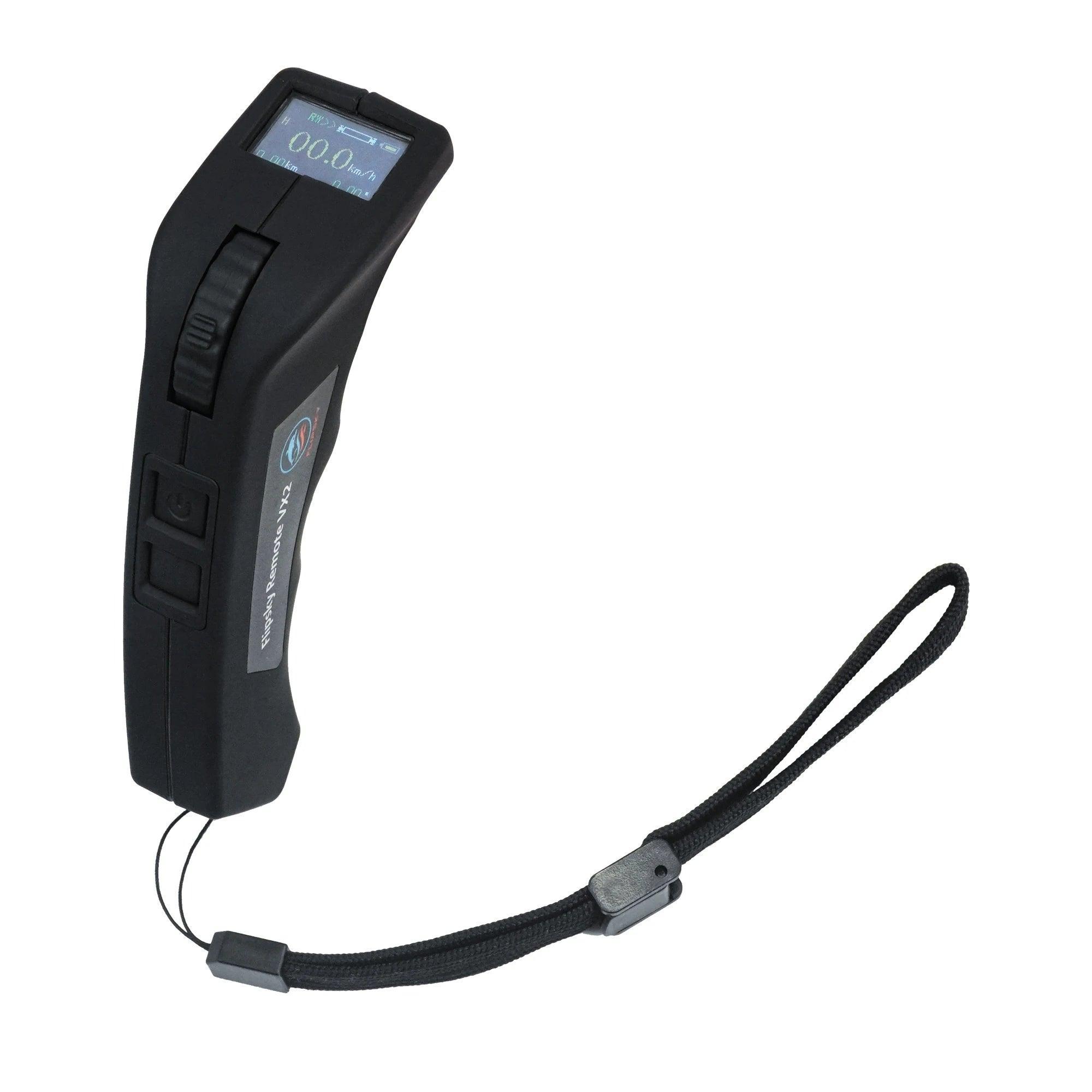

VX2 Pro Remote Controller

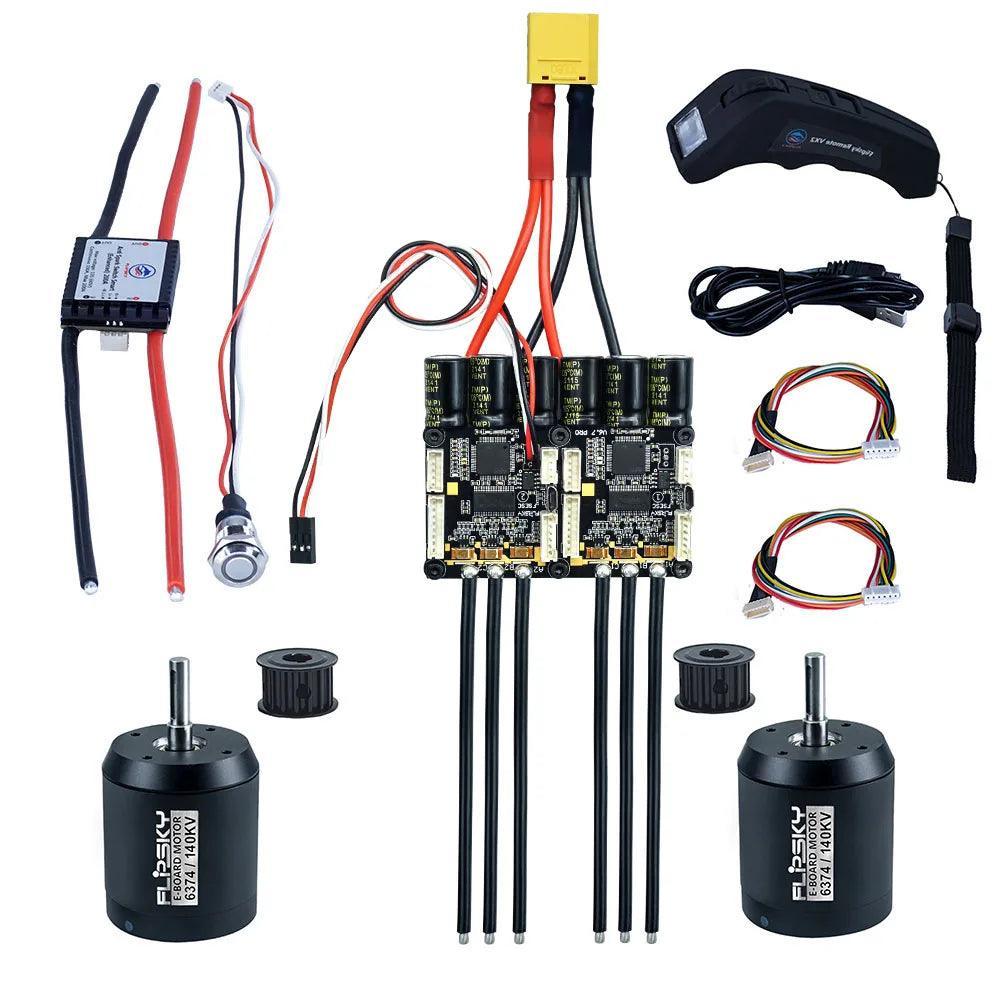

The Group D10 package includes:
1*Dual FSESC6.7 MINI SIZE
2*Battle Hardened 6374 motor With Pulley( Random send out 16T OR 15T motor pulley)
1*Screen Remote VX2 Pro
1*Anti spark Switch Smart Enhanced 200A
2* Sensor Wire
1*USB Cable
Related Products
VX1 Remote Controller VX2 Remote Controller VX3 Remote Controller VX4 Remote Controller
FLIPSKY FSESC4.12 FSESC Mini 4.20 Dual FSESC 6.7 Plus 65121 Motor Round With Thread shaft
Patents&Certificates
Packing&Shipping
Company Information
FAQ
1. Q: Can the KV value be customizable?
A: Yes, and the extra cost is about 5USD per unit.
2. Q: Can you do the motor without logo?
A: Yes. Both logo customization or no logo can be acceptable if the order q'ty can fulfill the MOQ.
3. Q: Is it FOC capable?
A: Yes. Modes DC. BLDC, FOC (sinusoidal) are capable.
4. Q: Do you offer it with an integrated starter?
A: Yes. We have the latest plus version with integrated starters for FSESCV4.20&V6.6.
