FLIPSKY Dual Mini FSESC6.7 Pro 140A based on VESC6.6® ESC With

FLIPSKY Dual Mini FSESC6.7 Pro 140A based on VESC6.6® ESC With Aluminum Anodized Heat Sink for Electric Skateboard ESK8 Speed Controller

Specs:
Firmware: Latest Version.
Continuous current: 140A; instantaneous current: 400A
Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
BEC: 5V@1A
ERPM: 150000
Control Interface Ports:USB,CAN,UART,SPI, IIC
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM, ADC, NRF, UART
Modes:DC, BLDC, FOC (sinusoidal)
Regenerative capacity: Yes
Programmable: Yes
Motor wire: 12AWG
Power cable:14AWG (with XT90 connector)

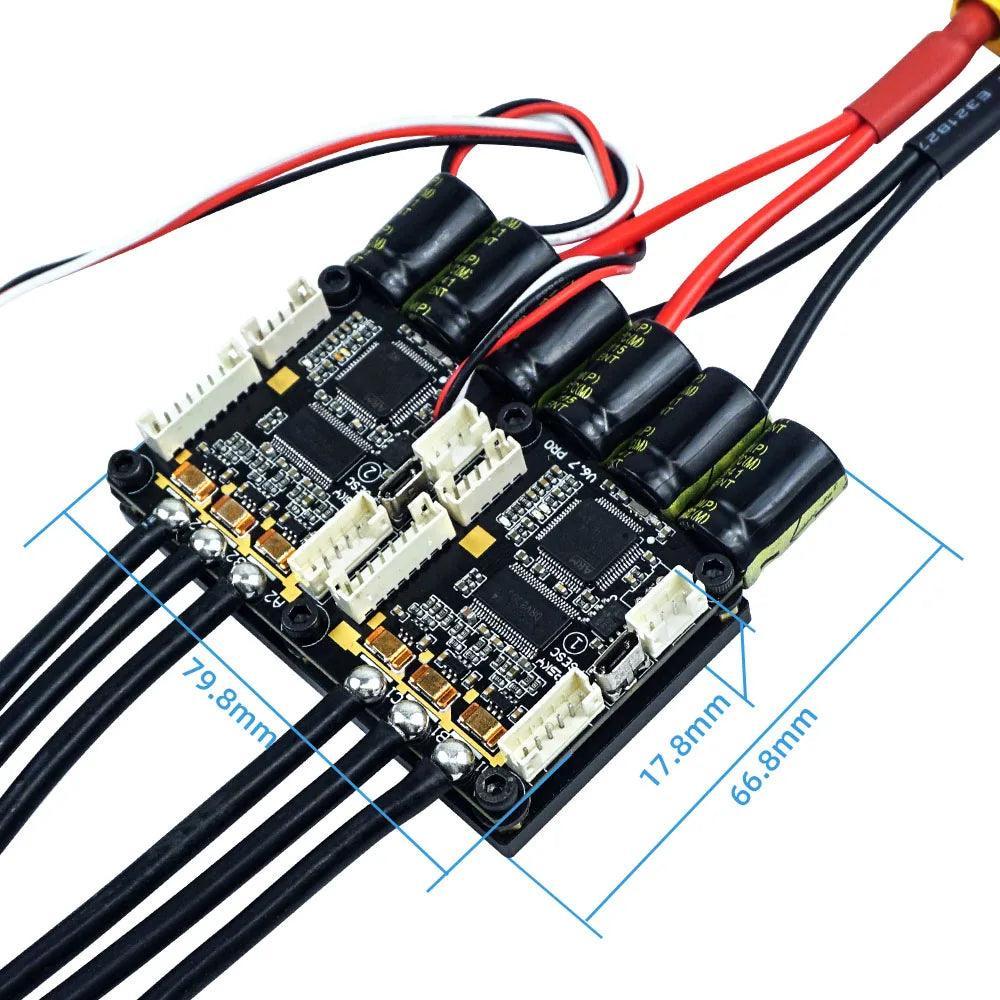

Size:79.8*66.8*17.8mm

Feature:
Support four control modes: Current/Dutycycle/Speed /Position control mode.
Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
