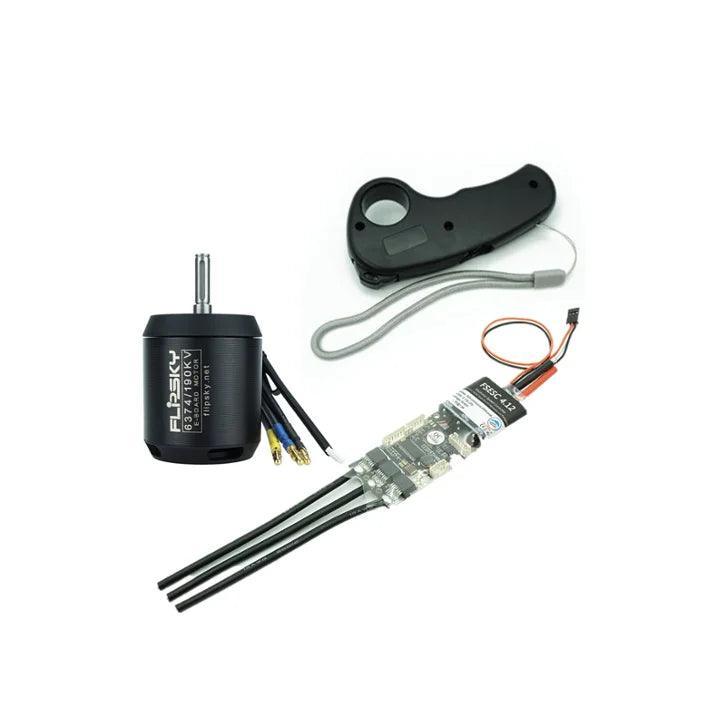

Flipsky electric skateboard 6374 190kv brushless outrunner motor and

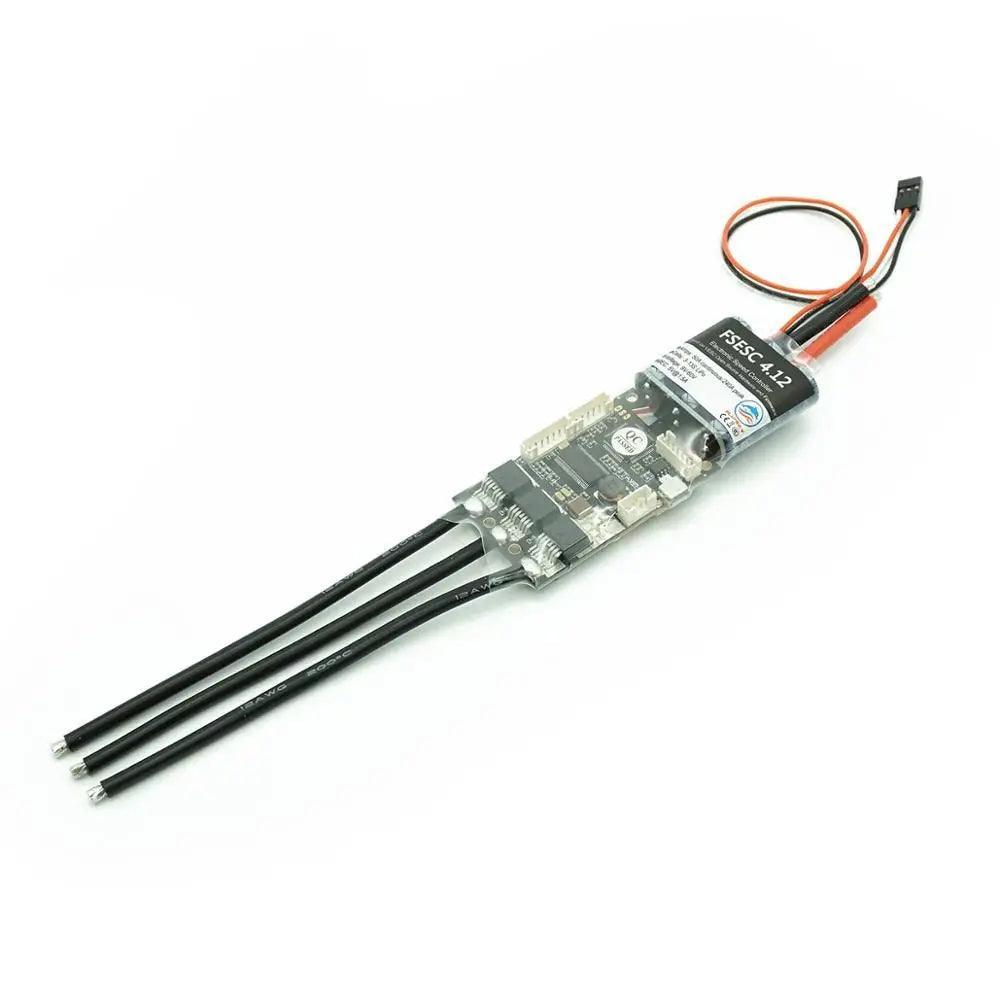

Specs of FSESC4.12:

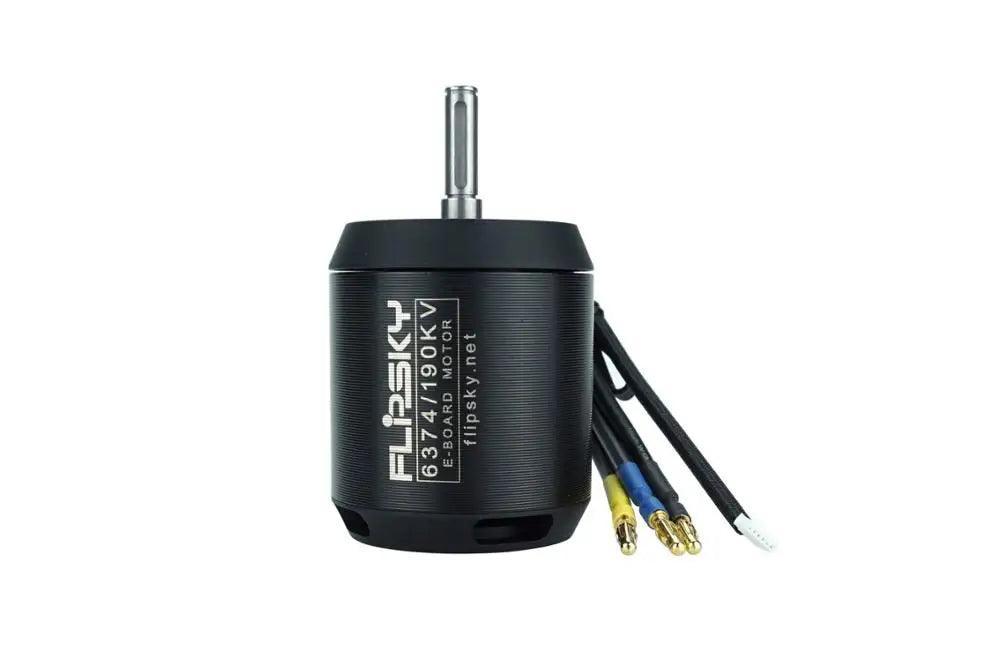

Specs of 6374 BLDC Motor:

• Max Power: 3250 Watts
• Max Current: 85 Amps
• Max Volts: 12S
• Max Torque: 8Nm
• Motor Resistance: 0.05Ohm
• Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)
• Weight: 1.9 lb / 0.86 kg
• The motor length:74mm
• The motor diameter: 63mm
• SHAFT: Diameter 8mm, 30mm length, 3x3x20mm keyway slot.

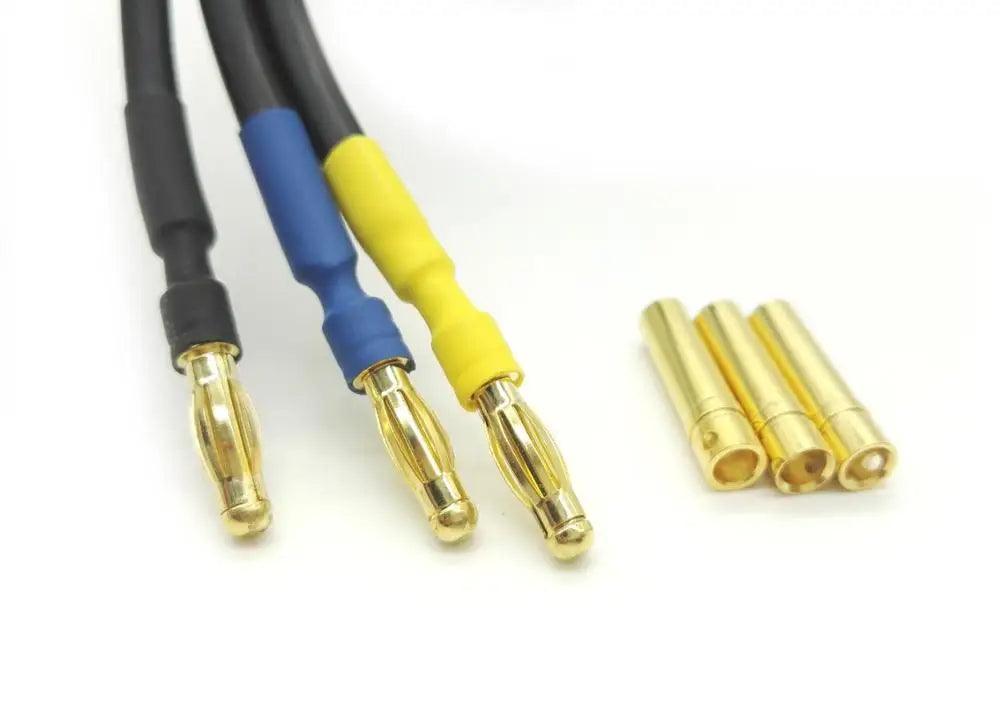

• Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Male.
  • Wire configuration:
    • Blue = A
    • Black = B
    • Yellow = C
• Stator: 0.2mm thickness lamination japan steel
• Magnet: N42SH high temp curve magnet
• BLDC Motor
• The number of pole: 14

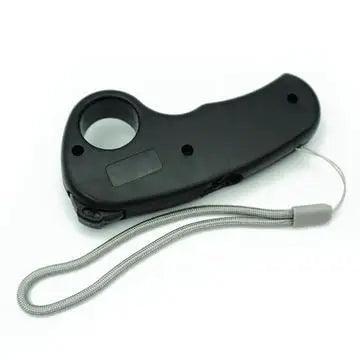

Function Features of Nano Remote Controller:

1. Support 2 Speed mode:  Up high speed (1.5-2)  &  Down low speed (1.5-1.7)

2. Alert light:

Green:  Low voltage alert and connection lost alert(binding alert) &

Red: High-charging indication

3. Expand module switch:  second channel for adding light or speaker (Not support so far)

4. Reverse switch: to change forward and backword direction

Kindly Reminder:

• This remote controller is compatible with VESC and FSESC series products, while the reverse function is useless.
• Every time power on the remote controller, it will automatically match with your eskateboard!
