Feature:

• All CNC 7075 material, multiple hollows, surface sandblasting and anodized black treatment

• The axle material is 42crmo high-strength steel, heat treatment and tempering.

• The shortest center distance of motor bracket design is 112.8, the maximum center distance is 119, and the material is 6061t6

• The motor mount compatible with 63 and 70 series motor hole position. The length of the belt used by the whole machine is 5m and the tooth shape is 425 long and 20 wide. The material is 6061t6

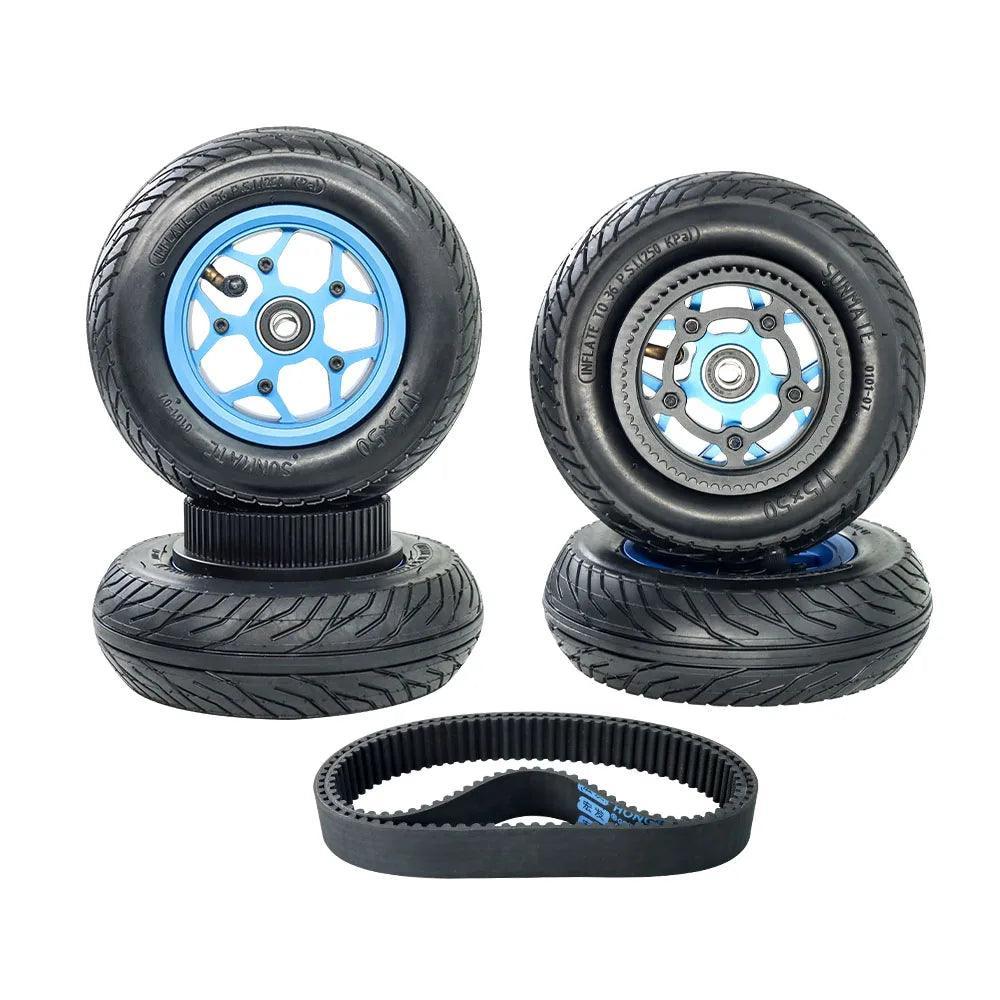

7” ATM Wheel Spec:

• Size:7'' ATM 175x50mm

• Loading Capacity:200KG

• Belt:20mm Width

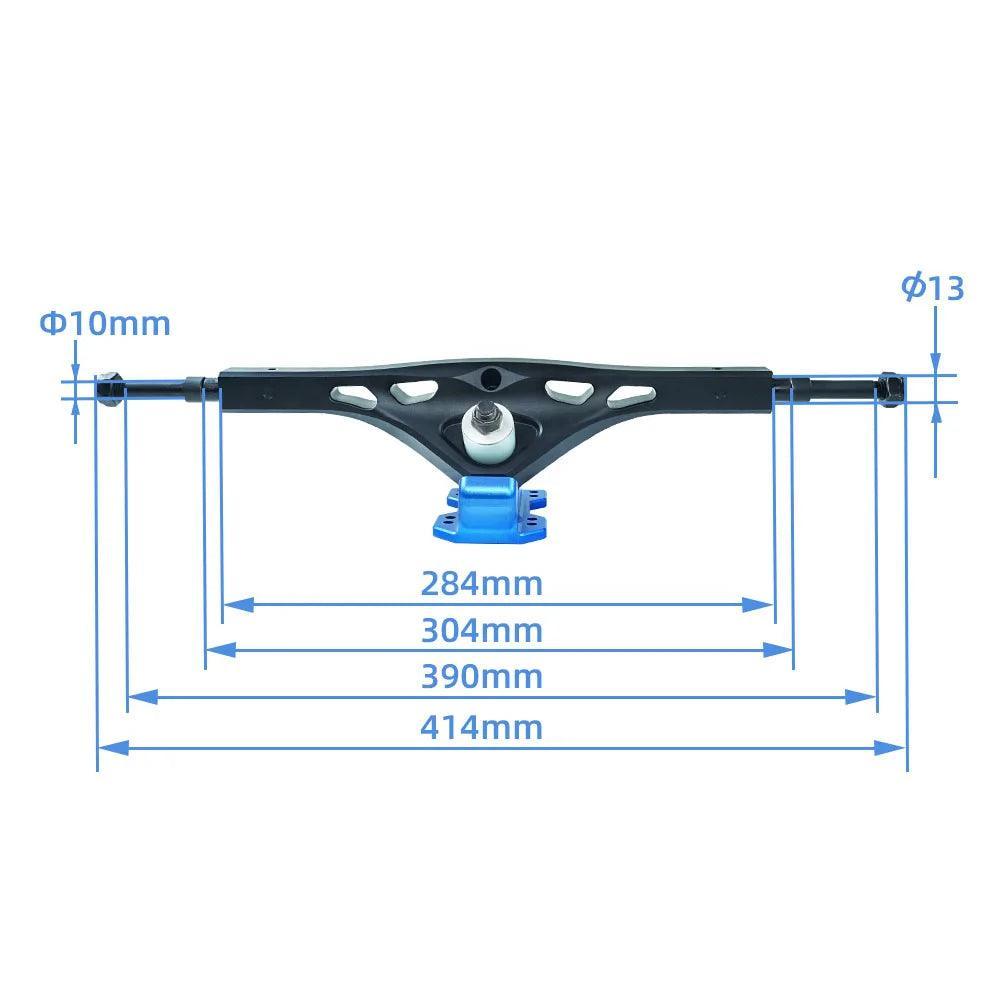

Trucks:

Wheels:

Mount:
