Flipsky ESC 75200 84V 200A High Current Aluminum PCB Based VESC For

Flipsky ESC 75200 84V 200A High Current Aluminum PCB Based VESC For E-Foil Fighting Robot Surfboard AGV Platform DCBLDC FOC

Features:

1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
2.Support various control modes: Current / Duty cycle / Speed / PID control modes.
3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
4.CPU:STM32F405 with frequency 168MHz
5.Aluminum PCB with good heat dissipation to expand life span.
6.Two COMM ports: UART bluetooth module, screen display or remote controller supportable.

Specifation:

· Firmware: 5.2, supports firmware upgrade

· Voltage: 14-84V (safe for 4-20S)

· Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A

· BEC: 5V@1A

· Support Modes: DC, BLDC, FOC (sinusoidal)

· ERPM: 150000

· Communication Ports: USB, CAN, UART, SPI, IIC

· Supported Sensors: ABI, HALL, AS5047, AS5048A

· Input Source Support: PPM, ADC, NRF, UART

· Supported Sensorless: Yes

· Regenerative capacity: Yes

· Programmable via VESC_TOOL: Yes

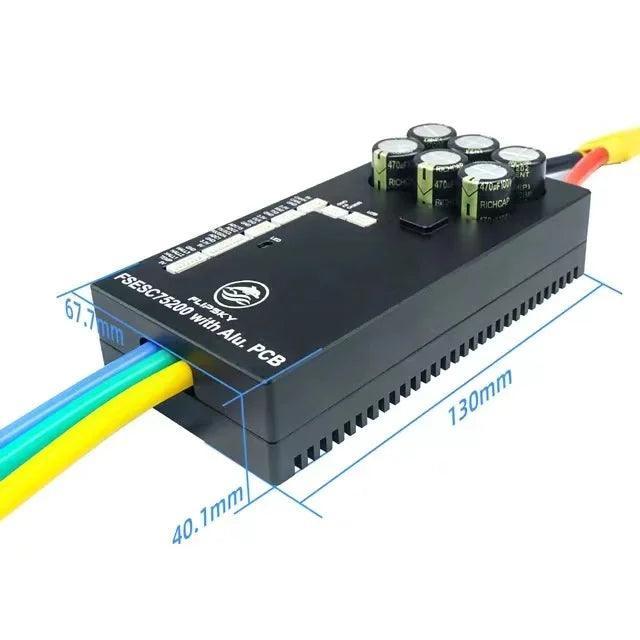

· Size:130x67.7x40.1mm(Including alu. case)

· Motor/power wire size: 8 AWG

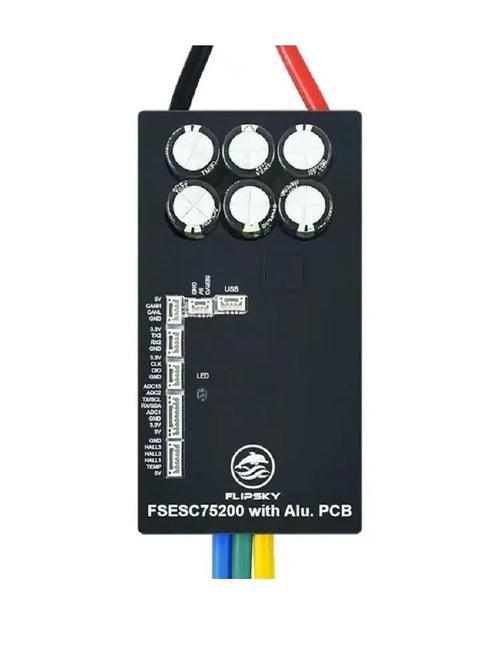

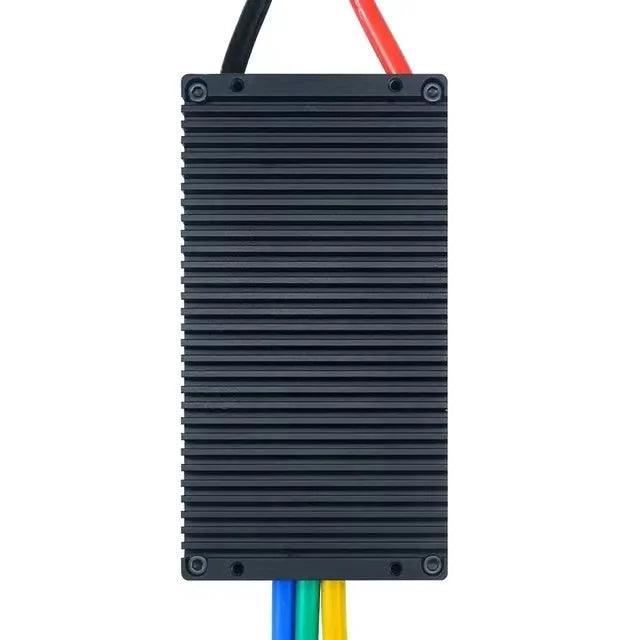

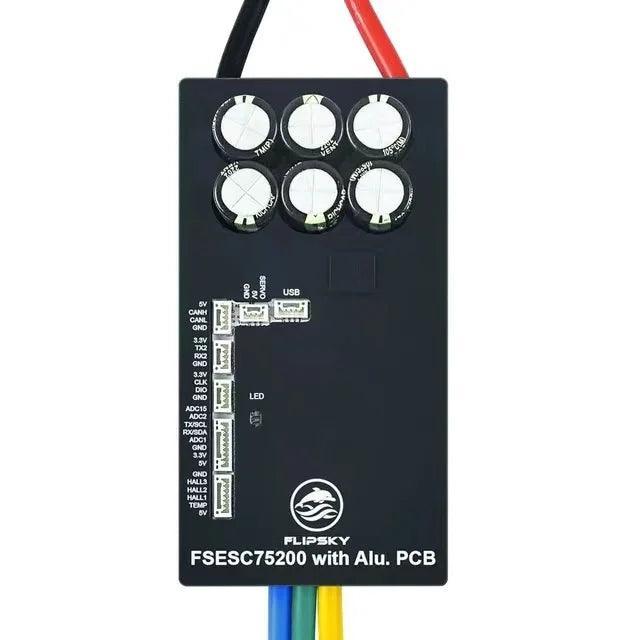

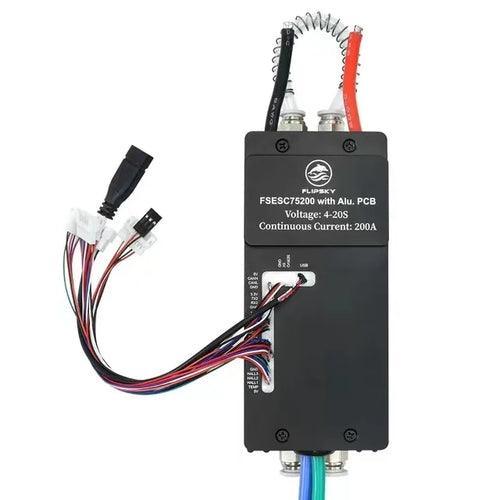

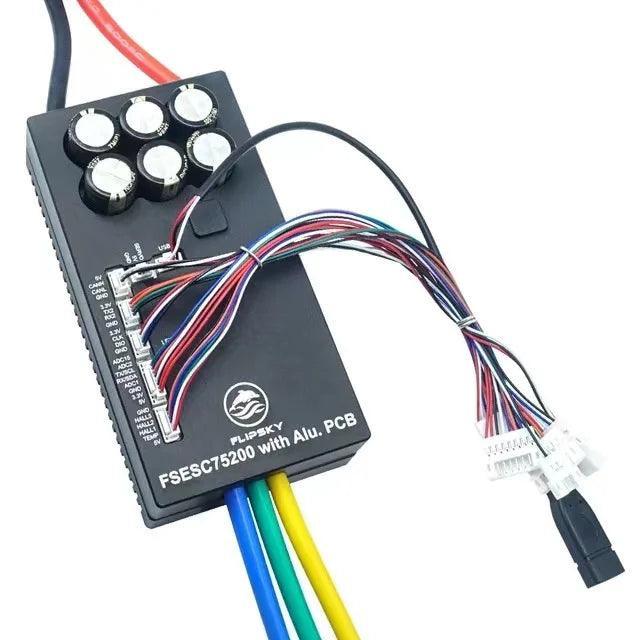

Pictures:

Package Contents:
1 x PCB Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
