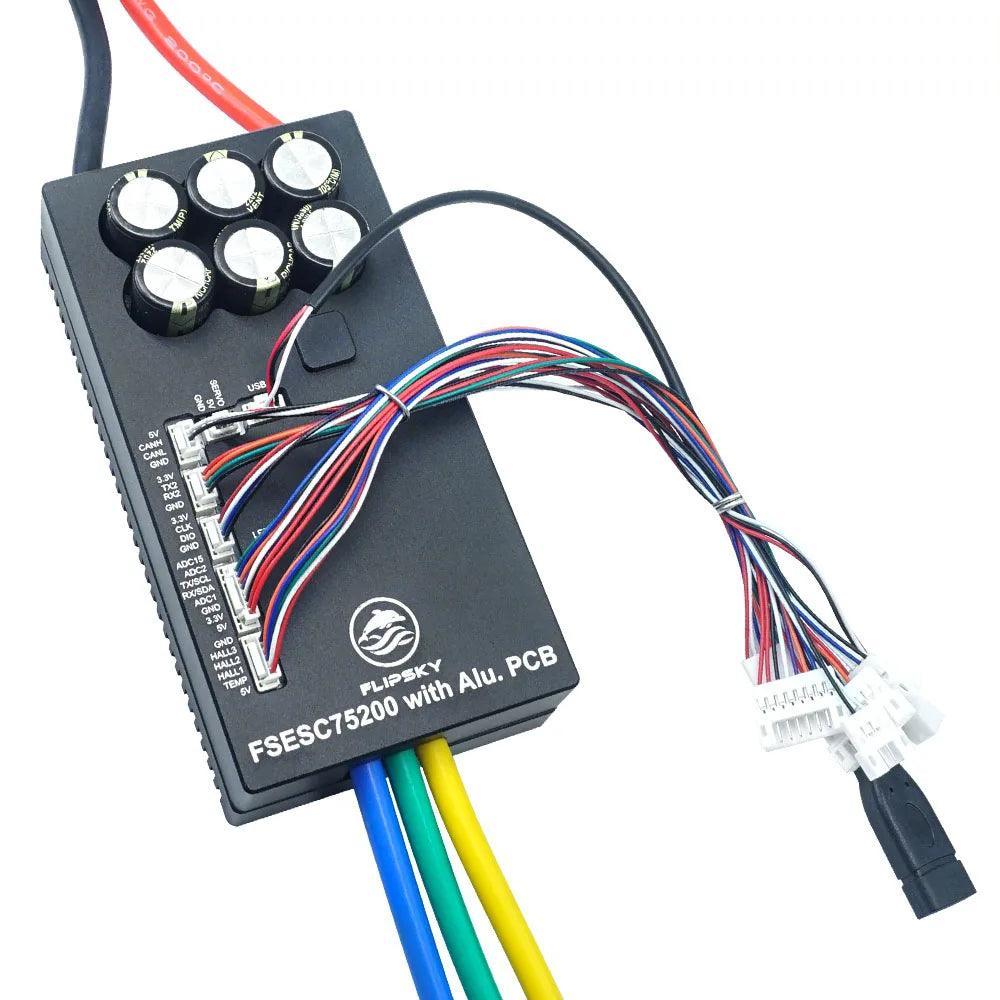

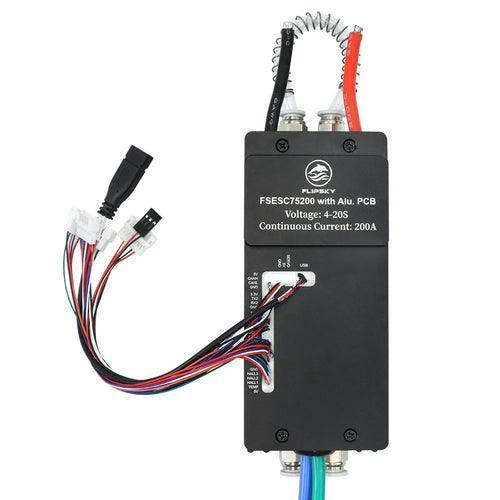

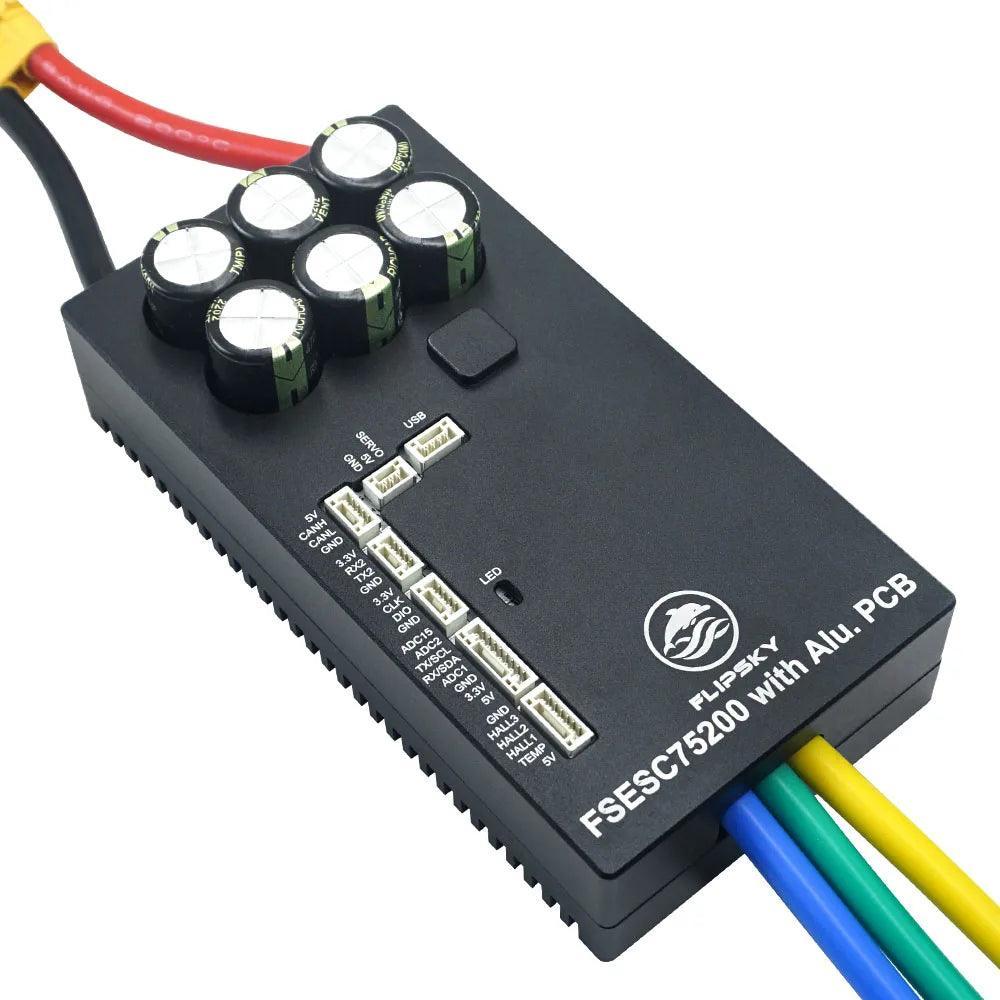

Flipsky Esc 75200 84v 200a High Current With Aluminum Pcb Based On

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Warm tips:

Specs:

• Firmware: 5.2, supports firmware upgrade

• Voltage: 14-84V (safe for 4-20S)

• Continuous current: 50V/200A; 75V/150A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 300A

• BEC: 5V@1A

• Support Modes: DC, BLDC, FOC (sinusoidal)

• ERPM: 150000

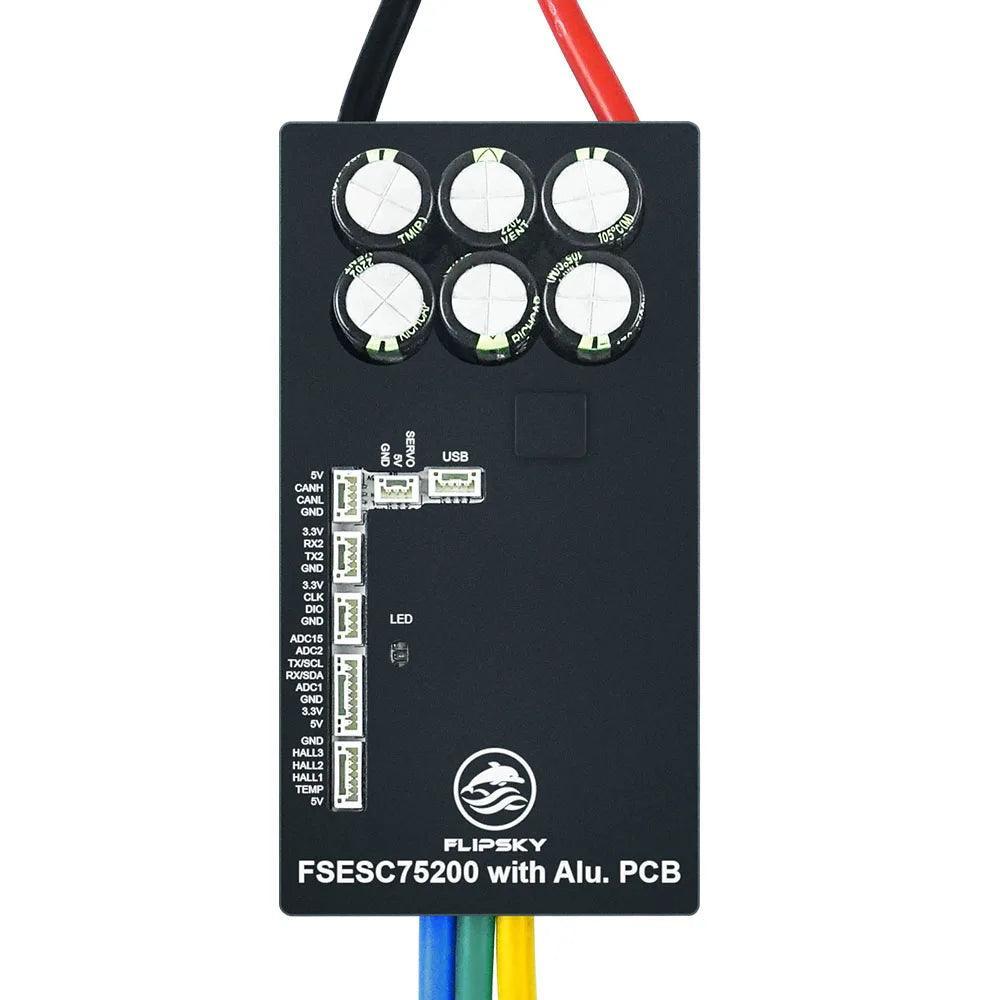

• Communication Ports: USB, CAN, UART, SPI, IIC

• Supported Sensors: ABI, HALL, AS5047, AS5048A

• Input Source Support: PPM, ADC, NRF, UART

• Supported Sensorless: Yes

• Regenerative capacity: Yes

• Programmable via VESC_TOOL: Yes

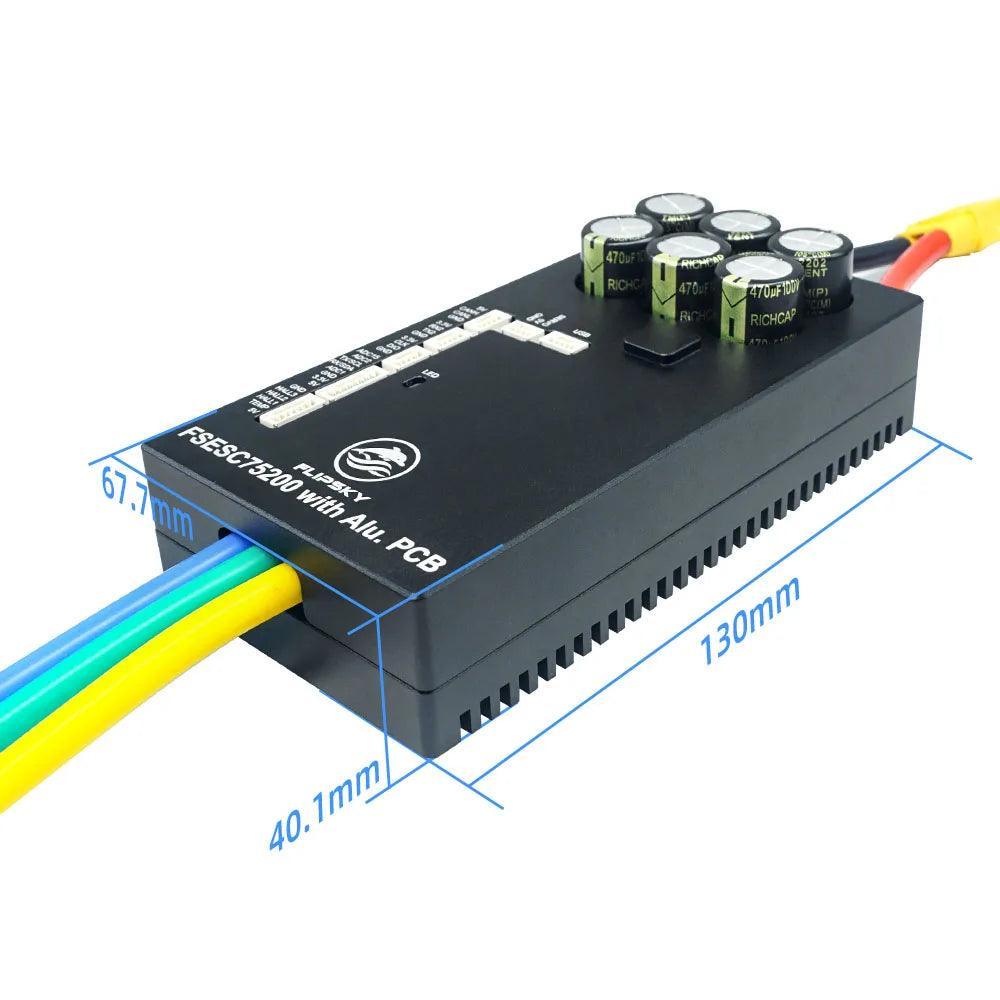

• Size:130x67.7x40.1mm(Including alu. case)

• Motor/power wire size: 8 AWG

Features:

1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
2.Support various control modes: Current / Duty cycle / Speed / PID control modes.
3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
4.CPU:32F405 with frequency 168MHz

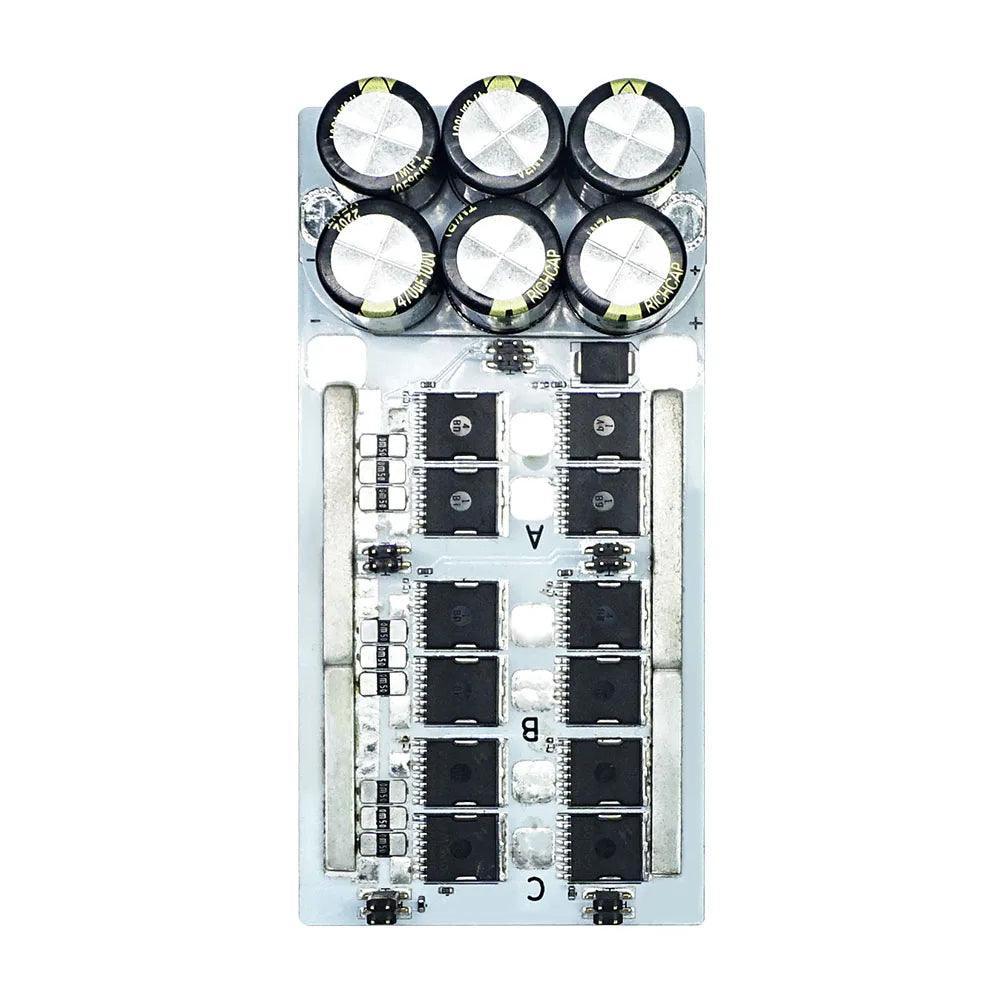

5.Aluminum PCB with good heat dissipation to expand life span.
6.Two COMM ports: UART bluetooth module, screen display or remote controller supportable.
