Warm tips:

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Spec:

• Voltage:14-84V( safe for 3-20S)

• Continuous Current : 50V/300A,75V/200A

• Max Current :350A

• Supported sensors: ABI, HALL, AS5047,AS5048A


• EPRM:150000

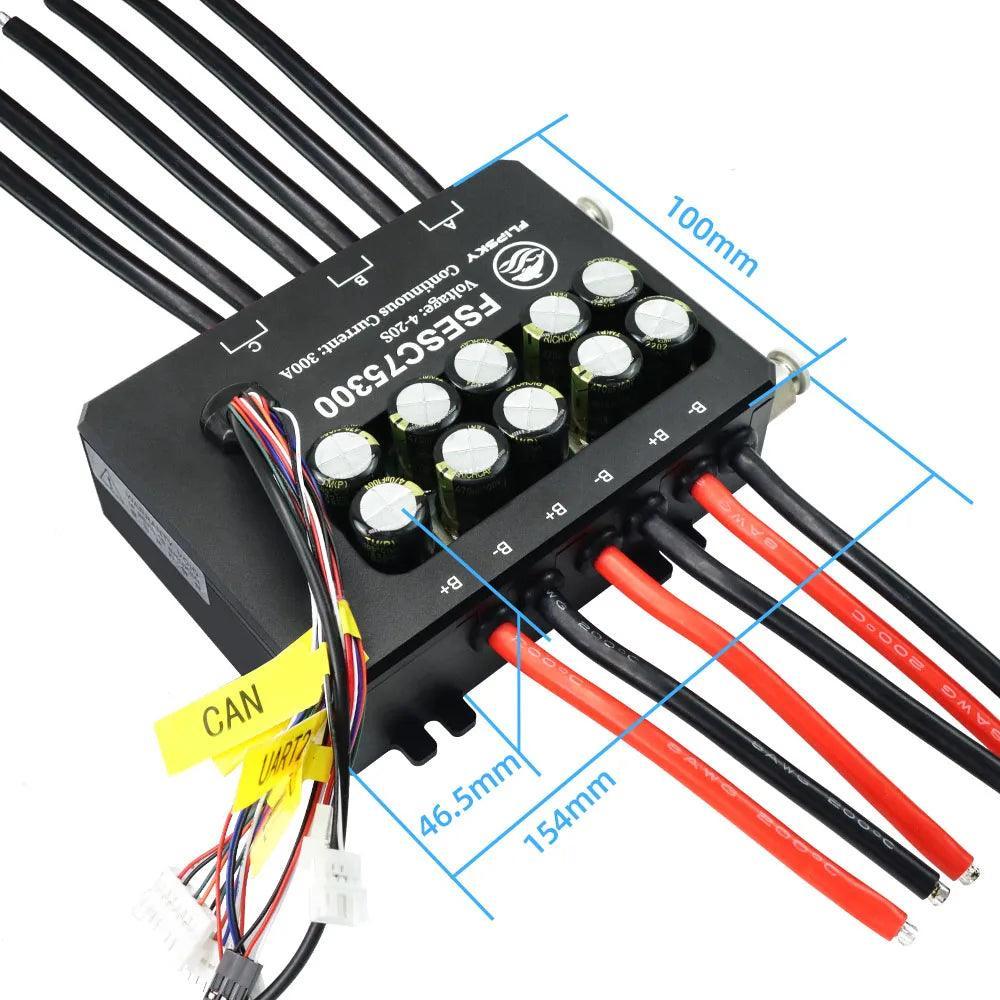

• Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors)

Feature:

• Regenerative braking

• The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;

• Sensored or sensorless operation + hybrid mode

• Configurable RPM-, current-, voltage- and power limits

• Input source: PPM, ADC, NRF,UART,PAS

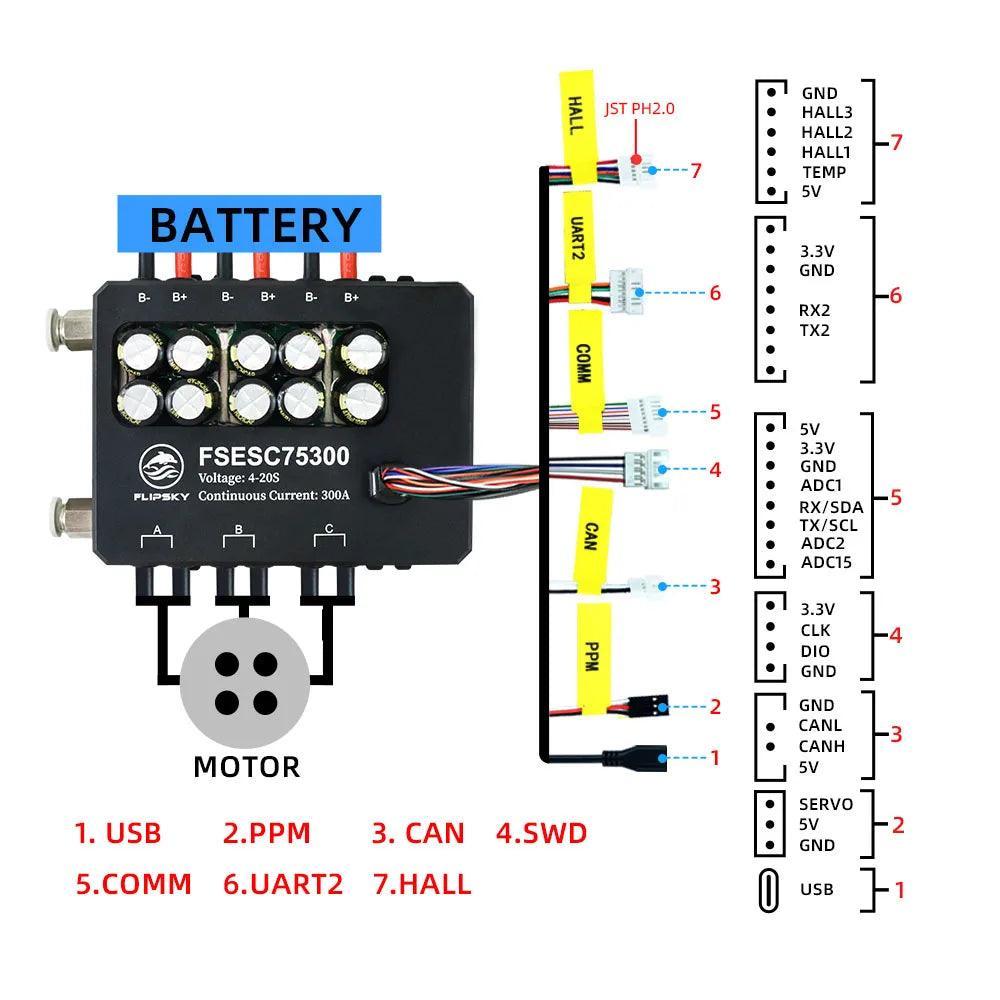

• Communication ports: USB, CAN, UART,SPI,IIC

• Throttle curve and ramping for all input sources

• Seamless 4-quadrant operation

• Motor revolution, ampere hour, watt hour counting

• Real-time data analysis and readout through the communication port.

• Adjustable protection against:

• Low input voltage

• High input voltage

• High motor current

• High input current

• High regenerative braking current (separate limits for the motor and the input)

• High RPM (separate limits for each direction)

• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate

• Motor wire: 8AWG

• Power cable: 8AWG

• Waterproof level(with water cooling enclosure):IP67
