Description

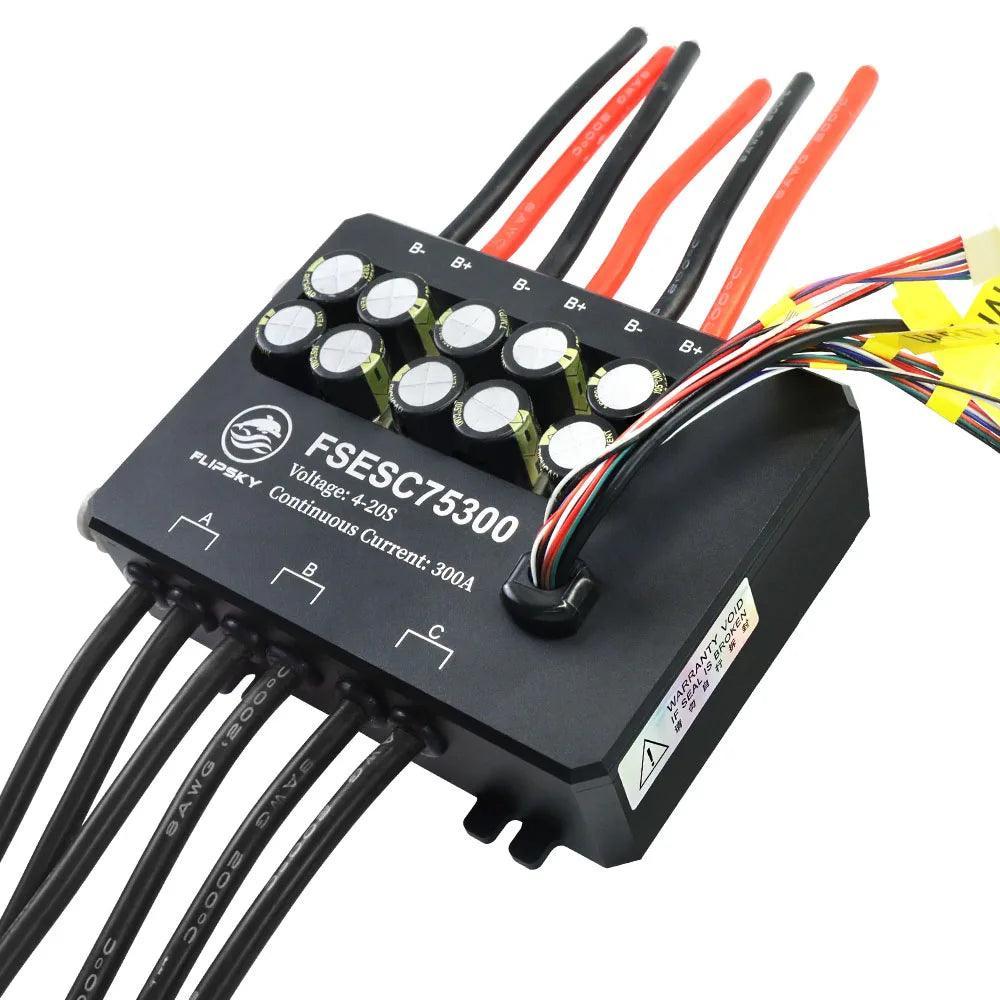

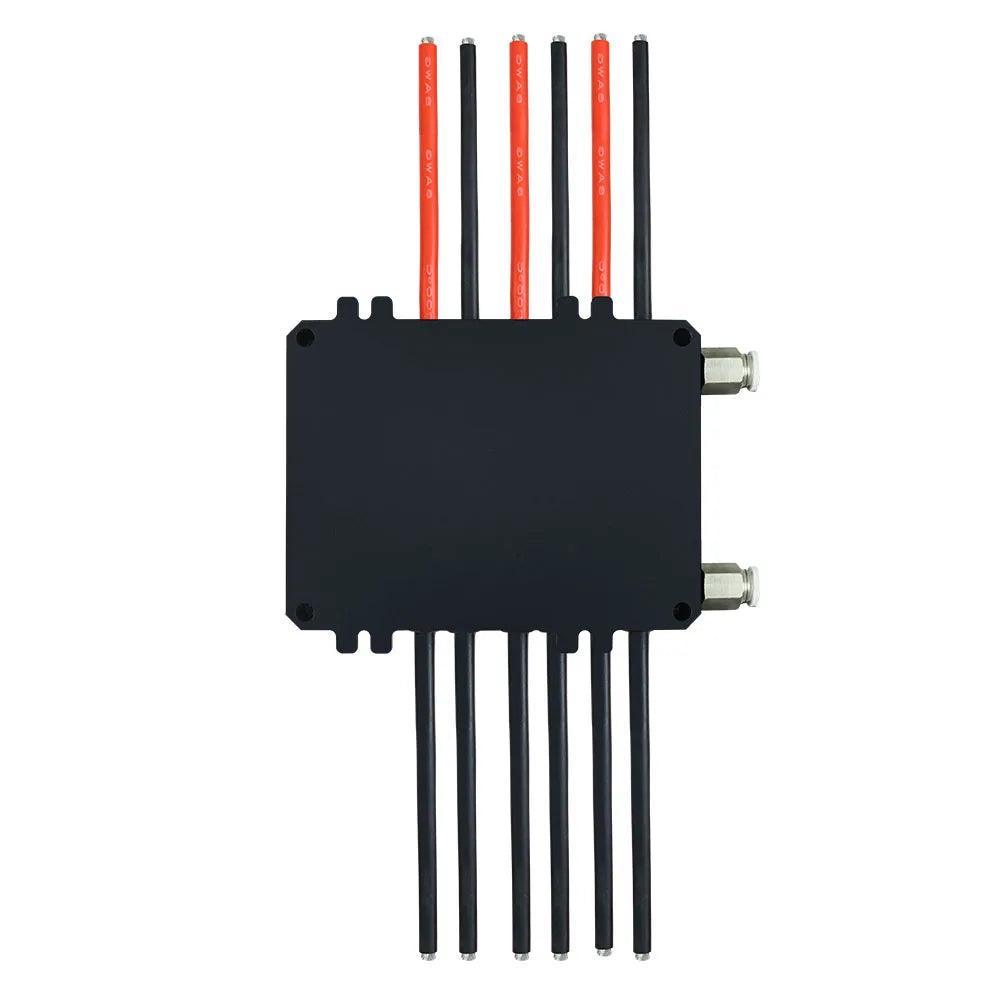

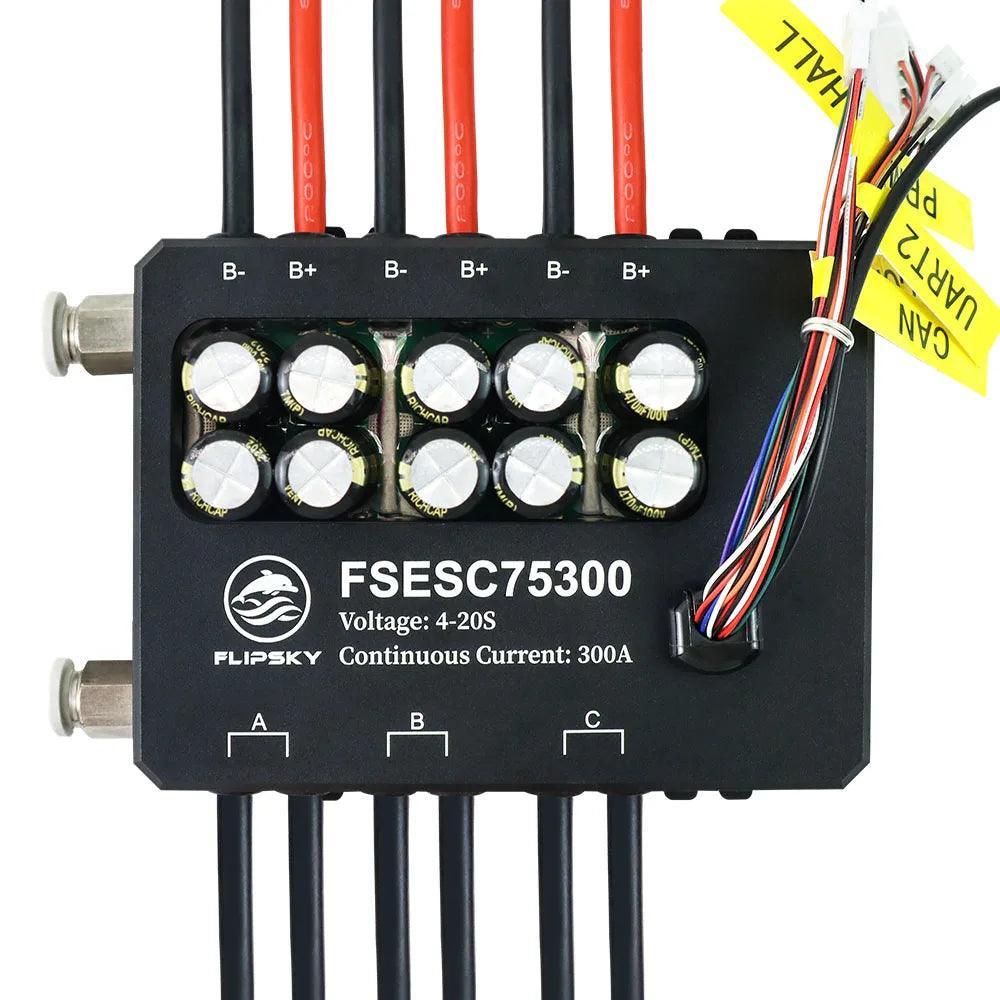

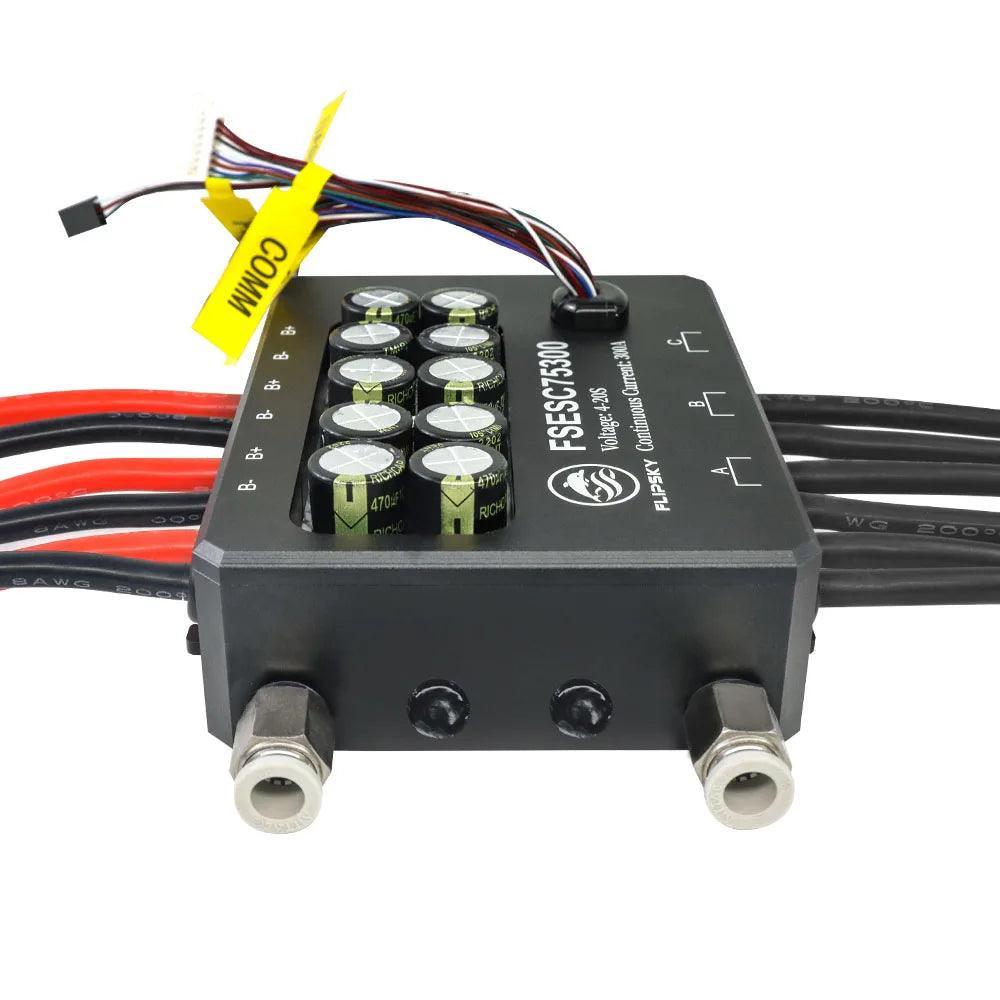

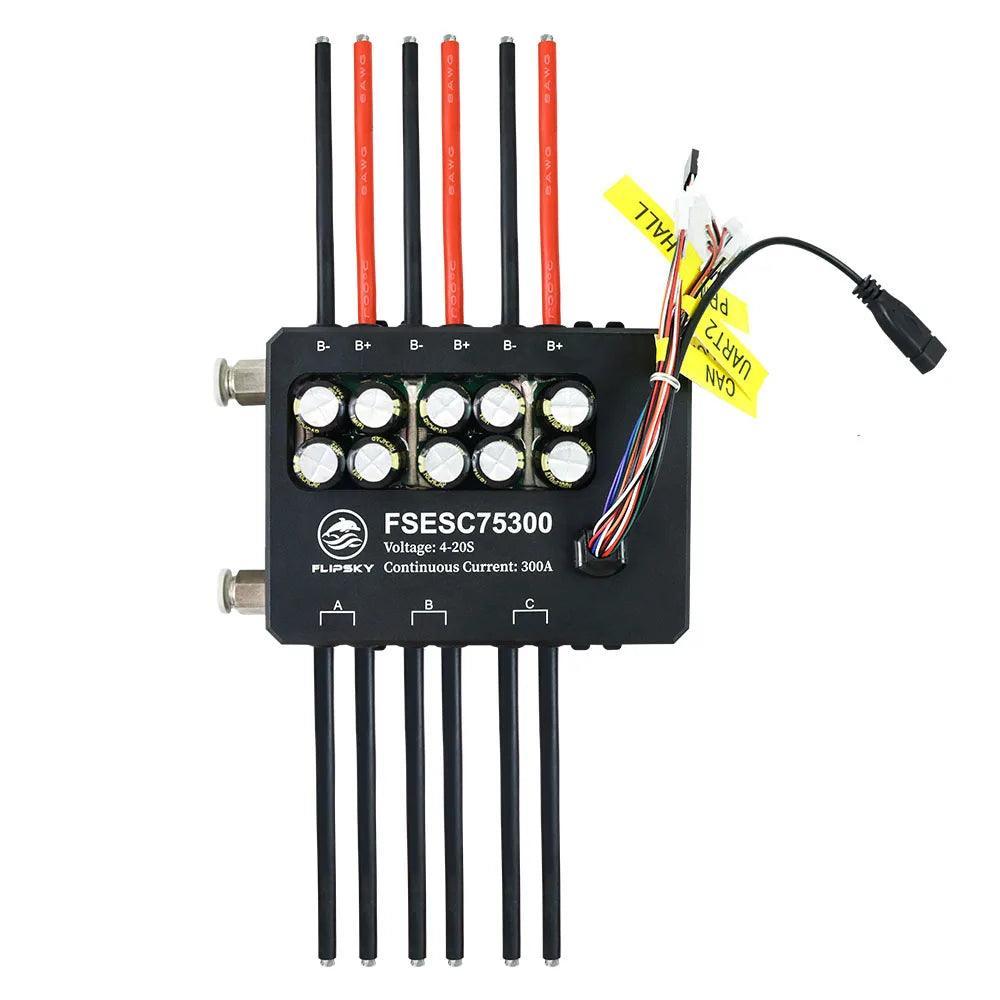

xFlipsky FSESC 75300 84V High Current
With Aluminum Case
Specs:
Voltage:14-84V( safe for 3-20S)
Continuous Current : 50V/300A,75V/200A (Duration depends on external heat dissipation)
Max Current :350A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000
Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors)
Feature:
Regenerative braking
The CPU adopts the 32F405 with the main frequency of 168MHz and the
Cortex-M4 architecture with DSP function;
Sensored or sensorless operation + hybrid mode
Configurable RPM, current, voltage and power limits
Input source: PPM, ADC, NRF,UART,PAS
Communication ports: USB, CAN, UART,SPI,IIC
Throttle curve and ramping for all input sources
Seamless 4-quadrant operation
Motor revolution, ampere hour, watt hour counting

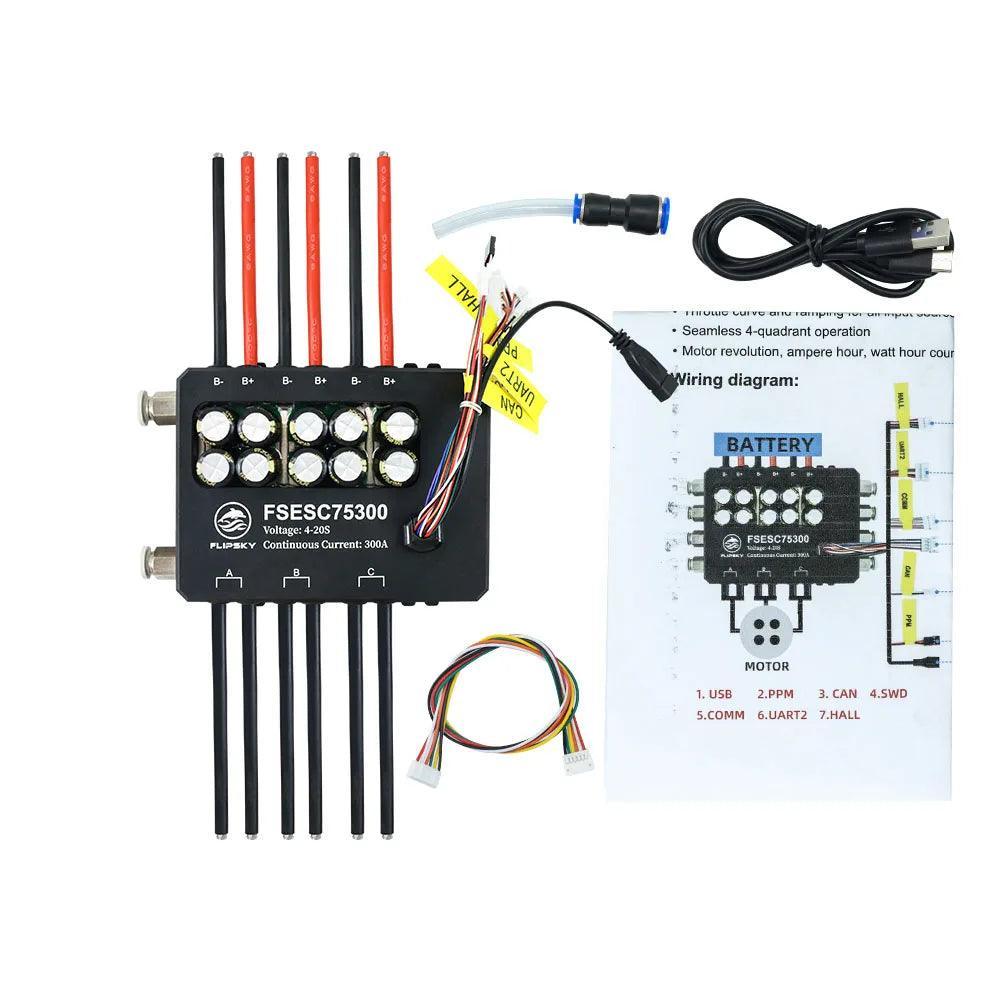

Wiring diagram:
