Flipsky FSESC 75300 84V High Current 350A ESC Base on Vesc with

Spec:

• Voltage:14-84V( safe for 3-20S)
• Continuous Current : 50V/300A,75V/200A
• Max Current :350A
• Supported sensors: ABI, HALL, AS5047,AS5048A
• EPRM:150000

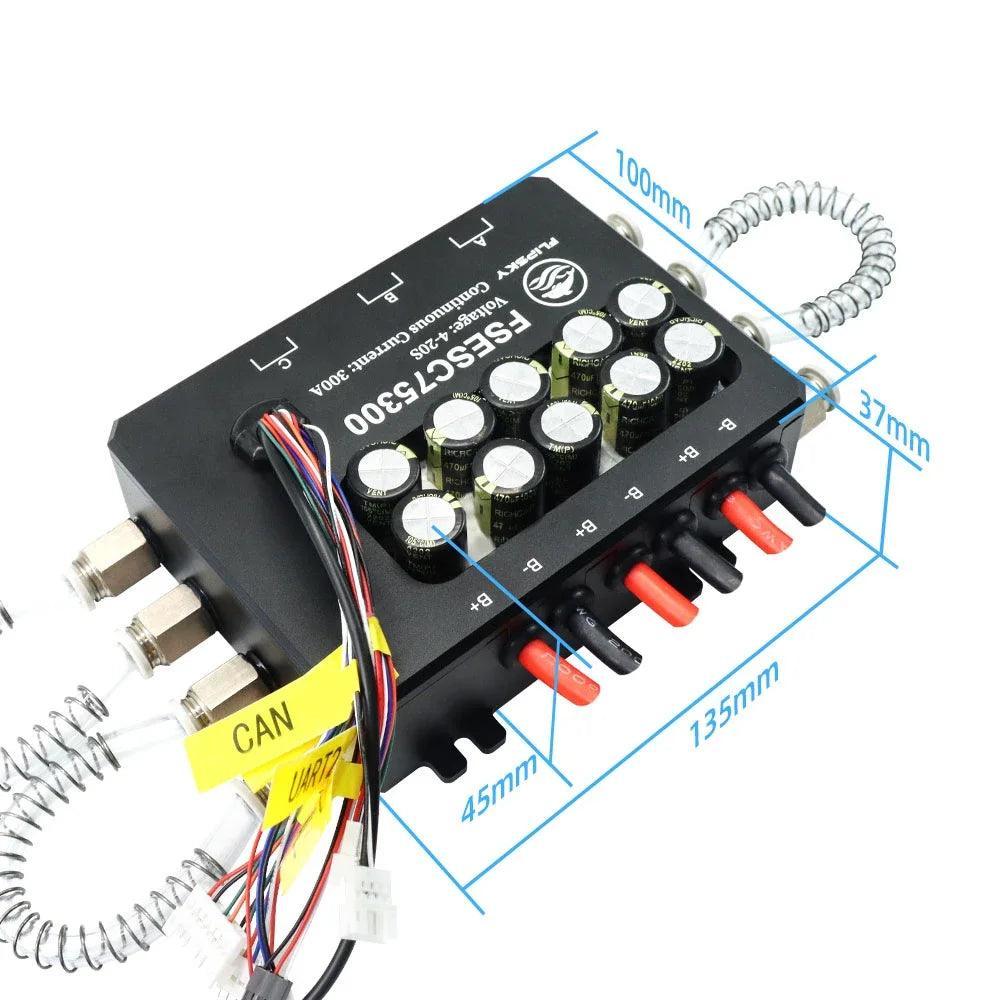

• Size:297*115*45mm((Including the height of water pipes and electrolytic capacitors)

Feature:

• Regenerative braking
• The CPU adopts the STM32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
• Sensored or sensorless operation + hybrid mode
• Configurable RPM-, current-, voltage- and power limits
• Input source: PPM, ADC, NRF,UART,PAS
• Communication ports: USB, CAN, UART,SPI,IIC
• Throttle curve and ramping for all input sources
• Seamless 4-quadrant operation
• Motor revolution, ampere hour, watt hour counting
• Real-time data analysis and readout through the communication port.
• Adjustable protection against:
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current (separate limits for the motor and the input)
• High RPM (separate limits for each direction)
• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
• Motor wire: 8AWG
• Power cable: 8AWG
• Waterproof level(with water cooling enclosure):IP67
