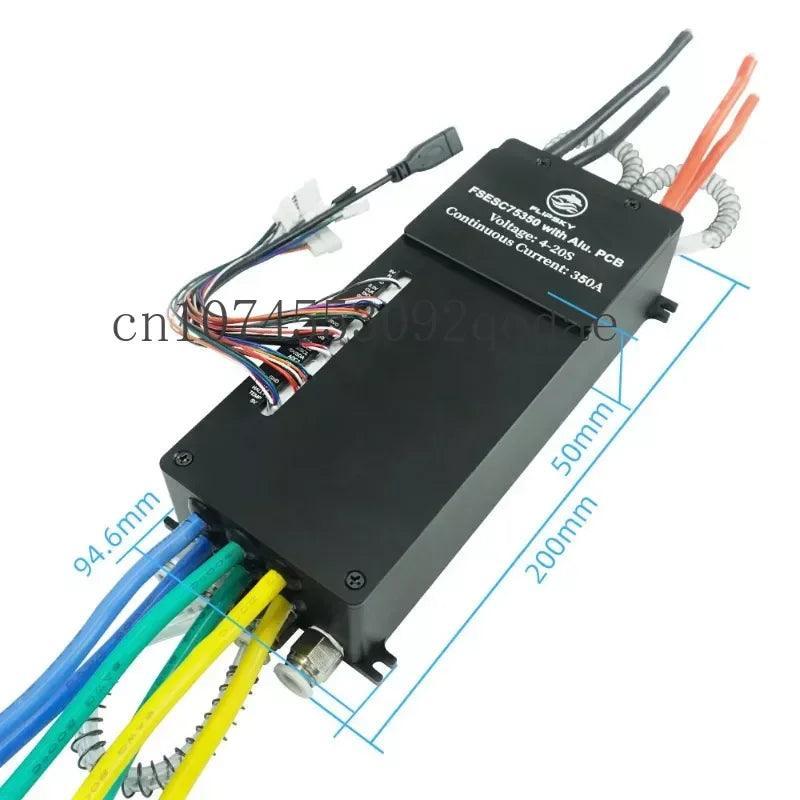

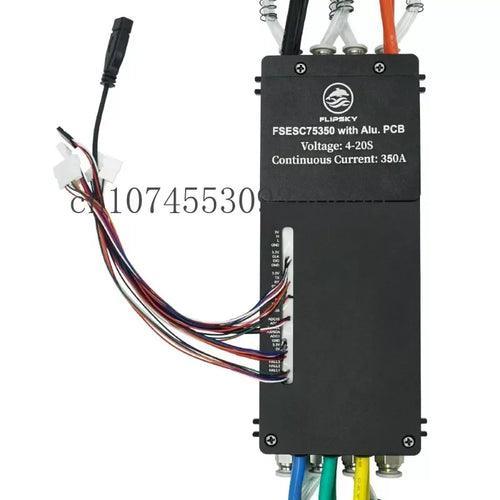

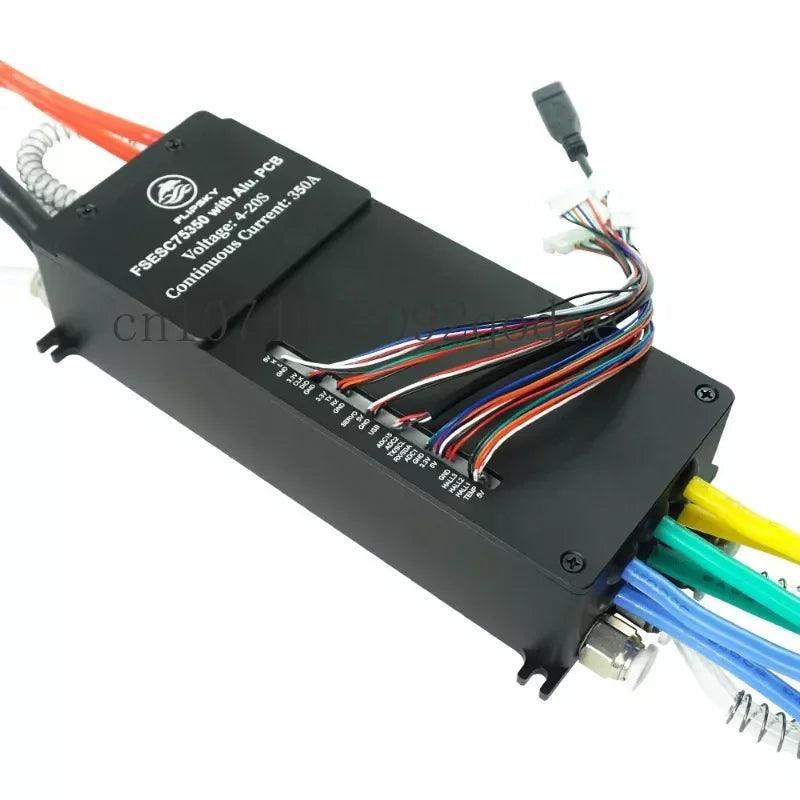

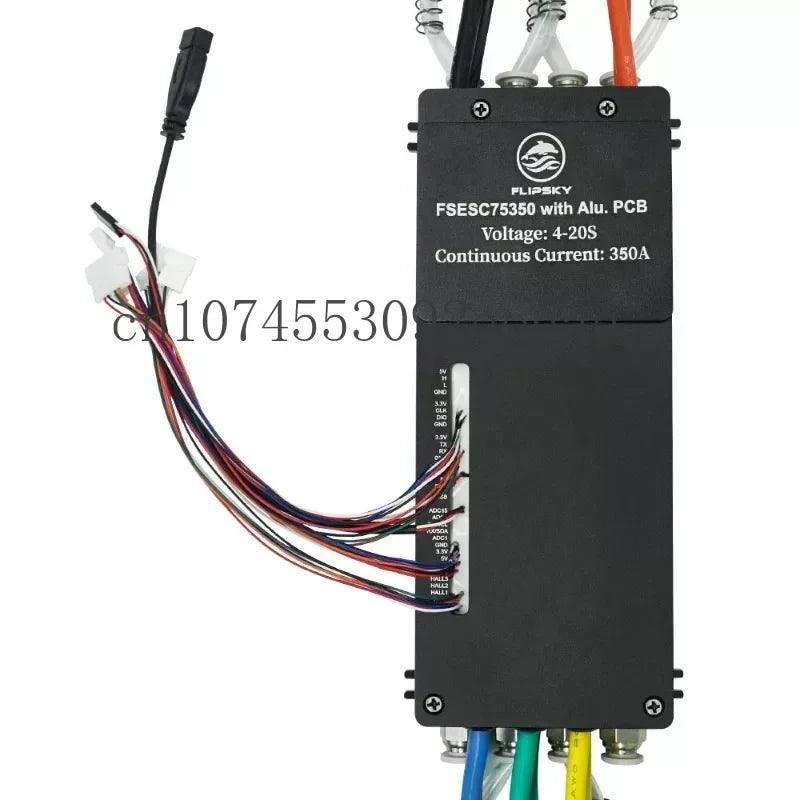

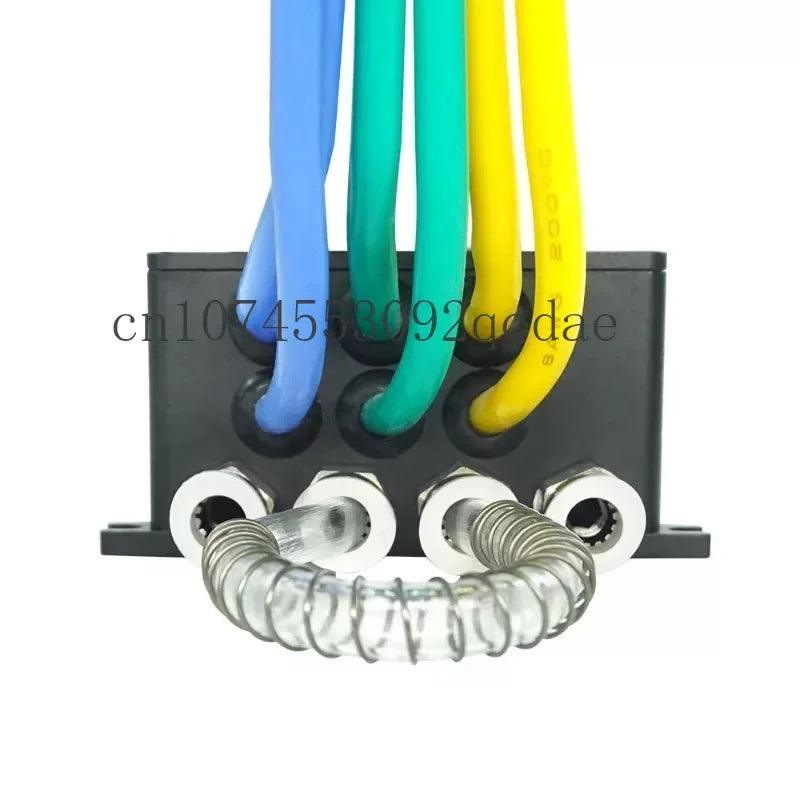

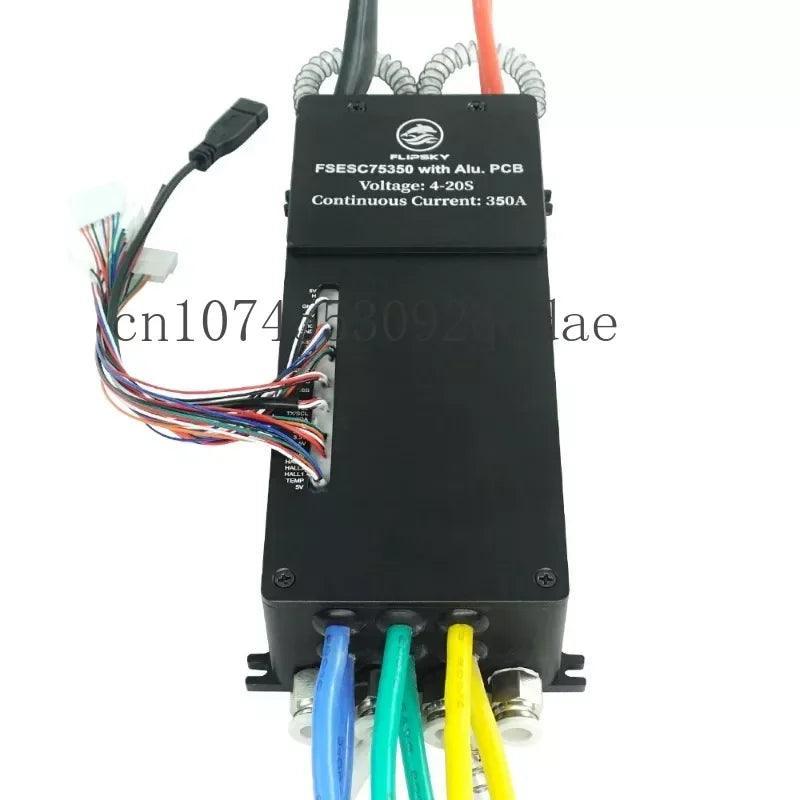

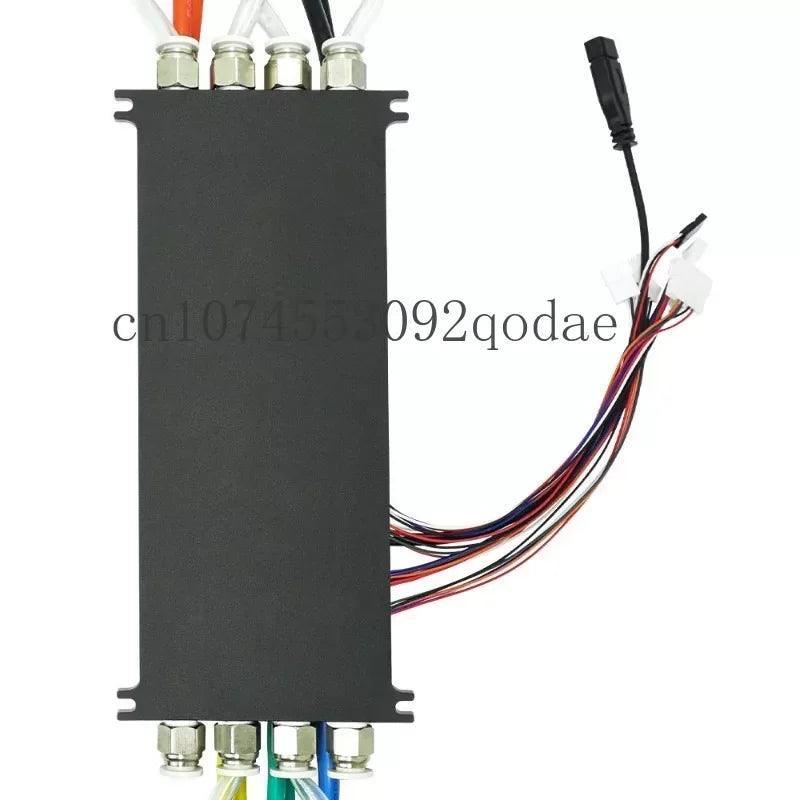

Flipsky FSESC 75350 84V 350A High Current ESC Base on Vesc with

Feature:

• Regenerative braking
• The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function;
• Sensored or sensorless operation + hybrid mode
• Configurable RPM-, current-, voltage- and power limits
• Input source: PPM, ADC, NRF,UART,PAS
• Communication ports: USB, CAN, UART,SPI,IIC
• Throttle curve and ramping for all input sources
• Seamless 4-quadrant operation
• Motor revolution, ampere hour, watt hour counting
• Real-time data analysis and readout through the communication port.
• Adjustable protection against:
• Low input voltage
• High input voltage
• High motor current
• High input current
• High regenerative braking current (separate limits for the motor and the input)
• High RPM (separate limits for each direction)
• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
• Motor wire: 8AWG
• Power cable: 8AWG
• Waterproof level(with water cooling enclosure):IP67
•
