Flipsky FSESC 75350 84V With Aluminum Case Water Cooling Enclosure Specs: Voltage:14-84V( safe for 3-20S) Continuous Current...
$309.34
$309.34
Color: PCB Board
Ships From: CHINA
Subtotal: $309.34
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With

Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With

$309.34
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With
Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With

Flipsky FSESC 75350 84V High Current 350A ESC Base On Vesc With

$309.34
Color: PCB Board
Ships From: CHINA
Description
Description
x

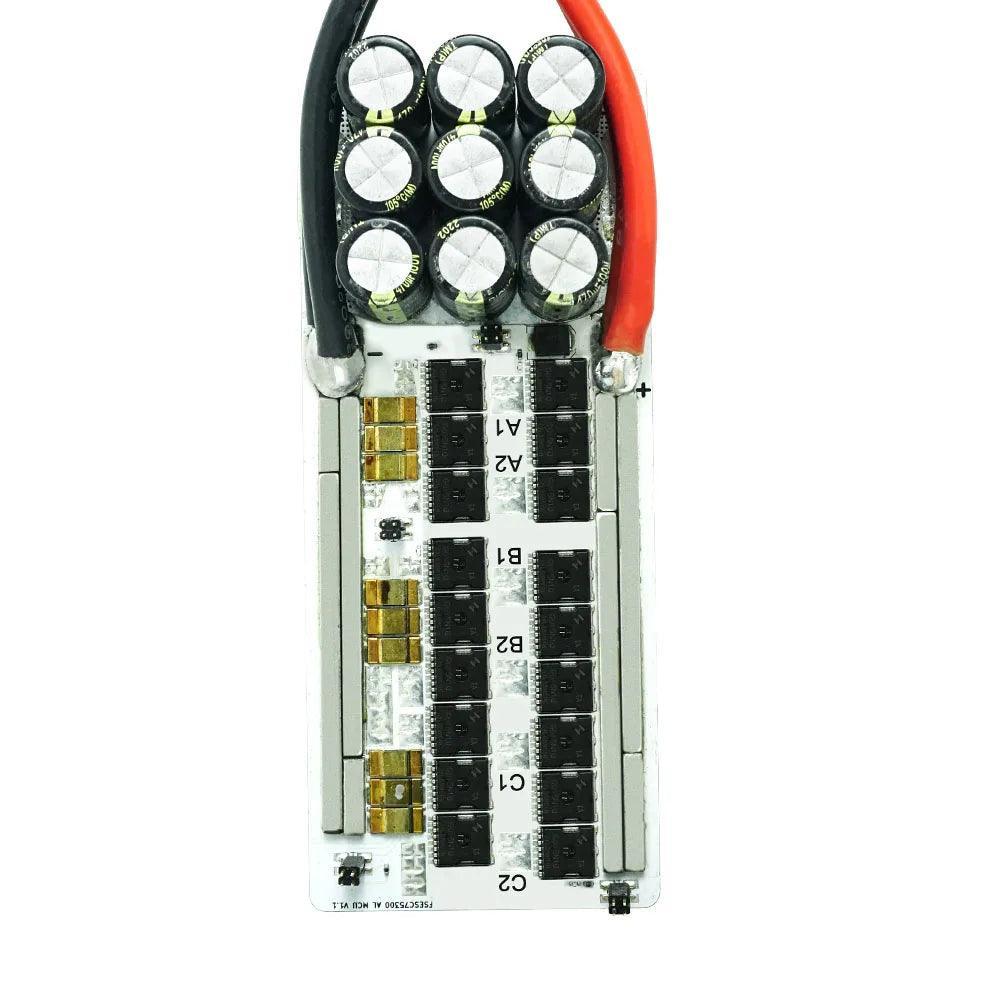

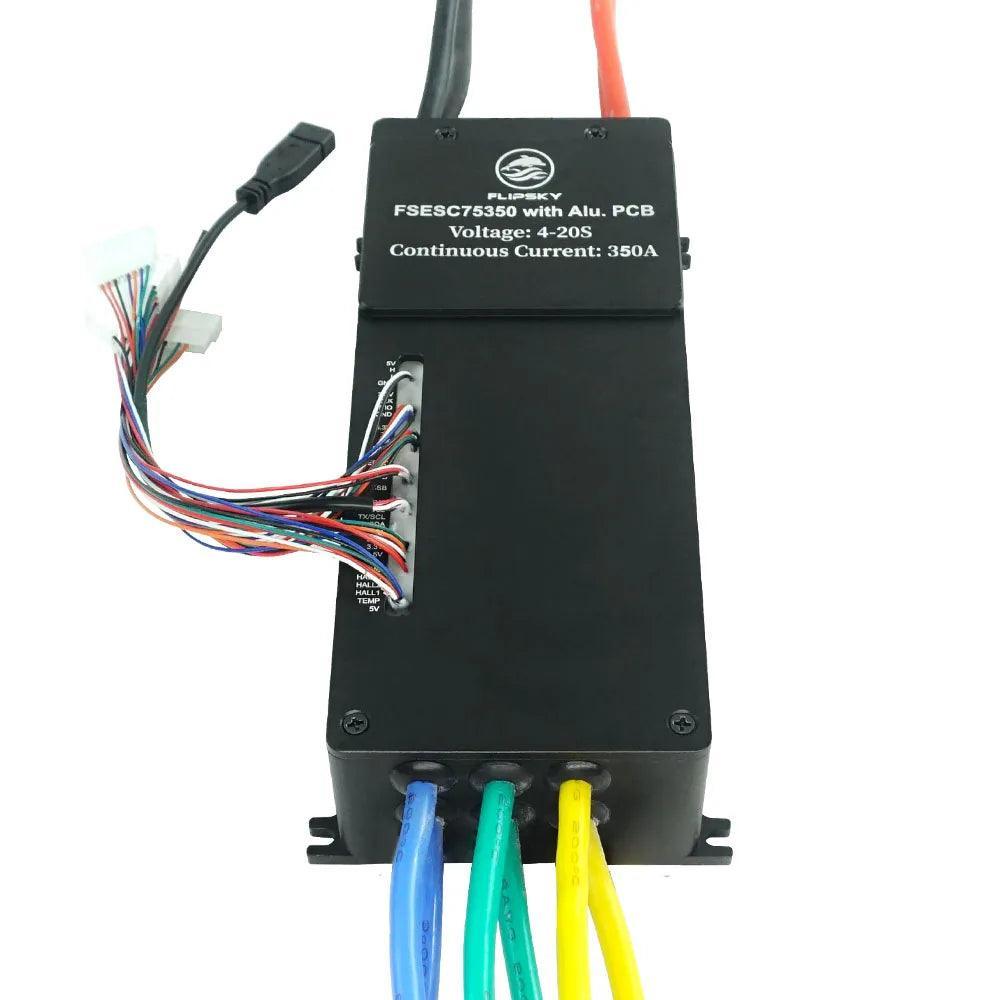

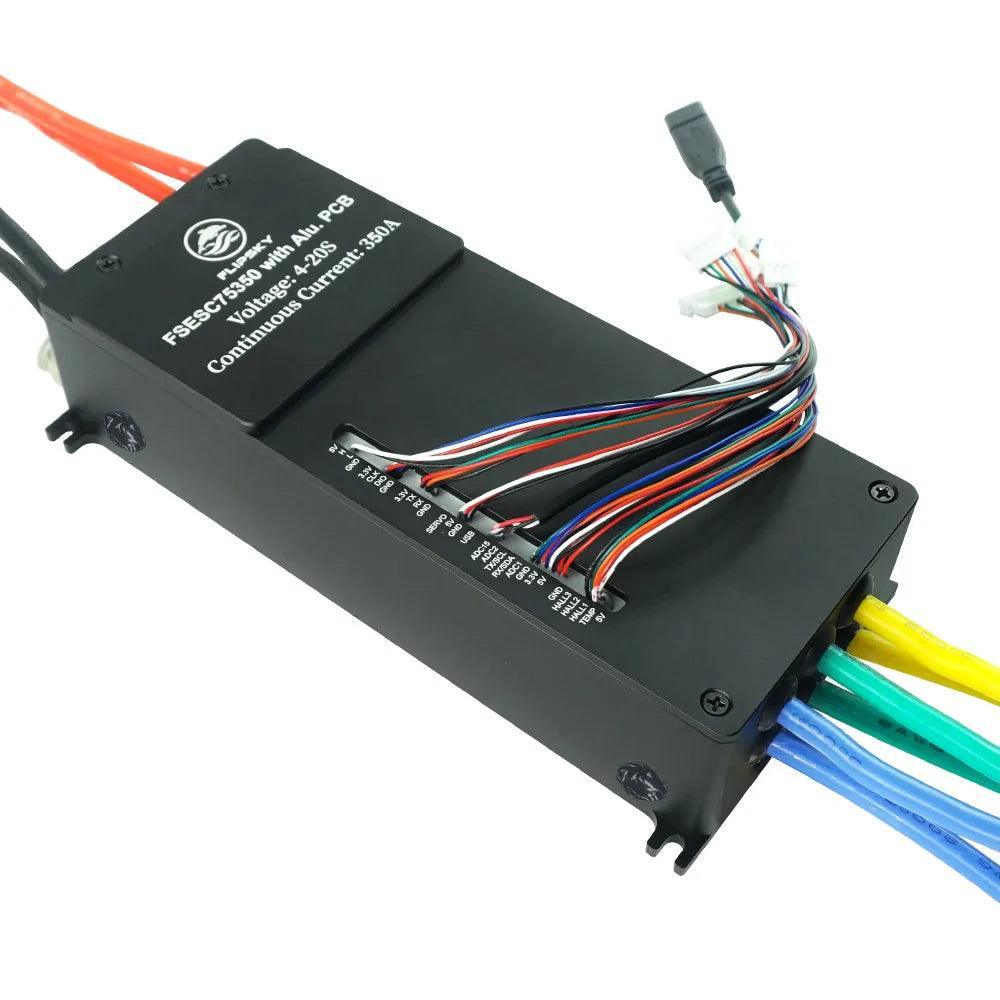

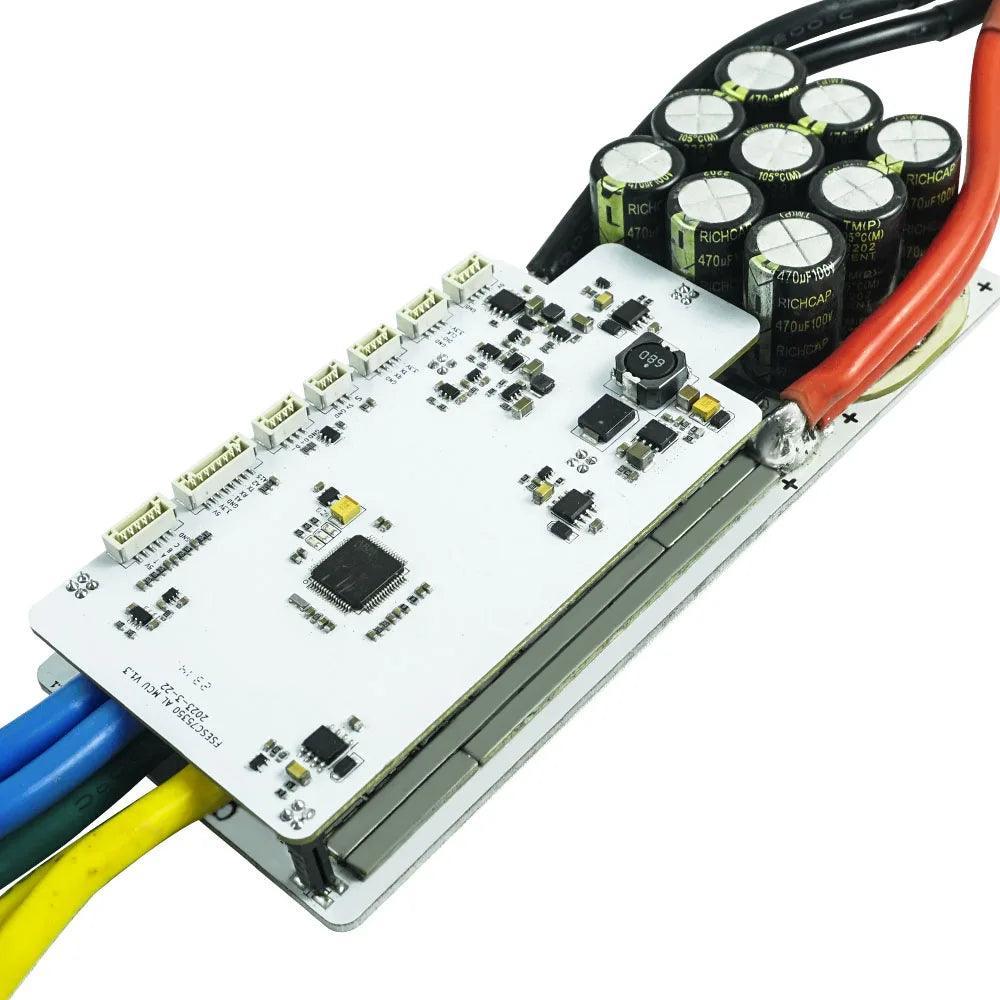

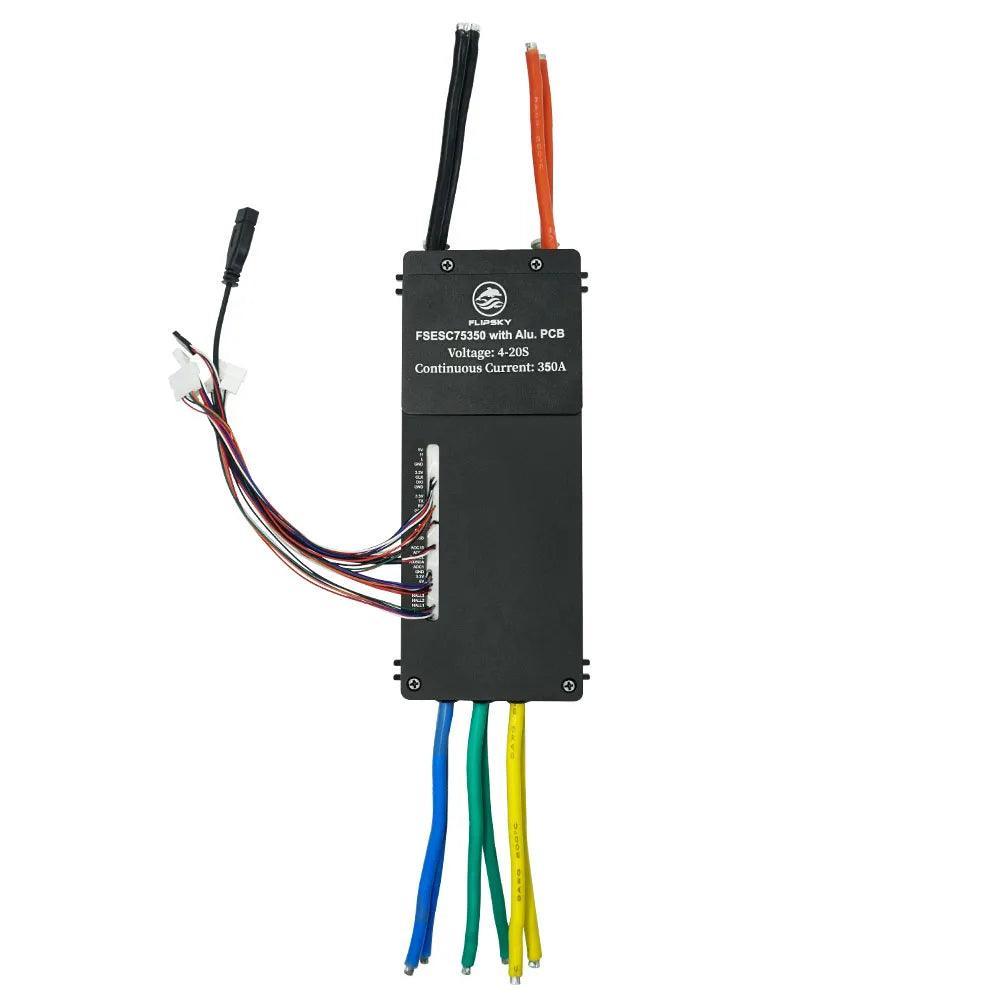

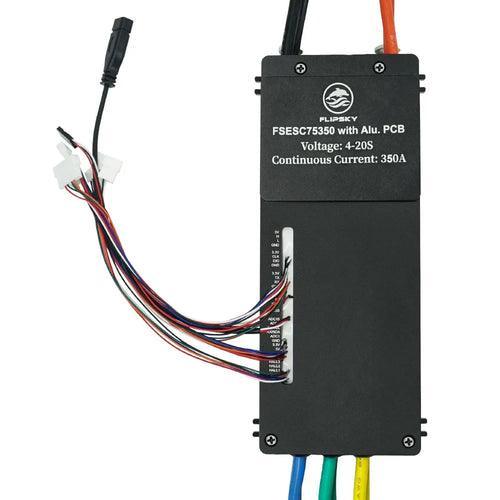

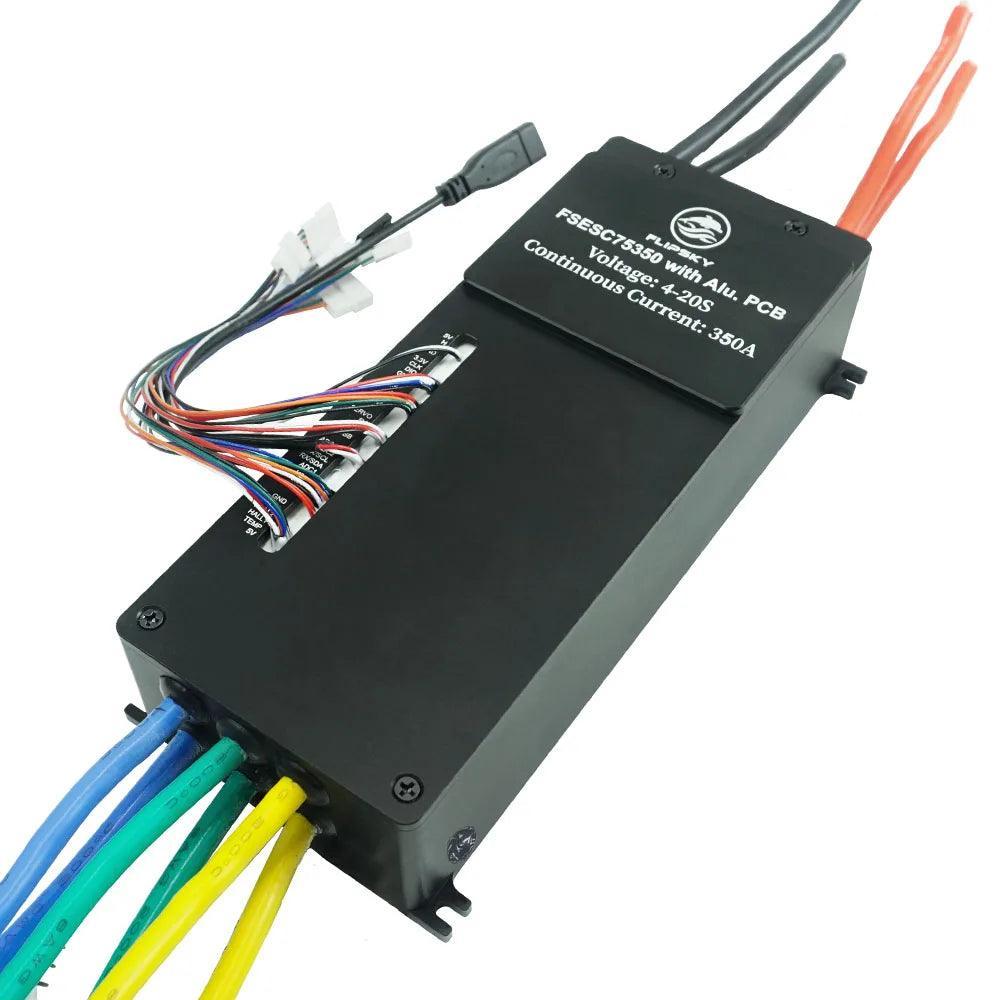

Flipsky FSESC 75350 84V With Aluminum
Case Water Cooling Enclosure
Specs:
Voltage:14-84V( safe for 3-20S)
Continuous Current : 50V/350A,75V/250A (Duration depends on external heat dissipation)
Instantaneous current:800A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000
Size:200*94.6*50mm
Feature:
Regenerative braking
The CPU adopts the 32F405 with the main frequency of 168MHz and the
Cortex-M4 architecture with DSP function;
Sensored or sensorless operation + hybrid mode
Configurable RPM, current, voltage and power limits
Input source: PPM, ADC, NRF,UART,PAS
Communication ports: USB, CAN, UART,SPI,IIC
Throttle curve and ramping for all input sources
Seamless 4-quadrant operation
Motor revolution, ampere hour, watt hour counting
Wiring diagram:
