Description

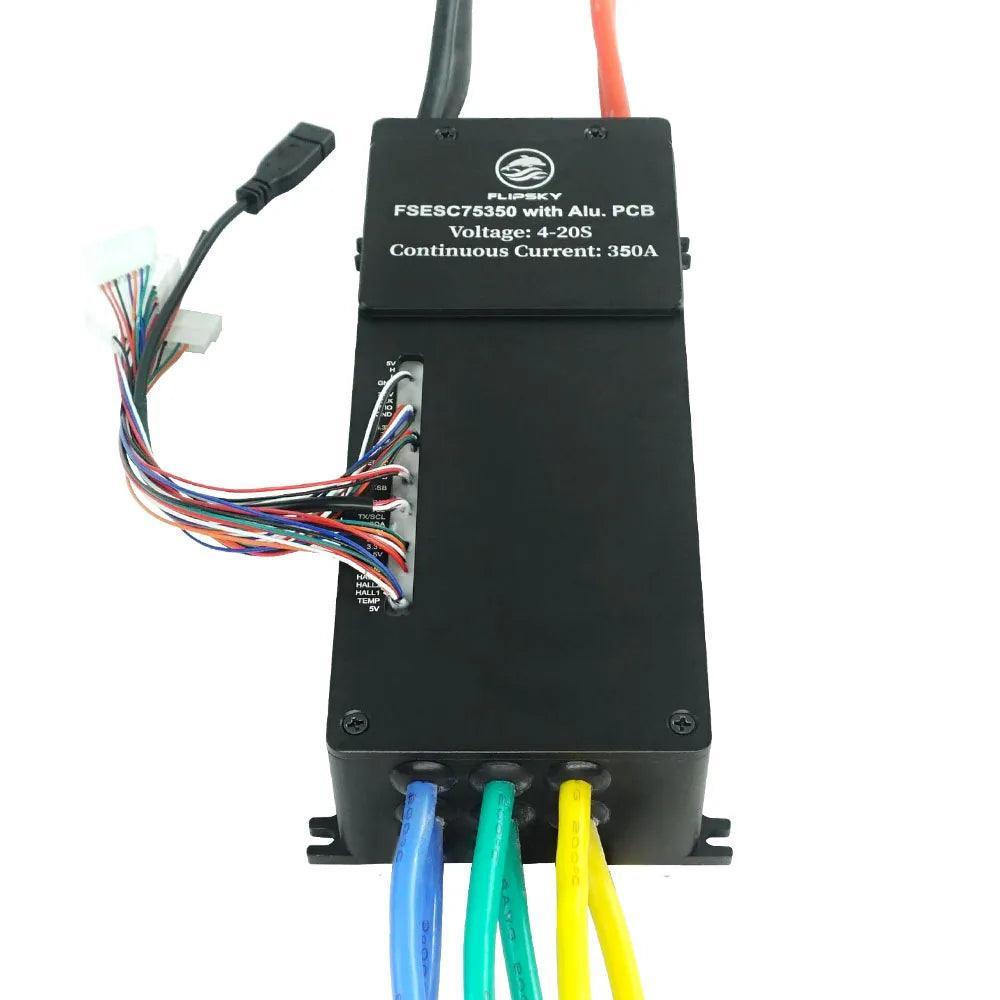

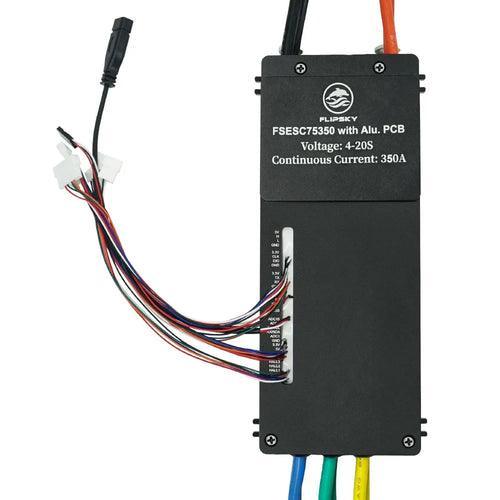

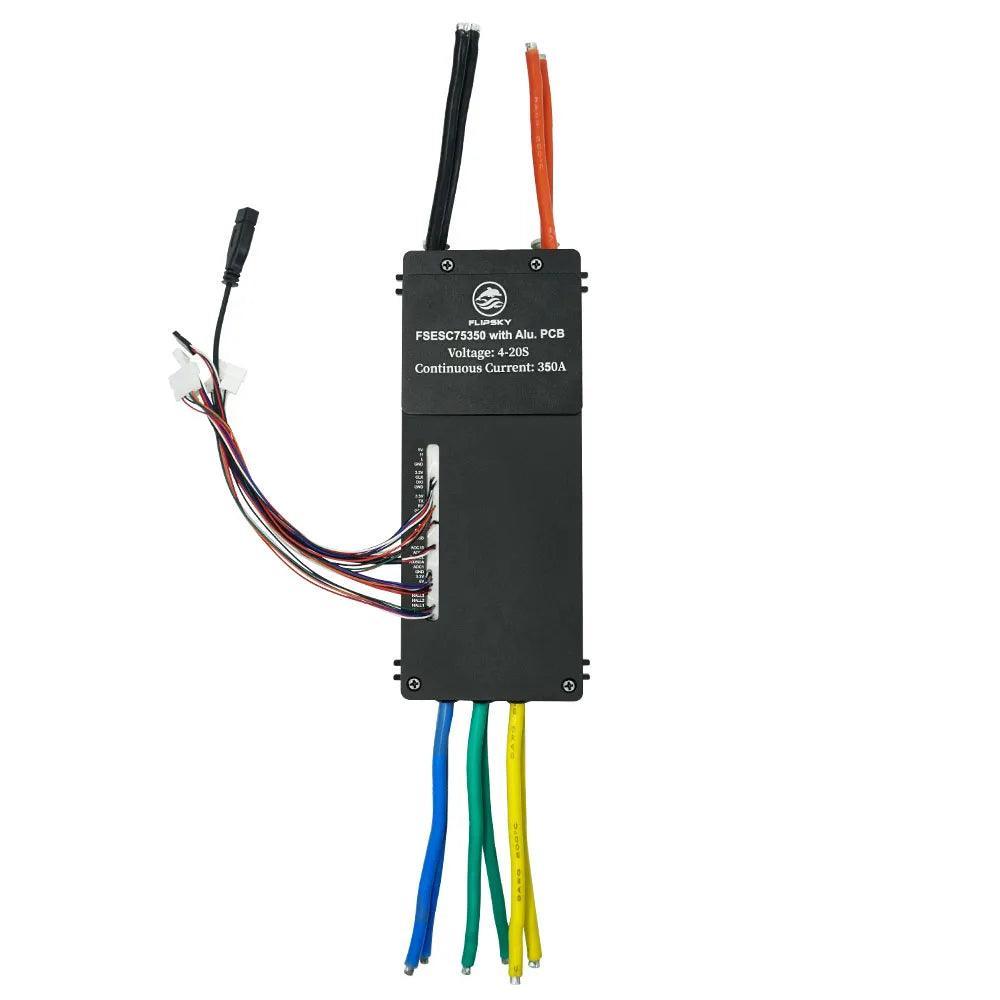

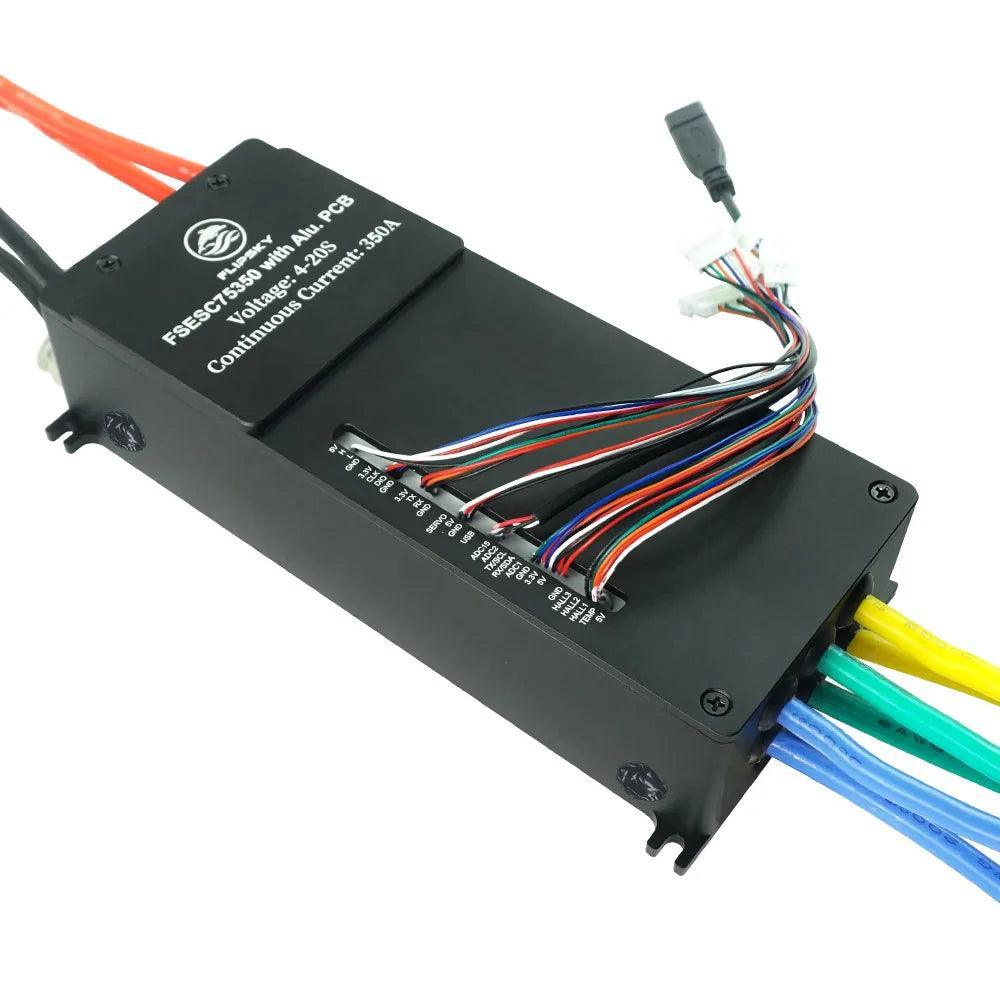

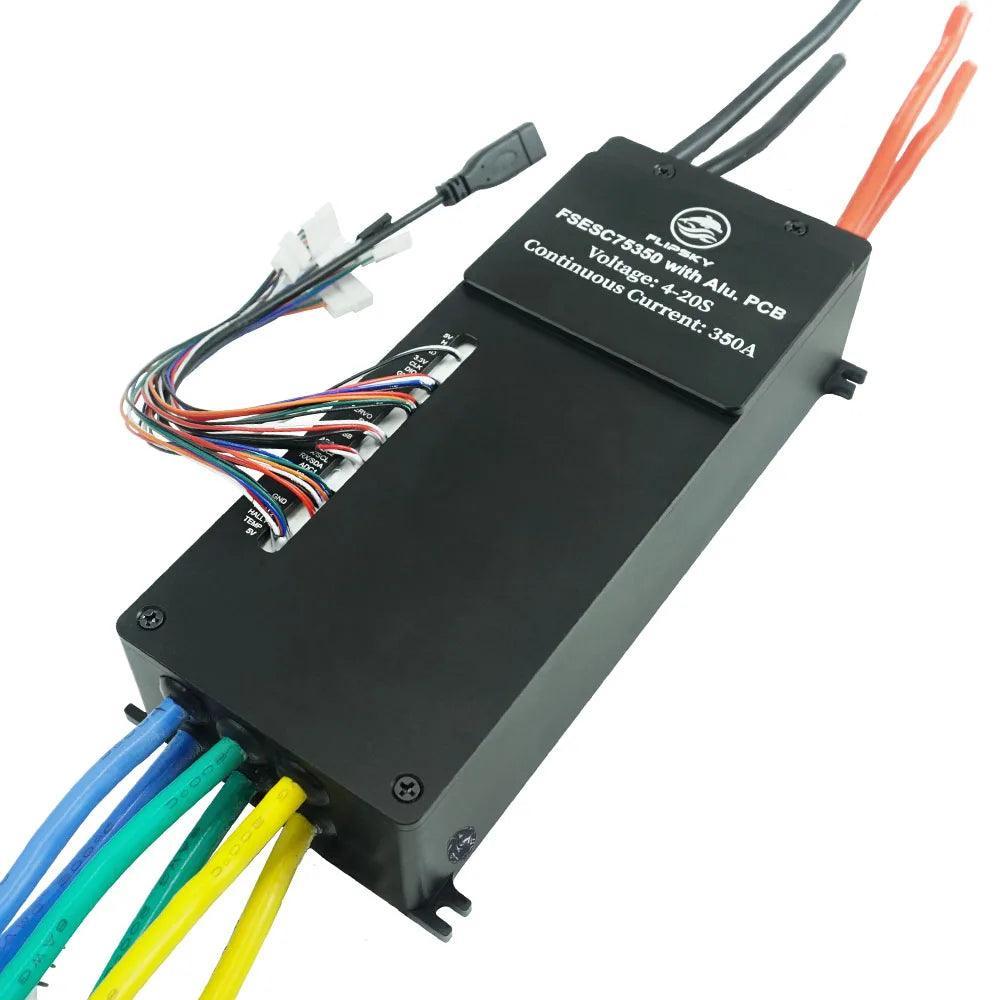

xFlipsky FSESC 75350 84V With Aluminum
Case Water Cooling Enclosure
Specs:
Voltage:14-84V( safe for 3-20S)
Continuous Current : 50V/350A,75V/250A (Duration depends on external heat dissipation)
Instantaneous current:800A
Supported sensors: ABI, HALL, AS5047,AS5048A
EPRM:150000
Size:200*94.6*50mm
Feature:
Regenerative braking

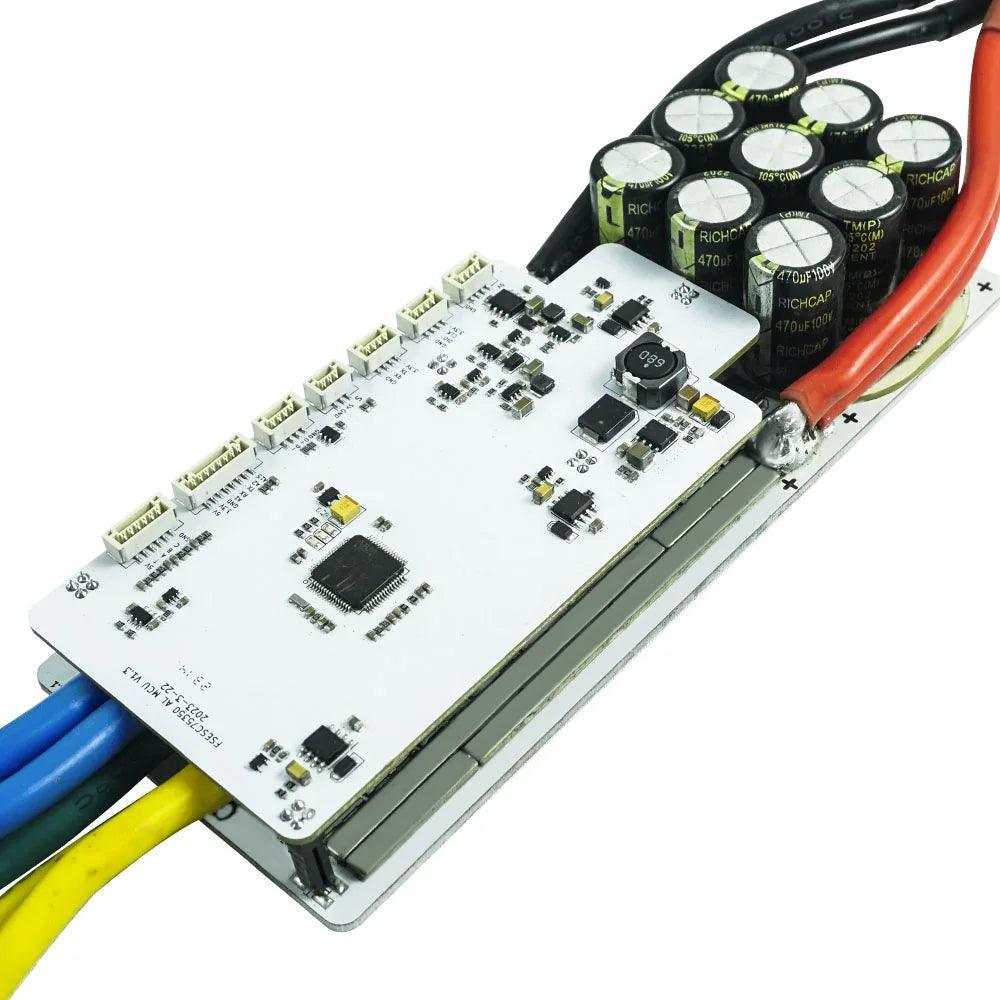

The CPU adopts the 32F405 with the main frequency of 168MHz and the
Cortex-M4 architecture with DSP function;
Sensored or sensorless operation + hybrid mode
Configurable RPM, current, voltage and power limits
Input source: PPM, ADC, NRF,UART,PAS
Communication ports: USB, CAN, UART,SPI,IIC
Throttle curve and ramping for all input sources
Seamless 4-quadrant operation
Motor revolution, ampere hour, watt hour counting
Wiring diagram:
