Flipsky FSESC 75350 84V High Current 350A ESC Base on Vesc with

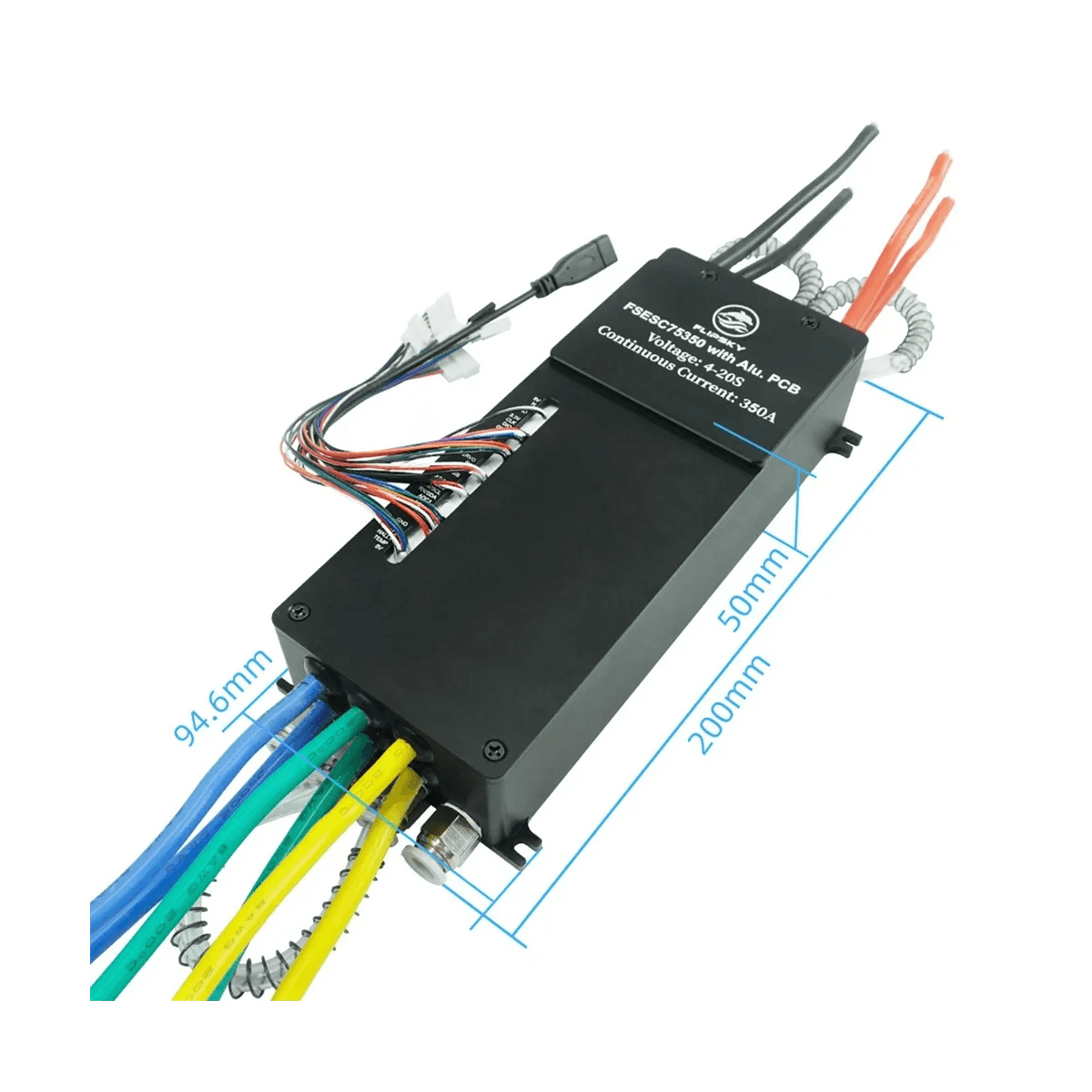

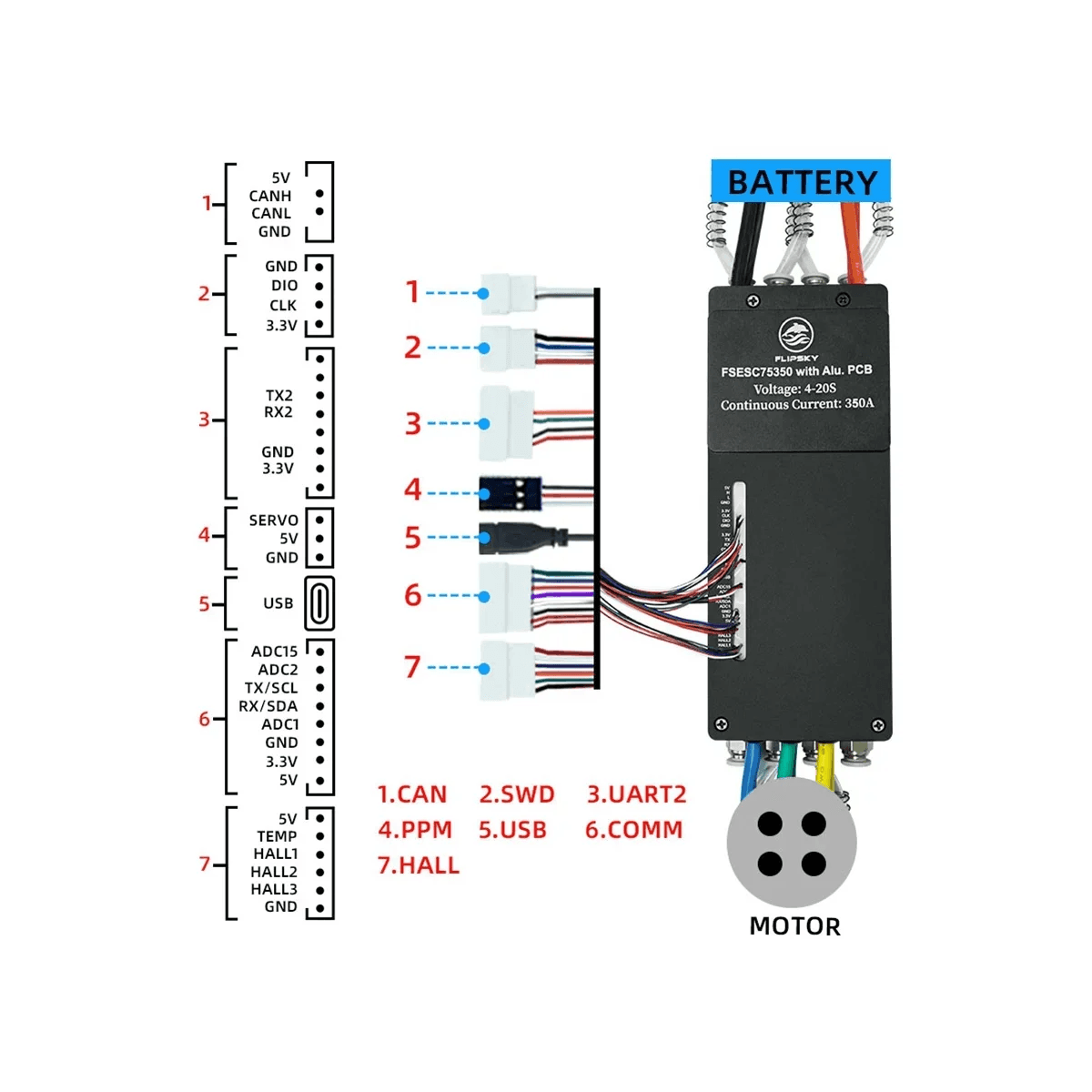

Regenerative braking The CPU adopts the 32F405 with the main frequency of 168MHz and the Cortex-M4 architecture with DSP function; Sensored or sensorless operation + hybrid mode Configurable RPM-, current-, voltage- and power limits Input source: PPM, ADC, NRF,UART,PAS Communication ports: USB, CAN, UART,SPI,IIC Throttle curve and ramping for all input sources Seamless 4-quadrant operation Motor revolution, ampere hour, watt hour counting Real-time data analysis and readout through the communication port. Adjustable protection against: Low input voltage High input voltage High motor current High input current High regenerative braking current (separate limits for the motor and the input) High RPM (separate limits for each direction) Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate Motor wire: 8AWG Power cable: 8AWG Waterproof level(with water cooling enclosure):IP67 Voltage:14-84V( safe for 3-20S) Continuous Current : 50V/350A,75V/250A Max Current :800A Supported sensors: ABI, HALL, AS5047,AS5048A EPRM:150000 Size:200x94.6x50mm((Including the height of water pipes and electrolytic capacitors) Colour:black Material:Aluminum base Package Contents: 1 x ESC Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
