Flipsky FSESC 75450 84V 450A ESC Base On Vesc With Aluminum Case Water

FSESC 75450 with Alu. PCB User Manual

Specs:

1. Firmware: 5.2, supports firmware upgrade

2. Voltage: 14-84V (safe for 4-20S)

3. Continuous current: 50V/450A; 75V/350A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 1200A

4. BEC: 5V@1A

5. Support Modes: DC, BLDC, FOC (sinusoidal)

6. ERPM: 150000

7. Communication Ports: USB,CAN,UART, SPI, IIC

8. Supported Sensors:ABI, HALL, AS5047, AS5048A

9. Input Source Support:PPM, ADC, NRF, UART

10. Supported Sensorless: Yes

11. Regenerative capacity: Yes

12. Programmable via VESC_TOOL: Yes

13. Red Switch Button: Yes

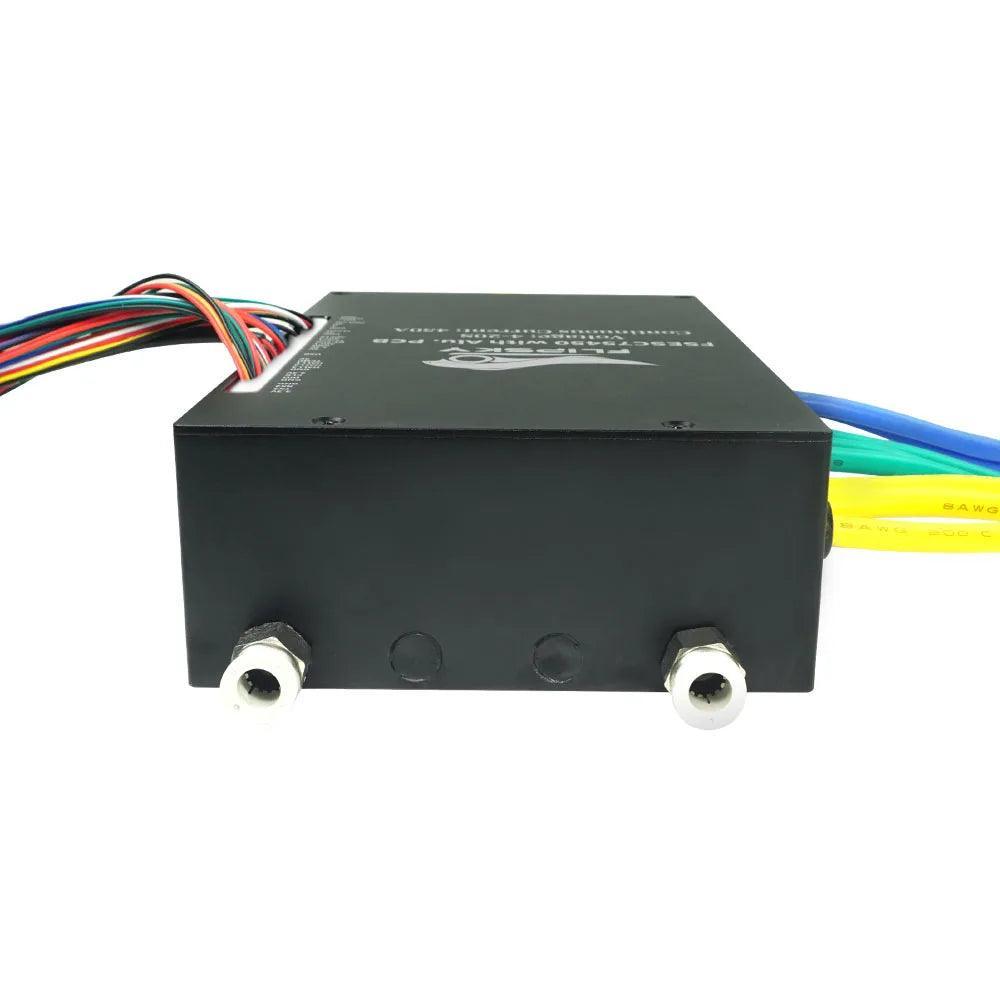

14. Size:227.5*140*54mm(IncludingWater Cooling Enclosure)

Features:

1. Adjustable protection against: low voltageprotection, high voltageprotection, over currentprotection, temperatureabnormal protection, mosfets / motor over temperature protection.

2. Support various control modes: Current/Duty cycle /Speed/PID control modes.

3. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.

4. CPU:STM32F405 with frequency 168MHz

5. Aluminum PCB with good heat dissipation to expand life span.

6. Built with ignite power on/off switch button
