Flipsky FSESC 75450 84V High Current 450A ESC Base On Vesc With

Specs:

• Firmware: 5.2, supports firmware upgrade

• Voltage: 14-84V (safe for 4-20S)

• Continuous current: 50V/450A; 75V/350A (Values depend on the mounting, ambient temperature and air/water circulation around the device!); Burst: 1200A

• BEC: 5V@1A

• Support Modes: DC, BLDC, FOC (sinusoidal)

• ERPM: 150000

• Communication Ports: USB, CAN, UART, SPI, IIC

• Supported Sensors: ABI, HALL, AS5047, AS5048A

• Input Source Support: PPM, ADC, NRF, UART

• Supported Sensorless: Yes

• Regenerative capacity: Yes

• Programmable via VESC_TOOL: Yes

• Red Switch Button: Yes

• Phase filter: Yes

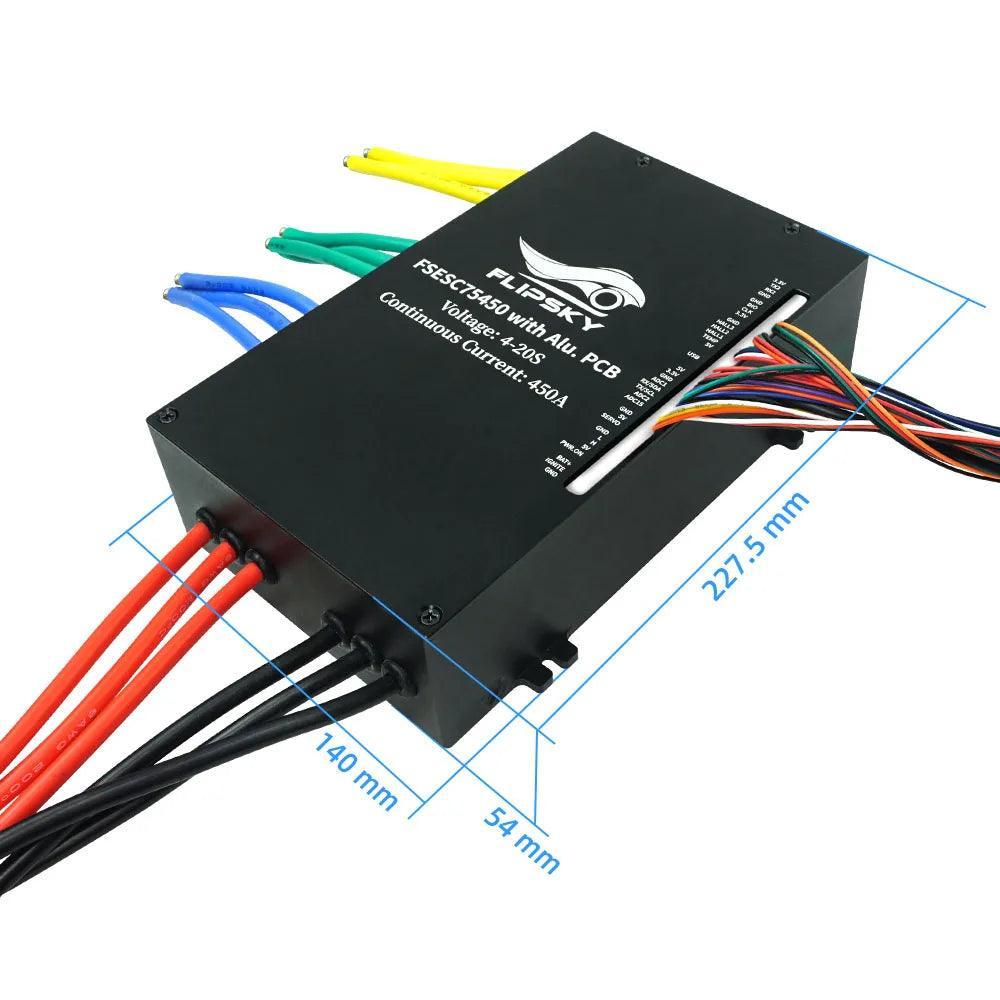

• Size:227.5*140*54mm(Including Water Cooling Enclosure)

Features:

1.Adjustable protection against: low voltage protection, high voltage protection, over current protection, temperature abnormal protection, mosfets / motor over temperature protection.
2.Support various control modes: Current / Duty cycle / Speed / PID control modes.
3.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
4.CPU:STM32F405 with frequency 168MHz

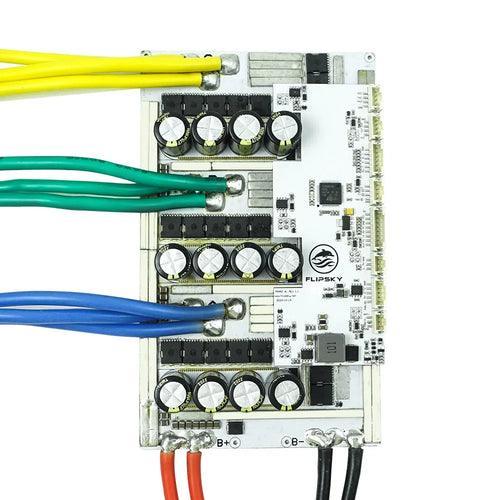

5.Aluminum PCB with good heat dissipation to expand life span.
6.Built with ignite power on/off switch button.

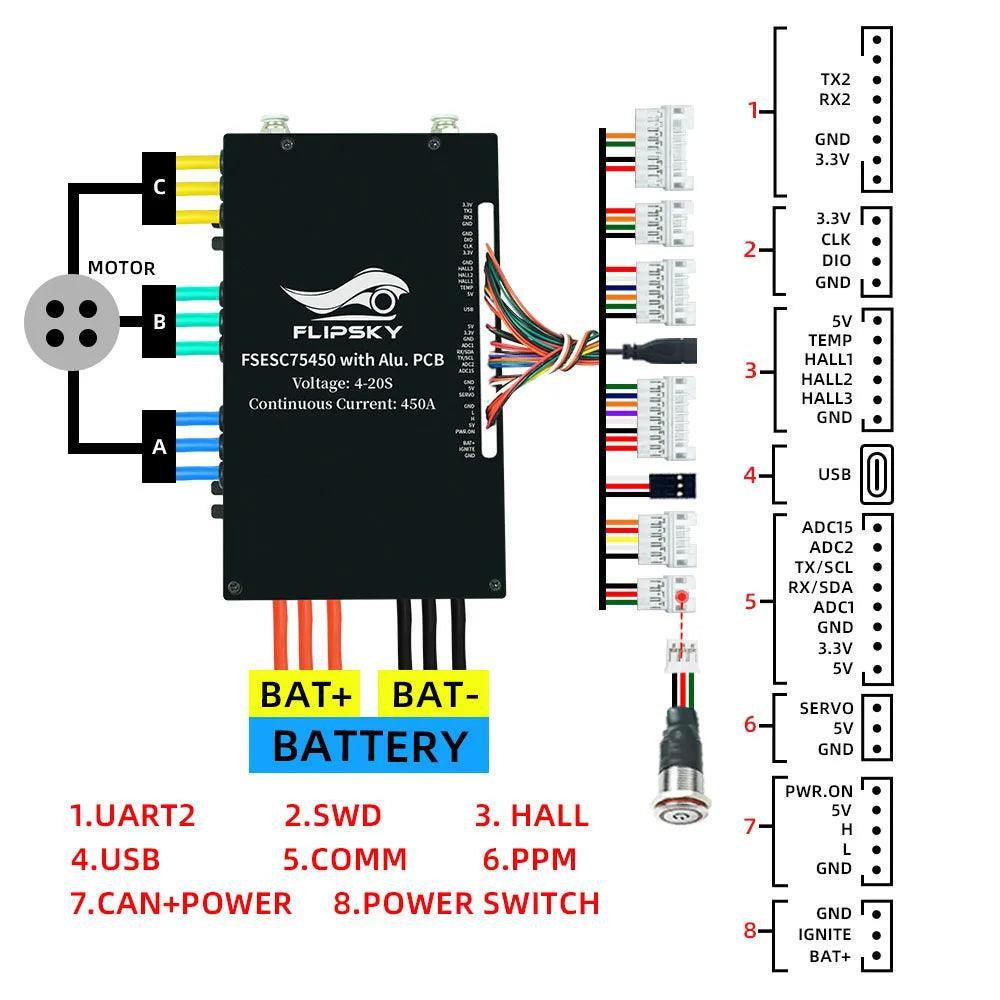

Wiring Diagram:
