Flipsky FSESC75200 75V High Current 200A ESC Base On Vesc With

Spec:

• Voltage:14-75V( safe for 3-16S)

• Continuous Current : 200A

• Max Current :300A

• Supported sensors: ABI, HALL, AS5047,AS5048A

• EPRM:150000

Feature:

• Regenerative braking

• Sensored or sensorless operation + hybrid mode

• Configurable RPM-, current-, voltage- and power limits

• Input source: PPM, Analog, NRF Nyko Kama Nunchuck

• Communication ports: USB, CAN, UART

• Throttle curve and ramping for all input sources

• Seamless 4-quadrant operation

• Motor revolution, amp hour, watt hour counting

• Real time data analysis and read out via communication ports

• Adjustable protection against:

• Low input voltage

• High input voltage

• High motor current

• High input current

• High regenerative braking current (separate limits for the motor and the input)

• High RPM (separate limits for each direction)

• Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate

• Motor wire: 8AWG

• Power cable: 10AWG

Warm tips:

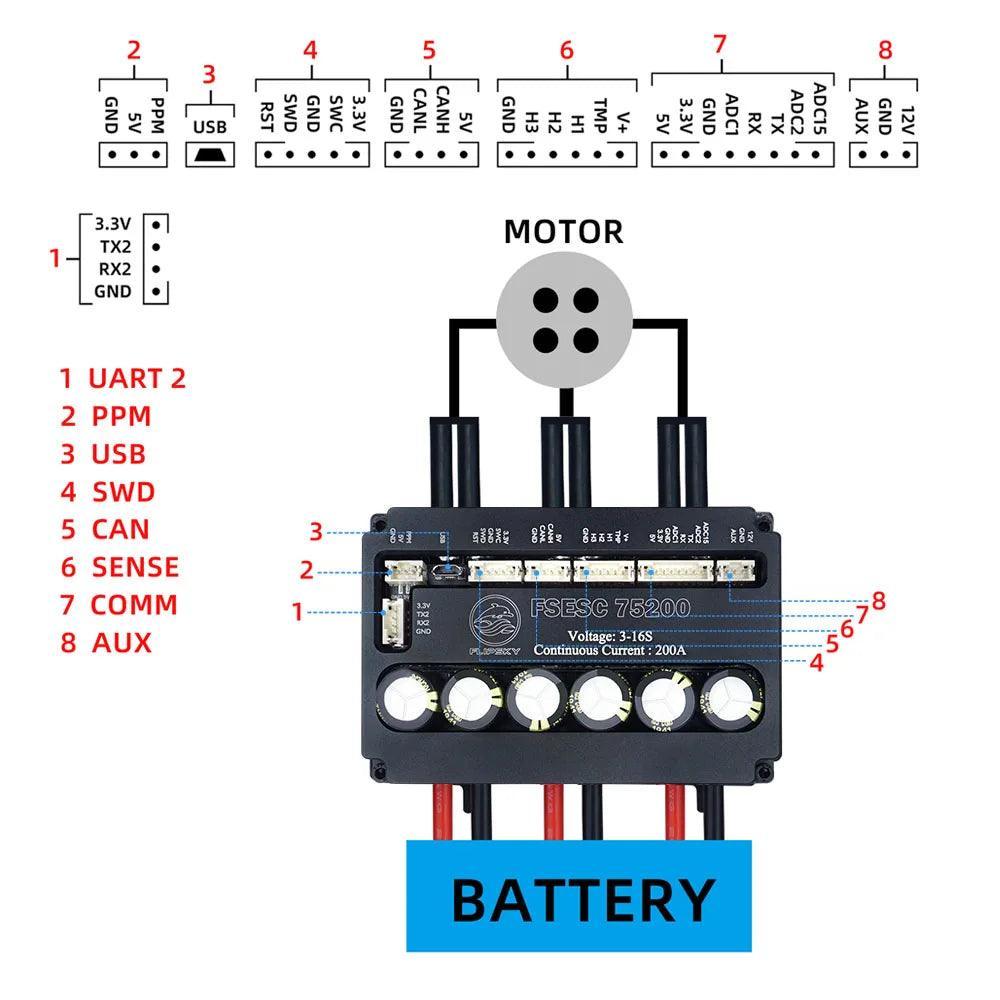

Wiring Diagram With Aluminum Case:

Wiring Diagram With Water Cooling Enclosure:
