Flipsky Ft85rs Esc With Aluminum Case Water Cooling Enclosure Non-vesc

Spec:

• Firmware: V1.3 or above (firmware update via Flipsky ESC Tool supported)

• Voltage: 14V-84V (safe for 4S-20S)

• Continuous current: 50V/550A; 75V/450A (Values depend on the mounting, ambient temperature

• and air/water circulation around the device!);

• Peak Current: 1000A

• BEC:5V@1A

• Motor/power Wire Size:8 AWG (3pcs combine)

• Programmable Tool: Flipsky ESC TOOL

• PWM Frequency Control: YES

• Multiple Speed Gear Limit Control:YES (UART / ADC)

• Regenerative Capacity: Yes

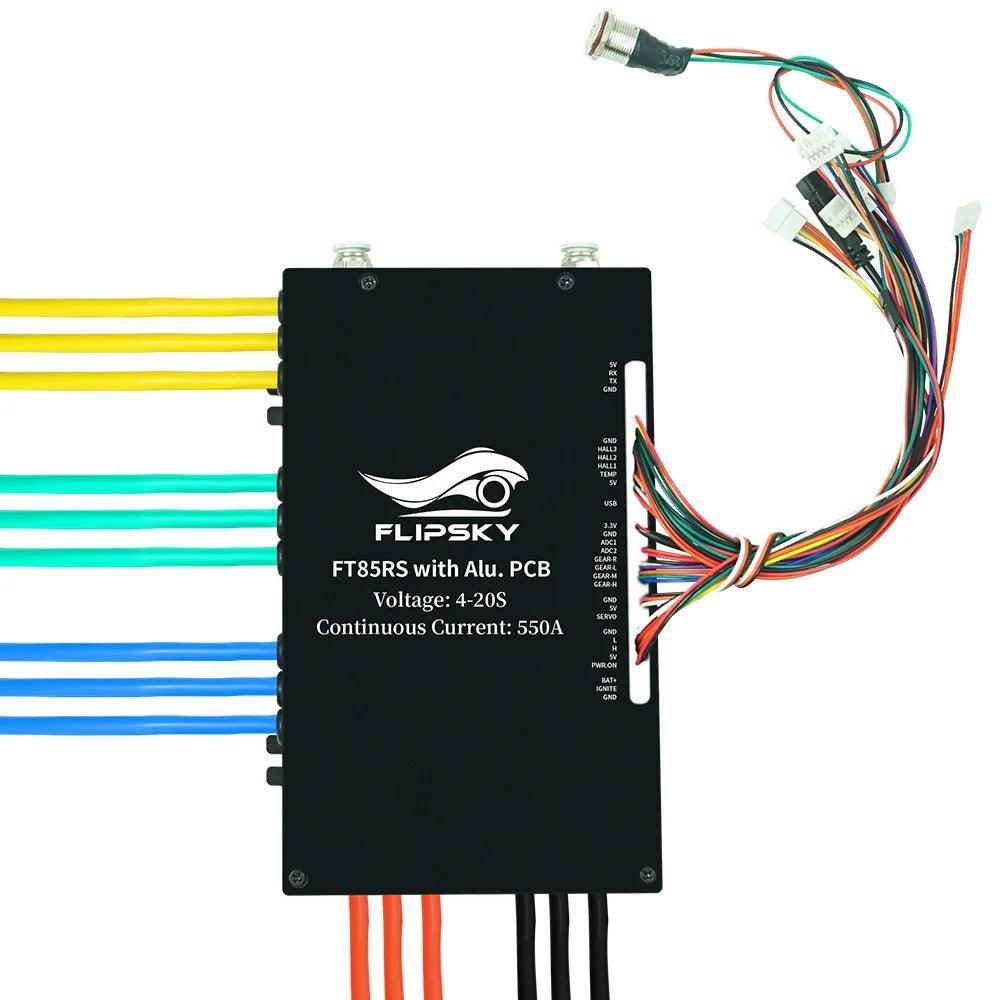

• Communication Ports: USB, CAN, UART, PPM, ADC

• Input Signal Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro

• only at present, it will be compatible with more remote controllers soon)

• Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored)

• Multiple Speed Gear levels: Low, Medium, High, Reverse

• Switch Support: Power on/off button switch or key switch

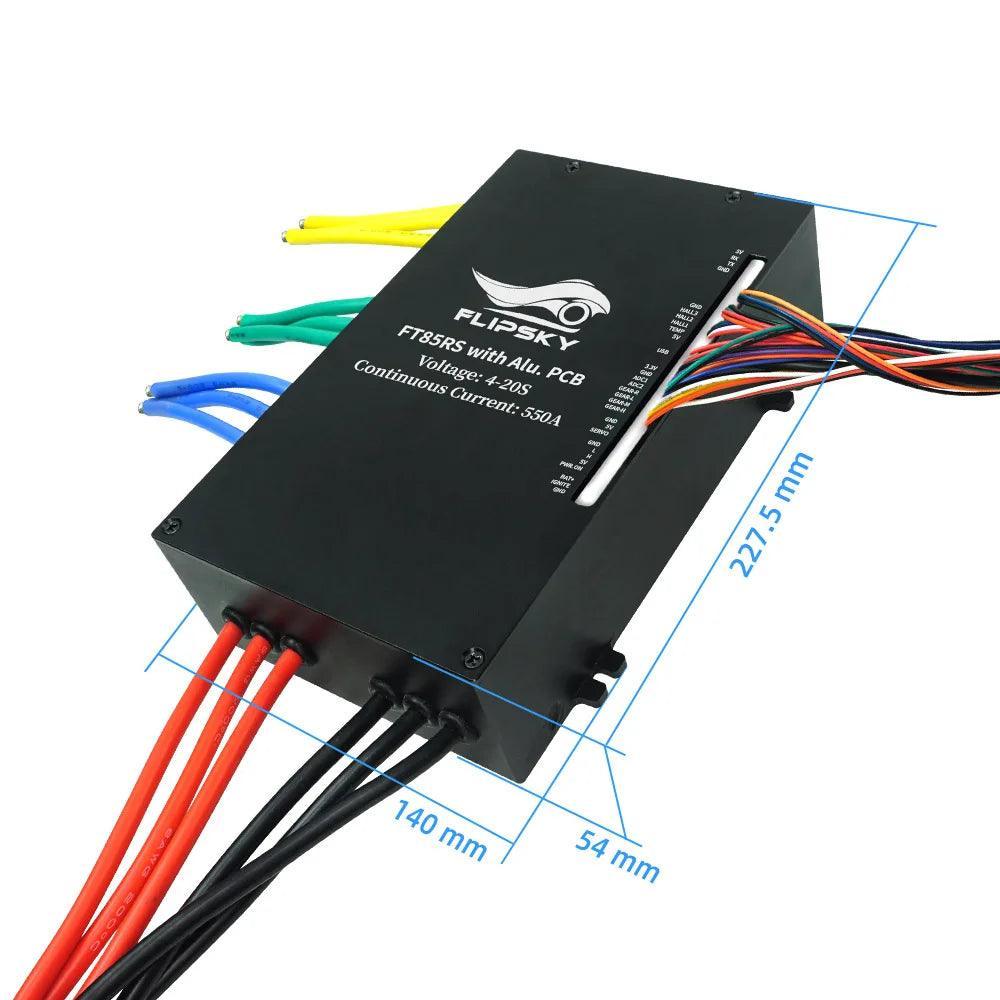

• Size: L227.5*W140*H54mm(with water cooling enclosure)

Features:

1. Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.

2. 240MHz and the max PWM switching frequency 45KHz, which improves the motor RPM.

3. Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different

4. batteries voltages and many control ways.

5. Programmable via Flipsky VX4 remote (Firmware Version:VX4_V1.2.1or above)

6. Supporting FOC with low working noise and smooth starting.

7. Supporting Real-time data and fault alerts.

8. Supporting adaptive variable PWM frequency control.

9. Supporting sensor mode(HALL) and sensorless modes (IPDS, HFPI).

10. Supporting control types: Current, Duty Cycle.

11. Protection functions: low and high voltage protection, motor over-temperature protection (suitable

12. for NTC-10K-25 temperature sensing resistance only), battery over discharge protecting,

13. mosfets over current and over-temperature protection.

Wiring Diagram:
