Flipsky Group D7 Electric Skateboard Kit Includes 200A Dual FSESC 6.7 Pro Plus and 140KV/190KV BLDC 6374 Motors

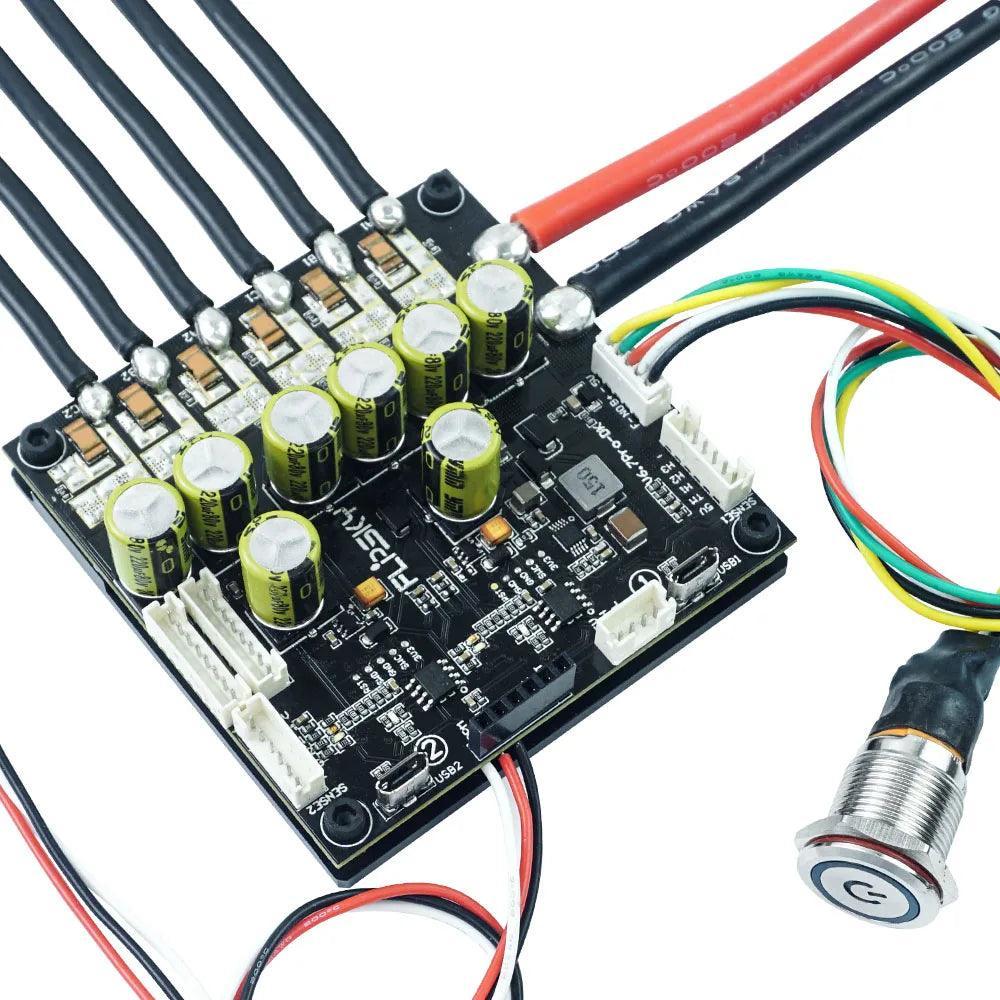

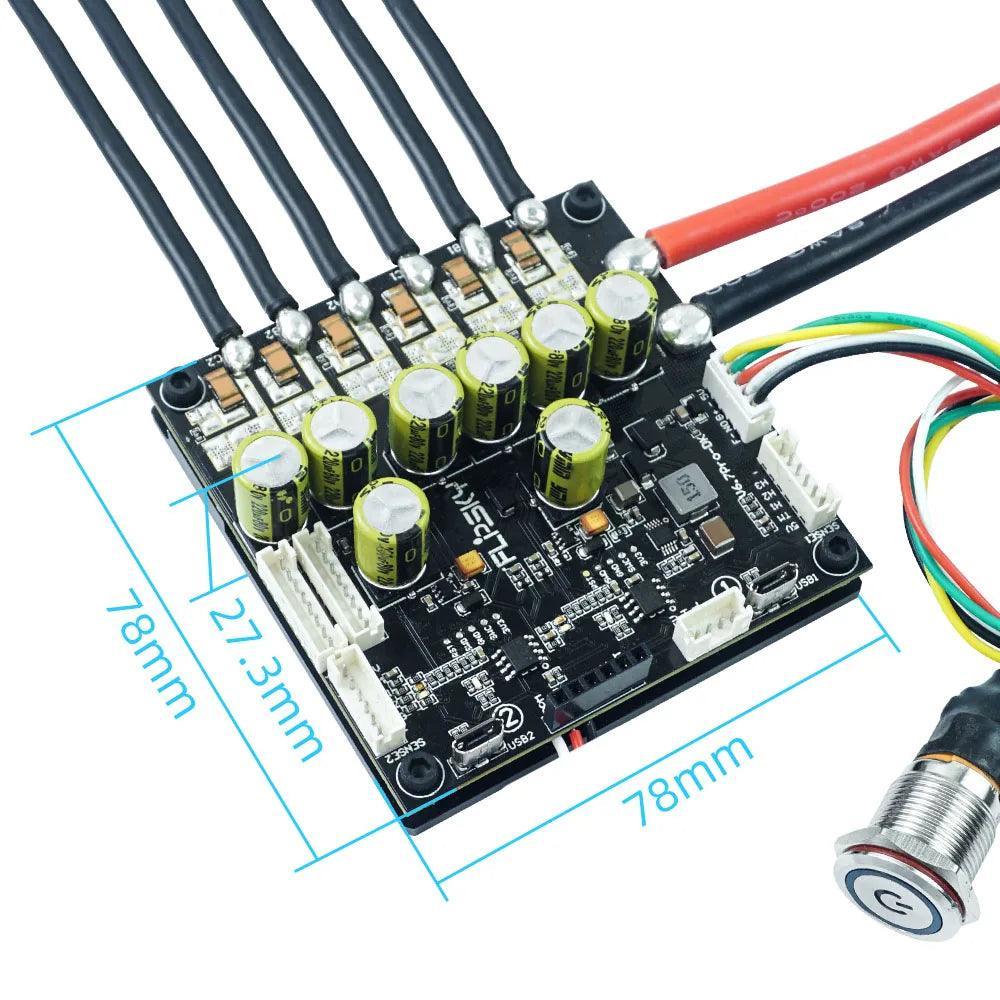

FSESC 6.7 Pro Plus
| Hardware | V 6.7 |
| Firmware | VESC_default_no_hw_limits(Keep upgrading if FW is updated) |
| Current | Continuous 70A single, total 140A |
| Instantaneous current | 200A per single, total 400A for system instantaneous current |
| Voltage | not exceed 60V |
| Modes | DC, BLDC, FOC (sinusoidal) |
| Supported sensors | ABI, HALL, AS5047 |

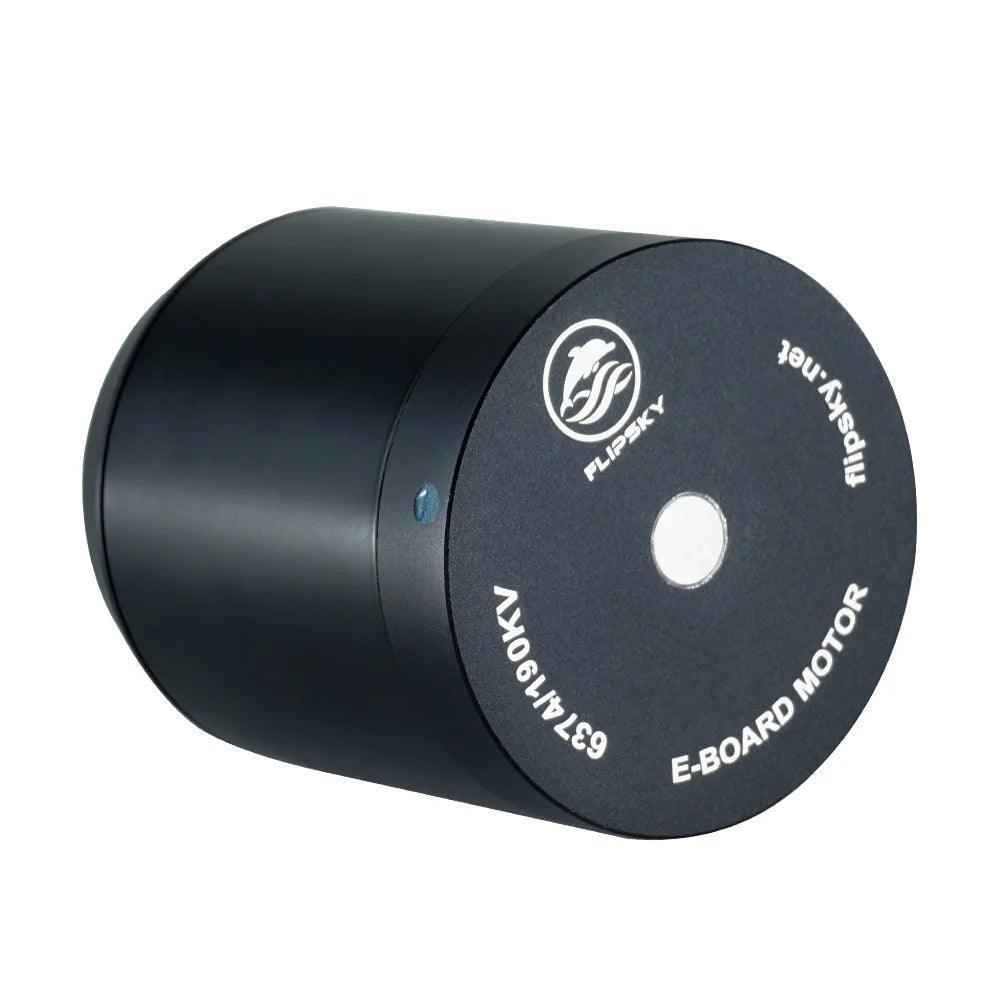

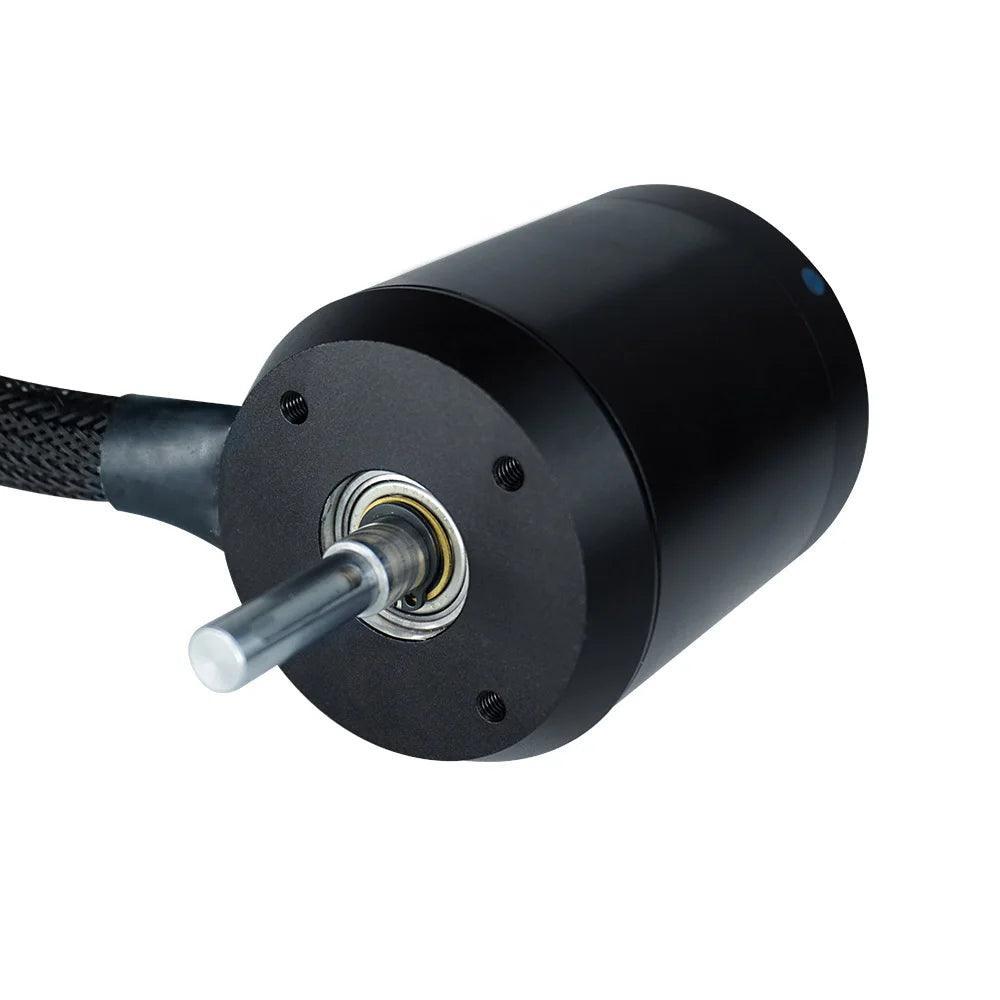

Motor 6374
| Max Power | 3250 Watts |
| Max Current | 85 Amps |
| Max Volts | 12S |
| Max Torque | 8Nm |
| Motor Resistance | 0.05Ohm |
| Recommend ESC | VESC4&VESC6(3-12S ) |
| Weight | 1060g |
| The motor length | 74mm |
| Shaft | Diameter 8mm/10mm, 30mm length, 3x3x20mm keyway slot |
| Motor Wire | 12AWG wire with 4.0mm Gold Bullet Connector |
| Wire configuration | Blue = A Black = B Yellow = C |
| Stator | 0.2mm thickness lamination japan steel |
| Magnet | N42SH high temp curve magnet |
| The number of pole | 14 |

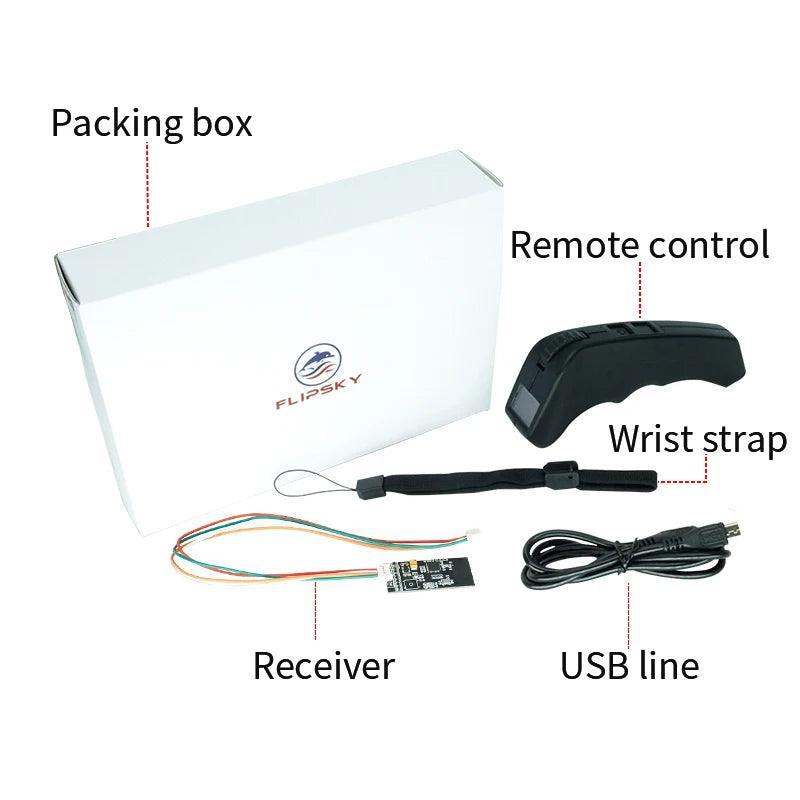

VX2 Remote Controller
Features
- 2.4Ghz band width
- Real time data reading and 0.95OLED display
- Support 3 speed modes
- Support cruise control mode
- Remote and E-skateboard power indication lights
- Rechargeable Li-ion Battery
- Wrist strap
- 1200mA battery last for 12 working hours
- Shipping comes with receiver and cables
- Improve the plug connectors to avoid incorrect wire connection
Receiver Connection Diagram

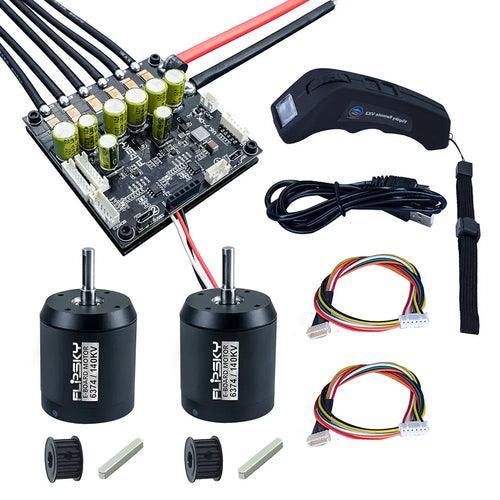

The Group D8 package includes:
1* Dual FSESC6.7 Pro Plus With Heat Sink
2* Battle Hardened 6374 Motor 190KV With Pulley(Random send out 8mm16T OR 15T motor pulley)
2*Motor Keyway
2* Sensor Wire
1*USB cable
