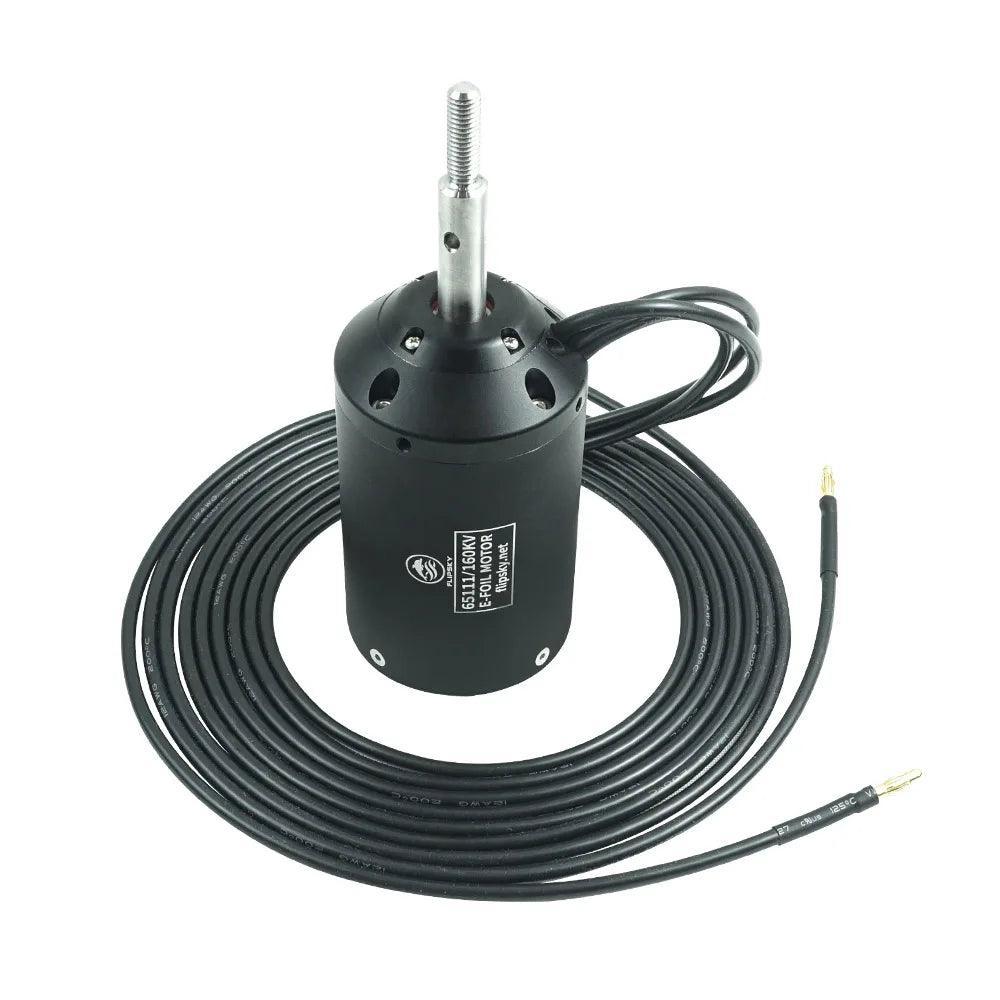

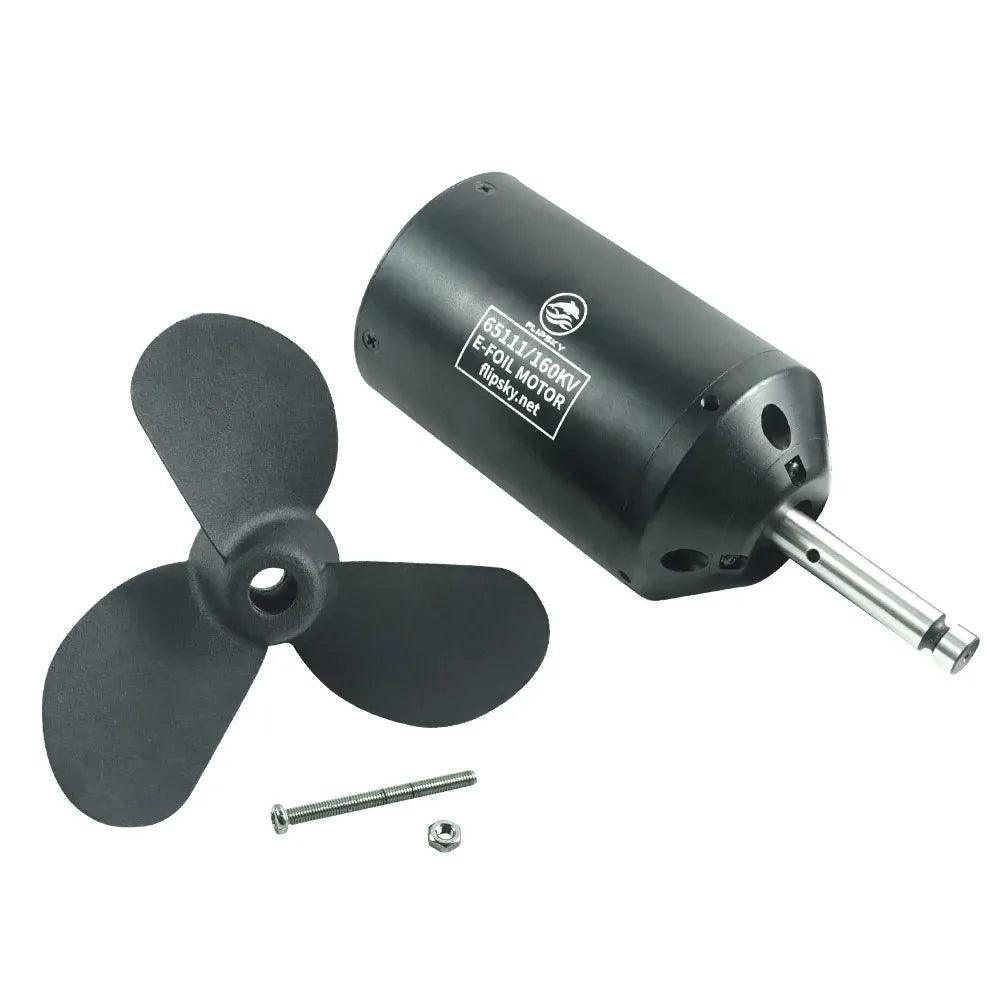

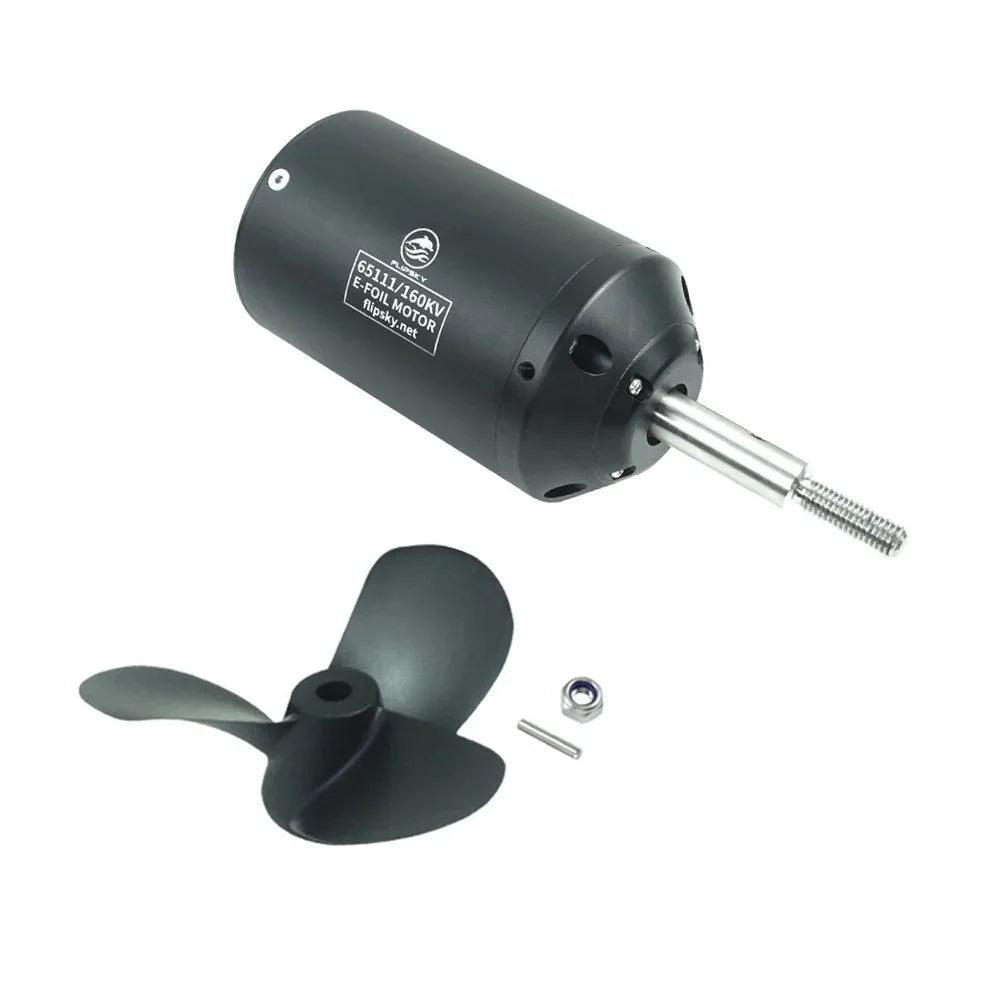

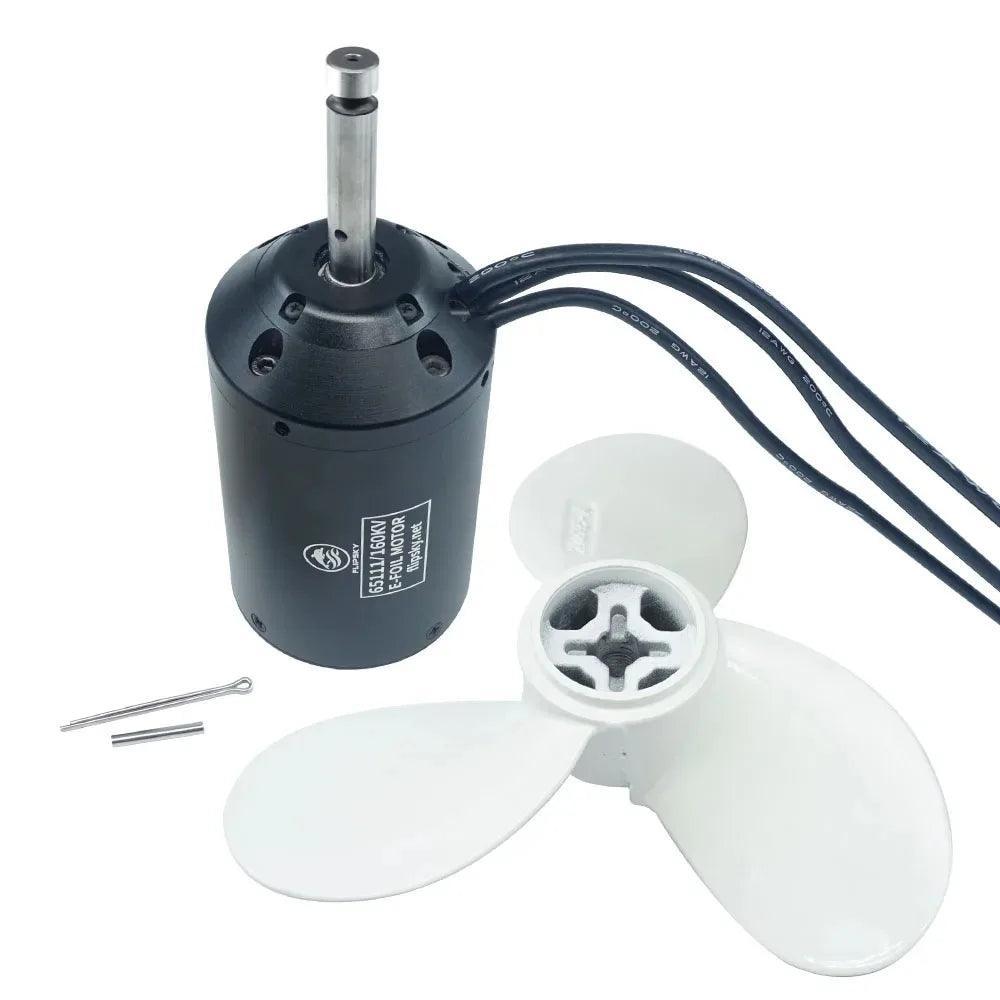

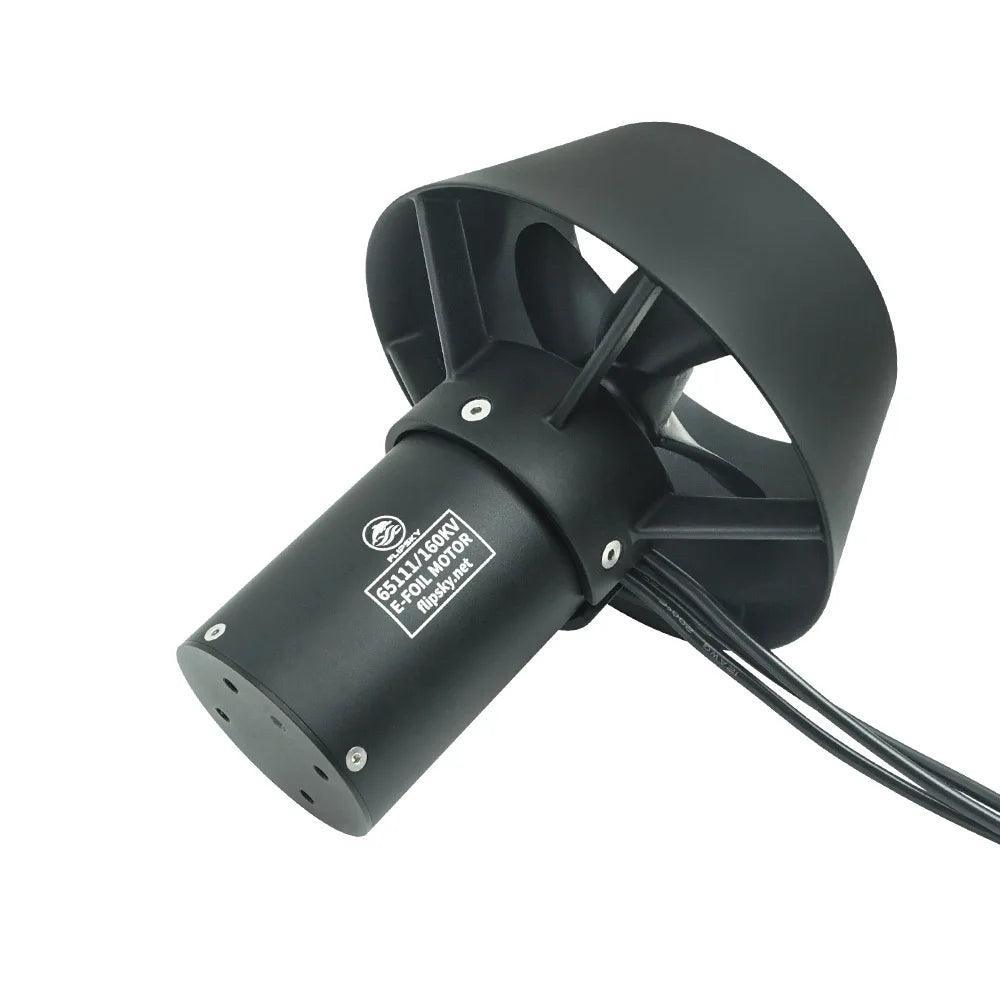

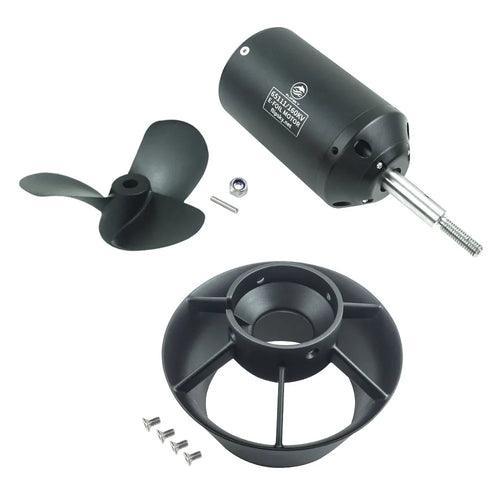

Flipsky Inrunner Brushless DC 65111 Motor 160KV 3000W for Surfing Boat

Spec:

• Voltage range: 6-20S (25.2-84V)

• Max power: 3000W; Continuous power: 1500W

• Peak current: 70A; Continuous current: 30A

• Motor KV: 160KV

• Max spin speed(RPM): 8064

• Size: OD65*L111mm

• Shaft diameter: 10mm

• Motor pole: 6pcs; 3 pairs

• Motor stator slot: 12

• Waterproof rate: IP68

• Lead wires extension: 12AWGx1500mm

The thrust under the condition of reaching this voltage and current as below:

• 48.5V 2.7A 5KG

• 48.5V 8.2A 10KG

• 48.5V 18.2A 15KG

• 48.5V 20A 17KG

• 48.5V 25A 19KG

• 48.5V 30A 21KG

• 48.5V 35A 23KG

Drawing:
