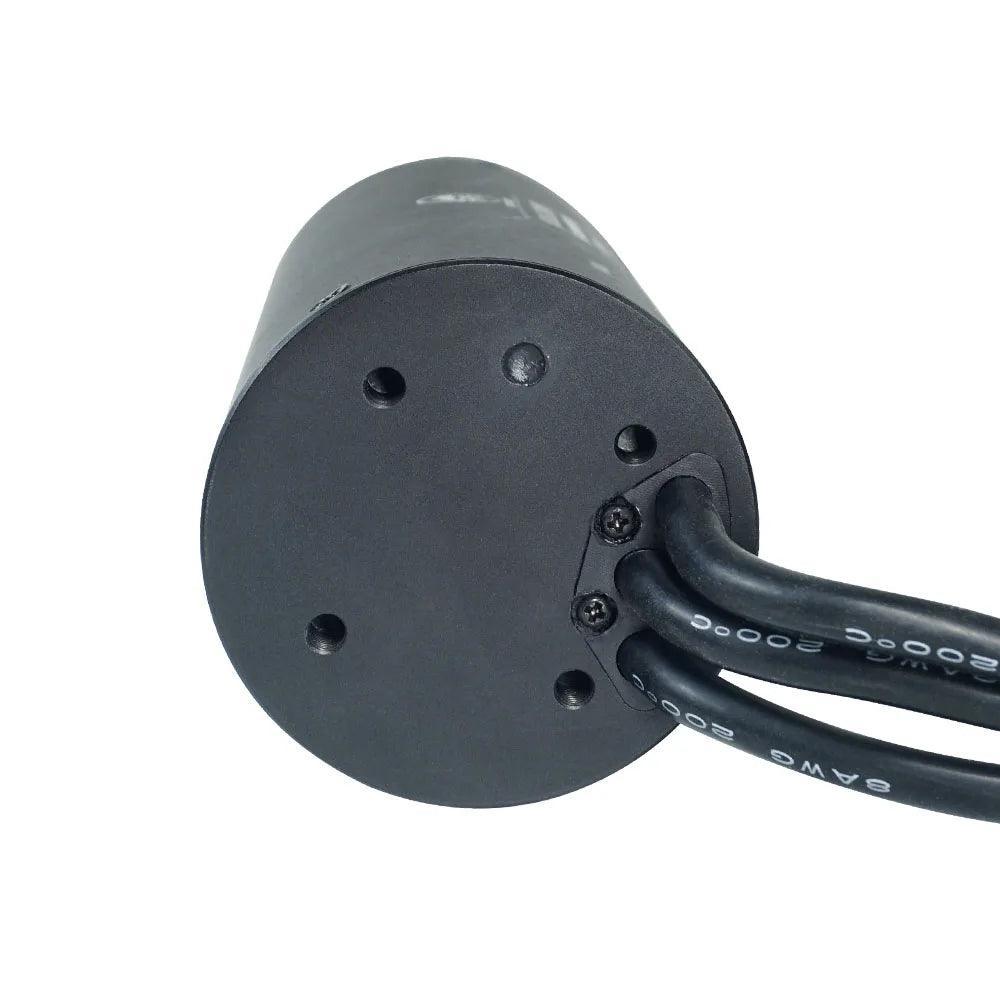

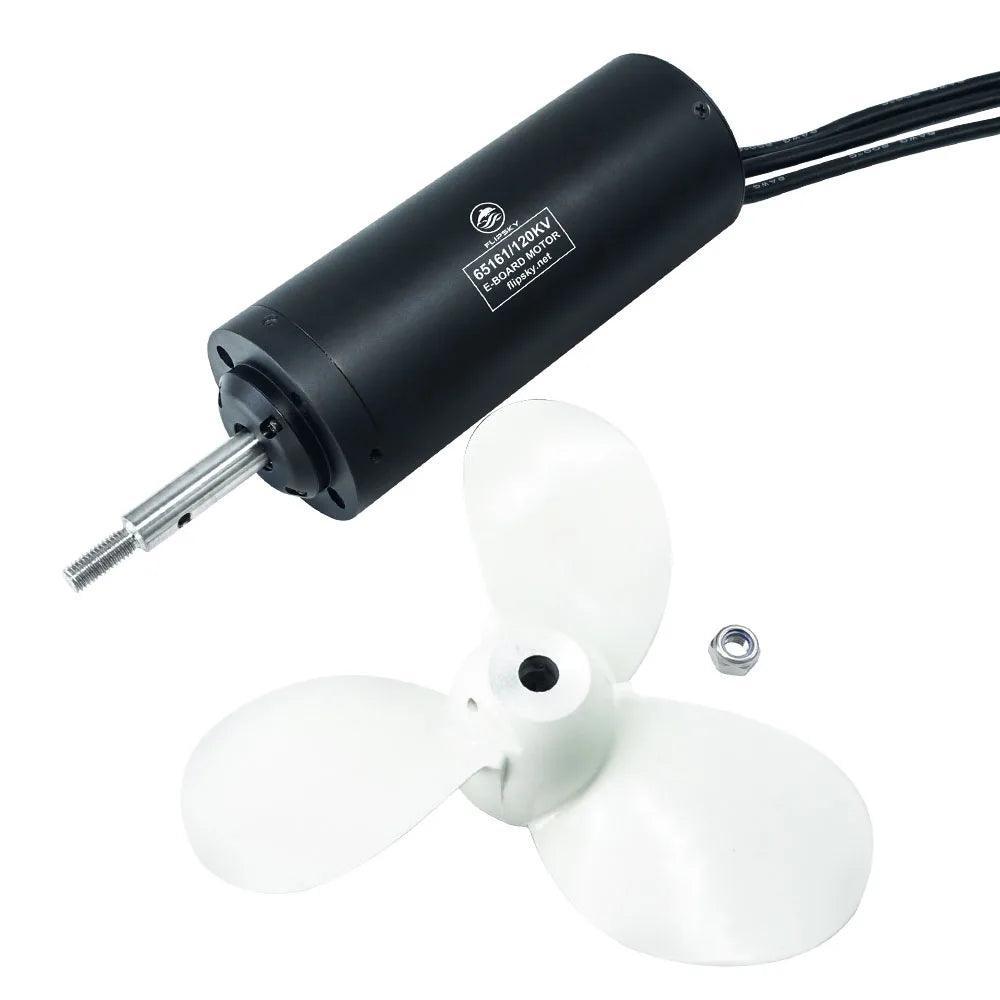

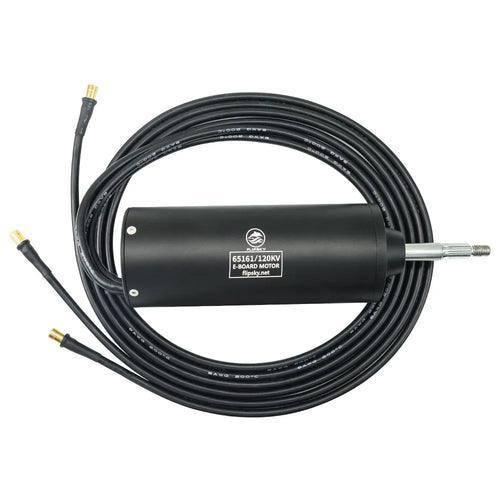

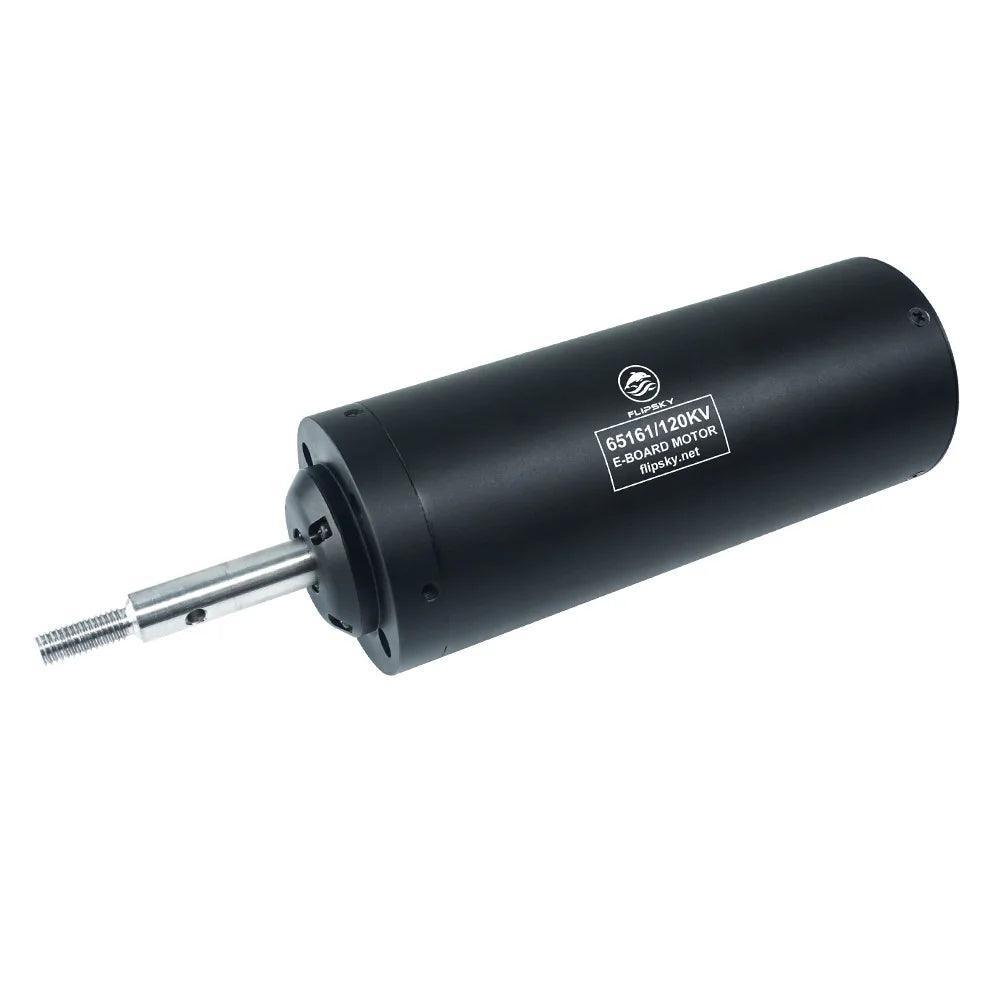

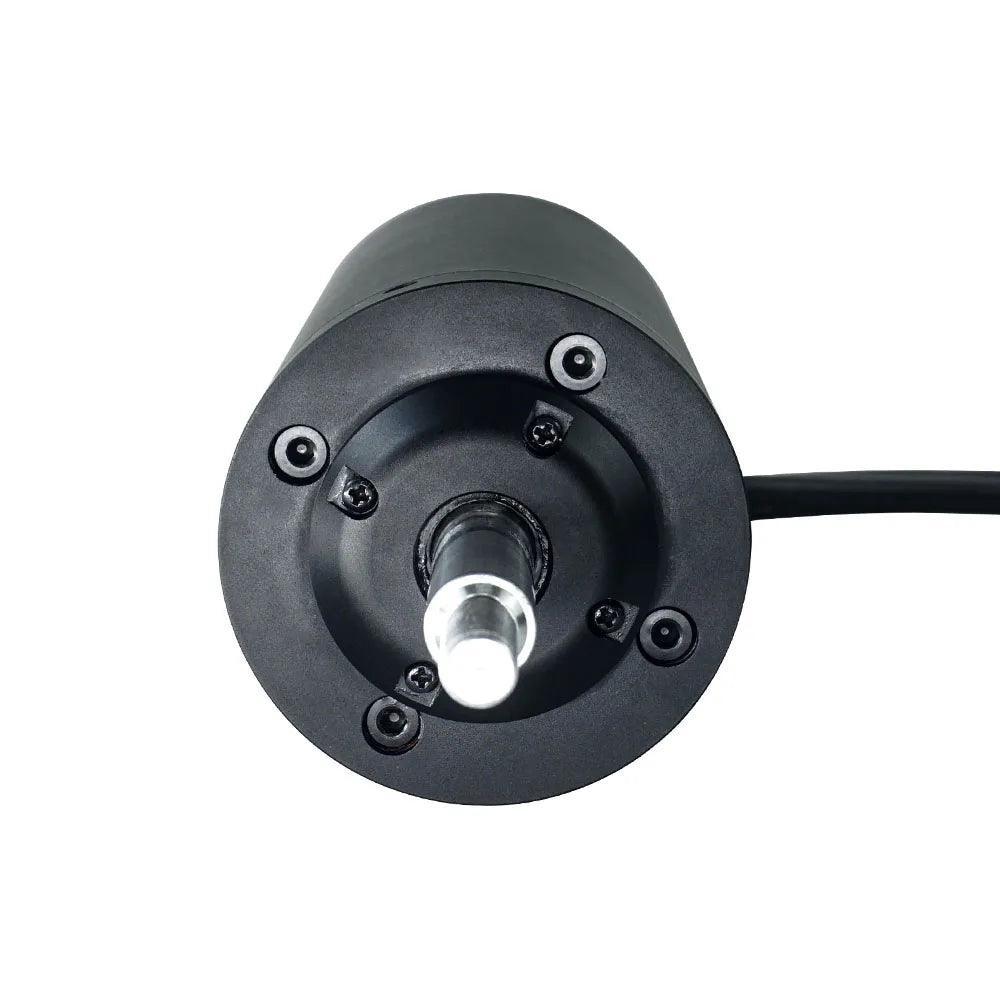

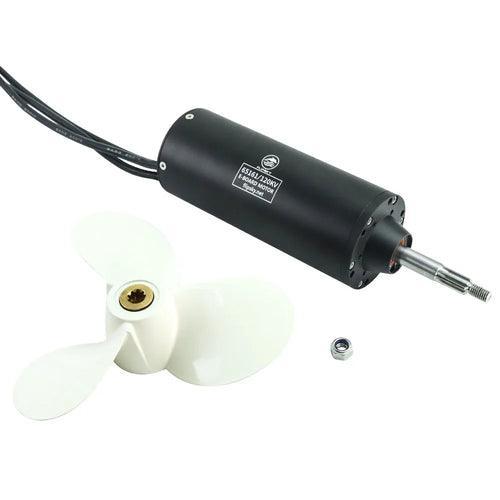

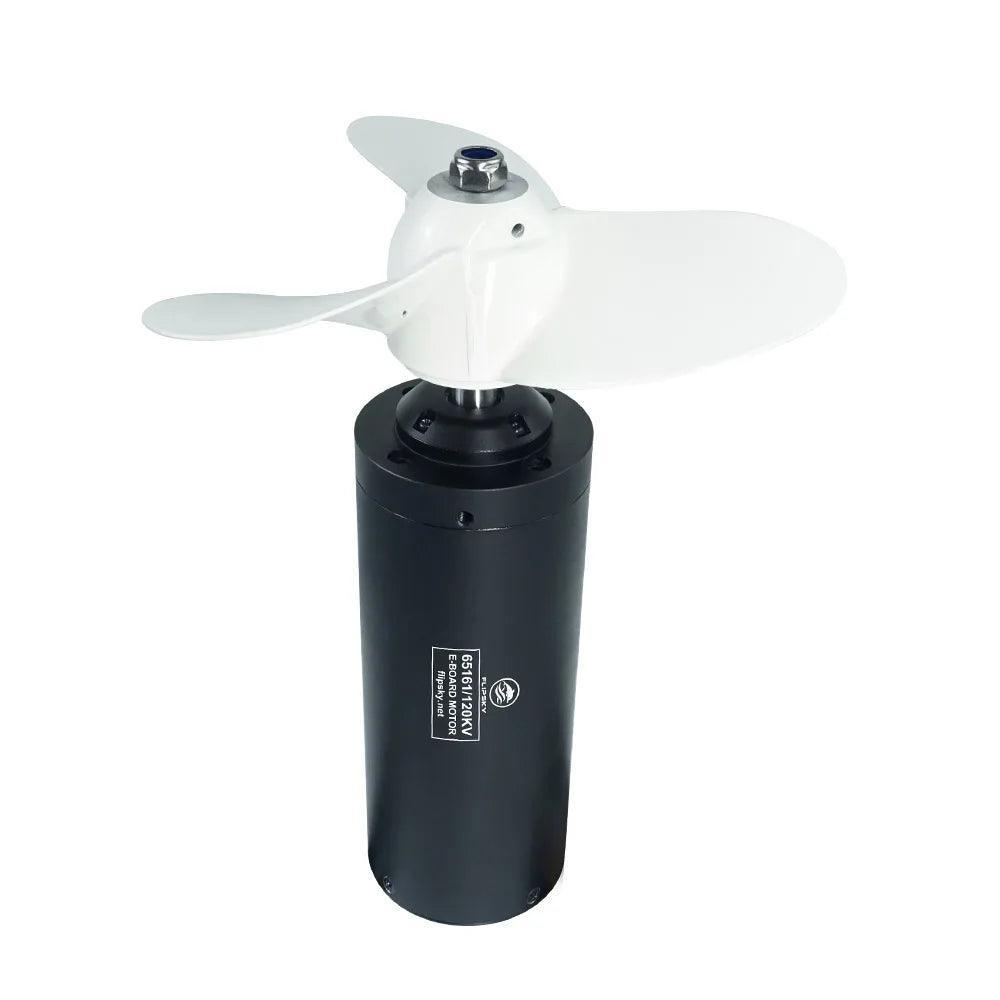

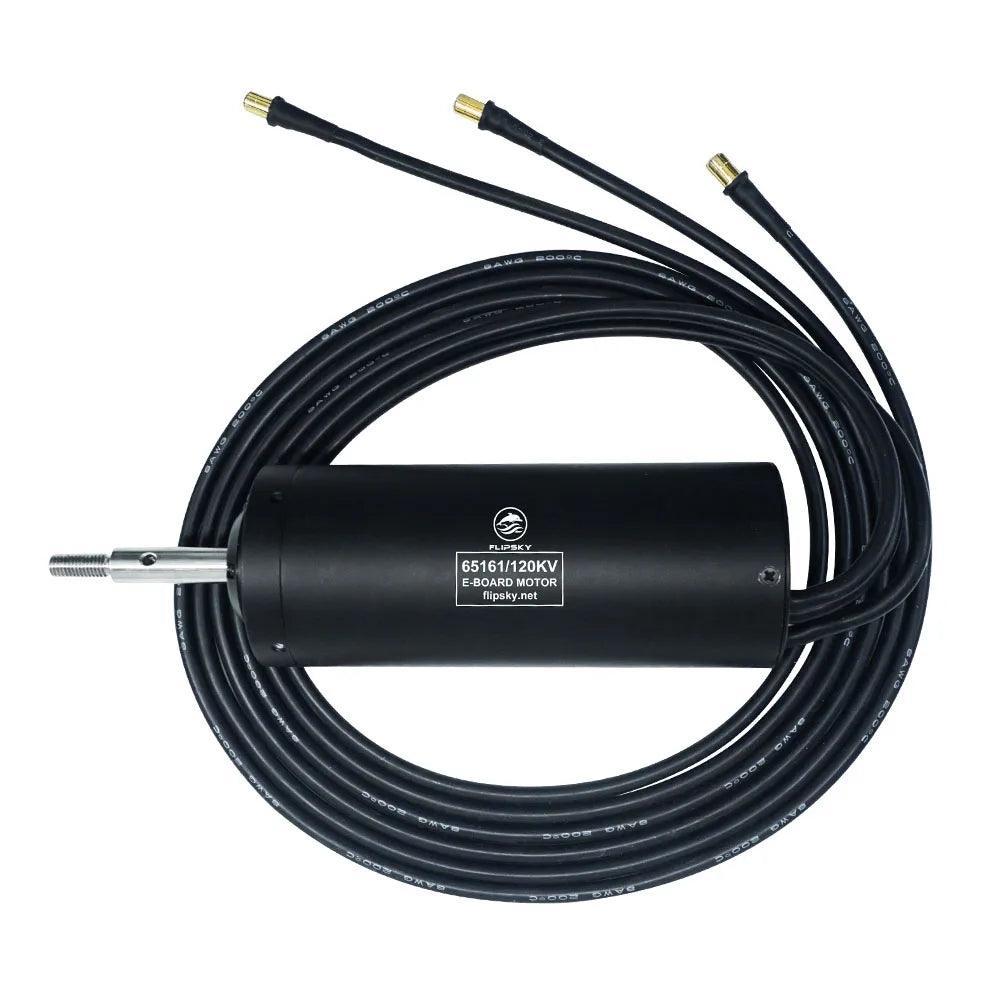

Flipsky Motor 65161 NEW 12MM ROUND WITH THREAD 120KV 6000W Brushless

Product Spec:

• Voltage range: 6-20S (25.2-84V)

• Max Spin Speed(RPM): 16380

• KV(RPM/V): 120KV/100KV

• Max Power:6000W,rated power 3000W

• Peak current: 200A

• The number of pole: 6(please write 3 pairs when do setup)

• Max torque at 60%:9NM

• Demension: D65*L161mm

• Max working temperature: 120︒C

• Insulation voltage & leak current: AC500V/10MA/3S

• Lead wires extension: 8AWGx1300mm

• Waterproof level:IP68

• Weight:3kg

• Plug: 8.0mm

• Motor wire: 8AWG

The difference between the two shafts

12MM ROUND WITH THREAD/NEW:

12mm Splinded shaft ：
