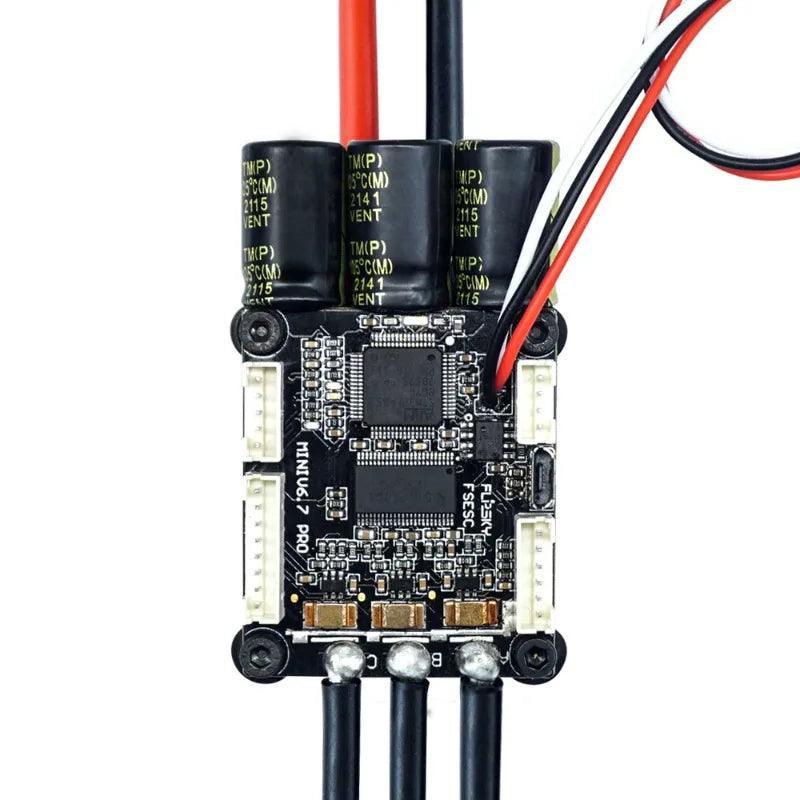

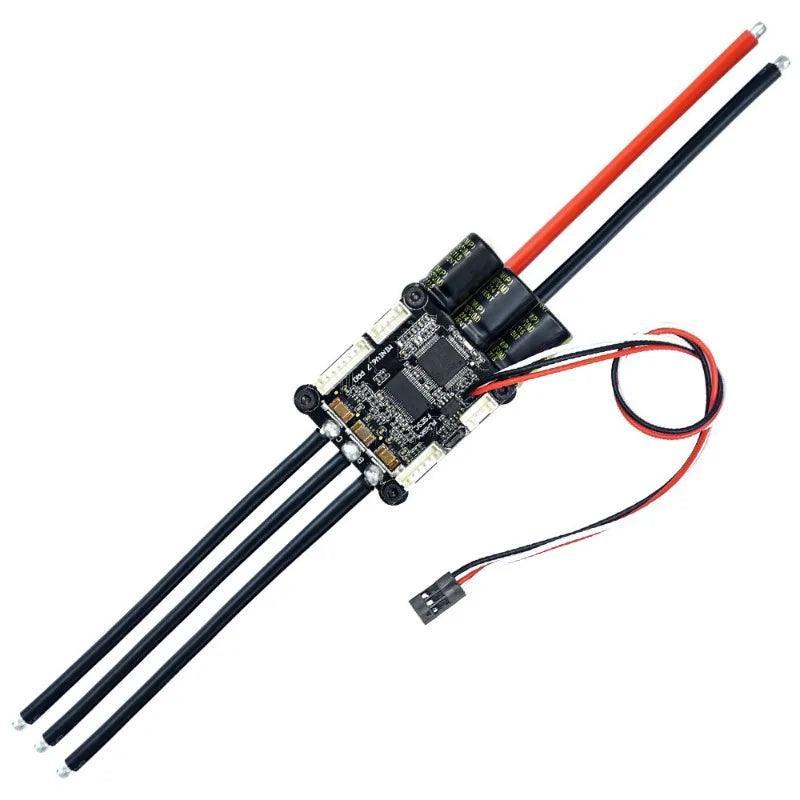

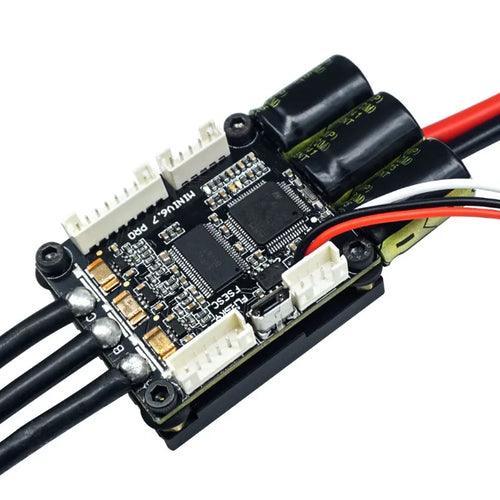

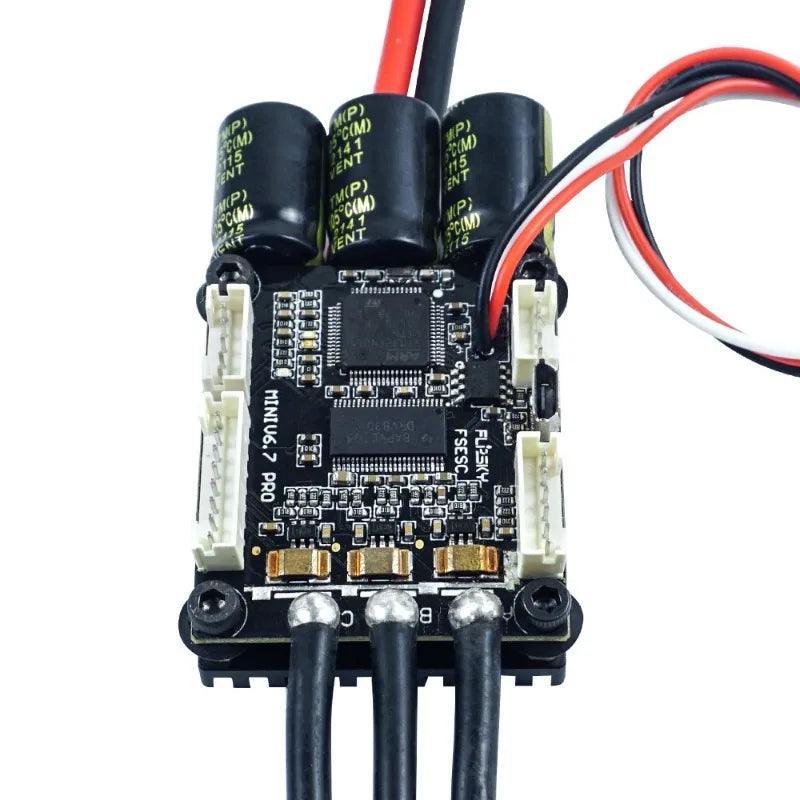

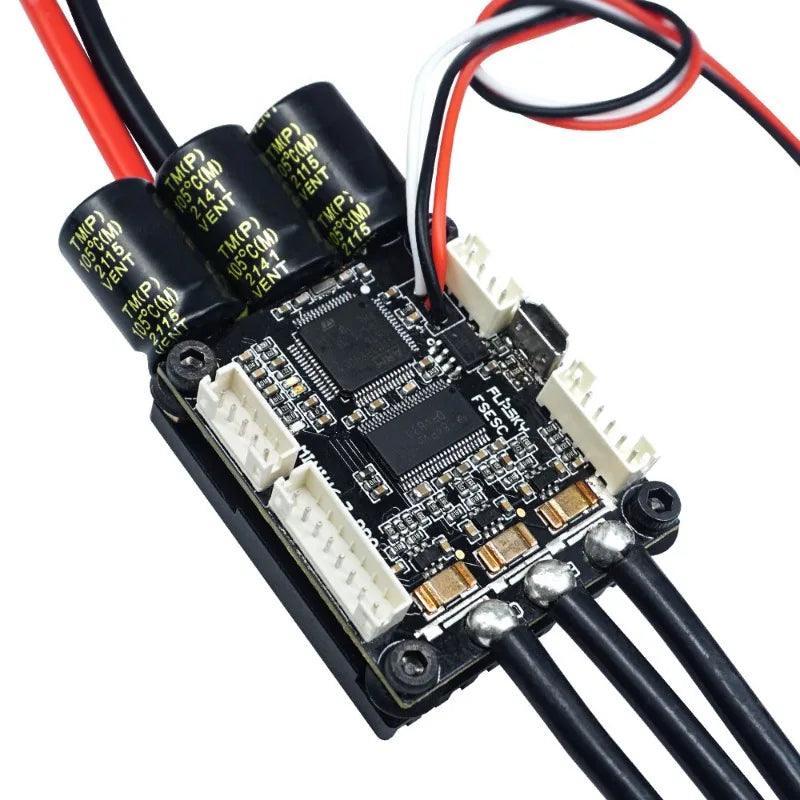

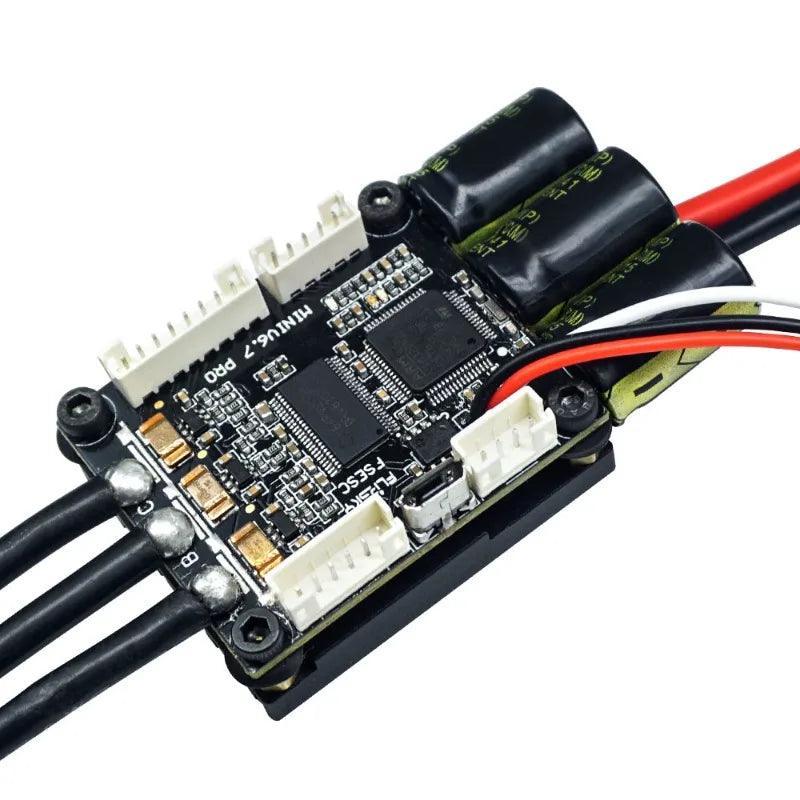

Flipsky Surfboard Ebike Electric Speed Controller FSESC Mini 6.7 Pro

• Firmware: Latest Version
• Continuous current: 70A; instantaneous current: 200A
• Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
• BEC: 5V/1A
• ERPM: 150000
• Control Interface Ports:USB,CAN,UART, SPI, IIC
• Supported Sensors:ABI,HALL,AS5047,AS5048A
• Input Set Support:PPM, ADC, NRF, UART
• Modes:DC, BLDC, FOC (sinusoidal)
• Regenerative capacity: Yes
• Programmable: Yes
• Motor wire: 12AWG
• Power cable:12AWG

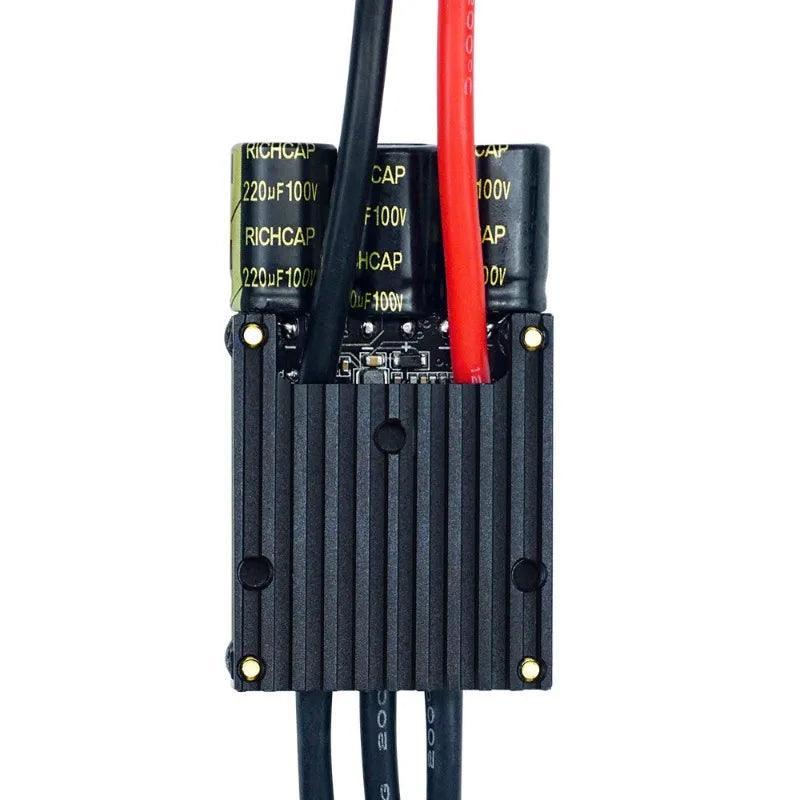

• Size:67x39x18.7mm(Including heatsink)

Feature:

1. Support four control modes: Current/Dutycycle/Speed /Position control mode.
2. Using 6pcs NVMFS5C612NL high current MOSETS (60V 235A).
3. Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
4. Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
