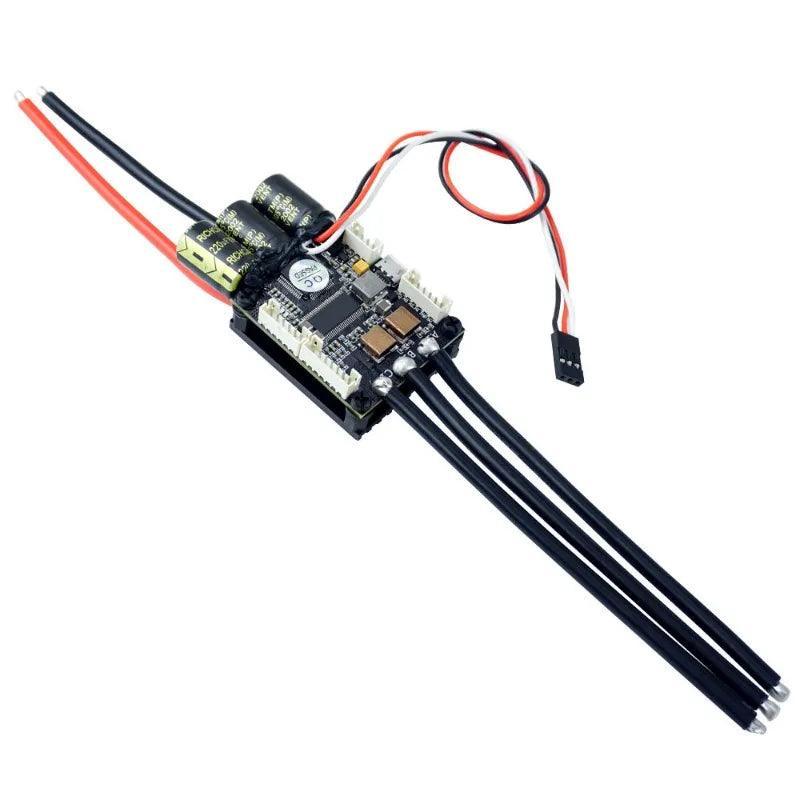

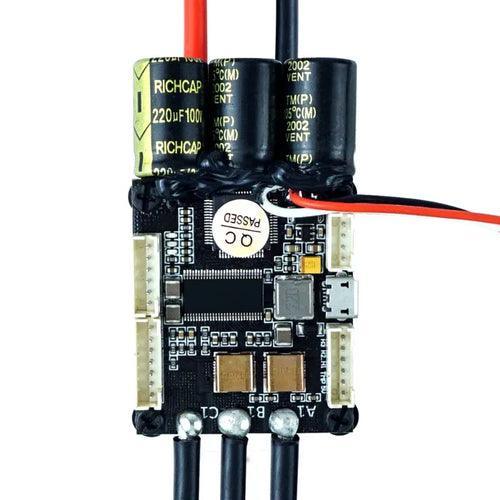

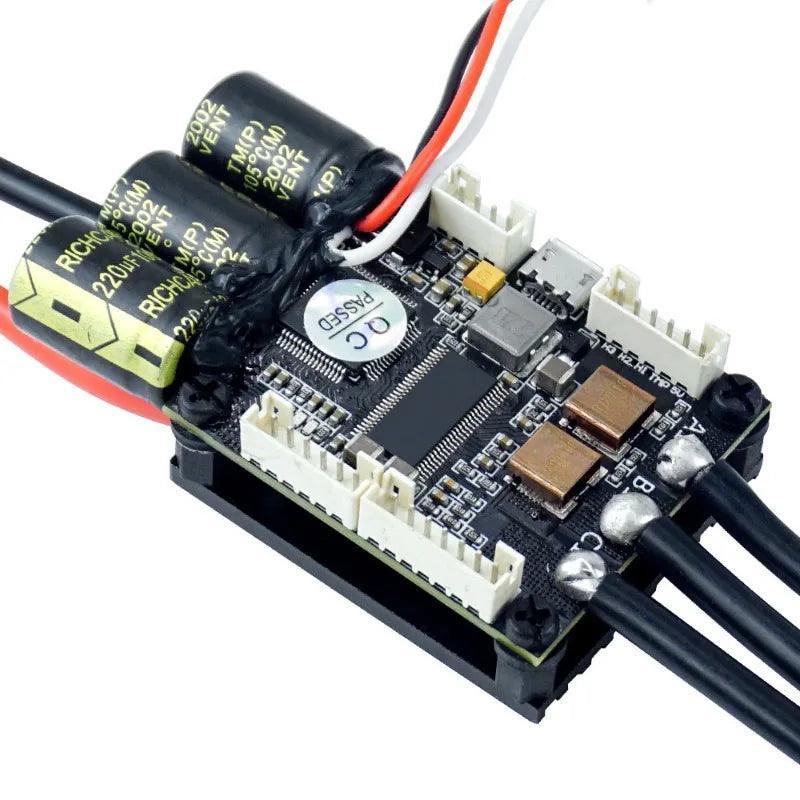

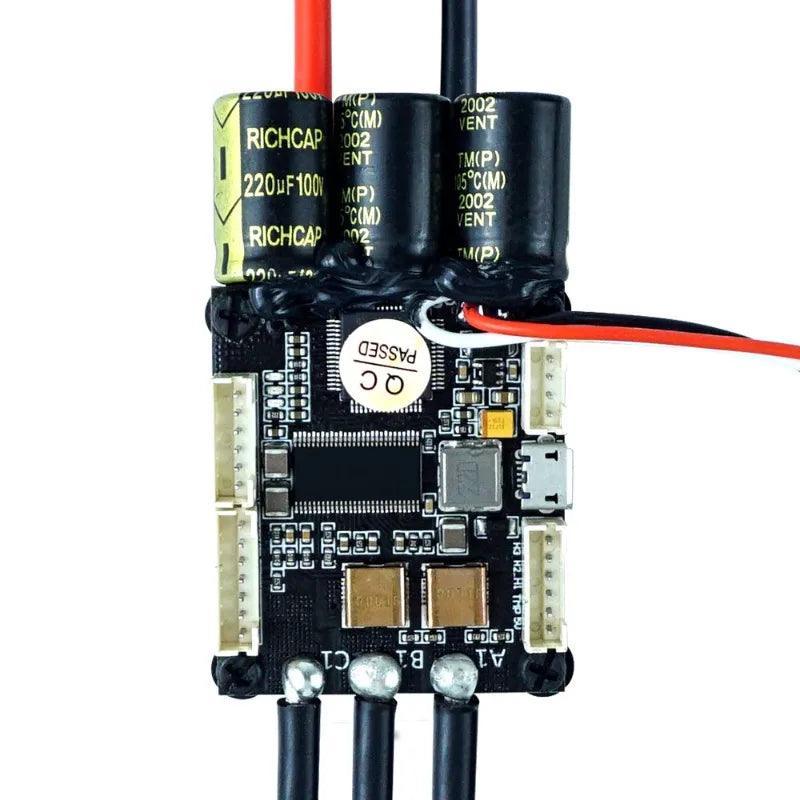

Flipsky Surfboard Skateboard FSESC Electric Speed Controller Mini 4.20 50A base on VESC 4.12 with Aluminum Anodized Heat Sink

Specs:

Hardware:V4.20

Firmware: Latest Version

Amps: 50A continuous,instantaneous current 150A

Voltage: 8V-60V(Cells: 4-13S LiPo,Safe for 4S to 12S LiPo,Voltage spikes may not exceed 60V! )

BEC: 5V/1.5A

BEC type: Internal driver support

Timing: Software calibration

Cutoff Voltage: Programmable

Frequency: PWM input

Governor: No

Weight: 76g

PCB Size: 39x46x17.4mm

Size:67x39x18.3mm(Include Heatsink)

Programming card: No

Reverse: Yes

Motor wire: 12AWG

Power cable:12AWG

Warm tips: please do not remove the shrink to protect the pcb electronics components from impurites or metals which result in short circuit or esc burnt damage.

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

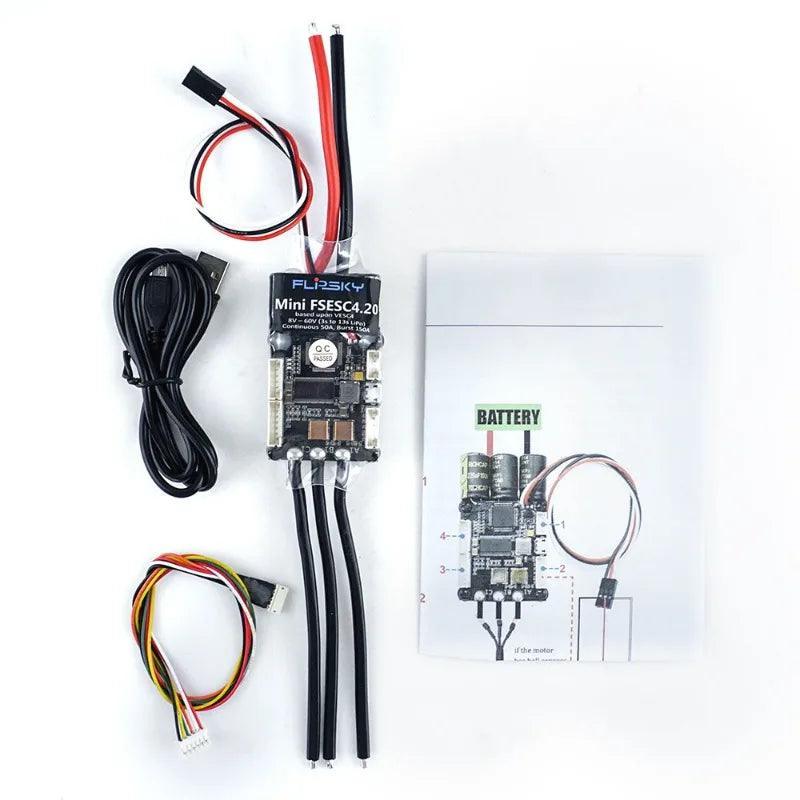

The shipping package contains:

1*Mini FSECS4.20
1* Micro USB
1* VESC Sensor Wire
1* Manual

Wiring Diagram
