Flipsky TFT Screen Ver2 Module Based on VESC White & Black

Dear friend, thank you for visiting the store, if you need more models and new products, please...

$277.14; $277.14
Unit price: per

Color: White

Ships From: CHINA CHINA

Product variants

Quantity:

Subtotal: $277.14

Flipsky TFT Screen Ver2 Module Based on VESC White & Black

$277.14

Choose Options

Quantity:

Flipsky TFT Screen Ver2 Module Based on VESC White & Black

$277.14

Color: White

Ships From: CHINA CHINA

Product variants

Description

Dear friend, thank you for visiting the store, if you need more models and new products, please contact us and get a discount:
WhatsApp: +86 17873567381
Email: 1value168@
Flipsky TFT Screen Ver2 Module based on VESC White & Black

Product Description

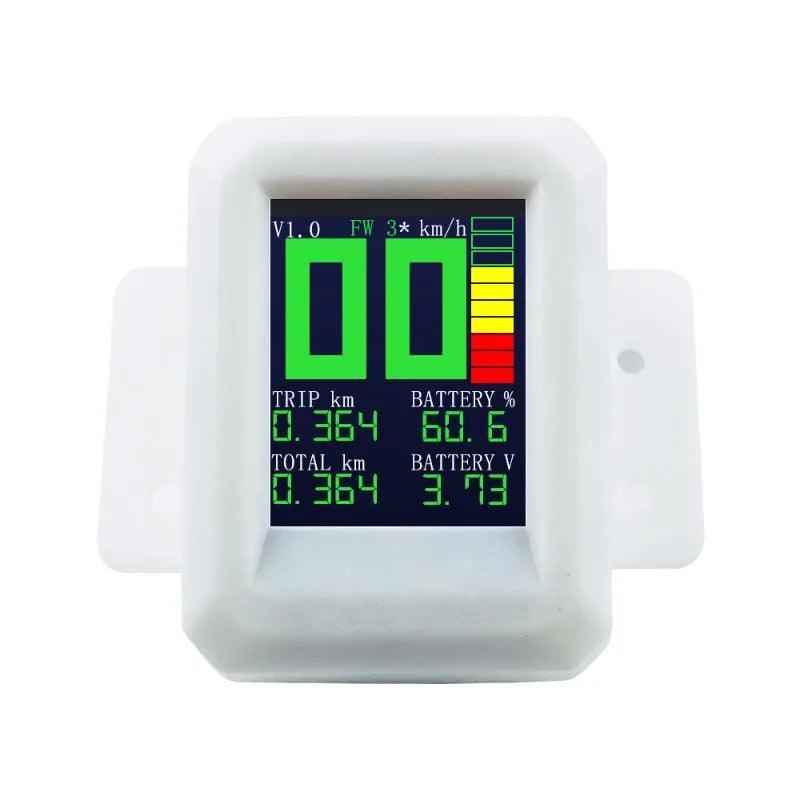

Speed	Current Mileage & Total Mileage
	Battery Capacity Percentage, Battery voltage per cell

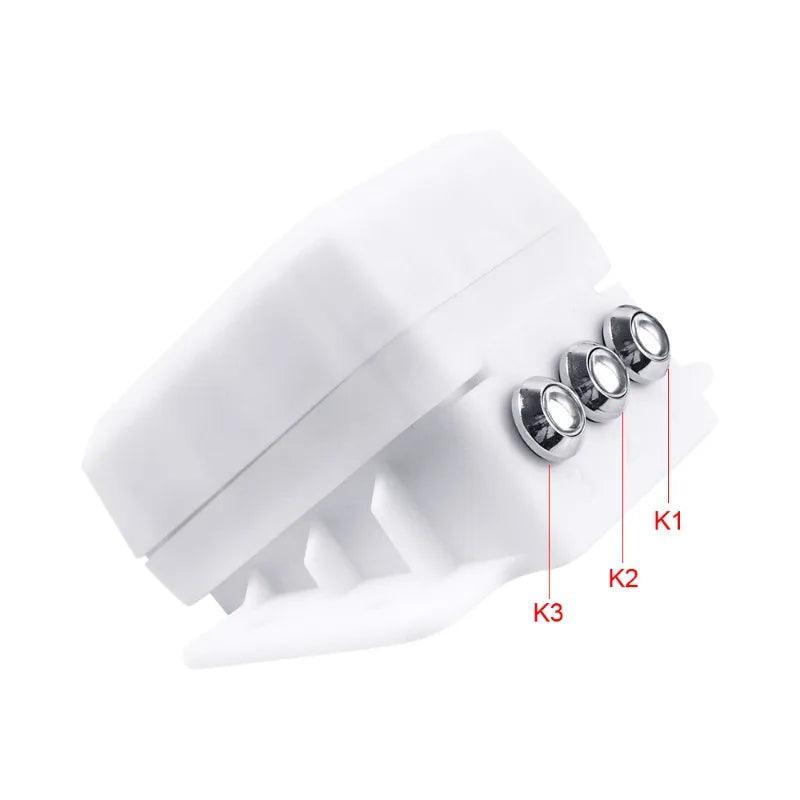

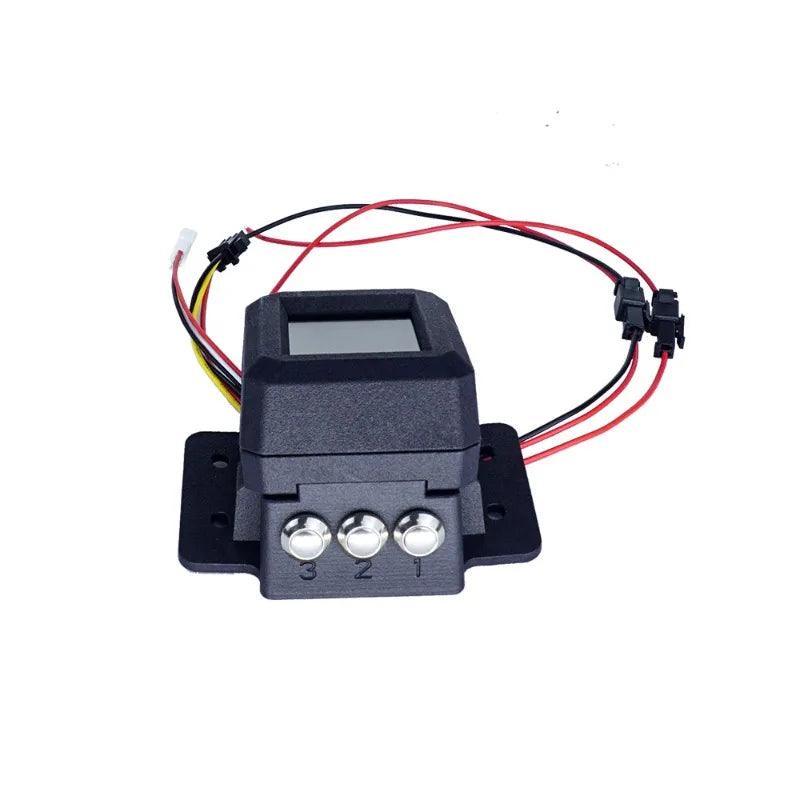

Function of the 3 Buttons	Button1: Quick press to check VESC's parameters,Including total battery voltage, battery voltage per cell, battery capacity, mileage.
	Button2: Press for 3 seconds to clear the value of battery capacity percentage. (To restore the original value, program re-flashing is required).
	Button3: Press for 3 seconds to clear the current mileage and speed data. (To restore the original value, program re-flashing is required).

Product Variant:

3.3V 5V FT232RL FTDI USB To TTL Serial Converter Adapter Module For Arduino

Reminds: USB-UART adapter is necessary to use the TFT screen, if you don't have it, pls also choose above variant with FT232RL

Operations

1. Source link for this project:

2. To compile this code, a library function "ILI9225.h" will need to be added: Click "Project","Loading Library", "Managing Library", search for "ILI9225", and install it to compile.

3. The baud rate of the UART of the FSESC should be 115200

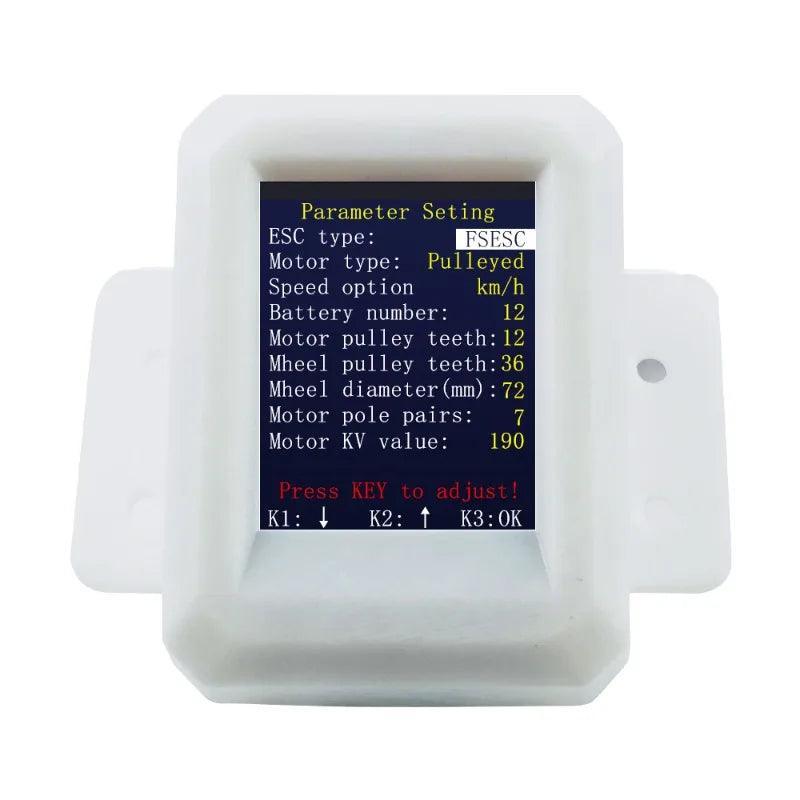

4. The default data displayed on the screen (speed, mileage, and parameters required for the average battery voltage of each cell ) are pre-coded in the program, so it should be calculated according to the actual situation of the skateboard. After modifying data in the source code, flashing the modified program in it.

Specific operations

FAQ:

why choose flipsky VESC?

1.Flipsky ESC owns many functions that a normal RC ESC does not owns.

A.To set the range of current that comes from battery to motor. Normally a motor is easily burned up by sending it more current than it can handle for too long(often while riding up a hill). This will not happen to FSESC if you have set up a safe current range for it.
B.There's also many other protections that can be set through limits, such as the the temperature(so you can avoid to burn up your speed controller), min and max voltage(so you can set your battery voltage in the safe range according to your battery spec), and max regenerative break current (protect battery from being over-charged)
2.FOC(Field Oriented Control) makes the motor more smooth and less noise and even save much power.
3.It's widely used by DIY market. DIY market people has higher requirement on product quality.They know much more details of product.
