Dear customer, if you need more model and product information, please contact my WHATSAPP(+86 15580995730), and I...
$188.59
$188.59
Subtotal: $188.59
For SURRON Original Modified Controller High Power Torque Encoder

For SURRON Original Modified Controller High Power Torque Encoder

$188.59
For SURRON Original Modified Controller High Power Torque Encoder
For SURRON Original Modified Controller High Power Torque Encoder
For SURRON Original Modified Controller High Power Torque Encoder
For SURRON Original Modified Controller High Power Torque Encoder
For SURRON Original Modified Controller High Power Torque Encoder
For SURRON Original Modified Controller High Power Torque Encoder
For SURRON Original Modified Controller High Power Torque Encoder

For SURRON Original Modified Controller High Power Torque Encoder

$188.59
Description
Description
x
Dear customer, if you need more model and product information, please contact my WHATSAPP(+86 15580995730), and I will give you a better answer.

Note : This product needs to contact customer service to book in advance
Modified motors require replacement of the controlle

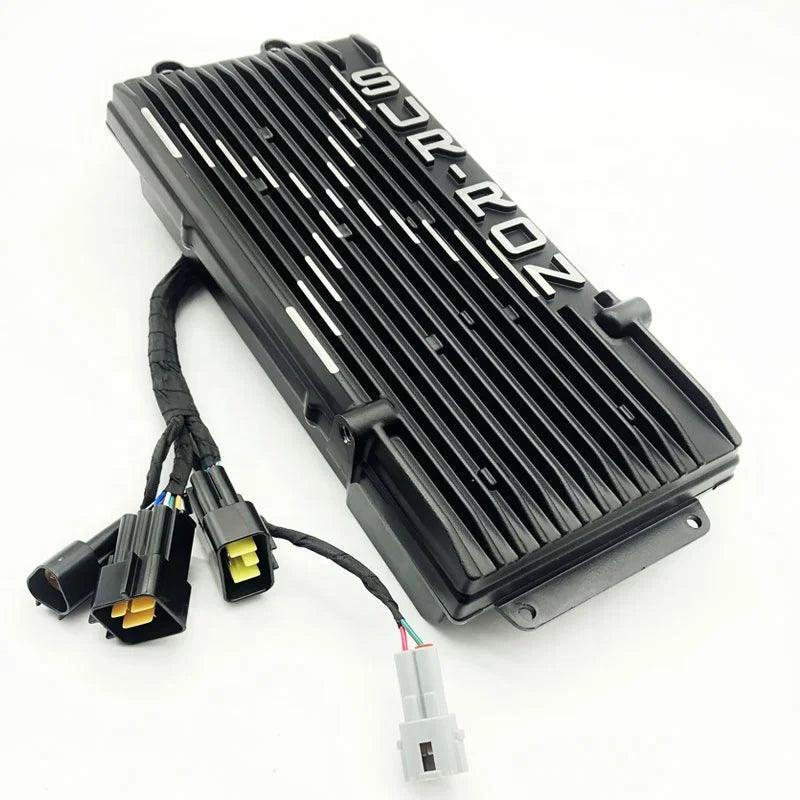

For SUR-RON
High Power and High Torque Encoder Controller
Large Current Controller
in stock
we will Send the controller bracket and cable for free.
Customers can plug and play.

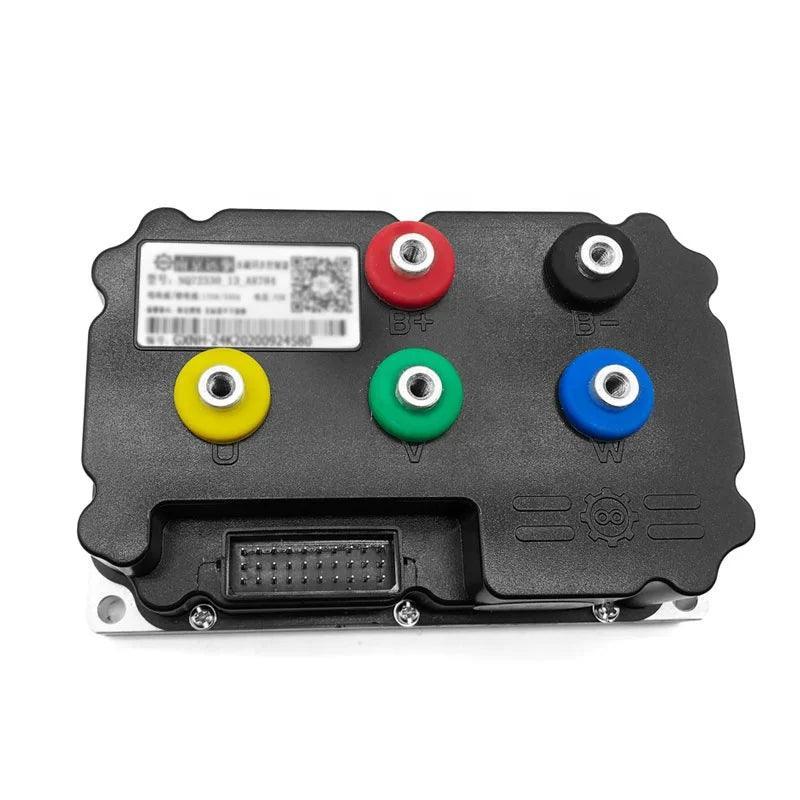

72330 Controller:
Line current: 170A Phase current: 330A   Voltage: 72V
72530 Controller:
Line current: 350A Phase current: 530A   Voltage: 48-90V

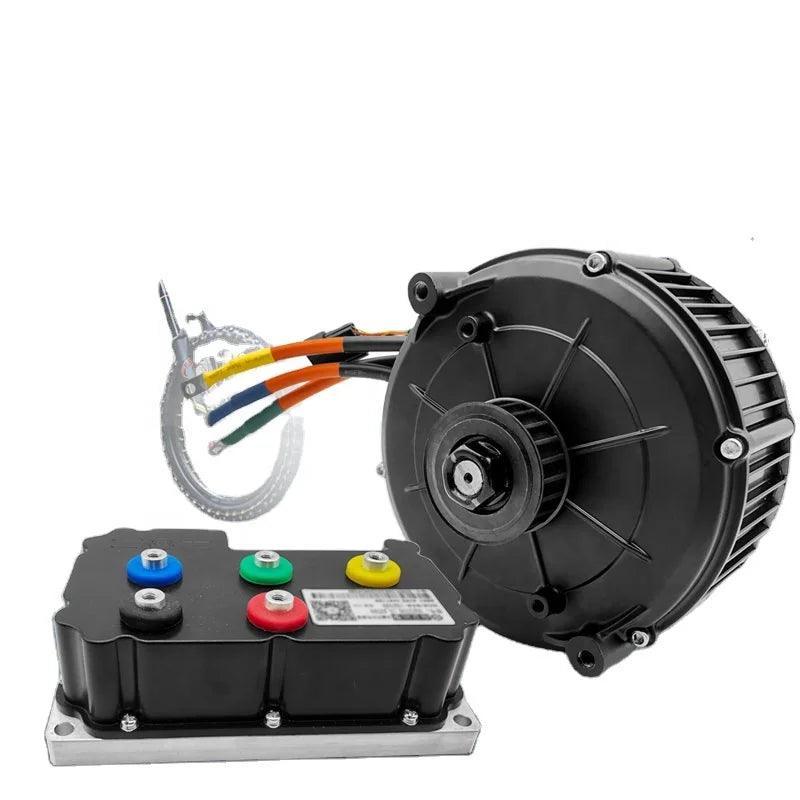

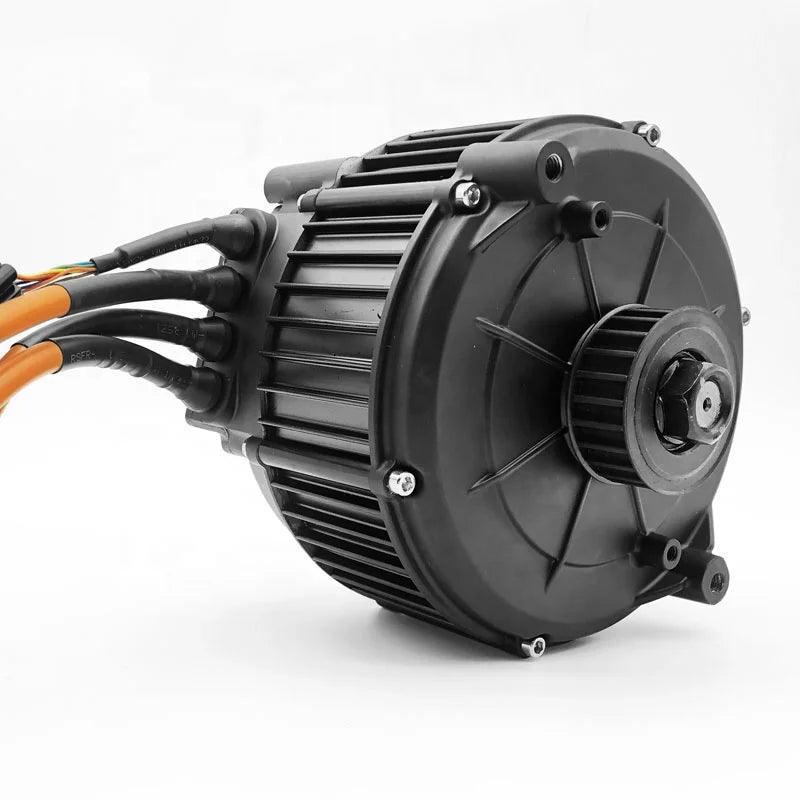

Motor:

ParameterComparison

NO

Specification

ModifiedMotor

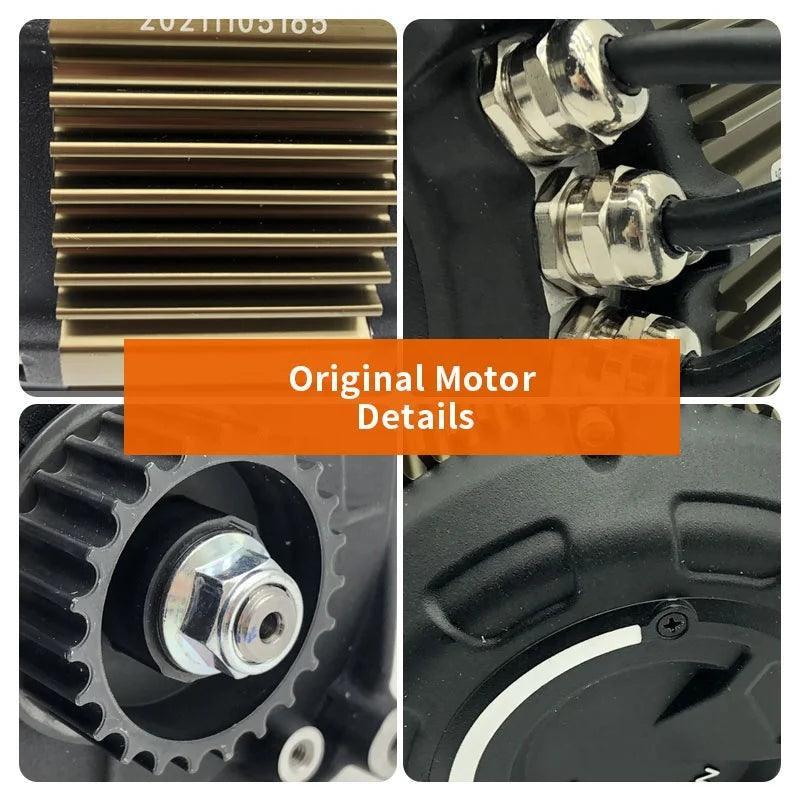

Original Motor

1

Type

165-35HPMSM

159-35HBLDC

2

Voltage

60V

60V

3

Rated power

5000W

5000W

4

Maximum power

8000W

7000W

5

Maximum speed

110km/h

80km/h

6

No-load speed

5300-6000rpm

5500rpm

7

Maximum efficiency

≥93%

93%

8

Maximum Torque

47.5Nm

32Nm

9

Maximum current limit

150A

/

10

Phase current peak

500A

/

11

Magnet Steel height

35H

35H

12

Magnet Steel Brand

38SH

/

13

Magnet pole pairs

7

6

14

Lead wire diameter

16²

12²

15

Position sensor

Magnetic Weaving

Hall

16

Temperature sensor

KTY83-112

NTC

17

Slot pole

12S14P

12S10P

18

Weight

8KG

7.4KG



ParameterComparison

NO

Specification

ModifiedMotor

Original Motor

1

Type

165-35HPMSM

159-35HBLDC

2

Voltage

60V

60V

3

Rated power

5000W

5000W

4

Maximum power

8000W

7000W

5

Maximum speed

110km/h

80km/h

6

No-load speed

5300-6000rpm

5500rpm

7

Maximum efficiency

≥93%

93%

8

Maximum Torque

47.5Nm

32Nm

9

Maximum current limit

150A

/

10

Phase current peak

500A

/

11

Magnet Steel height

35H

35H

12

Magnet Steel Brand

38SH

/

13

Magnet pole pairs

7

6

14

Lead wire diameter

16²

12²

15

Position sensor

Magnetic Weaving

Hall

16

Temperature sensor

KTY83-112

NTC

17

Slot pole

12S14P

12S10P

18

Weight

8KG

7.4KG



Connector

Describe

Colour

Definition

Pins

1

Forward Signal

Gray and White

FW

1

2

Back Signal

Black and White

RE

8

3

Speed Pulse Signal/One Line Communication

Yellow and Green

SPD

9

4

Throttle Ground

Black

GND

16

5

Throttle Signal

Green and White

SV

14

6

Low Brake

Purple

BL

20

7

Electric Door Lock Switch Output

Orange

KEY

11

8

High Brake

Grey

BH

19

9

Throttle Power Supply 5V

Red and White

ACC+

23
