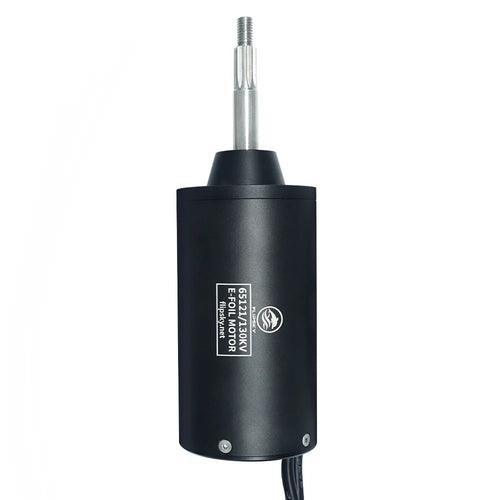

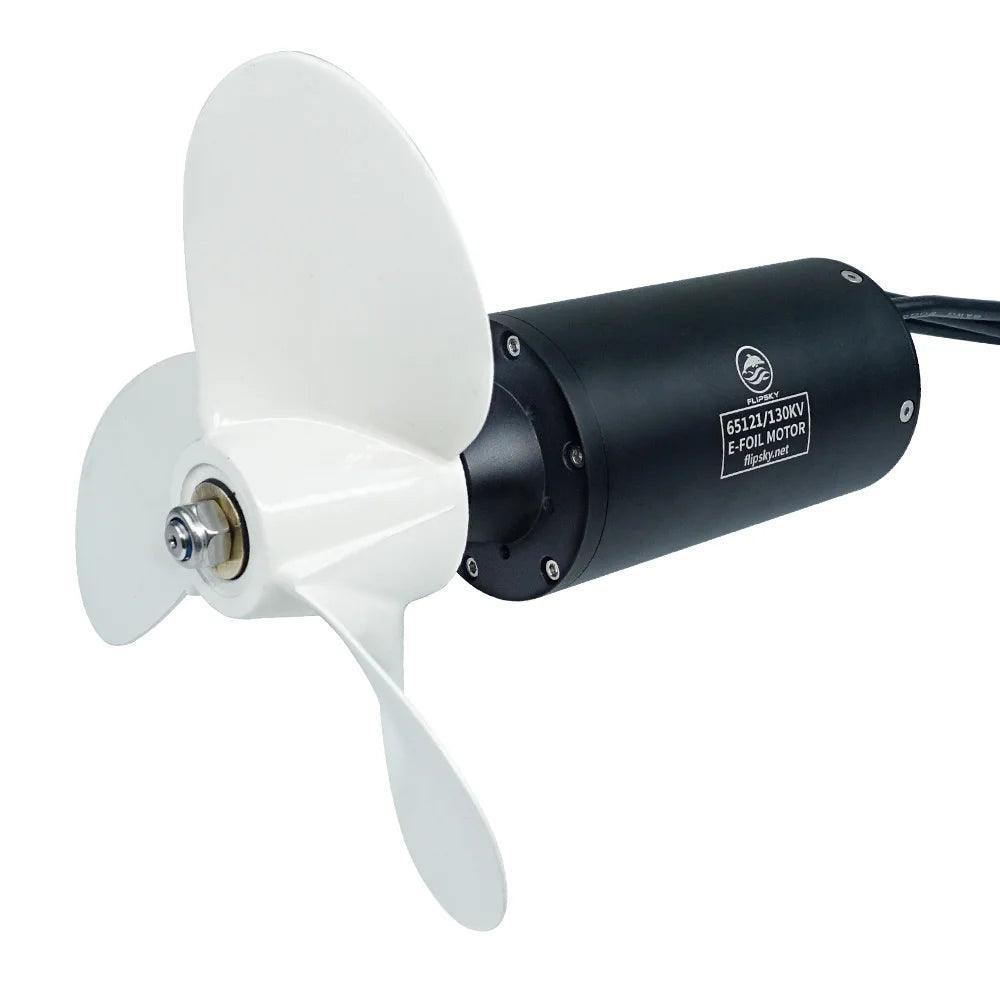

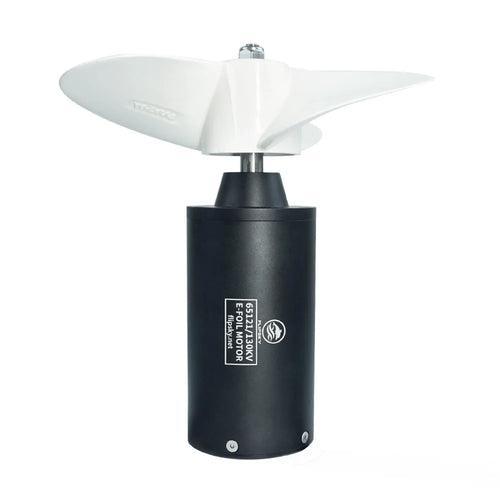

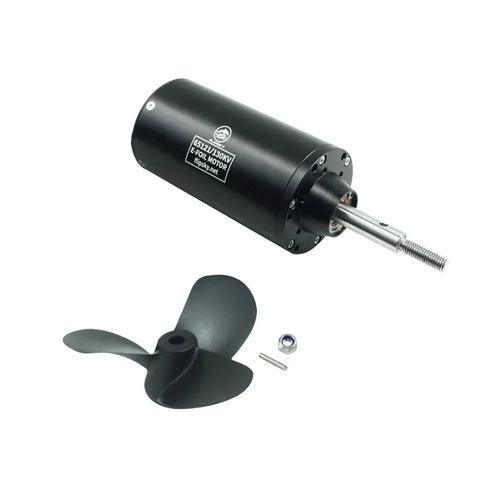

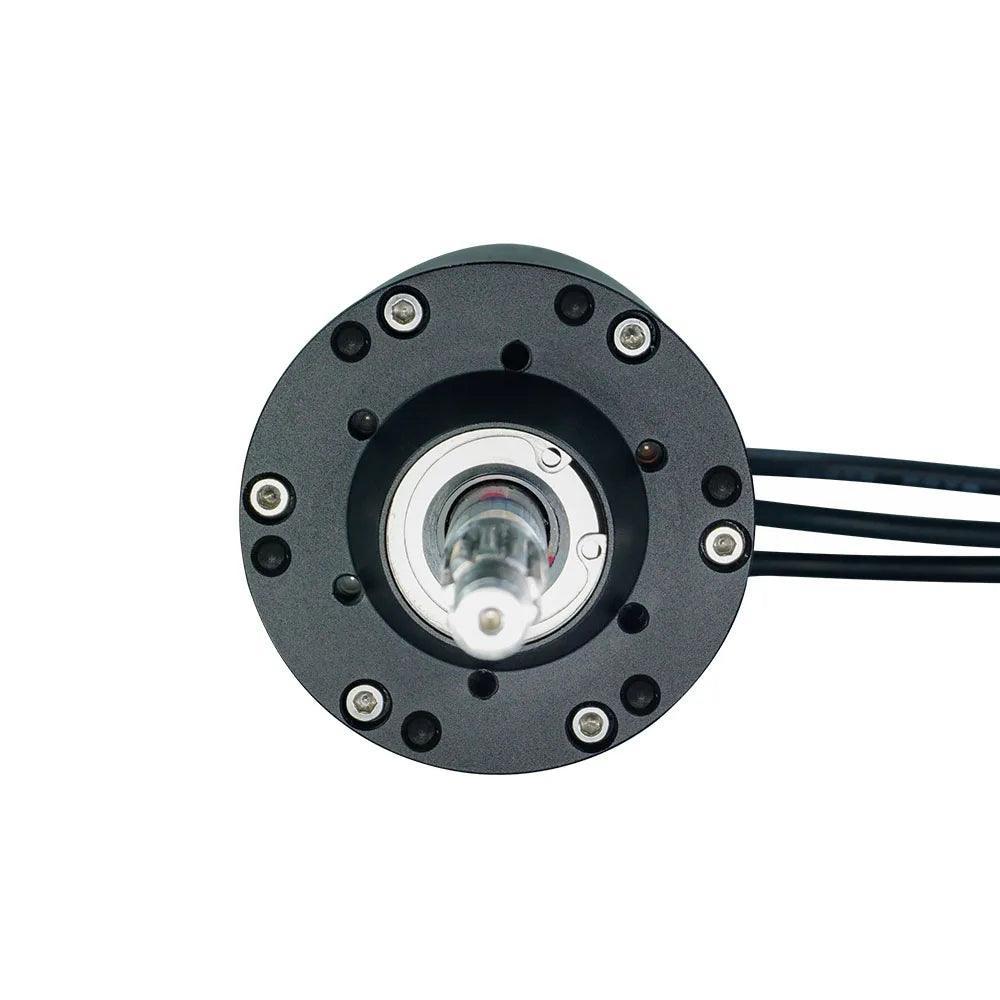

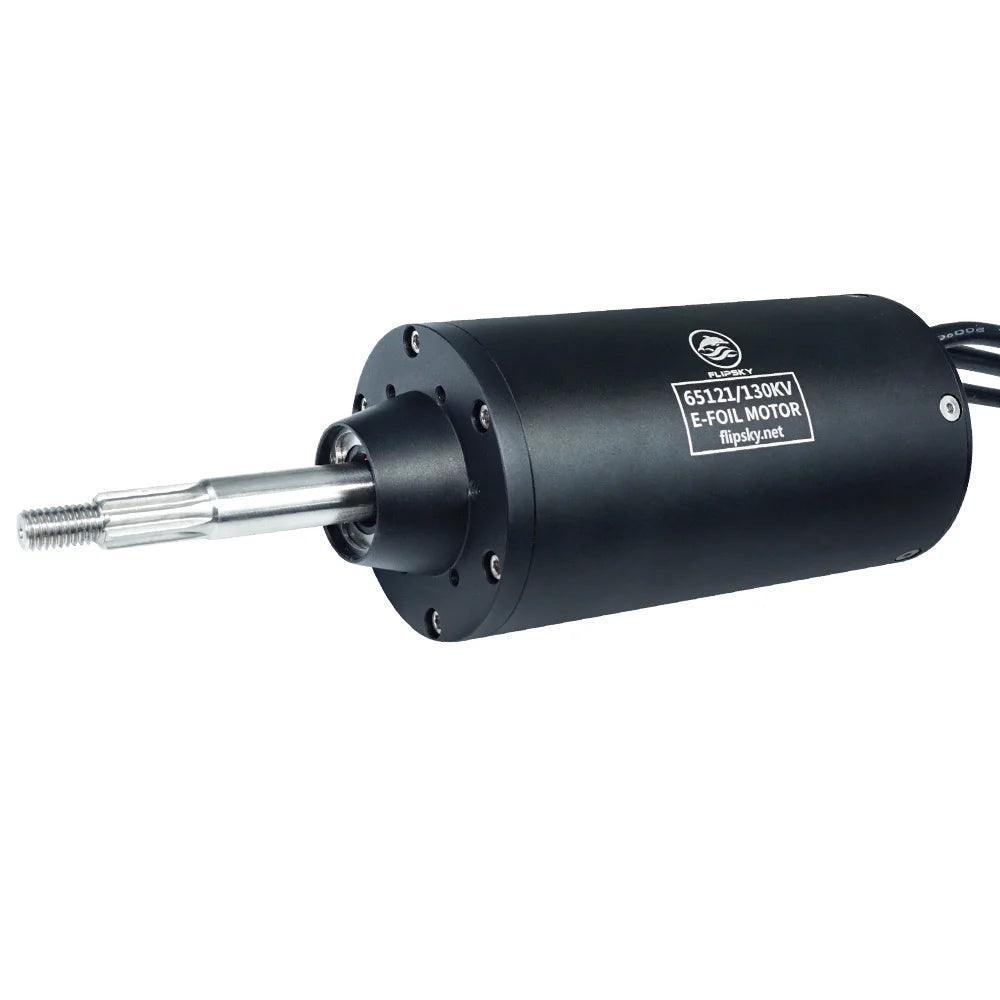

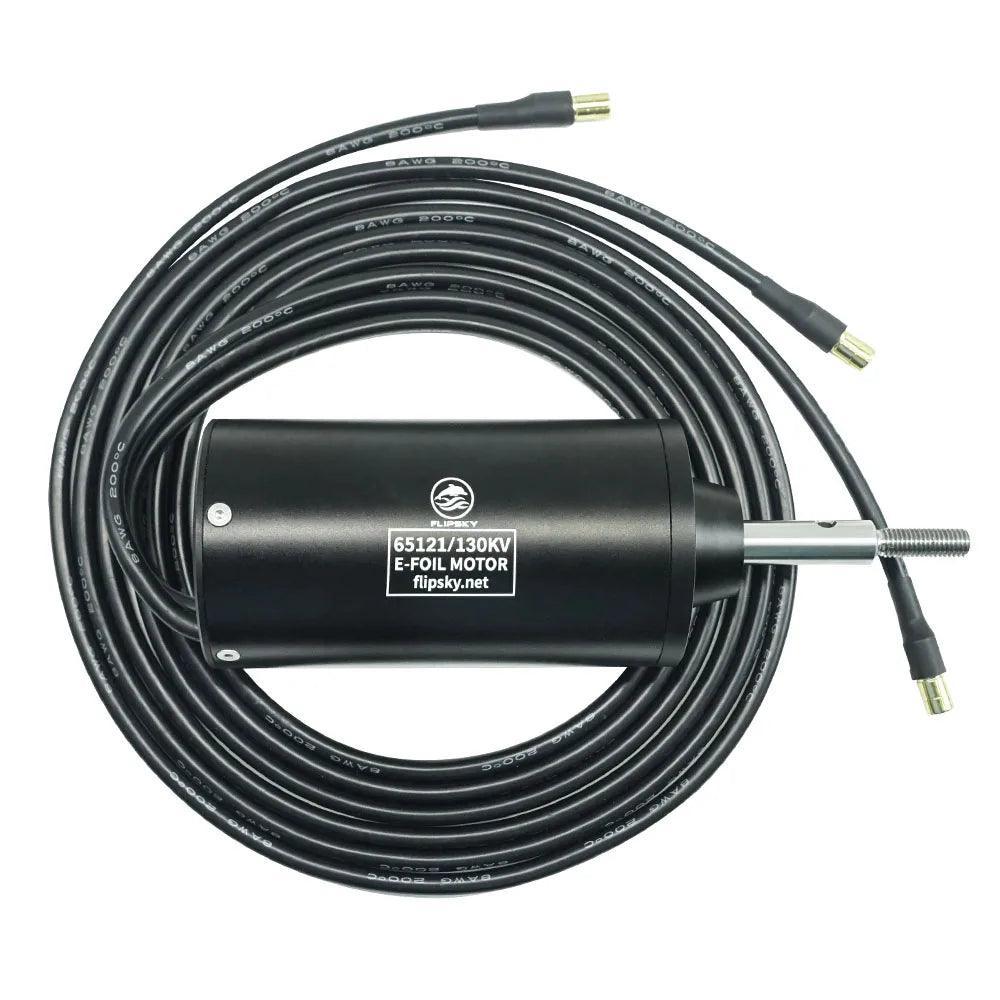

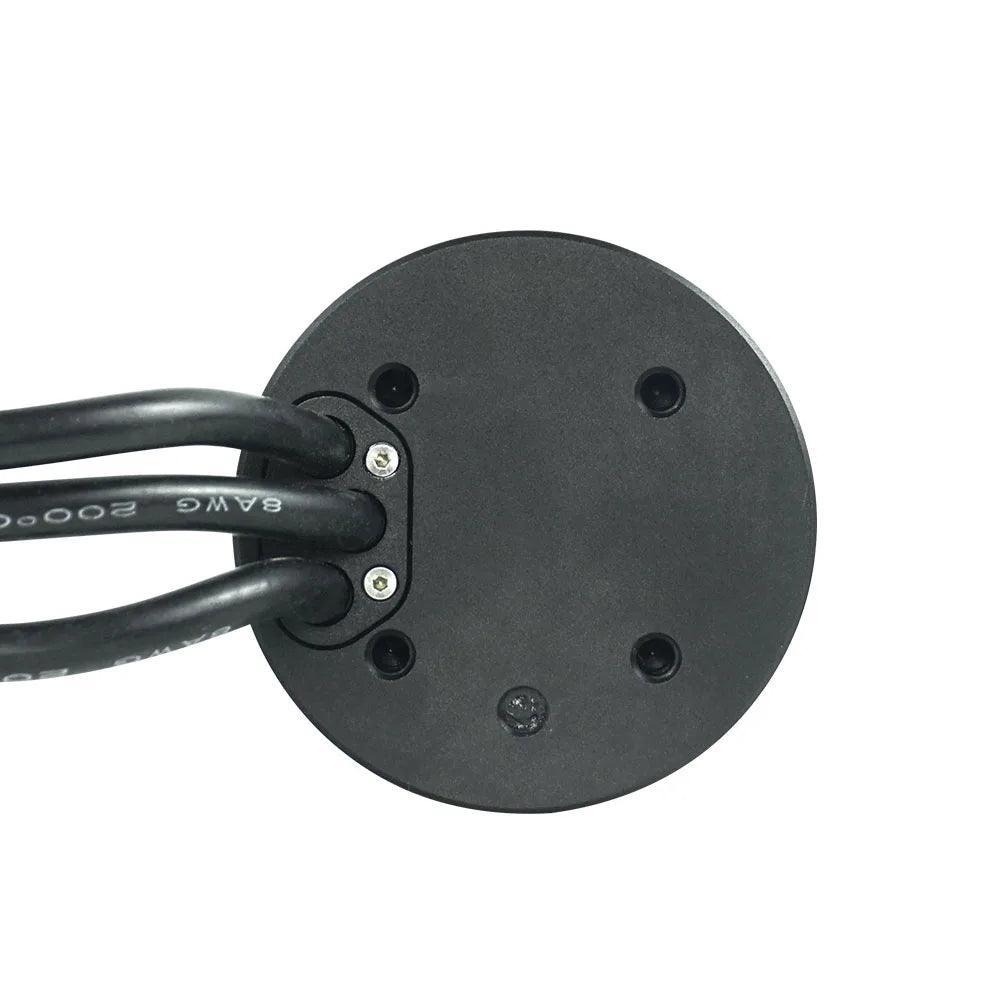

Inrunner Brushless DC 65121 Motor 130KV 3700W for Electric Surfboard Boat Underwater Thruster |Hydrofoil | Efoil - Flipsky
Spec:
Voltage range: 6-20S (25.2-84V)
Max power: 3700W; Continuous power: 2000W
Peak current: 100A;
Motor KV: 130KV
Size: OD65*L121mm
Shaft diameter: 12mm*m8
Max output torque:5.5N*M
Waterproof rate: IP68
Connectors:8mm plug
Weight:1.62KG
Structure:18N/P
Lead wires extension: 8AWGx500mm
ROUND WITH THREAD MOTOR DRAWINGS:
SPLINED SHAFT MOTOR DRAWINGS:
