Description
Description
x

lifepo4 battery pack 48v 100AH batterie with BMS for electric tricycle golf cart boat EV RV camper scooter + 10A charger


Packing list:

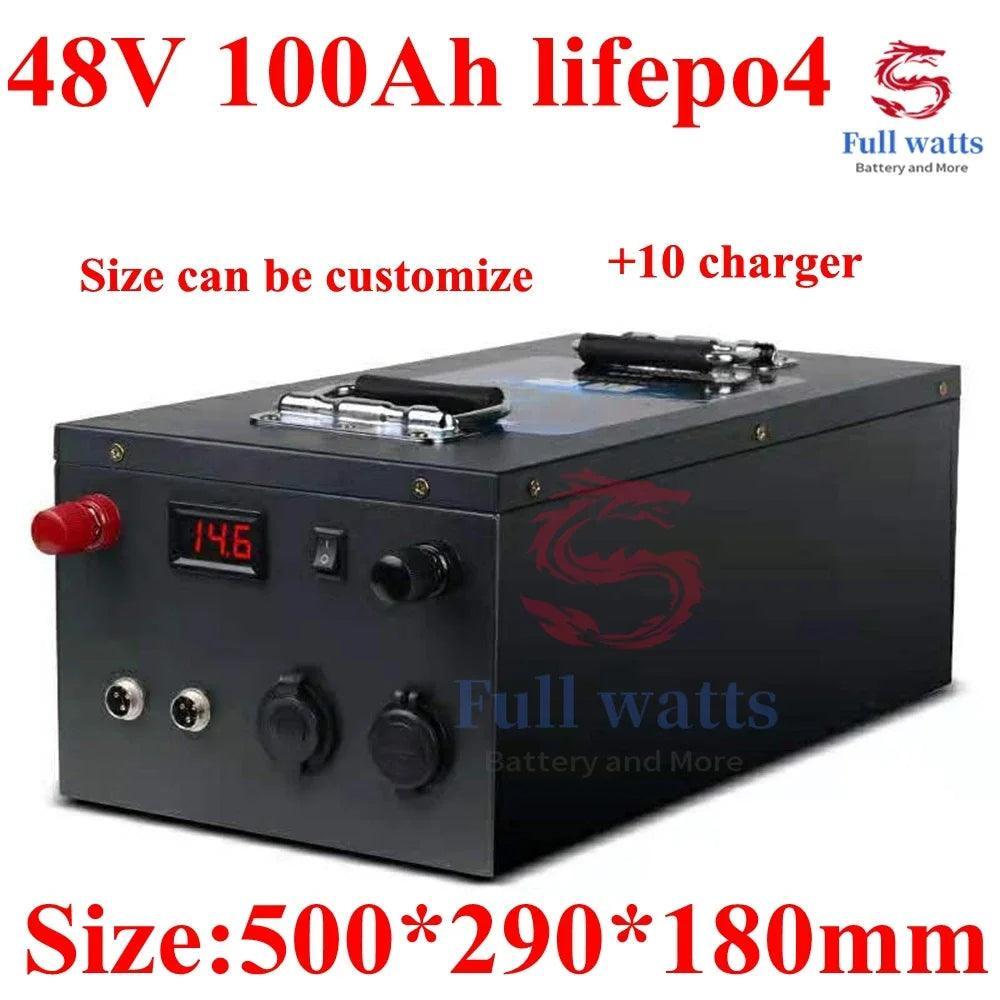

48V 100AH EVLifepo4 Battery Pack with Case,with build-in BMS.

58.4v 10A charger
Remark:

We offer lithium, lifepo4 and ni-mh battery, accept customized battery pack,battis power watts cube teswatts Battis Energy we can't update all items here. If any battery you want, please take it easy to contact with me tell me the capacity voltage and size you want, thanks.

No.

Item

Specification

1

Charge cut-off voltage

DC 58.4V

2

Nominal voltage

48V

3

Nominal capacity

100Ah

4

Energy

4.8kWh

5

Charge current

Standard charge: 0.2C Approx 6 Hour
Rapid charge: 0.5C Approx 2.5 Hour

6

Standard Charging method

0.2 CC(constant current) charge to 58.4V, then CV(constant voltage 58.4V) charge till charge current decline to less than 0.02C

7

Max. charge current

100A

8

Max. discharge current

100A/120A/150A/200A/250A

9

Max.Pulse Current

200A/240A/300A/400A/500A(3S)

10

Discharge cut-off voltage

40V

11

Cell

3.2V Lifepo4

12

Operating temperature

Charging: 0°C - 45°C
Discharging: -10°C- 60°C

13

Storage temperature

-10°C to + 45°C

14

Battery Weight

Approx.30.4KG

15

Battery Dimension

500*290*180mm,

16

Battery outgoing voltage

58.4V-40V

17

BMS built in

Yes



BMS ( Battery Management System )

BMS is higher level PCM, which is safety control and management system to monitor battery status in order to make battery better working and lengthen battery life time objectively. BMS is mainly used in high capacity li-ion/li-polymer/lifepo4 battery packs. BMS is advanced integration of management, protection, communication and self-diagnose and cell balancing.
Major functions:

1.     Overcharge protection

2.     Overdischarge protection

3.     Overcurrent protection

4.     Overheat protection(NTC)

5.     Short circuit protection

6.     Temperature sensing

7.     Cell monitoring & balancing

8.     Communication interface

9.     Self-diagnose

10.   Power gauge
