lithium 48v 160AH lifepo4 batterie with BMS for tricycle golf cart inverter Solar energy storage scooter +...
$1,045.34
$1,045.34
Color: 48v 160AH
Subtotal: $1,045.34
lithium 48v 160AH lifepo4 battery BMS 16S for 4800W tricycle golf cart

lithium 48v 160AH lifepo4 battery BMS 16S for 4800W tricycle golf cart

$1,045.34
lithium 48v 160AH lifepo4 battery BMS 16S for 4800W tricycle golf cart
lithium 48v 160AH lifepo4 battery BMS 16S for 4800W tricycle golf cart
lithium 48v 160AH lifepo4 battery BMS 16S for 4800W tricycle golf cart

lithium 48v 160AH lifepo4 battery BMS 16S for 4800W tricycle golf cart

$1,045.34
Color: 48v 160AH
Description
Description
x
lithium 48v 160AH lifepo4 batterie with BMS for tricycle golf cart inverter Solar energy storage scooter + 10A charger

Packing list:

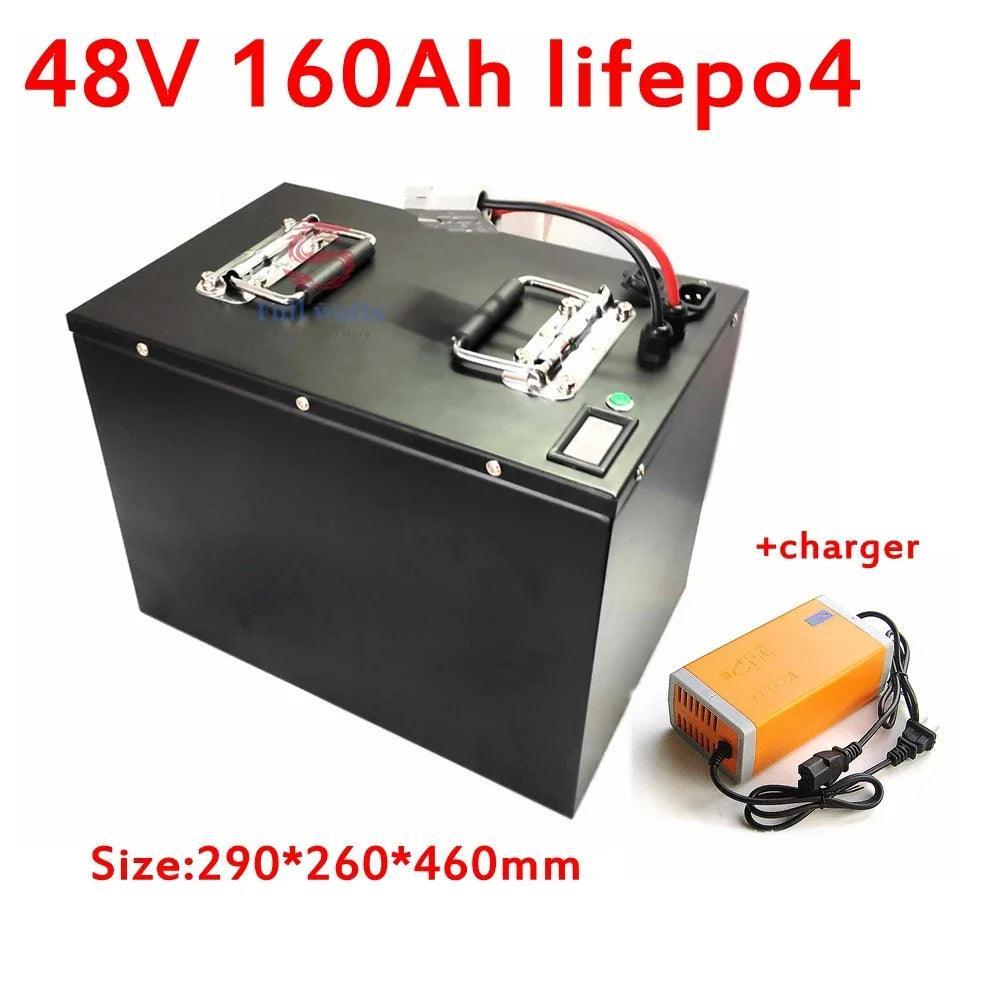

48V 160AH EVLifepo4 Battery Pack with Aluminium Case,with build-in BMS.

   58.4v 10A charger
Remark:

We
offer lithium, lifepo4 and ni-mh battery, accept customized battery
pack, we can't update all items , please
take it easy to contact with me tell me the capacity voltage and size
you want, thanks.



No.

Item

Specification

1

Charge cut-off voltage

DC 58.4V

2

Nominal voltage

48V

3

Nominal capacity

160Ah

4

Energy

7680kWh

5

Charge current

Standard charge: 0.2C Approx 6 Hour
Rapid charge: 0.5C Approx 2.5 Hour

6

Standard Charging method

0.2 CC(constant current) charge to 58.4V, then CV(constant voltage 58.4V) charge till charge current decline to less than 0.02C

7

Max. charge current

100A(can be customize)

8

Max. discharge current

100A (can be customize)

9

Max.Pulse Current

200A(3S)

10

Discharge cut-off voltage

40V

11

Cell

3.2V Lifepo4

12

Operating temperature

Charging: 0°C - 45°C
Discharging: -10°C- 60°C

13

Storage temperature

-10°C to + 45°C

14

Battery Weight

Approx. 32 kg

15

Battery Dimension

290*260*460mm

16

Battery outgoing voltage

58.4V-40V

17

BMS built in

Yes



BMS ( Battery Management System )

BMS
is higher level PCM, which is safety control and management system to
monitor battery status in order to make battery better working and
lengthen battery life time objectively. BMS is mainly used in high
capacity li-ion/li-polymer/lifepo4 battery packs. BMS is advanced
integration of management, protection, communication and self-diagnose
and cell balancing.
Major functions:

1.     Overcharge protection

2.     Overdischarge protection

3.     Overcurrent protection

4.     Overheat protection(NTC)

5.     Short circuit protection

6.     Temperature sensing

7.     Cell monitoring & balancing

8.     Communication interface

9.     Self-diagnose

10.   Power gauge
