Description

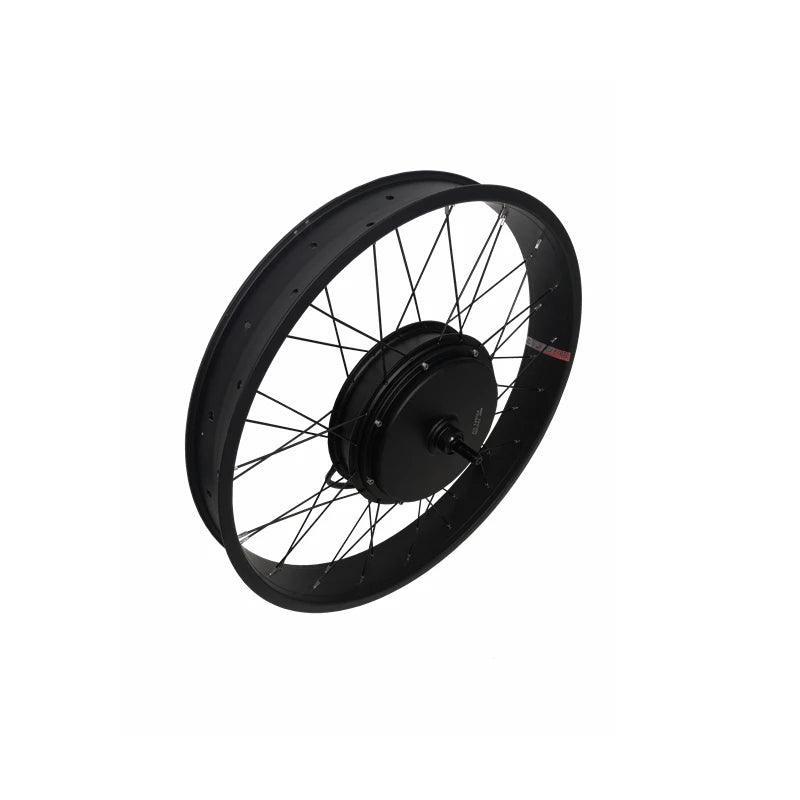

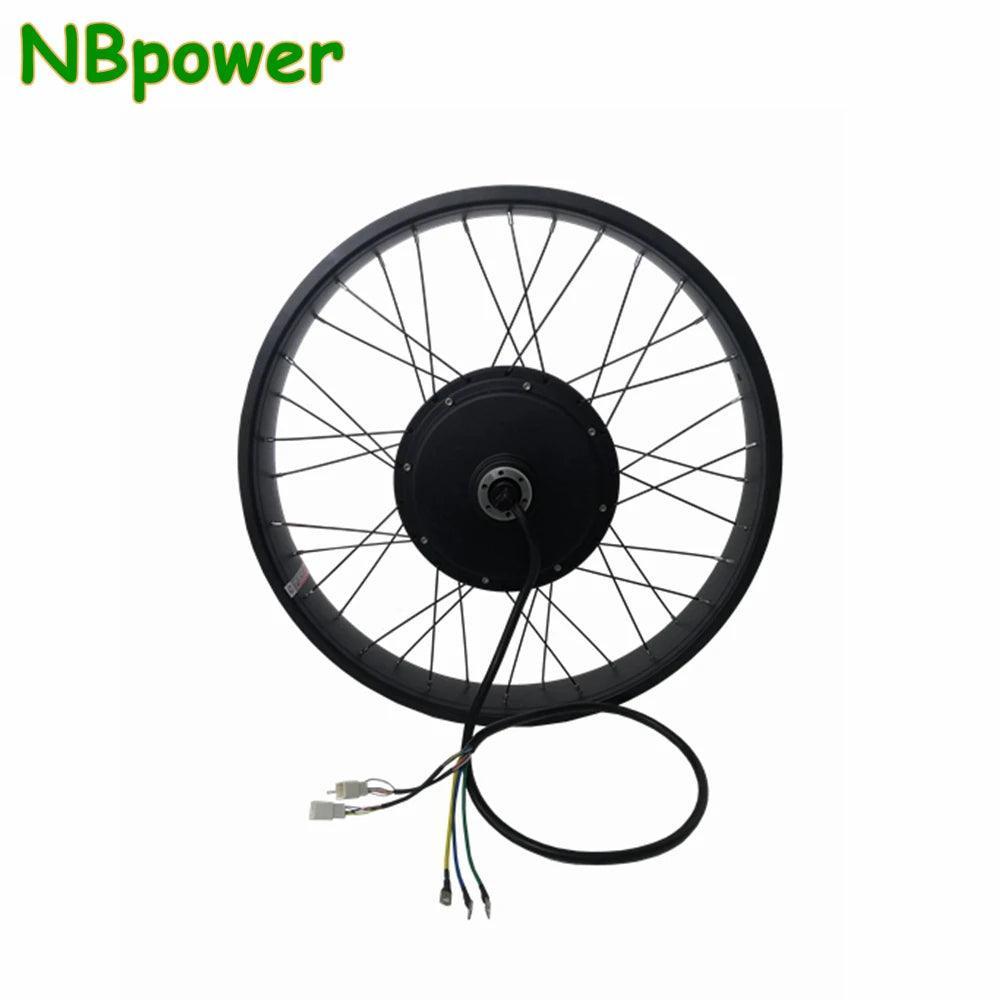

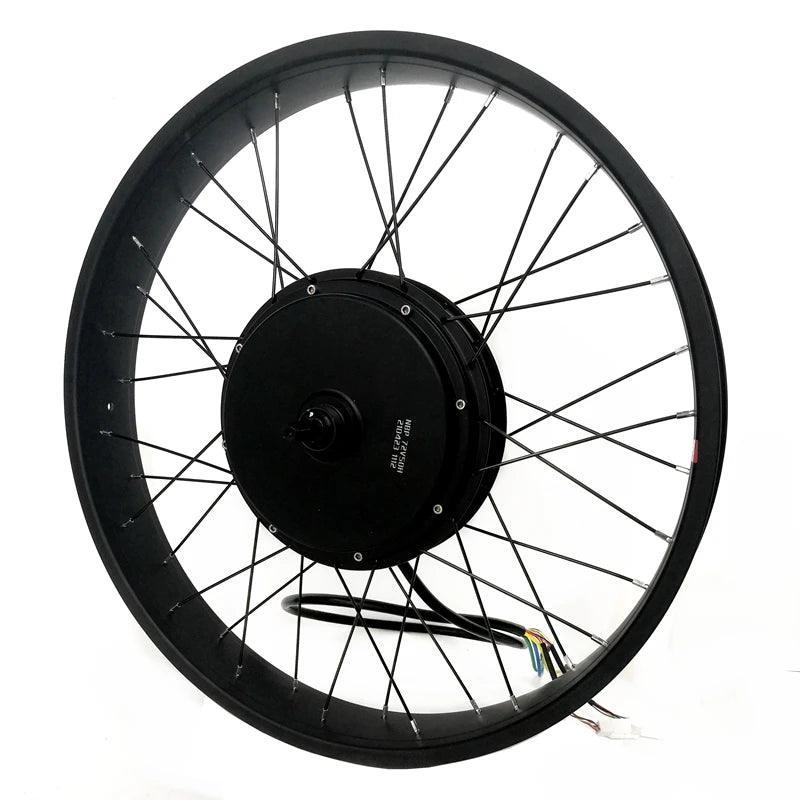

xQS205 150mm Dropout 48-72V 3000W 5000W 205H Electric Fat Bike Rear Motor Wheel 20X4.0 24X4.0 26X4.0 Rim Max Speed 80-100km/h
Difference between 3.5T and 5T : 3.5T is high speed version, 5T is high torque version, 5T max speed is much lower than 3.5T. If you often ride on mountain road or your ebike will load heavy weight, then 5T is better for you.
Packaging list

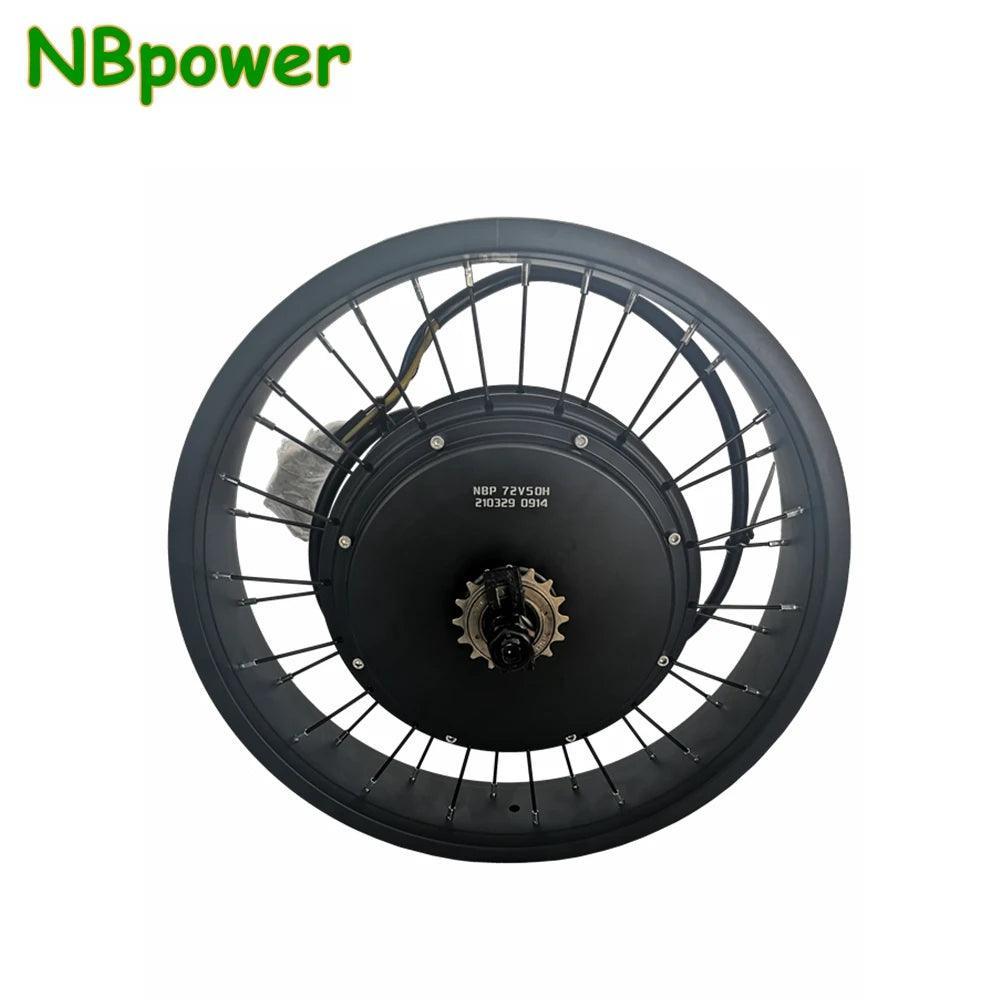

1. QS205 50H 72V 3000W or 5000W Electric bike rear hub motor wheel 150mm dropout
2. Single speed freewheel
QS motor specification
Motor Details:
1.Motor Type: BLDC Hub Motor with Permanent Magnet
2.Motor design: Double axle out
3.Spoke hole: 3.4mm x 36pcs
4.Matching Rim:16inch-29inch
5.Magnet Height: 50MM
6.No. of Pole Pairs: 16paris
7.Rated Power:3000W
8.Peak Power: 6000W
9.Rated Voltage: 72V
10.Max No-load RPM: 950RPM
11.Max Torque: 150N.M
12.Max Efficiency: 88%
13.Max current:80A (Peak 100A in short time)
14.Brake type: Disc brake
15.Rear Fork width for installation: 150mm
16.Winding Core material: Aluminium
17.Cross Section of Phase wire: 10 mm2
18.Hall sensor phasing angle: 120 degree
19.Temperature Sensor: Optional
20.Max. Working Temperature: 70 degree, Peak 120 degree
21.Waterproof Grade: IP54
5000W
1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim(integrated)
3. Matched Tire: 17inch-29inch
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 6000W in few seconds
8. Rated Voltage: 72V
9. Speed: 960rpm
10. Drop-outs: 150mm
11. Max Torque: approx 181N.m
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm⊃2;Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP6522.
