NUTT 4 Piston Y-5 Electric E-Bike Scooter Disc Brake Hydraulic Bicycle

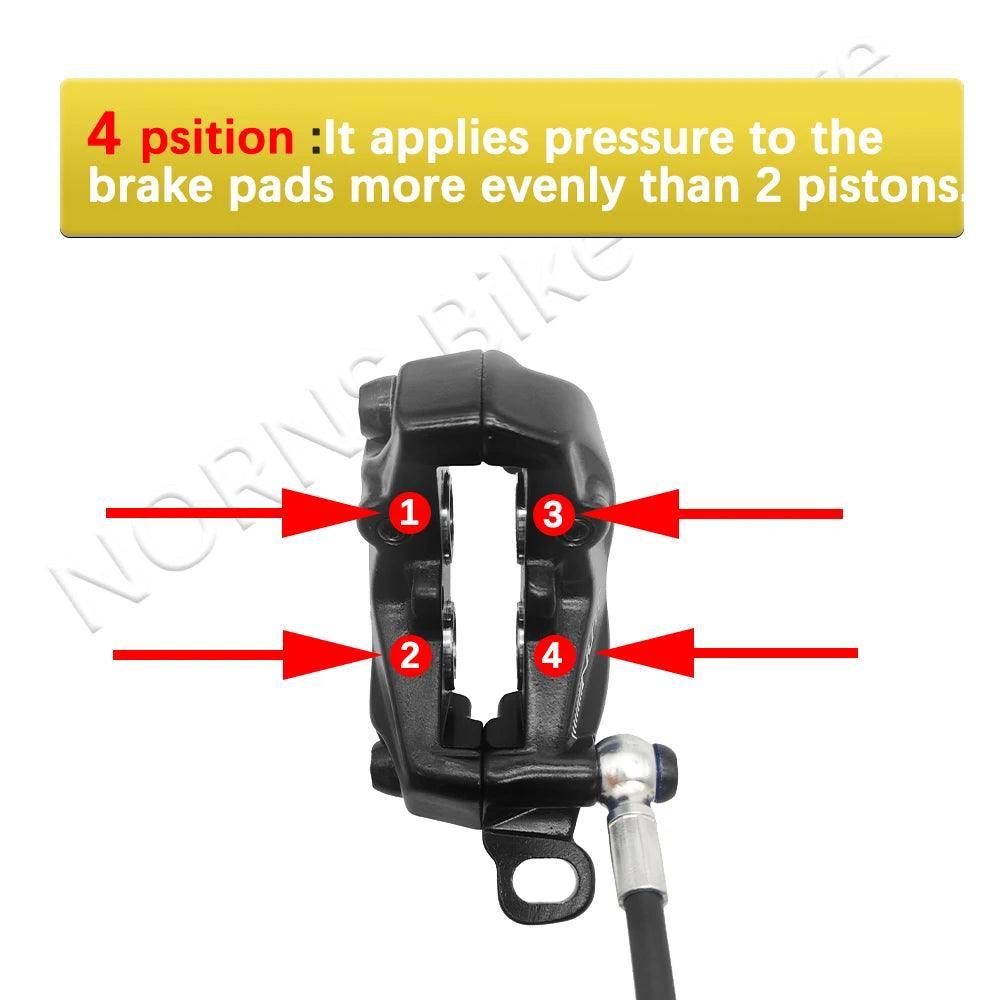

【Advantages of 4 pistons】

*The pressure exerted on the brake pads by 4 pistons is more evenly distributed than that of 2 pistons, and the relative pressure will be greater, thus generating more friction, increasing the friction area, shortening the braking distance, and greatly improving the braking effect. .

【Compatible】

① ALL MTB Bike / Electric MTB Bicycle/ Himo Z20

( The lengths of 1.35 and 2.2m are too long for E-bike. If you need to shorten the oil pipe, please contact the customer for the length you need, and we can provide free pipe cutting service

② Some Electric Scooters:

ULTRON T11 /
FLJ T113 /
Speedway 4 /

Kukirin g2 master /  KUGOO G-Booster / KUGOO ES3  / Ultron T108 / Vmax r55 / Dualtron Ultra / Dualtron Ultra II  / Dualtron Eagle Pro / Dualtron X Limited / Dualtron Storm Limited / Dualtron Storm / Dualtron Thunder  / Dualtron Thunder II / Dualtron Victor / Dualtron Victor Luxury / Dualtron Spider 2 / BlueTran Lightning / Dualtron City / Dualtron Achilleus

Blade 10 / Minimotors / Kaabo Mantis

If your model is not available above, please send a photo of your scooter or model to our customer service, and we will send you the suitable brake link for your scooter to you . ( This link is not applicable to scooters with front and rear brakes on the right side）

If you are unsure how to choose a suitable kit, pleae contact us and we will help you choose the appropriate one;

【Brand】: NUTT(Taiwan)

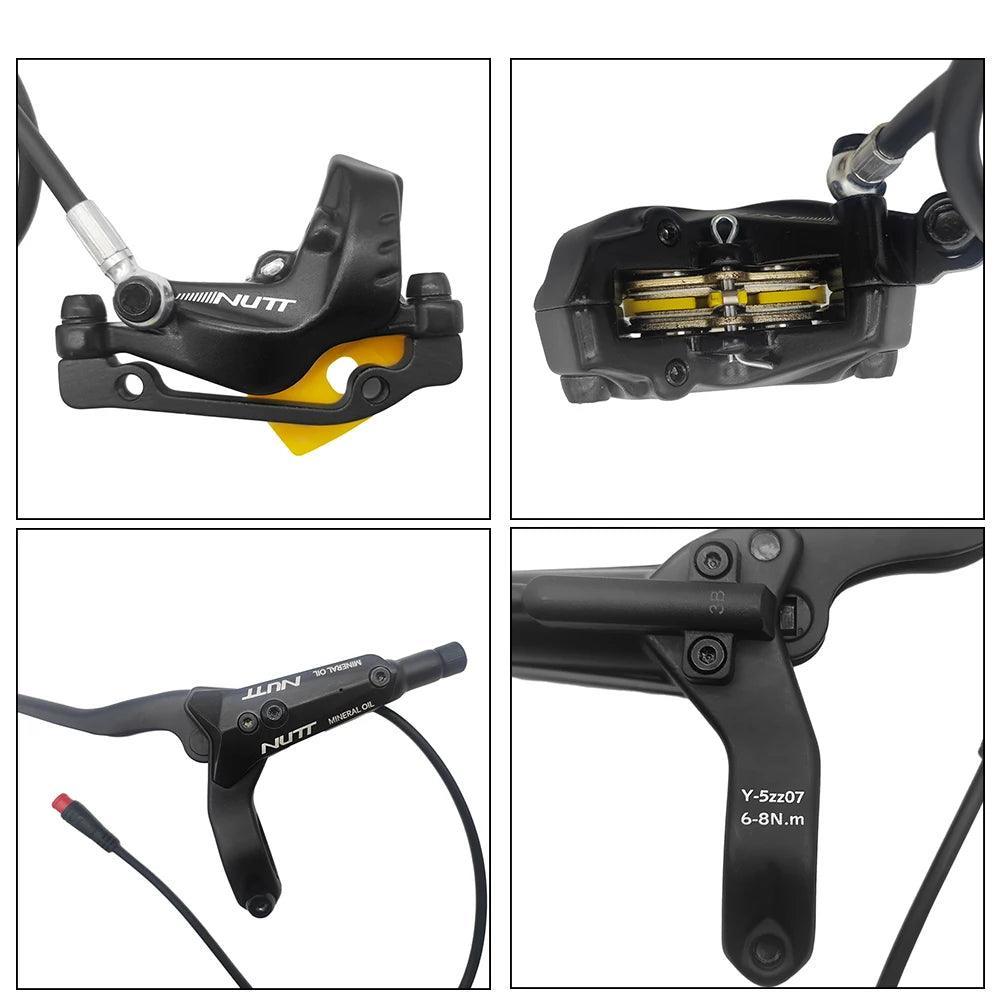

【Name】：4-piston Electric Hydraulic Disc Brake

【Material】：Aluminum alloy

【Model】：NUTT Y-5

【Weight】：Please check the actual photo at the bottom

【Piston】：4-piston

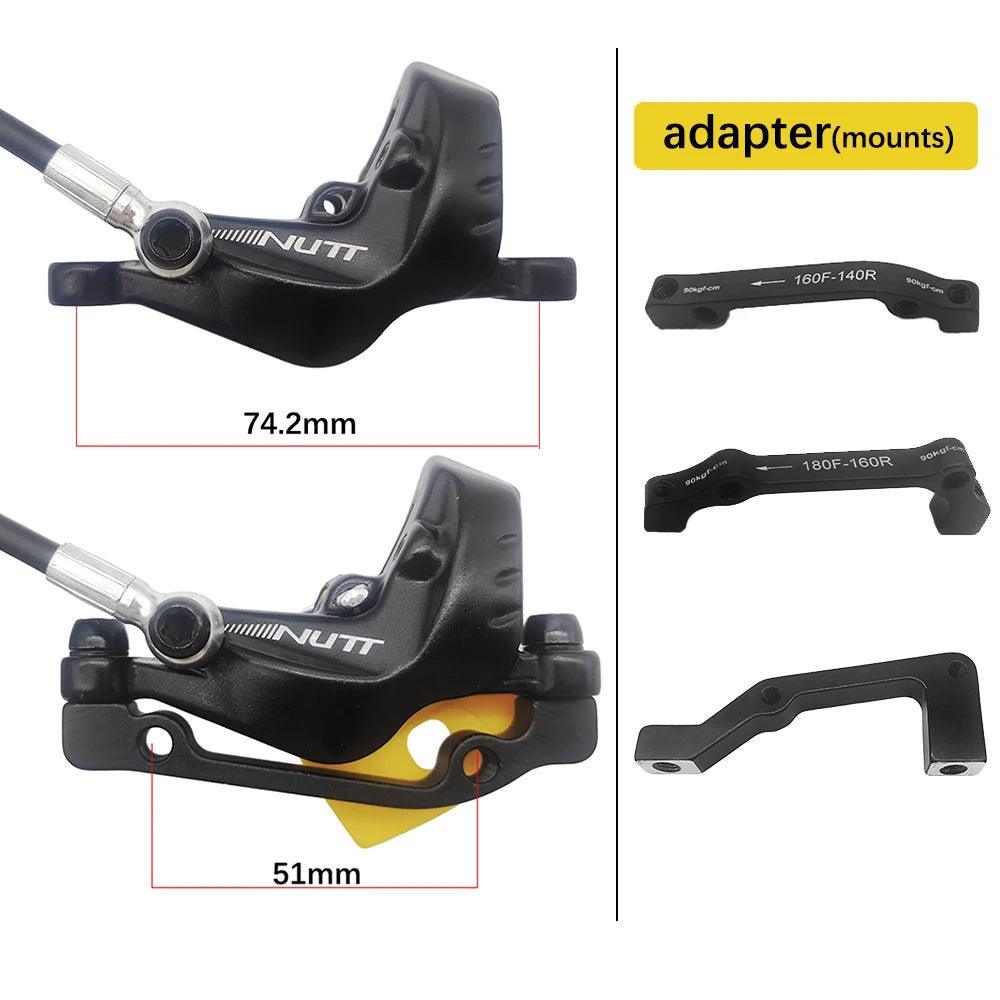

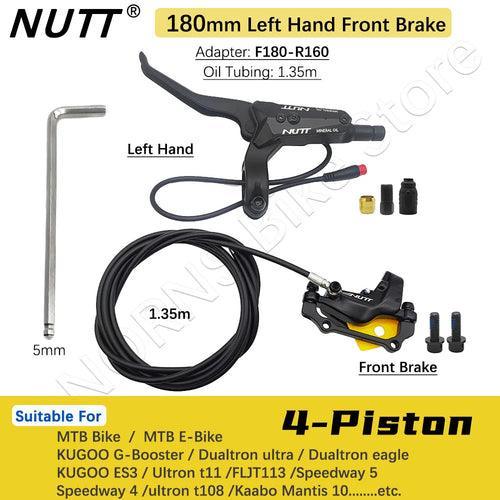

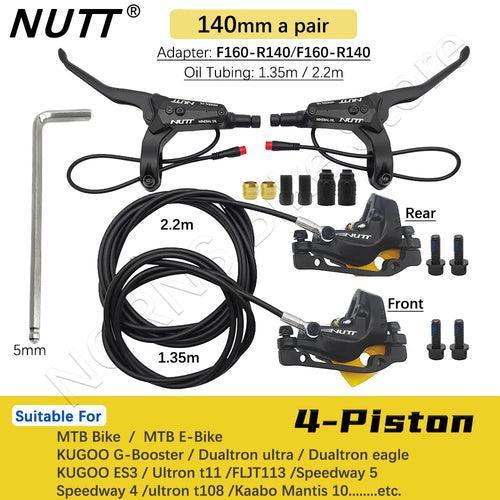

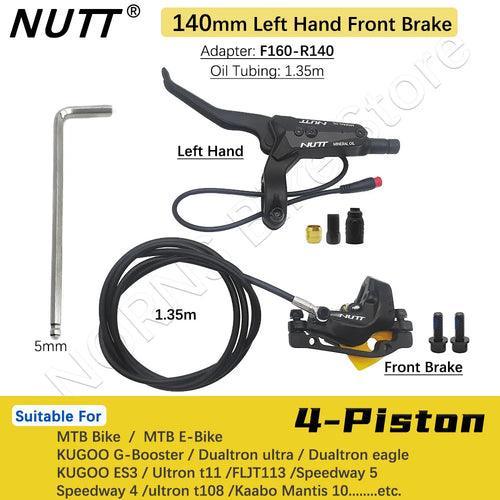

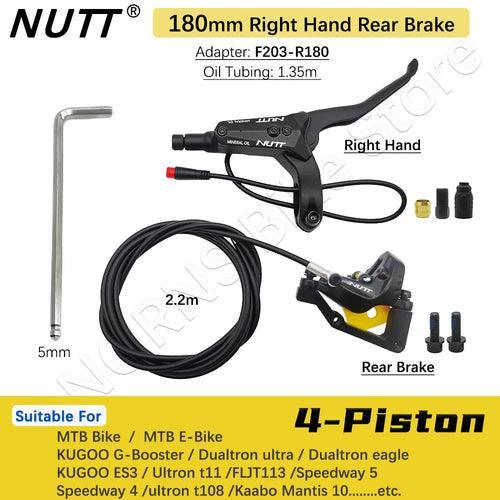

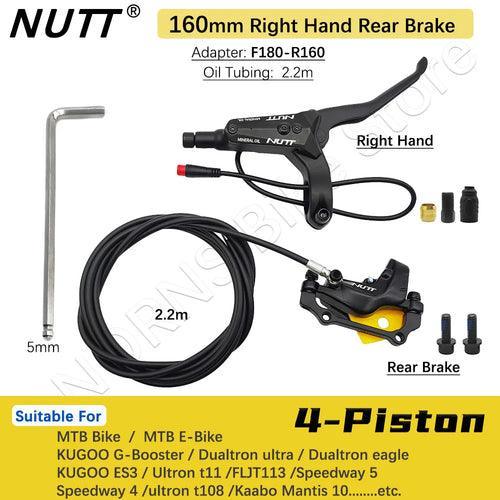

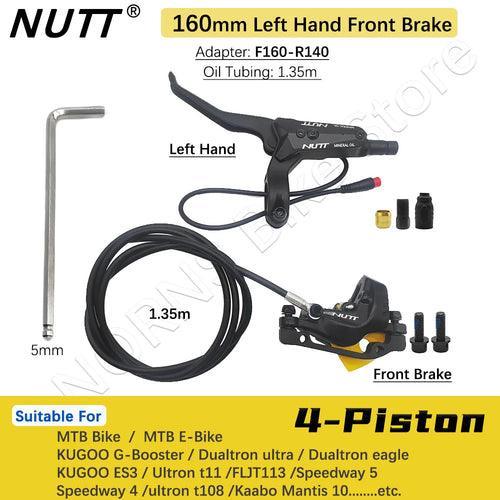

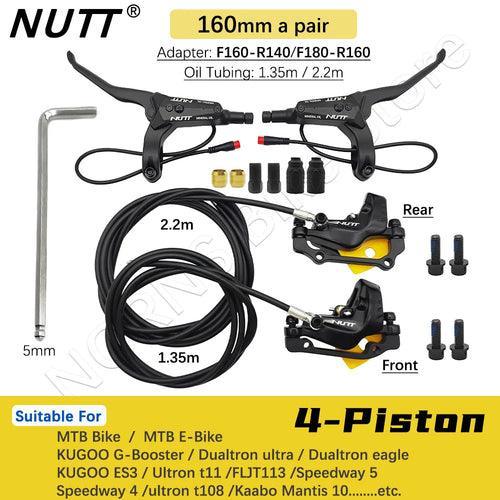

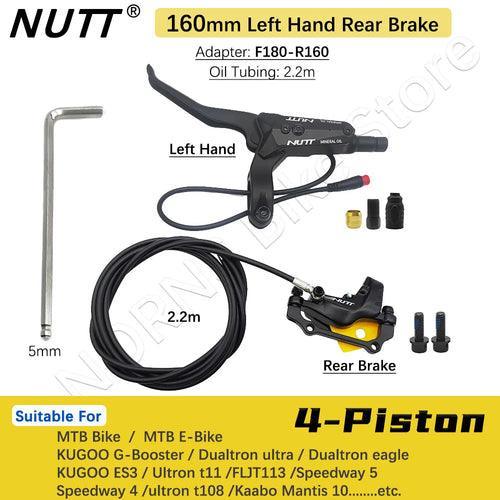

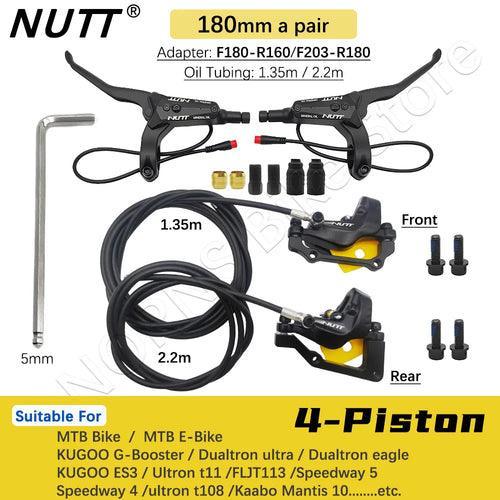

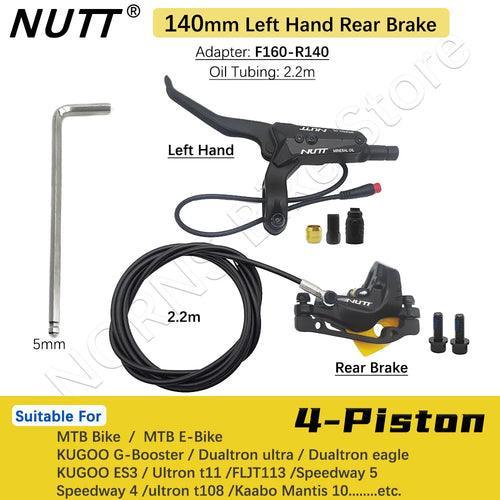

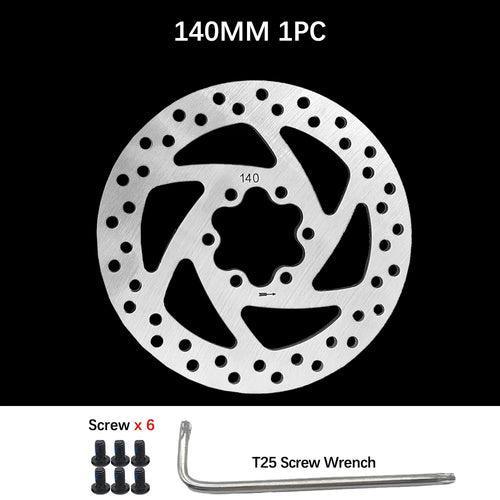

【Adapter】：F160-R140 / F180-R160 / F203-R180

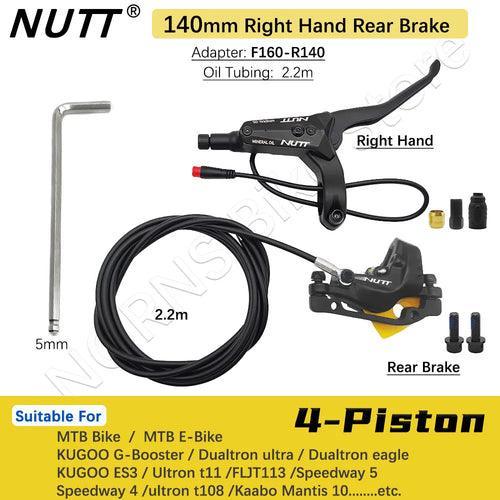

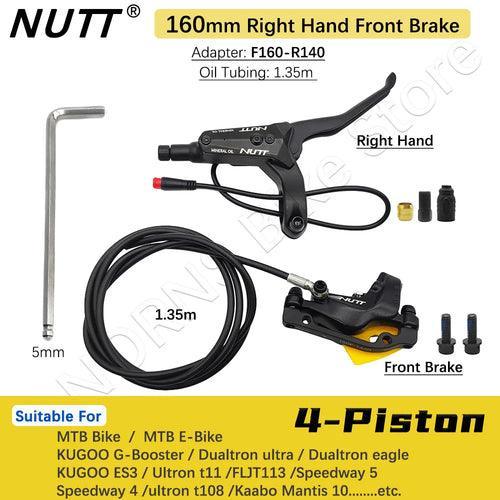

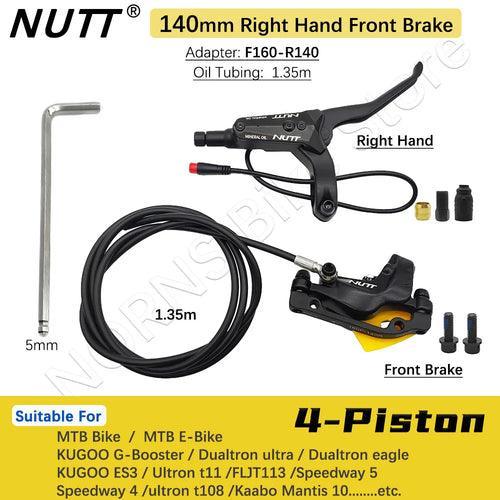

【Oil pipe length】1.35m /2.2m

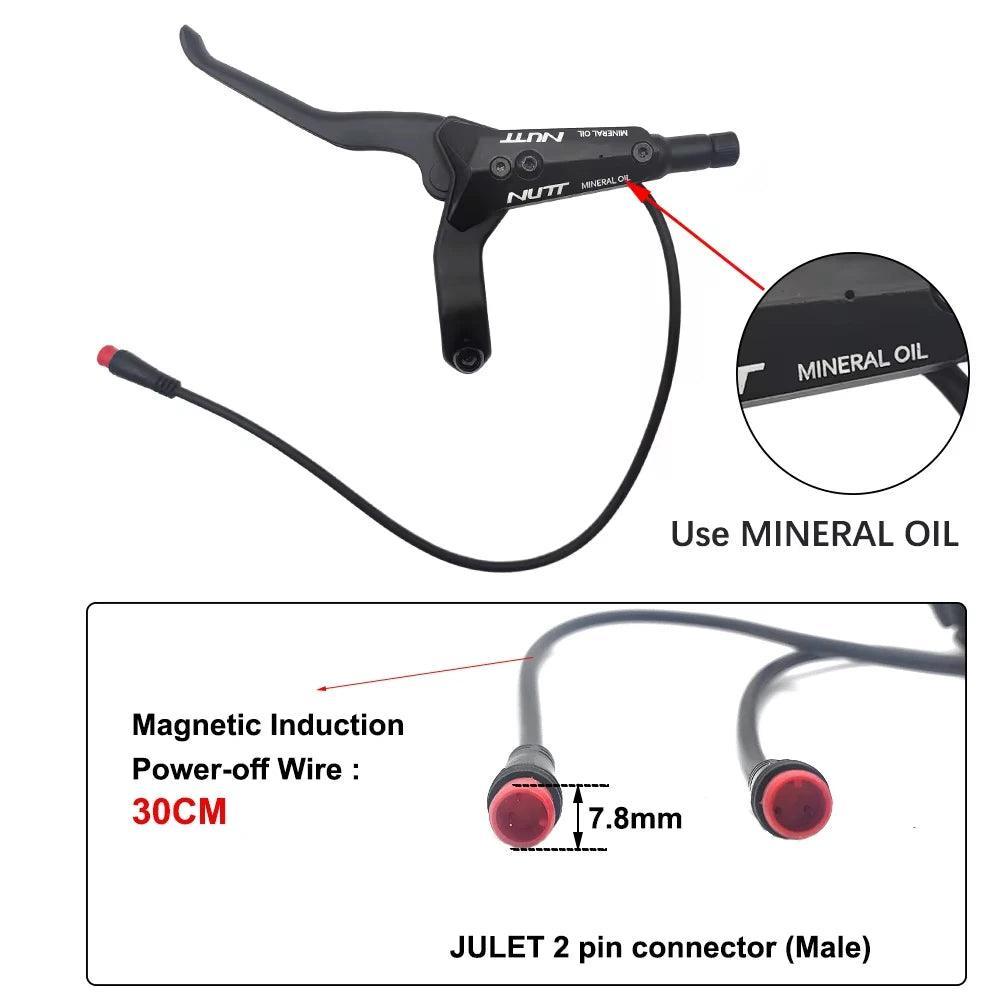

【Waterproof connector】2-pin JULET connector (male), 30cm length

The oil pipe direction of the caliper: The oil pipes of the front and rear calipers extend out on the left side of the caliper

【Main functions】

* When the brake lever is pressed, the electric bicycle or electric scooter is disconnected from the power supply and brakes at the same time, greatly improving the braking performance and increasing the safety of riding.

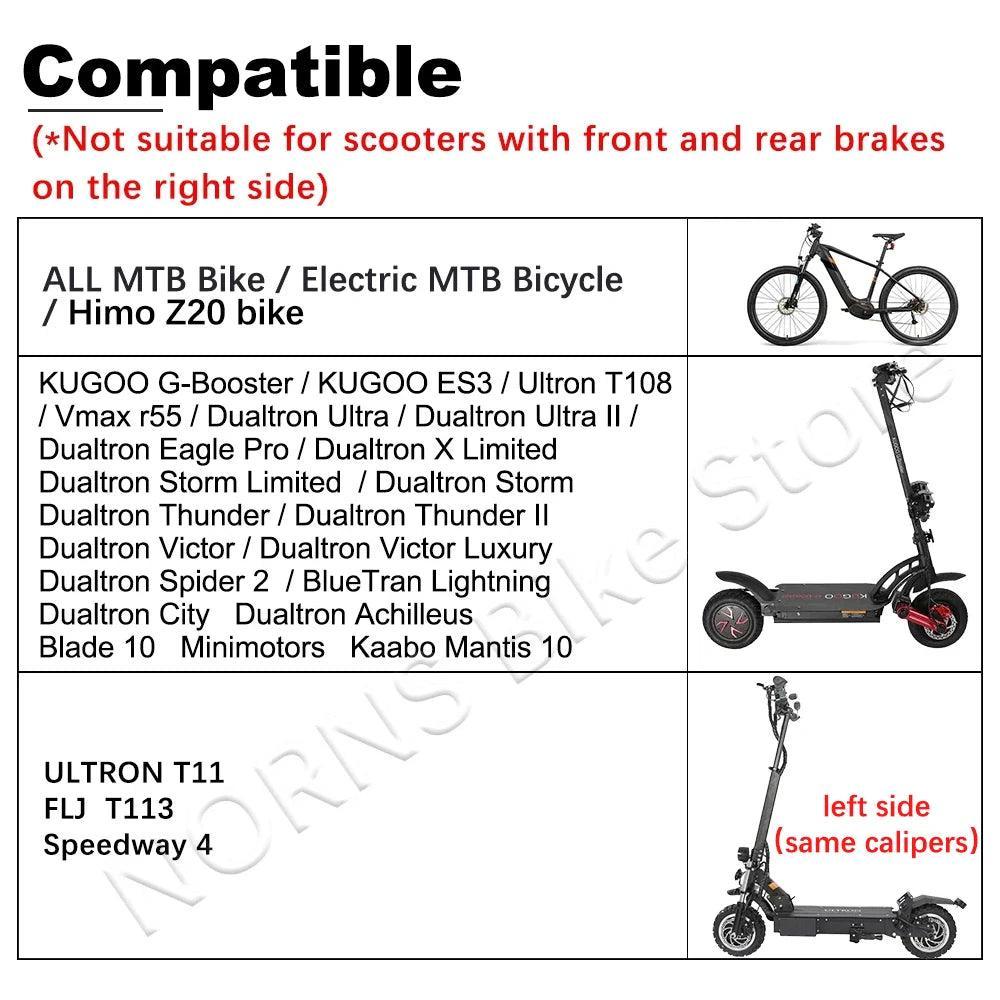

Compatible Bike

①ALL MTB Bike / Electric MTB Bicycle/ Himo Z20

② Compatible Some Scooter

TThe oil pipes for the front and rear brakes extend from the left side of the caliper, and the caliper is the same

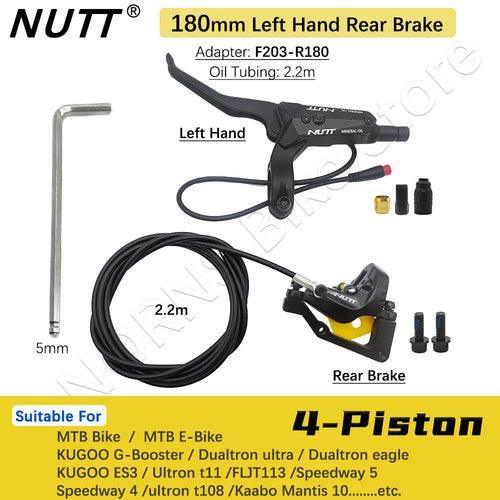

When the Rear Brake are on the Left Side of scooter.
they are limited to this same angle of installation ⬇⬇：

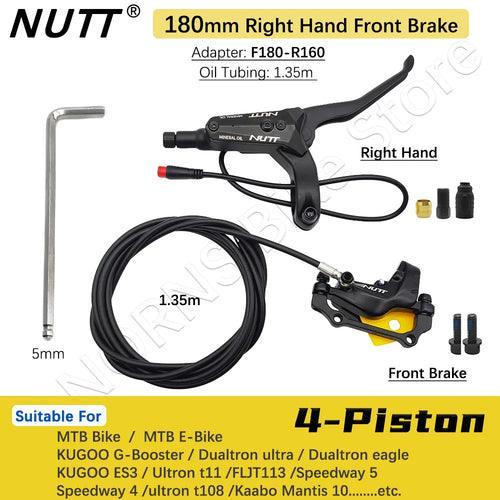

  When the Front Brake are on the Right Side of scooter.
they are limited to this same angle of installation ⬇:

When the Front & Rear wheel brakes are on the left side.
they are limited to this same angle of installation (Not suitable for scooters with front and rear brakes on the right side)

【Attention】:

① Do not remove the yellow protector and press the brake lever before installing the brake, as this will damage the brake. Please fully install it on the scooter before pressing the brake lever for testing

②The brake has been filled with oil, so it is not necessary to fill it for the first installation. Please connect the brake lever in the order shown in the video, and be careful not to let the oil flow out when connecting

③ The original brake pads are already installed in the caliper, so there is no need to install the brake pads when using it for the first time. If you want spare brake pads, you can purchase them additionally.

The following brake pads are original brake pads, which are included in the caliper. If you need replaceable brake pads, you can purchase cooling brake pads separately in this link
